Compare SXDOOL cabinet filter-fan kits, louvers and ventilation assemblies for electrical enclosures and control panels. Start with the panel cutout, mounting depth, available supply and access for filter replacement.
Distinguish a complete filter-fan kit from a replacement fan. The fan frame size is not the panel cutout, and free-air fan data does not establish airflow through a filter and enclosure. For a DC kit selection route, review the 803EC12038 DC filter-fan kit and confirm the exact fan configuration and included parts.
Check the control-cabinet selection guidance, then send the cutout drawing, ambient conditions, supply, airflow requirement and complete-kit or replacement-part scope with your cabinet ventilation RFQ. Verify protection requirements against the complete installed assembly and its applicable documentation.

Showing all 12 results

SXDOOL #803 Black 150x150mm IP54 Filter Fan Kit

SXDOOL #803 Black 150x150mm IP54 Filter Fan Kit. Black #803 150x150mm IP54 enclosure filter fan kit for control cabinets. Confirm 115V/230V, cutout, airflow direction and quantity. Source-factory OEM/ODM customization and batch RFQ review are available.

SXDOOL #803 White 150x150mm IP54 Filter Fan Kit

SXDOOL #803 White 150x150mm IP54 Filter Fan Kit. White #803 150x150mm IP54 enclosure filter fan kit for control cabinets. Confirm 115V/230V, cutout, airflow direction and quantity. Source-factory OEM/ODM customization and batch RFQ review are available.

SXDOOL 205mm IP54 EC Enclosure Filter Fan Kit

SXDOOL 205mm IP54 EC Enclosure Filter Fan Kit. 205mm IP54 enclosure filter fan kit with a 172mm EC fan and 115V/230V options. RFQ covers cutout, airflow, filter media and color. Source-factory OEM/ODM customization and batch RFQ review are available.

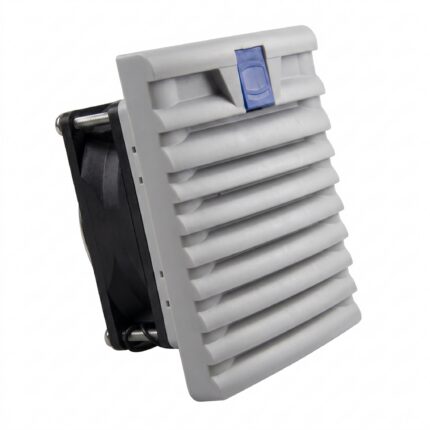

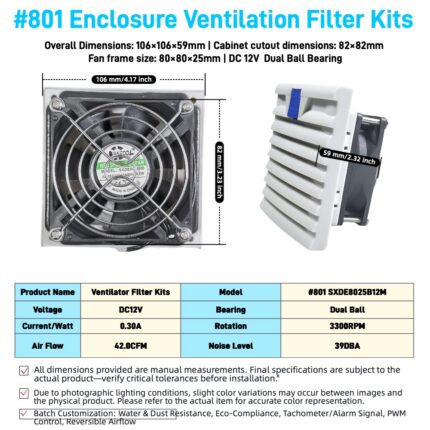

SXDOOL 801EC8025 IP54 Filter Fan Kit | 80mm

801EC8025 IP54 enclosure filter fan kit for compact cabinet ventilation where mounting depth is limited. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 42.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

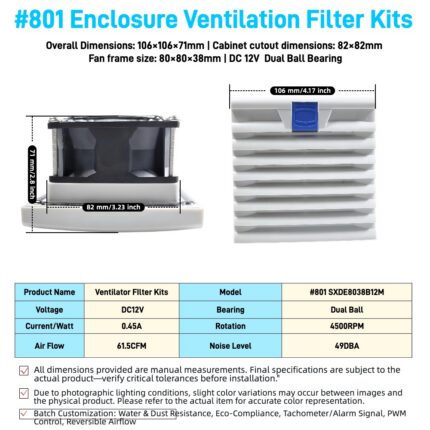

SXDOOL 801EC8038 IP54 Filter Fan Kit 80x80x38mm

801EC8038 IP54 enclosure filter fan kit for compact control cabinets that need more airflow from the same 801-series panel opening. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 83.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

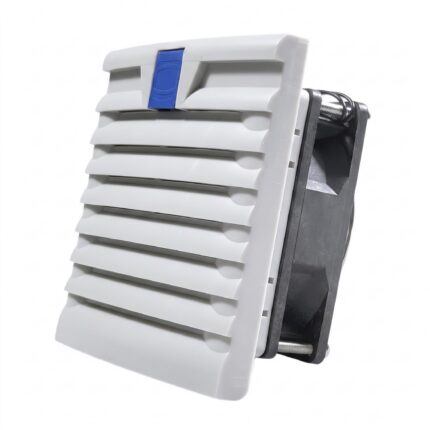

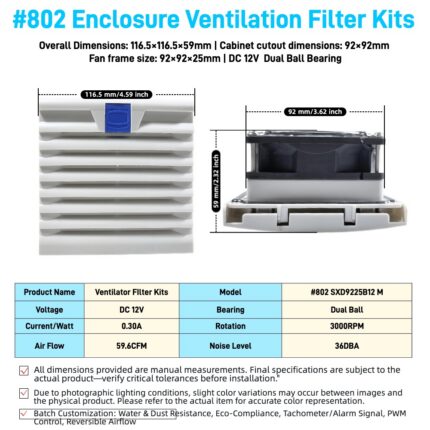

SXDOOL 802EC9225 IP54 Filter Fan Kit 92x92x25mm

802EC9225 IP54 enclosure filter fan kit for medium-small PLC and automation cabinets where a shallow 92 mm fan platform is preferred. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 74 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

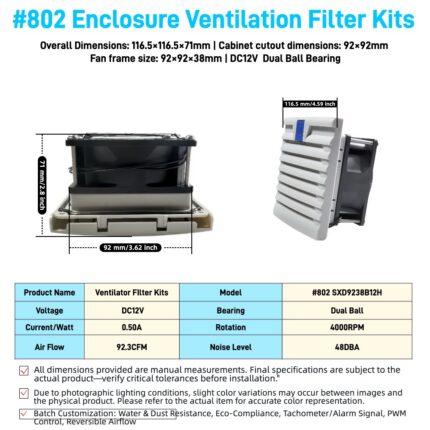

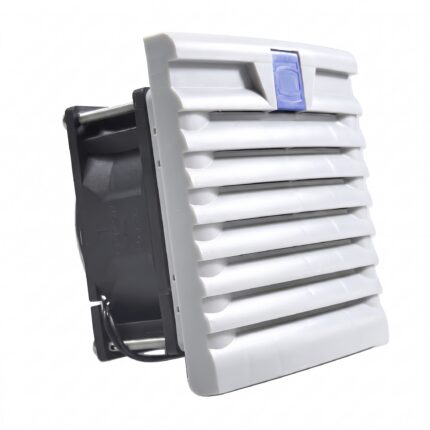

SXDOOL 802EC9238 IP54 Filter Fan Kit 92x92x38mm

802EC9238 IP54 enclosure filter fan kit for medium-small electrical enclosures that need higher airflow from the 802-series format. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 100.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

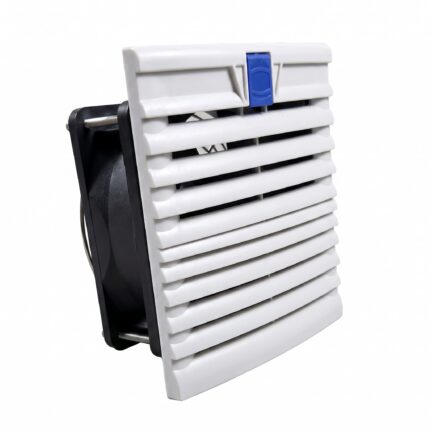

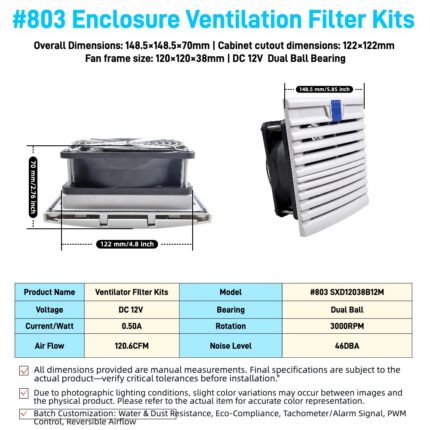

SXDOOL 803EC12038 IP54 Filter Fan Kit | 12038

803EC12038 IP54 enclosure filter fan kit for industrial panels that need higher DC airflow from a 120 mm fan platform. Select 12V DC, 24V DC; fan-rated airflow reaches 142.6 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

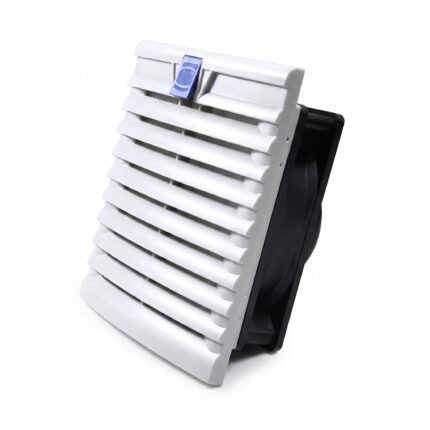

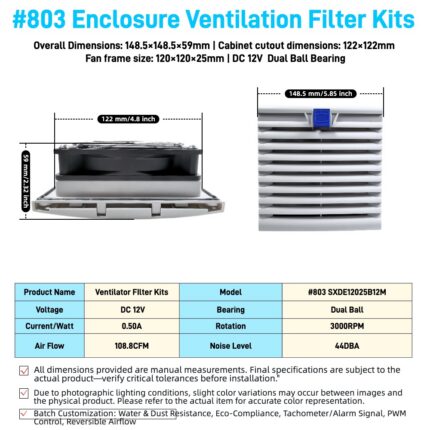

SXDOOL 803EC1225 IP54 Filter Fan Kit | 12025

803EC1225 IP54 enclosure filter fan kit for control cabinets that need a 120 mm fan platform with reduced installation depth. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 135.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

SXDOOL 804 Enclosure Filter Fan Kit with Rain Hood and Thermostat, 206 × 206 × 136 mm

Fit a filtered intake and rain hood to a 175 × 175 mm cabinet cutout. This kit pairs a preassembled EC filter fan with an SXD011 thermostat, a CH-2 connector and a 1.5 m US power cord.

Low minimum order quantities and short production lead times are available for OEM builds. Ask about cable, connector, label and packaging options or request pricing for a production run. Request a quote for the 804 kit.

804-SXDE17251HB-KITKit part number
206 × 206 × 136 mmOverall dimensions
175 × 175 mmPanel cutout
115 / 230 V ACFan supply, 50/60 Hz

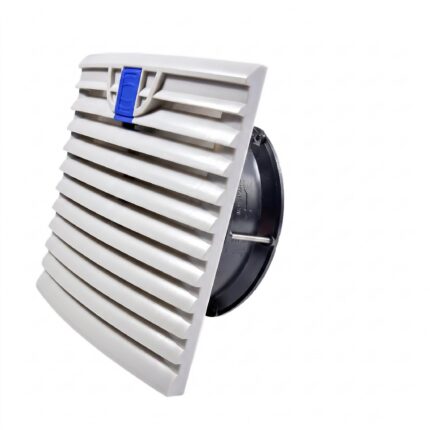

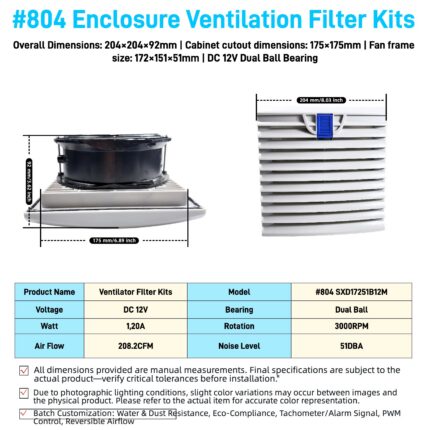

SXDOOL 804EC17251 IP54 Filter Fan Kit | 172mm

804EC17251 IP54 enclosure filter fan kit for larger electrical cabinets and switchgear requiring up to 208.2 CFM fan-rated airflow. Select 12V DC, 24V DC; fan-rated airflow reaches 208.2 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.

Request engineering and quotation review

SXDOOL SXDE1238MB KITS Outdoor Electrical Enclosure Fan Kit with Curved Rain Hood, 120 mm EC Fan, Adjustable 0–60°C Thermostat and 1.5 m US Power Cord

SXDE1238MB KITS 120 mm EC enclosure ventilation kit with curved rain hood, SXD011 0–60°C mechanical thermostat and one 1.5 m US-style power cord. Standard fan reference: 3,000 RPM, 126 CFM, 5 W rated / 8 W max, 44 dBA operating-noise reference.
