SXDOOL 801EC8038 IP54 Filter Fan Kit 80x80x38mm
801EC8038 IP54 enclosure filter fan kit for compact control cabinets that need more airflow from the same 801-series panel opening. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 83.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.
801EC8038 IP54 enclosure filter fan kit: quick answer

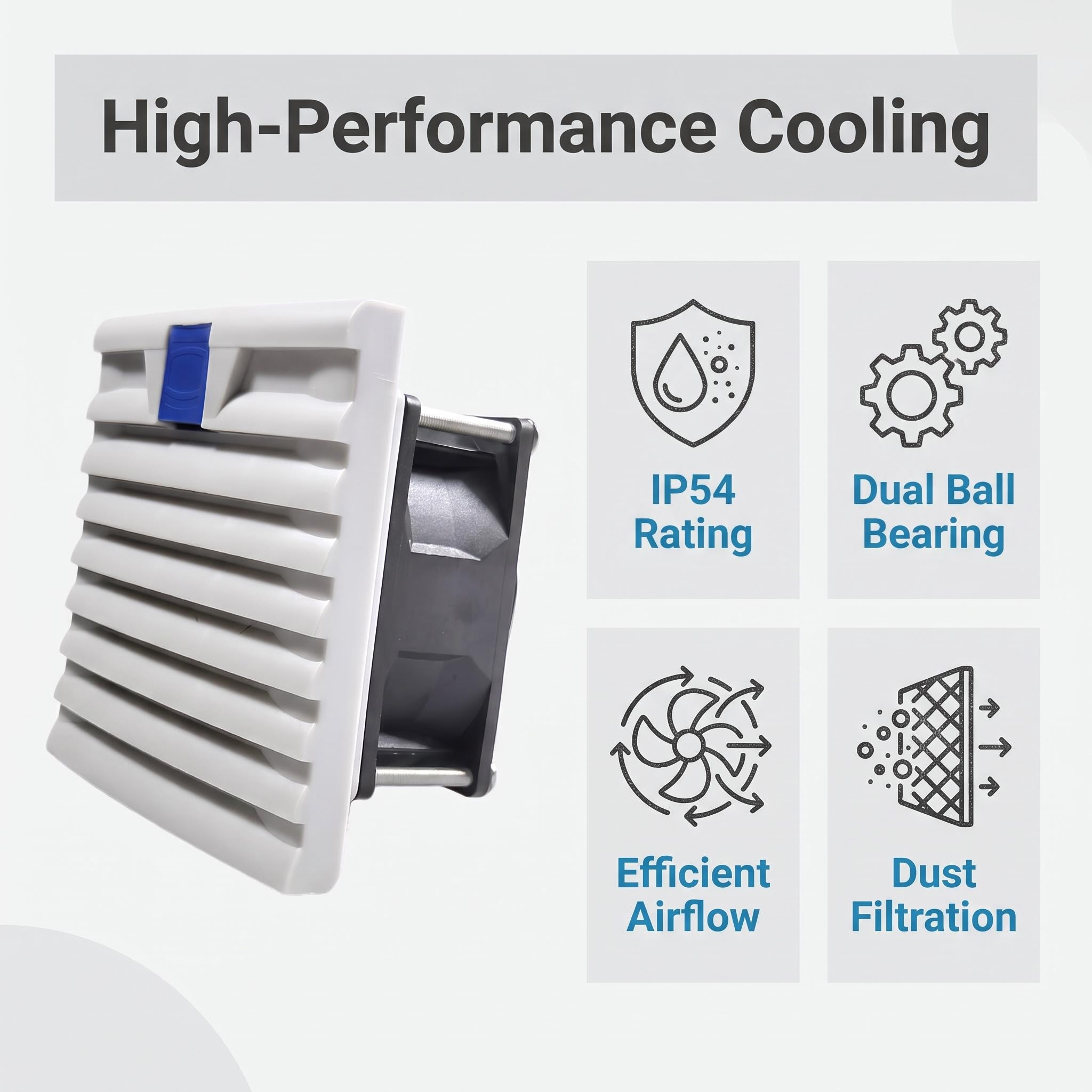

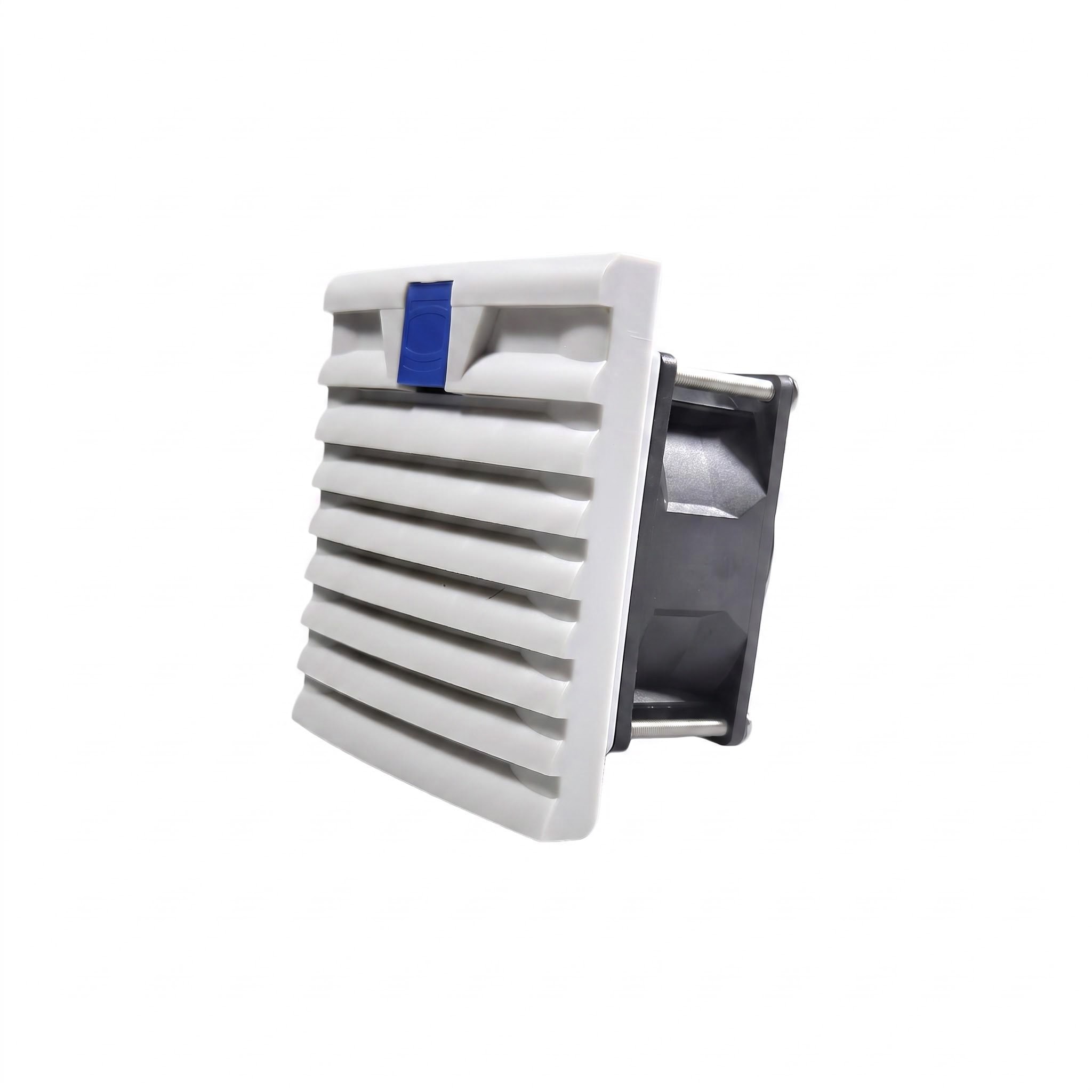

The SXDOOL 801EC8038 is a panel-mounted cabinet ventilation kit built around a 80 x 80 x 38 mm dual-ball-bearing axial fan. It combines forced airflow, a louvered grille, removable filter media, perimeter sealing and a quick-release front latch. It is designed for open-loop ventilation where the surrounding air is cooler and suitable for the equipment.
| Model | 801EC8038 |
|---|---|
| Series | SXDOOL 801 Series, IP54 new version |
| Fan frame | 80 x 80 x 38 mm |
| Installed front face | 106 x 106 mm |
| Required panel cutout | 82 x 82 mm; measure the actual product before final cabinet machining |
| Voltage options | 12V DC, 24V DC, 115/230V AC, 50/60 Hz |
| Fan-rated airflow | 42.5-83.5 CFM, depending on voltage version |
| Bearing | Dual ball bearing |
| Protection | IP54 when correctly installed: IP5X dust-protected and IPX4 protected against splashing water |
| Manufacturer | SXDOOL / SENSDA ELECTRONICS LIMITED |
| Package | Filter fan kit ×1, mounting screws ×4, terminal block ×1 |
Which 801EC8038 voltage should an engineer choose?
Choose 12V DC or 24V DC only when the cabinet provides the matching low-voltage DC supply. Choose the 115/230V AC model for a compatible mains-powered cabinet, and follow the product label and wiring instructions.
| SKU | Supply | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|

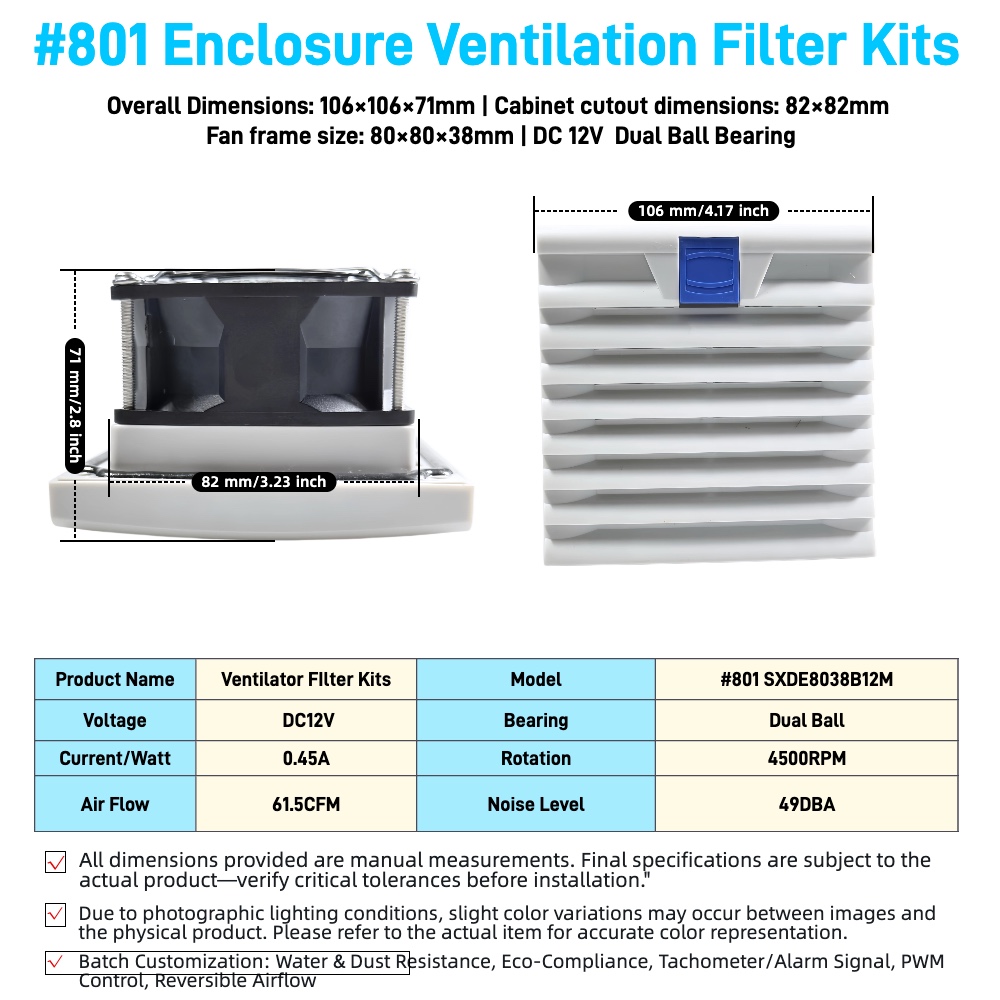

| 801EC8038-12V | 12V DC | 61.5 CFM | 4500 RPM | 0.45 A | 49 dBA |
| 801EC8038-24V | 24V DC | 83.5 CFM | 6000 RPM | 0.45 A | 57 dBA |
| 801EC8038-AC | 115/230V AC, 50/60 Hz | 42.5 CFM | 3500 RPM | 5 W | 34 dBA |
Selection rule: voltage versions are not interchangeable. Check the cabinet supply, label, polarity or AC wiring instructions, airflow target and allowable noise before ordering.
When is this enclosure ventilation kit a good fit?

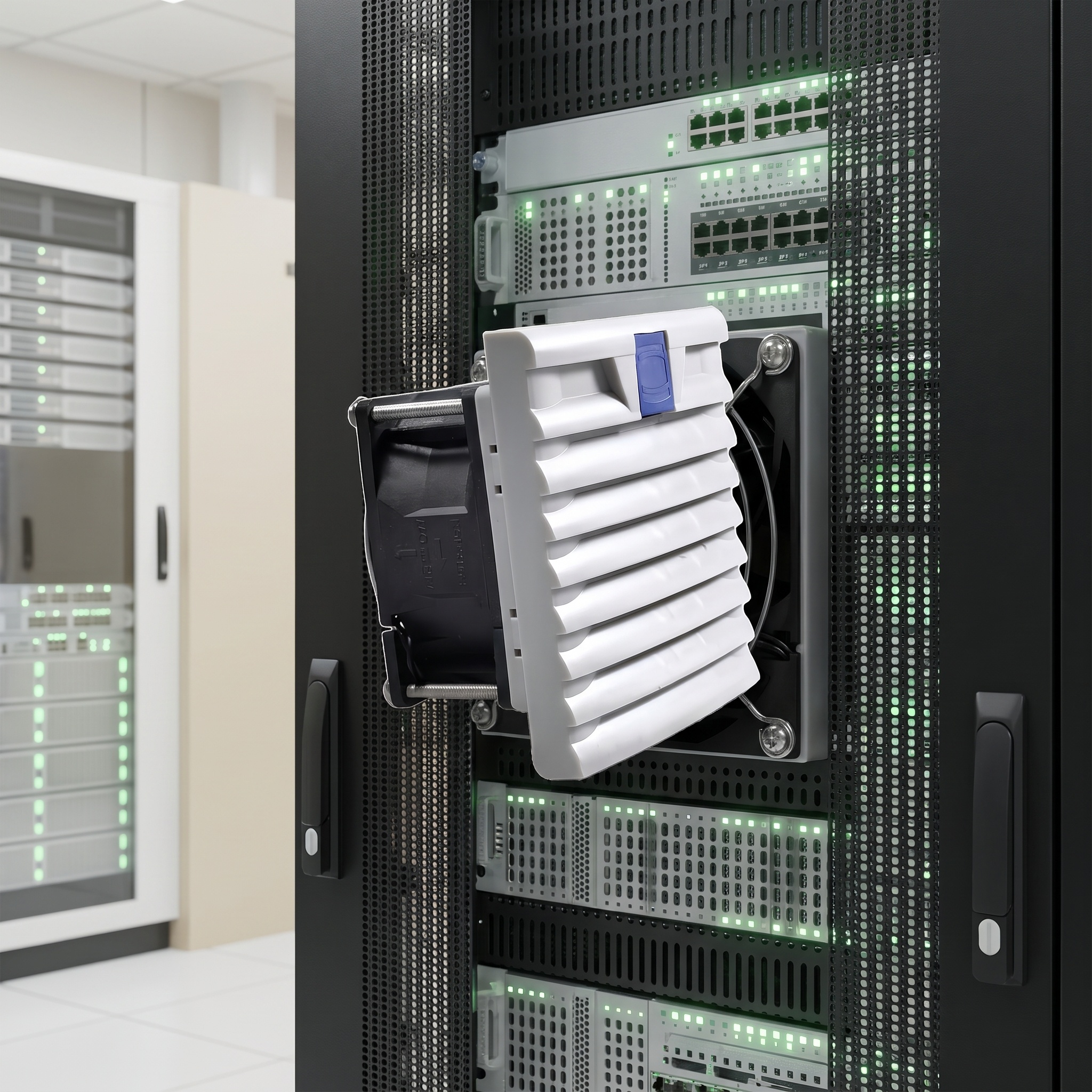

- Electrical control cabinets, PLC panels, automation boxes and electronics enclosures using open-loop ventilation.
- Projects that need compact control cabinets that need more airflow from the same 801-series panel opening.
- Panels requiring front filter access for inspection, cleaning or replacement.
- OEM and batch procurement projects that need cable, terminal, label, filter-media, grille-color or packaging review.
Do not use open-loop ventilation when ambient air is hotter than the enclosure target, corrosive, heavily contaminated or otherwise unsuitable. In those environments, evaluate a properly engineered sealed-loop cooling system.

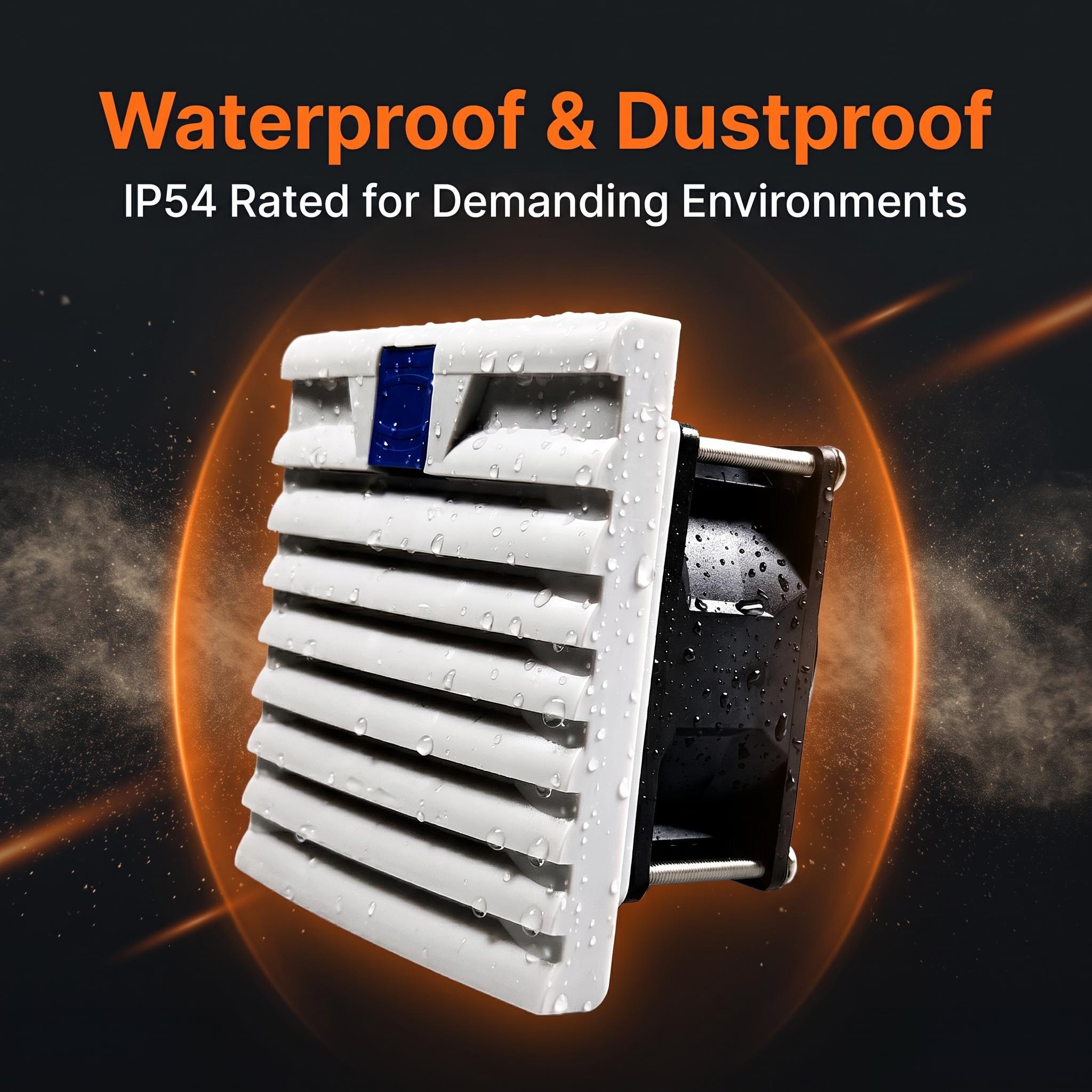

What does IP54 mean for this filter fan?
IP54 means the installed assembly is dust-protected under IP5X and protected against splashing water under IPX4. It does not mean waterproof, dust-tight, immersion-rated or suitable for direct high-pressure washdown. Correct protection depends on a flat panel, the specified cutout, full gasket contact and correct installation.
Installation and maintenance checklist
- Disconnect power and confirm the cabinet can be safely machined.

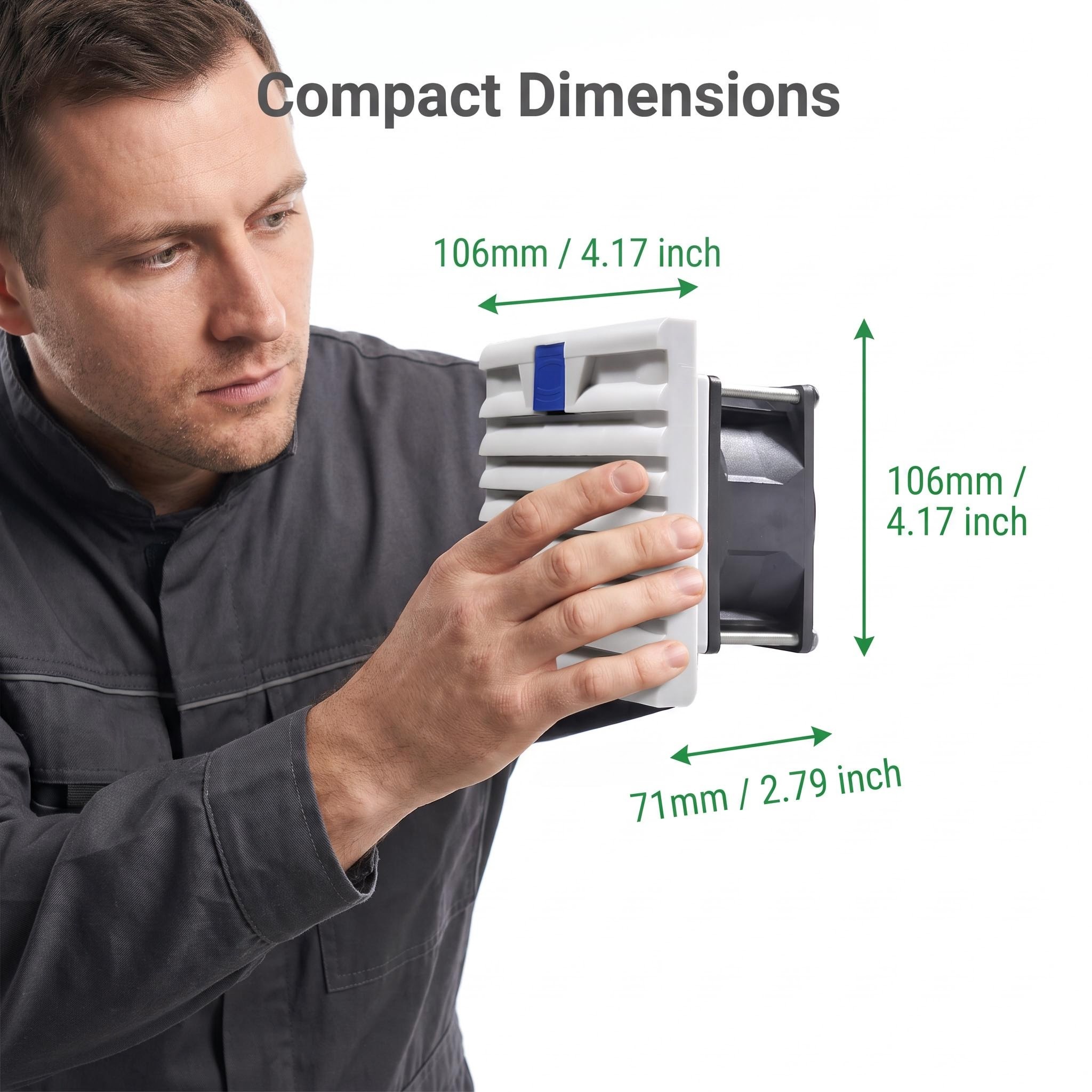

- Verify the 82 x 82 mm panel opening, 106 x 106 mm front clearance and available internal depth before cutting.
- Install on a flat surface with continuous gasket contact and the intended airflow direction.
- Wire only the selected 12V DC, 24V DC, 115/230V AC, 50/60 Hz version according to its product label.

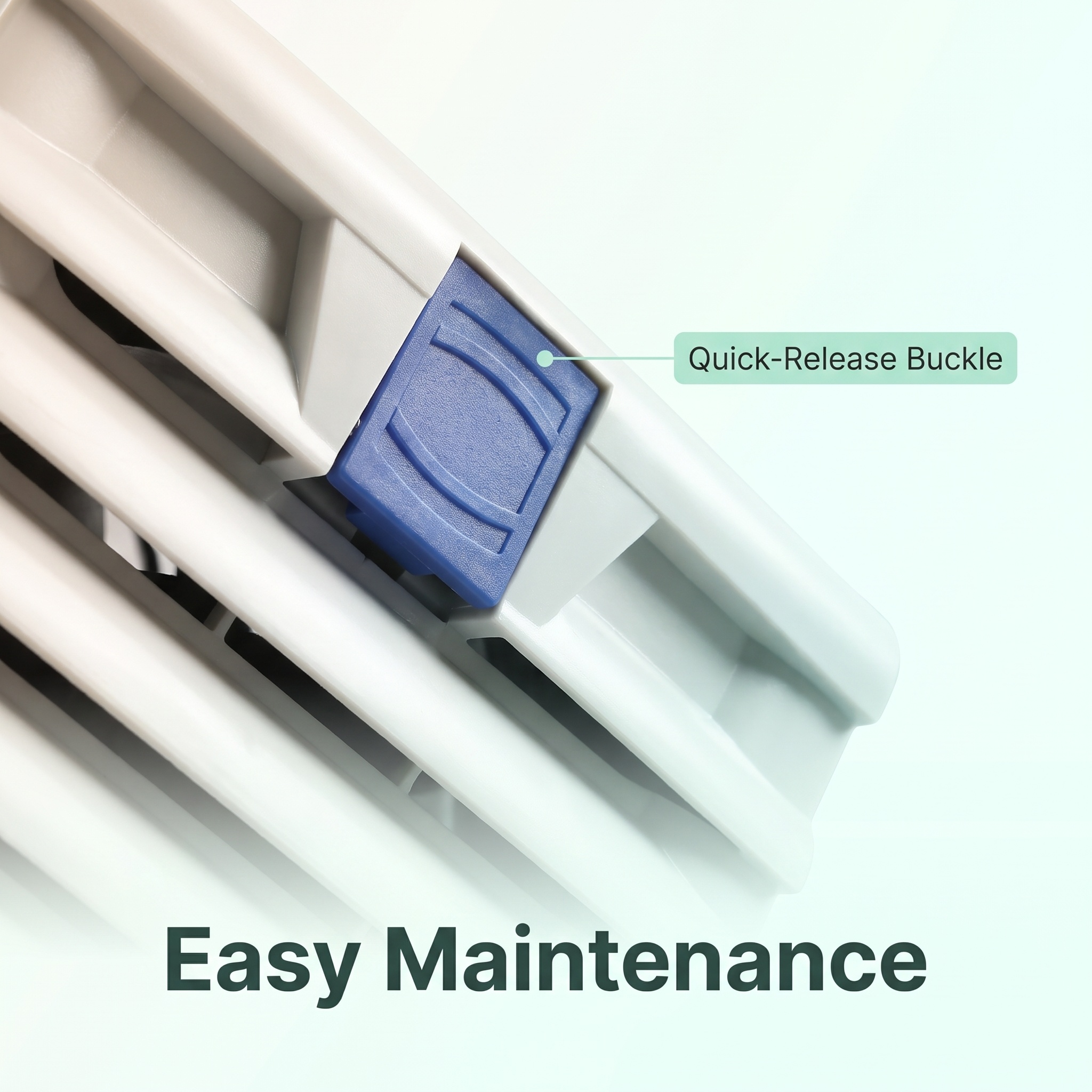

- Use the blue quick-release latch to inspect and replace the filter pad without removing the fan assembly from the panel.
Factory RFQ and technical review
For a fast response, include the selected child SKU, supply voltage, cabinet cutout, airflow target, airflow direction, filter requirement and quantity. Use the SXDOOL RFQ form, the fan selector, or browse all cabinet ventilator filter units.
SXDOOL 801EC8038 IP54 enclosure filter fan kit

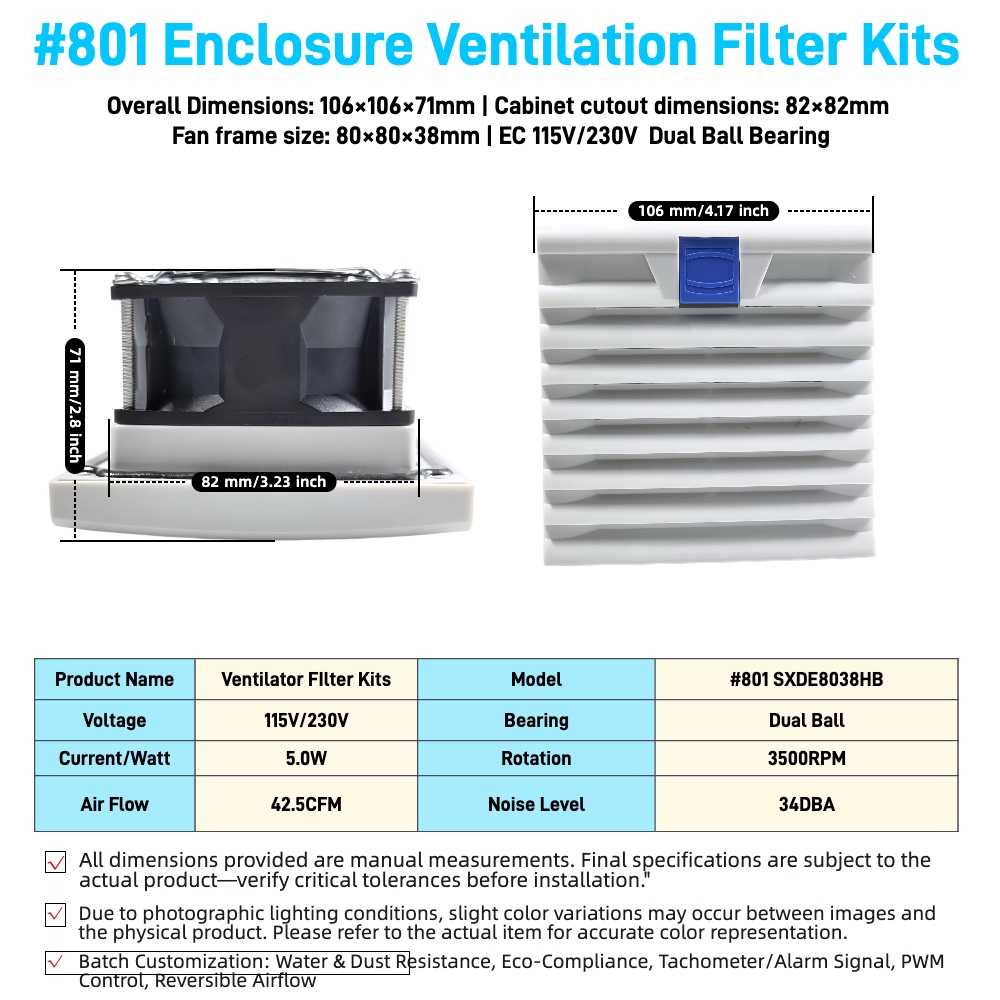

Engineering summary: This assembly combines an 80x80x38mm fan platform with a 106x106mm front face and 82x82mm recommended panel cutout. DC and AC-input configurations have different operating points and must be selected as complete assemblies, not treated as interchangeable motors.
| Assembly reference | 801EC8038 enclosure filter fan assembly |
|---|---|
| Assembly dimensions | Fan frame 80x80x38mm; front face 106x106mm; recommended panel cutout 82x82mm |
| Voltage choices | 12V DC, 24V DC, or 115/230V AC-input EC configuration; select one approved assembly |
| Bearing | Dual ball bearing on the published assembly configurations |
| Ingress-protection boundary | The IP54 statement applies to the correctly installed complete assembly and depends on panel cutout, gasket, mounting, orientation, and service condition. It is not an IP54 claim for the bare fan. |
| Material / flammability boundary | Fan-family catalog reference: plastic frame and impeller, UL94V-0. The complete kit housing, gasket, and filter-media classification is not universally asserted and must follow the approved assembly specification |
| Static-pressure boundary | No universal numeric static-pressure value is asserted for the complete filter kit. Qualify clean and loaded-filter operating points in the final enclosure |
| Application fit | Compact electrical enclosures and automation panels needing filtered forced ventilation with an 80mm fan frame and a serviceable intake assembly. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | Assembly dimensions and operating points are taken from the current product specification table. Final values, IP scope, materials, wiring, and compliance follow the approved production drawing and validated installed assembly. |
Model and configuration table
| Assembly option | Input | Current / power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| 12V DC assembly | 12V DC | 0.45A | 4500RPM | 61.5CFM | Not asserted for the complete kit | 49dBA |
| 24V DC assembly | 24V DC | 0.45A | 6000RPM | 83.5CFM | Not asserted for the complete kit | 57dBA |
| AC-input EC assembly | 115/230V AC, 50/60Hz | 5W | 3500RPM | 42.5CFM | Not asserted for the complete kit | 34dBA |
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
What installation details determine whether the 801EC8038 assembly can support the stated IP54 result?
Use the recommended 82x82mm panel cutout, flat sealing surface, correct gasket compression, specified fasteners, intended orientation, intact grille and filter media, and the approved panel-thickness range. Re-validate after installation changes.

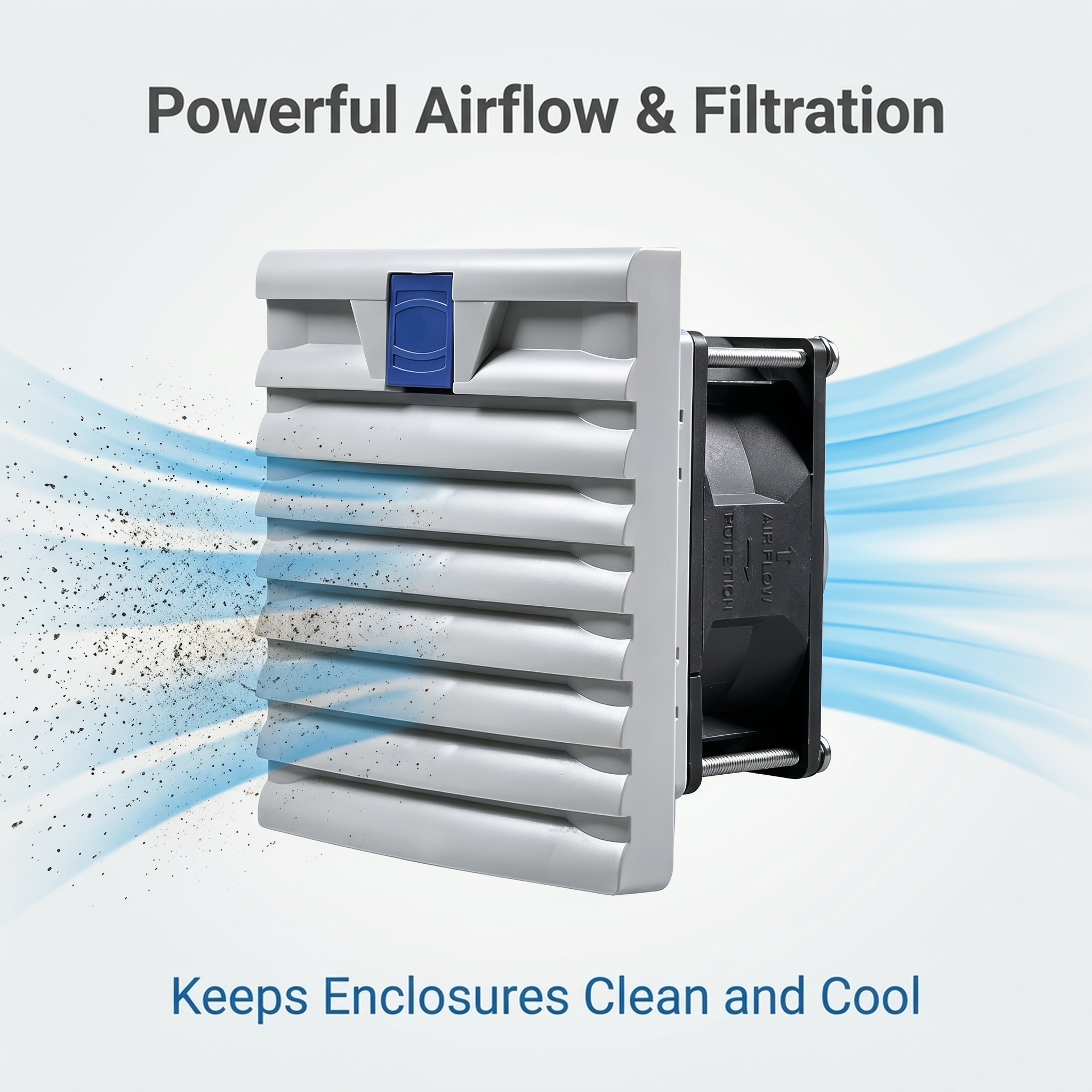

How does a loaded filter affect the published 61.5-83.5CFM DC values?
Those airflow values are product references, not guaranteed dirty-filter cabinet airflow. Dust loading increases resistance and reduces delivered airflow, so define a filter inspection interval and verify cabinet temperature at the end-of-service condition.
When should the 12V, 24V, or AC-input 801EC8038 assembly be selected?
Match the host power architecture first, then compare airflow, current or power, speed, noise, wiring, protection, and service environment. The AC-input EC version cannot be wired as a low-voltage DC fan, and DC versions require voltage-specific controls.
What maintenance evidence should an OEM include for this small filter fan kit?
Document media type, inspection interval, cleaning or replacement method, safe isolation procedure, spare part reference, airflow direction, gasket inspection, and the maximum acceptable cabinet temperature or alarm condition.
Continue with the fan selector, review review the bare 8038 EC fan platform, review enclosure filter fan application guidance, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
