Server Rack Thermal Management

Server Cabinet Cooling Fans for OEM Projects

For server trays, network cabinets and rack power electronics, review airflow at system pressure, equipment inlet temperature and controller compatibility together. SXDOOL can review a fan configuration against your requirements; a shared frame size does not establish a drop-in replacement.

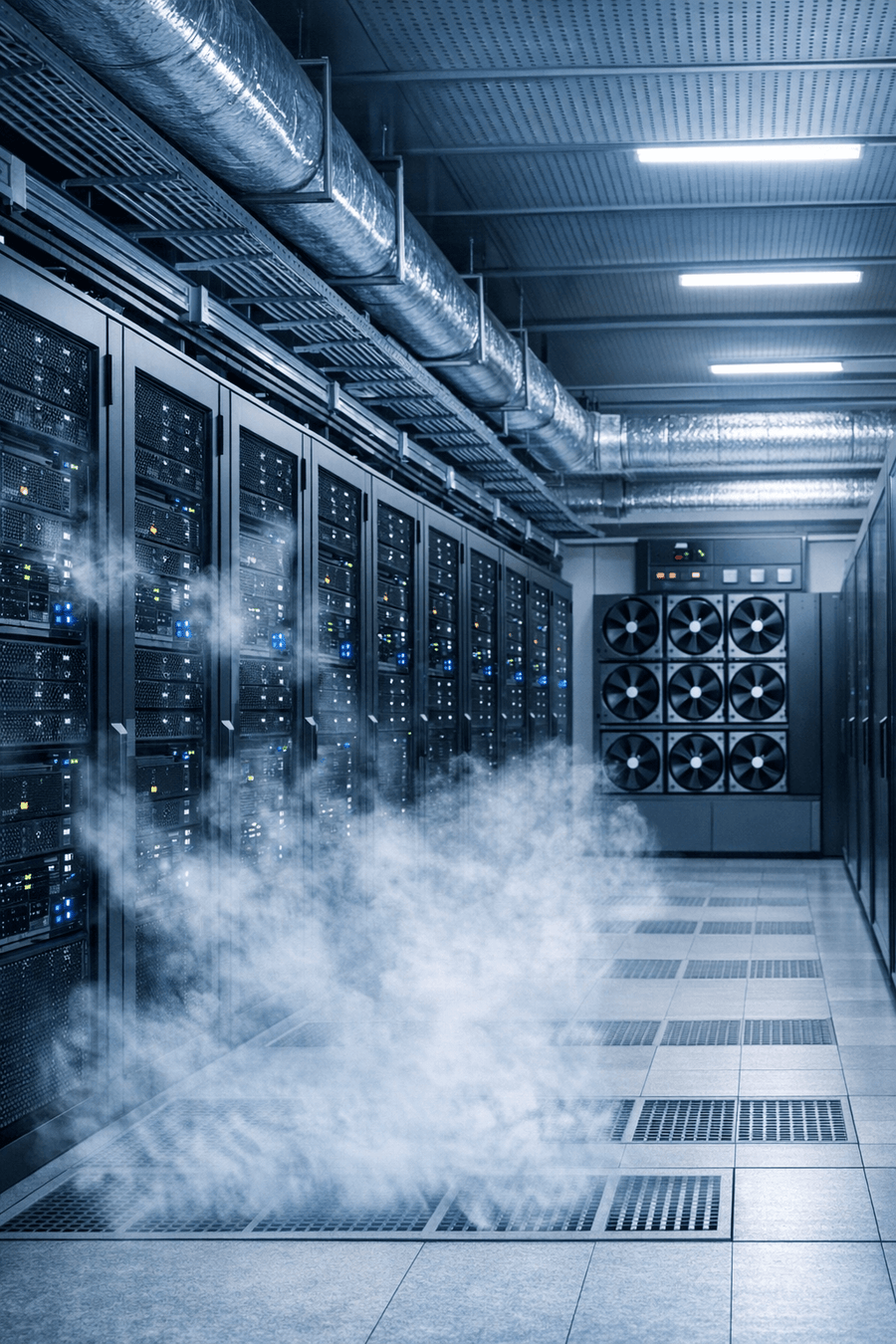

SXDOOL server cabinet cooling fans for rack airflow

Hot Spots Despite High Airflow

  • Check inlet temperature at the equipment, not only the room average.
  • Review bypass gaps, hot-air recirculation, filters and cable obstructions.
  • Provide heat losses and limits for critical components.

Control or Replacement Mismatch

  • Match the full model suffix, mounting drawing and airflow direction.
  • Distinguish PWM input, FG speed feedback and stopped-fan alarm.
  • Specify startup power, pinout and fault response; wire count alone is insufficient.

Noise and Redundancy Tradeoffs

  • Define the acoustic limit and measurement conditions.
  • Check the duty point with clean and loaded filters.
  • Test required one-fan-out behavior in the complete assembly before approval.
Choose the next review by the cooling task:

For equipment-level design, review compact edge-computing node cooling or switch and router chassis cooling. These guides address the device airflow path rather than cabinet ventilation alone.

Use the fan selection guide to compare supply and airflow requirements. For an existing compact fan, the SXD6038B24H-RDP page distinguishes PWM from its RDB alarm; it is not a universal server replacement. For AC-input cabinet airflow, review the 12038 EC platform and confirm the complete model suffix.

Request the matching drawing, pressure-flow curve and interface definition through the document center. Validate the chosen configuration in your enclosure. ASHRAE guidance on equipment inlet conditions provides general design context, not approval of a particular SXDOOL fan.

Can SXDOOL make server cabinet fans with PWM control?

Yes. SXDOOL can support PWM speed control, FG tachometer, RD alarm signal, custom wire length and connector options for server cabinet cooling fan projects.

Does SXDOOL support small-batch server fan orders?

Yes. SXDOOL supports samples, pilot runs and small-batch custom cooling fan projects before stable batch production.



Application engineering

Server cabinet fan selection for high static pressure and redundant airflow

Engineering guide for server cabinet cooling

Maintain front-to-back airflow through dense racks, filters, perforated doors and cable congestion. A reliable design starts with the heat load and the resistance of the complete airflow path. Free-air CFM is not enough when filters, heat sinks, grilles, ducts or densely packed components create pressure loss.

SXDOOL supports project review for server racks, network cabinets, edge data systems and storage enclosures. The objective is to identify a suitable fan family and mounting envelope first, then confirm voltage, operating point, control signal, environment, cable, connector, documentation and sample requirements through RFQ.

Primary engineering problem Maintain front-to-back airflow through dense racks, filters, perforated doors and cable congestion.
Candidate fan platforms High-pressure DC axial fans for server trays; larger EC or cabinet fan platforms for rack and room-side ventilation.
Required project inputs Rack heat load, allowable temperature rise, measured pressure drop, redundancy target, altitude and acoustic boundary.
Control and monitoring PWM fan banks with FG/RD feedback support closed-loop speed control and failure detection.
Environmental boundary Hot-aisle containment, bypass leakage and blanking panels must be considered before increasing fan speed.

Recommended selection sequence

  1. Quantify heat generation and the maximum allowable component or enclosure temperature.
  2. Map the inlet, outlet and internal obstructions, then estimate or measure the pressure drop at the target airflow.
  3. Confirm the available frame, depth, mounting pattern, supply voltage and controller signal interface.
  4. Review ambient temperature, dust, moisture, acoustic limits, service access, life expectation and fault response before approving samples.

server cabinet cooling FAQ

Which fan family should engineers start with for server cabinet cooling?

High-pressure DC axial fans for server trays; larger EC or cabinet fan platforms for rack and room-side ventilation. Start with the airflow path and system resistance, then compare the available frame, voltage and control interface.

Which project data is required to size a fan for server cabinet cooling?

Rack heat load, allowable temperature rise, measured pressure drop, redundancy target, altitude and acoustic boundary. Include target temperature, mounting envelope and expected quantity so a duty point can be reviewed instead of selecting by fan diameter alone.

How should environmental and control requirements be specified for server cabinet cooling?

PWM fan banks with FG/RD feedback support closed-loop speed control and failure detection. Hot-aisle containment, bypass leakage and blanking panels must be considered before increasing fan speed.

Compare the available fan platforms, use the fan selector, review the related engineering resource, or email david@sxdool.com with the application data.
