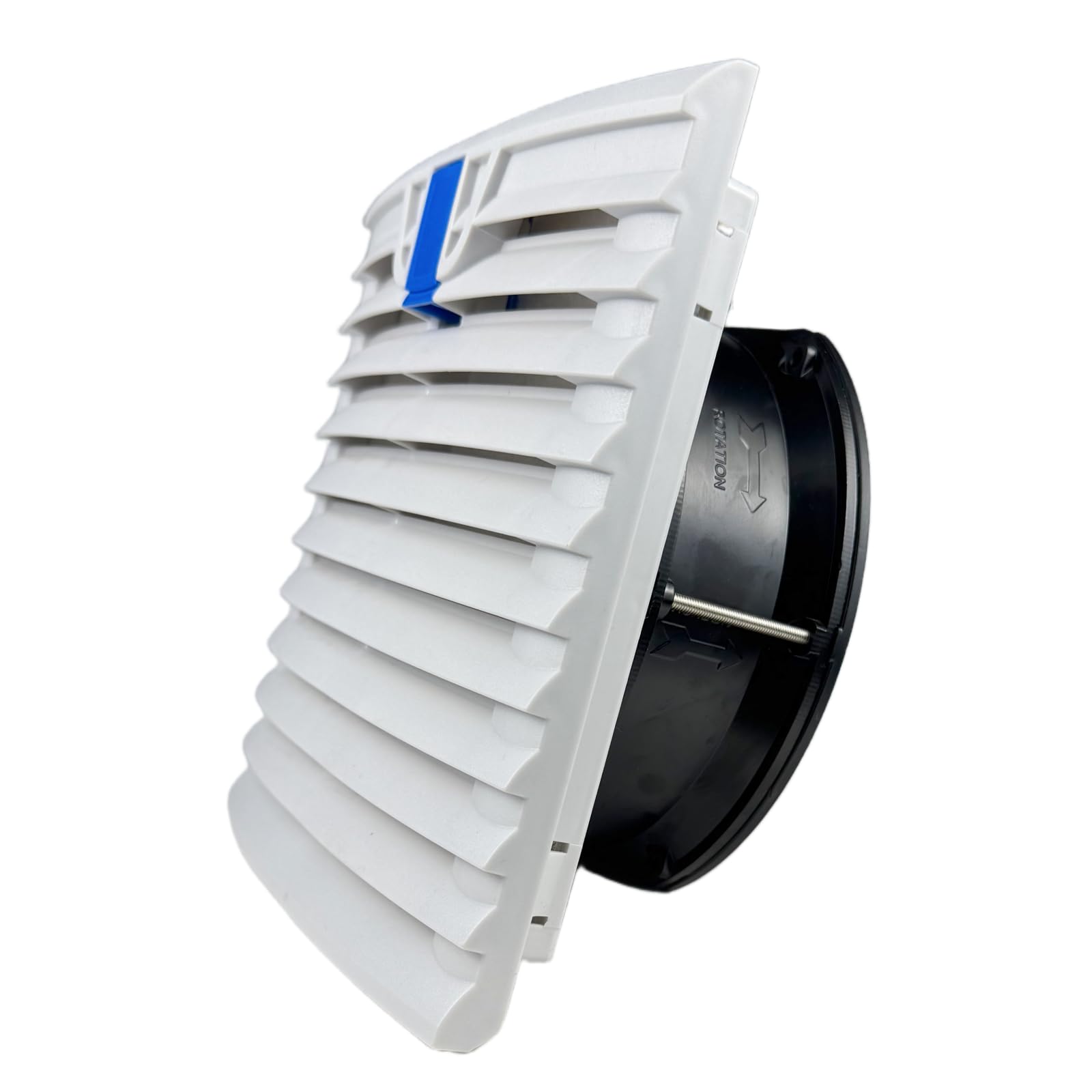

SXDOOL 205mm IP54 EC Enclosure Filter Fan Kit
SXDOOL 205mm IP54 EC Enclosure Filter Fan Kit. 205mm IP54 enclosure filter fan kit with a 172mm EC fan and 115V/230V options. RFQ covers cutout, airflow, filter media and color. Source-factory OEM/ODM customization and batch RFQ review are available.

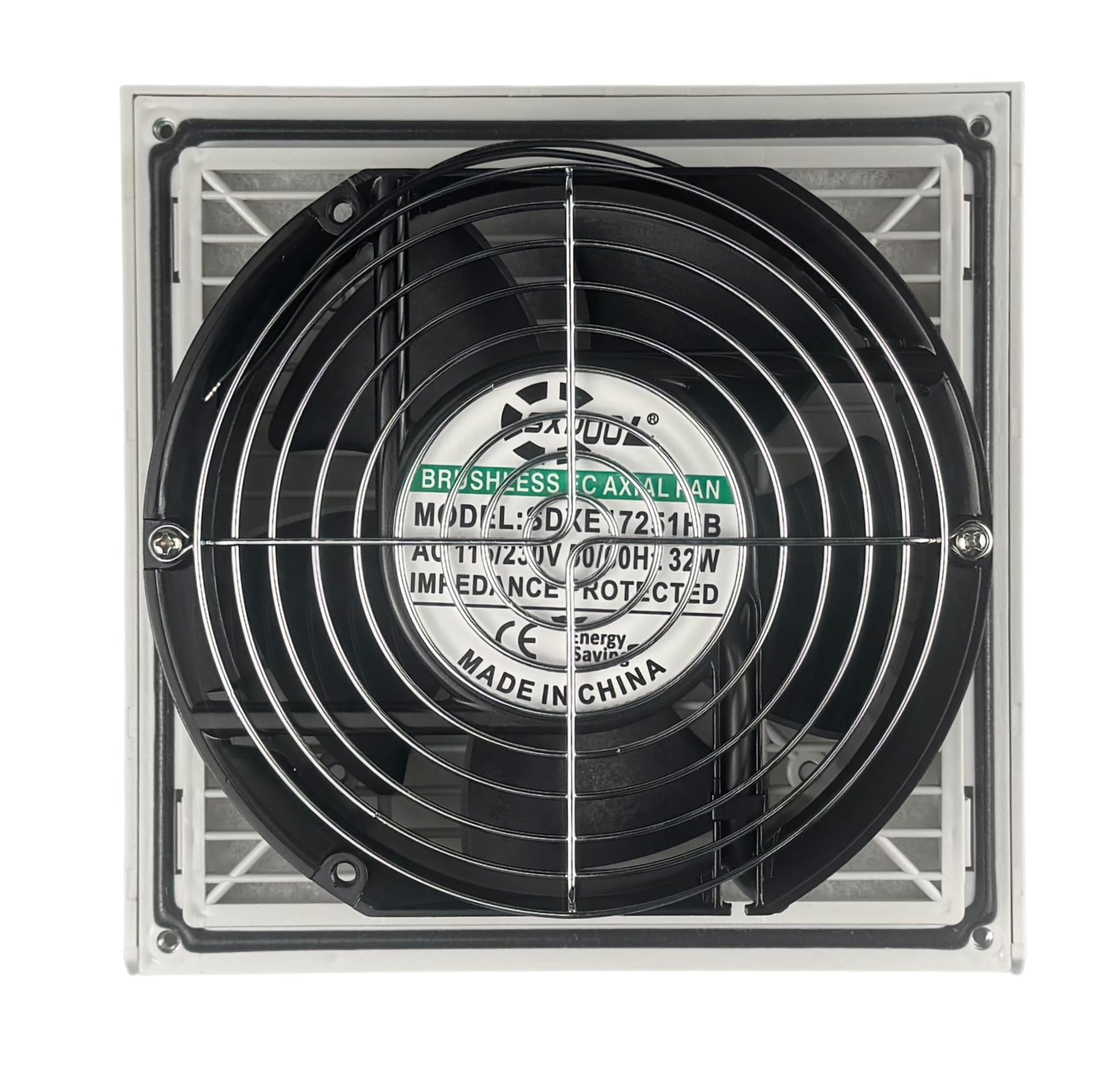

205mm IP54 EC filter fan kit with 172mm core-fan evidence
Engineering summary: This page separates complete-kit evidence from 172 x 150 x 51 mm EC fan-core catalog data. It gives OEM engineers a traceable starting point for 115V or 230V selection without presenting a bare-fan pressure value as the delivered performance of the filtered enclosure assembly.
| Product family | 205mm enclosure filter fan kit |
|---|---|

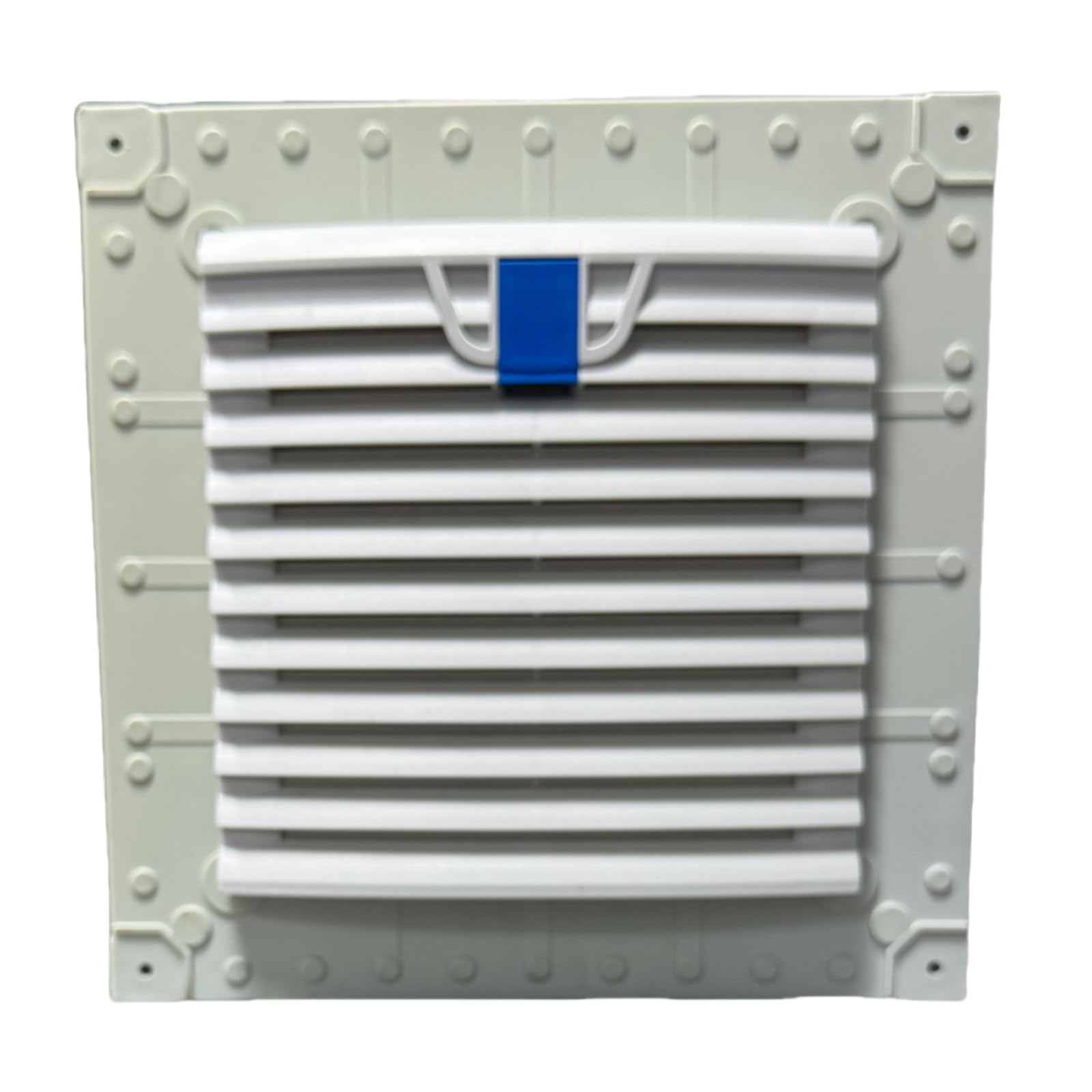

| Nominal front format | 205mm filter grille / enclosure ventilation format |

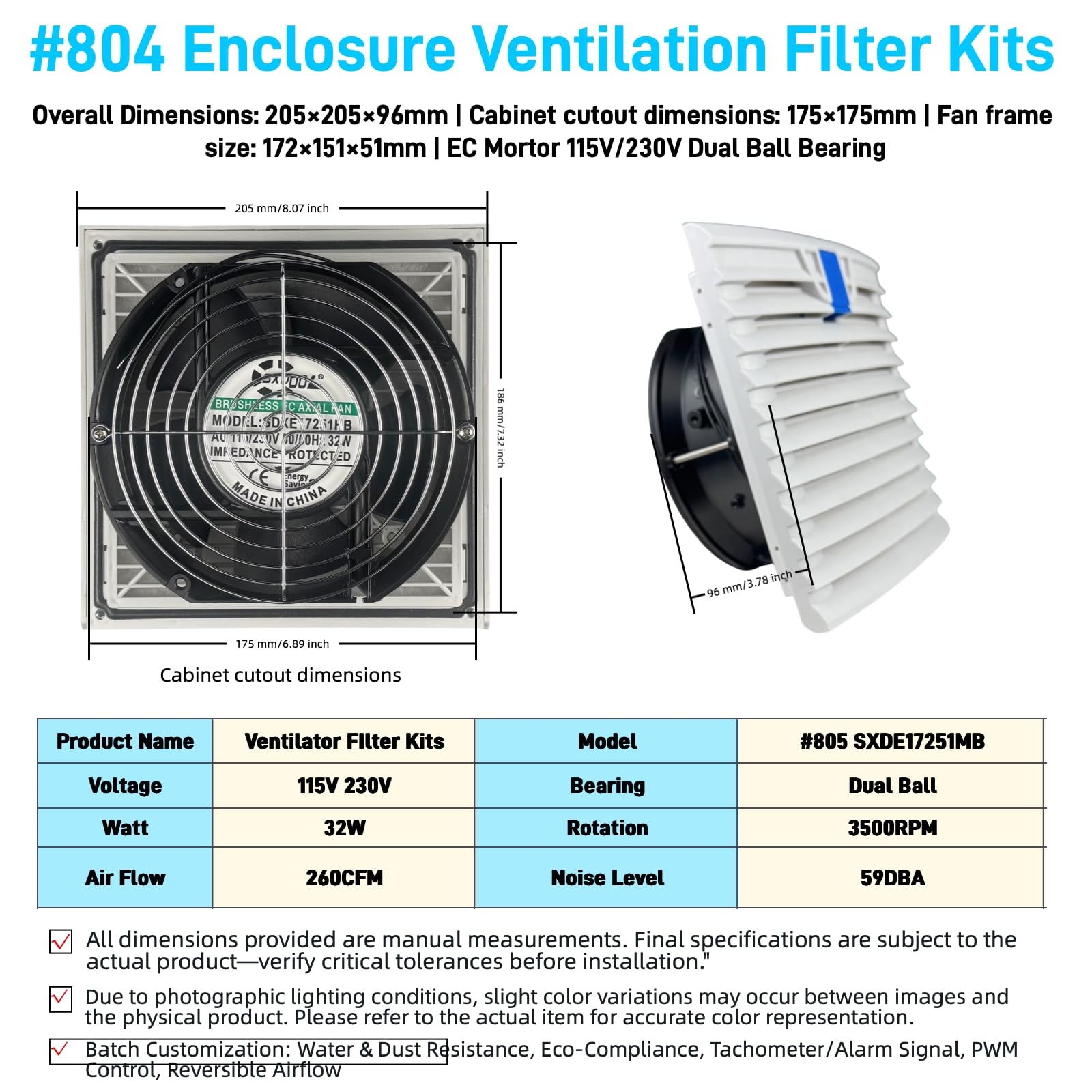

| Fan platform | 172 x 150 x 51 mm EC axial fan family |
| Project input options | 115V or 230V AC-input EC configuration; the exact fan suffix and wiring must be frozen in the approved assembly |

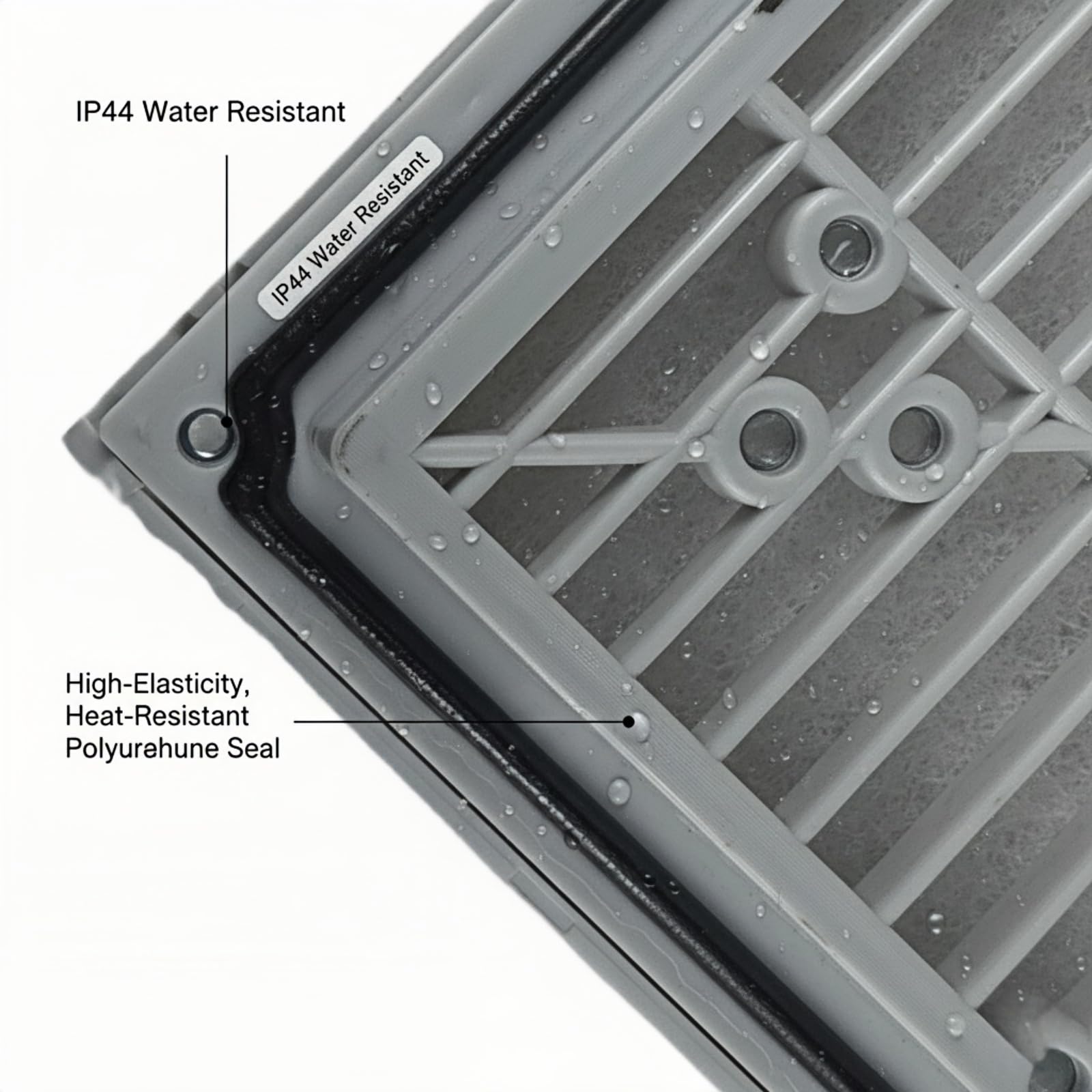

| Protection evidence | IP54 under IEC 60529 for the tested filter fan assembly: IP5X dust-protected and IPX4 splash-water protected |
| Test report | TST20250201498-IPR, Dongguan True Safety Testing Co., Ltd., dated February 27, 2025 |
| Core-fan material / flammability | 172 x 150 x 51 mm EC fan-family catalog reference: plastic frame and impeller, UL94V-0 |
| Core-fan bearing options | Sleeve bearing or ball bearing according to the selected 172 x 150 x 51 mm fan model and approved production specification |
| Core-fan operating reference | -10°C to 70°C and 35% to 85% RH in the 172 x 150 x 51 mm EC fan-family catalog; assembly limits require project confirmation |

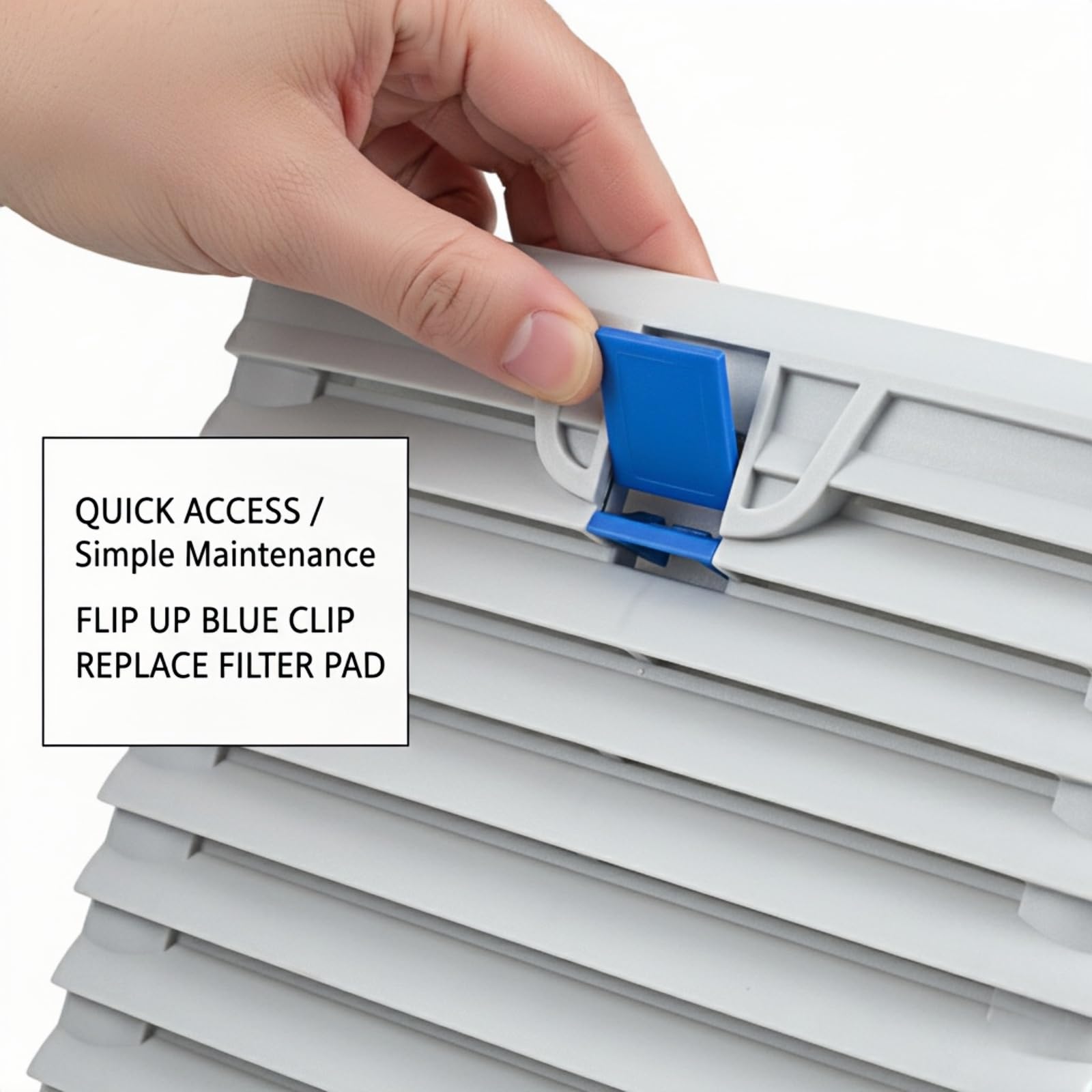

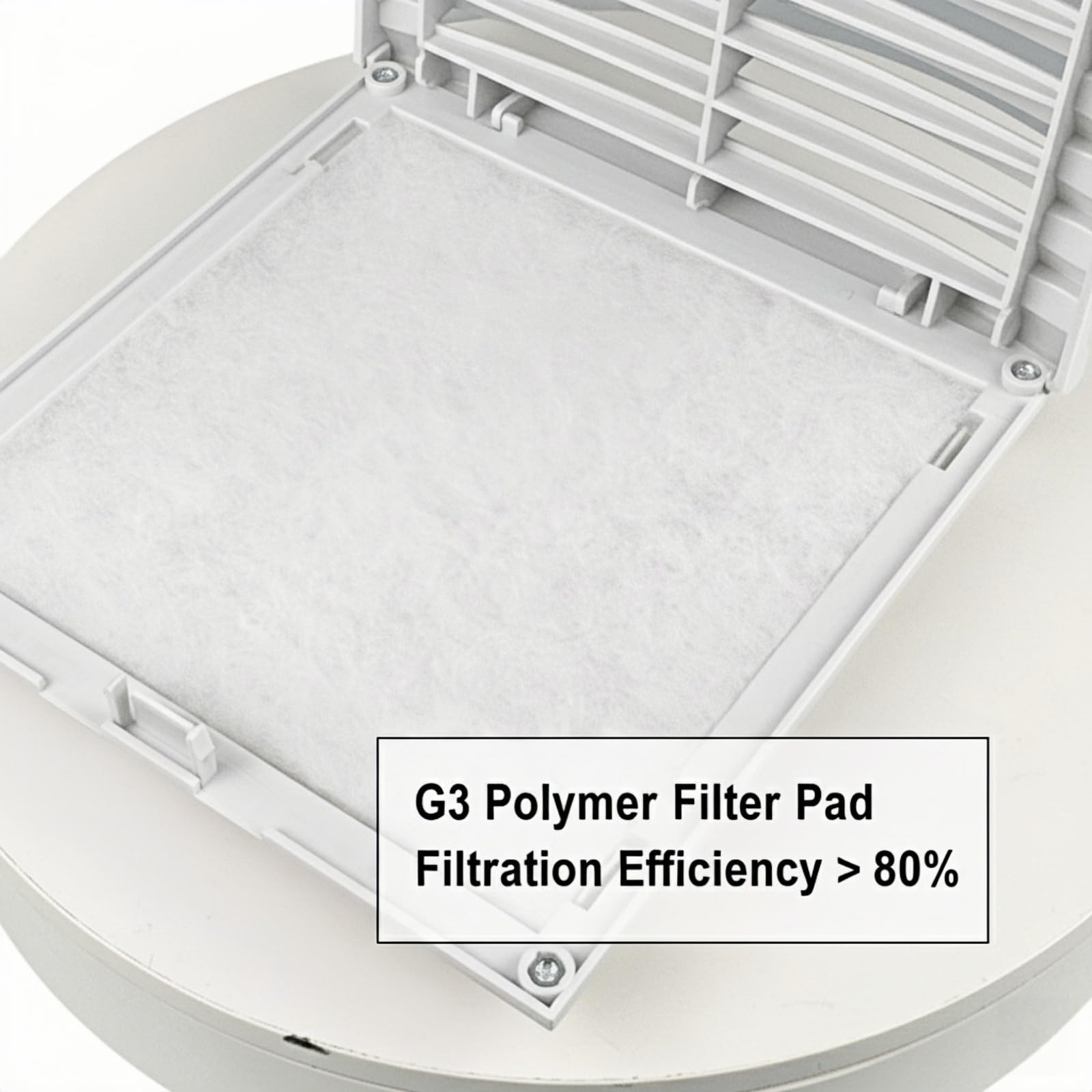

| Kit-material boundary | Grille, gasket, filter medium, colour, and their final material classifications require the approved kit BOM and report scope |
| Assembled airflow / pressure status | No universal assembled-kit CFM or static-pressure rating is asserted. The clean and loaded-filter operating points require sample testing against the target cabinet system curve |
| Best-fit engineering use | Large electrical control cabinets, CNC cabinets, solar-inverter enclosures, power-conversion cabinets, server or telecom equipment, and sheltered industrial installations |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan |
172 x 150 x 51 mm EC core-fan catalog candidates
| Core model | Nominal input | Operating range | Current | Power | Speed | Fan-only airflow | Fan-only static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| SXDE17250DB | 115/230V | 100-264V | 0.32A | 35.0W | 4000 RPM | 297.0 CFM | 24.2 mmH2O | 63 dBA |
| SXDE17250HB | 115/230V | 100-264V | 0.25A | 25.0W | 3500 RPM | 260.0 CFM | 18.5 mmH2O | 59 dBA |
| SXDE17250MB | 115/230V | 100-264V | 0.20A | 20.0W | 3000 RPM | 220.9 CFM | 13.2 mmH2O | 51 dBA |
| SXDE17250LB | 115/230V | 100-264V | 0.15A | 15.0W | 2500 RPM | 185.2 CFM | 9.4 mmH2O | 44 dBA |
Pressure and airflow boundary: These values are fan-core catalog references. They are not the assembled 205mm filter kit operating point, and this page does not confirm which DB, HB, MB, or LB suffix is installed in every kit. The selected fan suffix, filter medium, clean and loaded condition, grille, panel cutout, cabinet restriction, and validated sample govern the released performance.
205mm kit engineering FAQ
Can 24.2 mmH2O be used as the assembled 205mm filter fan kit static-pressure rating?
No. The 24.2 mmH2O value belongs to the SXDE17250DB fan core under its catalog test condition. It is not the assembled 205mm filter kit operating point. The grille, filter medium, dust loading, panel opening, exhaust path, internal obstruction, and cabinet system resistance all change the delivered duty point.
Which 172 x 150 x 51 mm EC fan grade should be selected for this 205mm kit?
Select DB, HB, MB, or LB only after the required cabinet airflow, pressure margin, acoustic limit, input current, thermal load, and clean or loaded-filter system curve are known. The public kit page does not assign one universal suffix to every 115V or 230V assembly.
How should clean-filter and loaded-filter performance be validated before production release?
Test an approved assembly in the intended panel cutout at the target supply and airflow direction. Record cabinet temperature, airflow or pressure, noise, recirculation, and current with a clean filter, then repeat at the defined service-condition pressure loss. Use those results to set the inspection and replacement interval.
What does report TST20250201498-IPR prove, and what remains project-specific?
The report supports IP54 under IEC 60529 for the tested assembly, covering IP5X dust protection and IPX4 splashing-water protection. Cabinet cutout, panel flatness, gasket compression, fasteners, wiring penetrations, installation orientation, modified materials, and the final enclosure still require project review.
Continue with the fan selector, compare the 12V/24V 804EC17251 kit, review the control-cabinet application guide, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
