SXDOOL 802EC9238 IP54 Filter Fan Kit 92x92x38mm
802EC9238 IP54 enclosure filter fan kit for medium-small electrical enclosures that need higher airflow from the 802-series format. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 100.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.
802EC9238 IP54 enclosure filter fan kit: quick answer

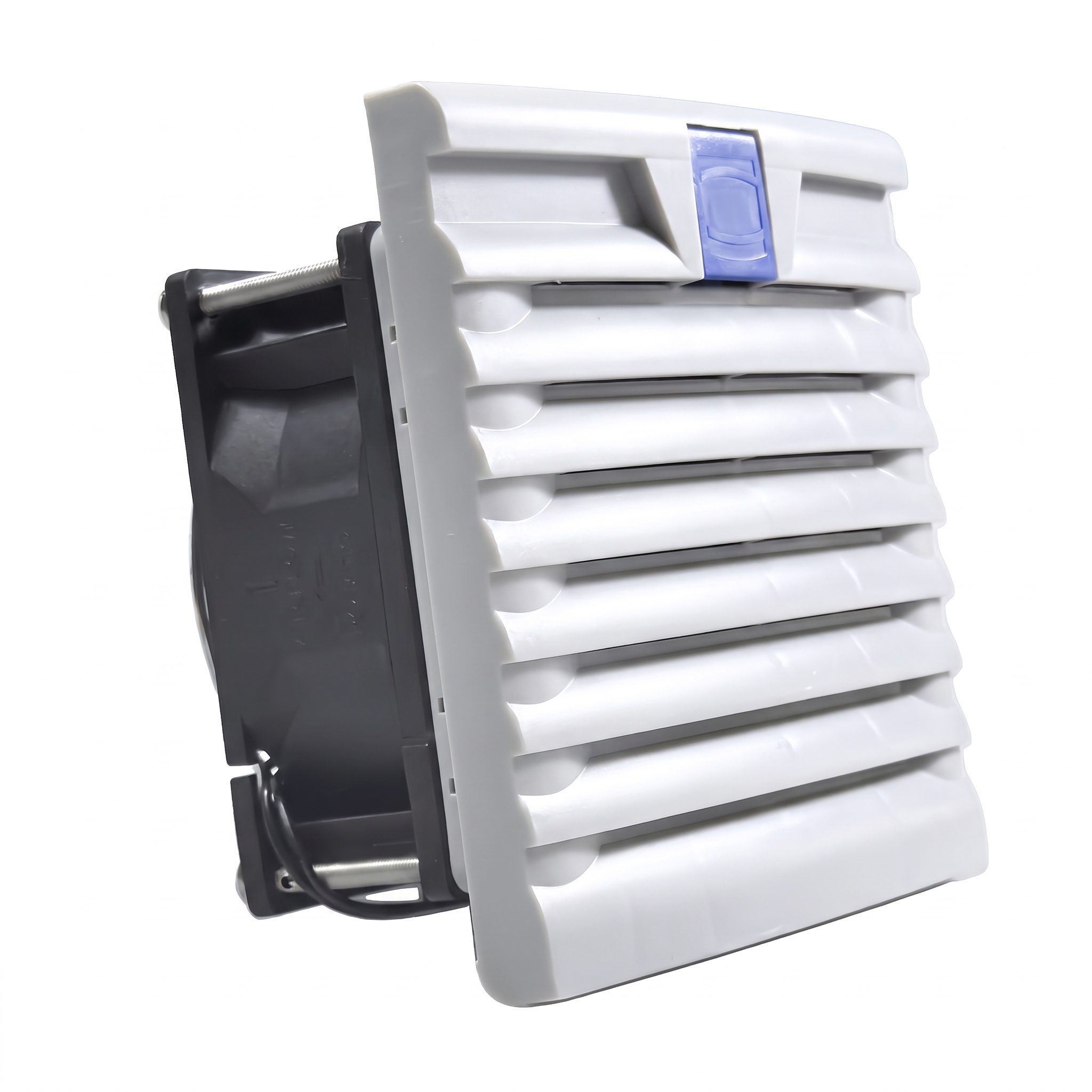

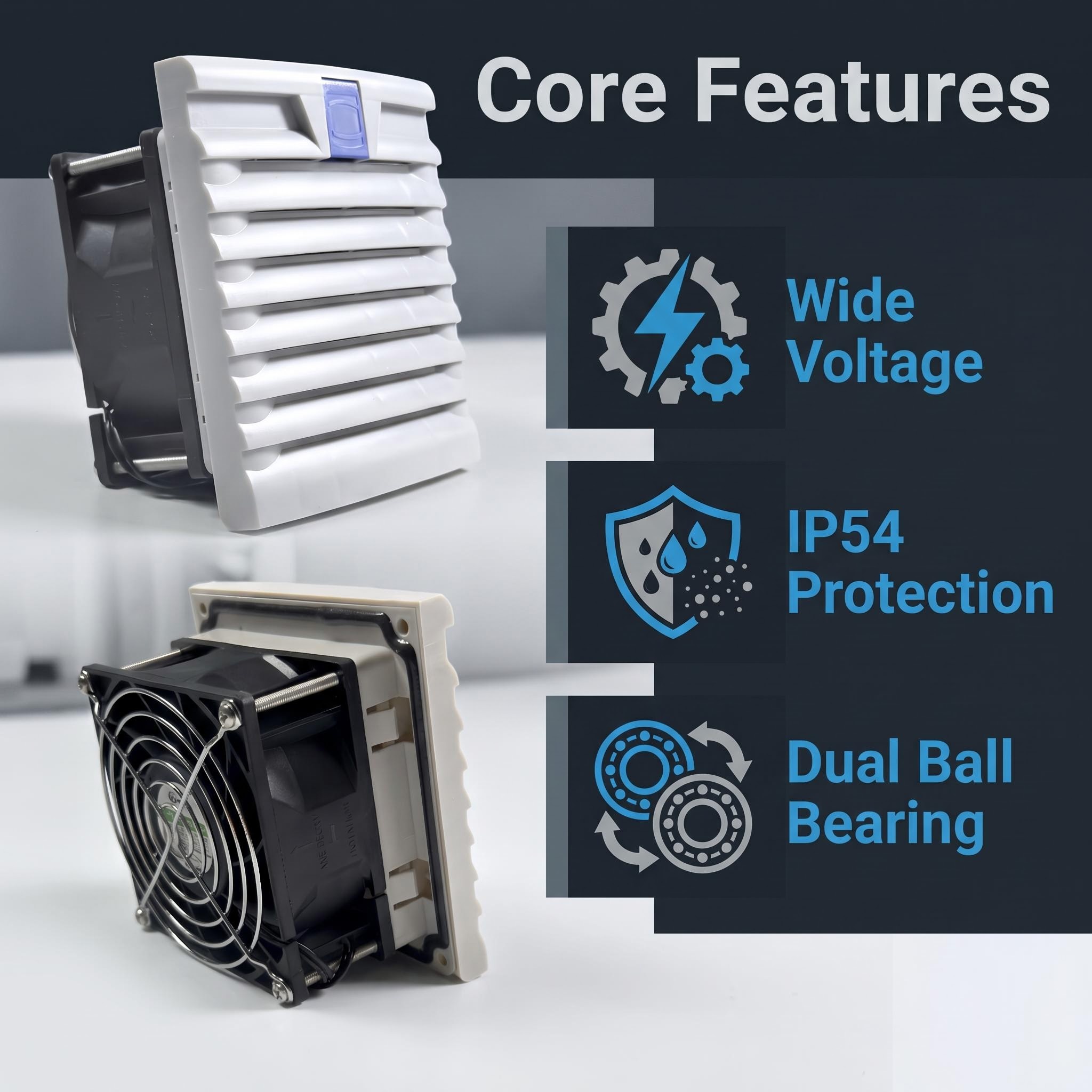

The SXDOOL 802EC9238 is a panel-mounted cabinet ventilation kit built around a 92 x 92 x 38 mm dual-ball-bearing axial fan. It combines forced airflow, a louvered grille, removable filter media, perimeter sealing and a quick-release front latch. It is designed for open-loop ventilation where the surrounding air is cooler and suitable for the equipment.
| Model | 802EC9238 |
|---|---|
| Series | SXDOOL 802 Series, IP54 new version |
| Fan frame | 92 x 92 x 38 mm |
| Installed front face | 116.5 x 116.5 mm |
| Required panel cutout | 92 x 92 mm; measure the actual product before final cabinet machining |
| Voltage options | 12V DC, 24V DC, 115/230V AC, 50/60 Hz |
| Fan-rated airflow | 68.5-100.5 CFM, depending on voltage version |

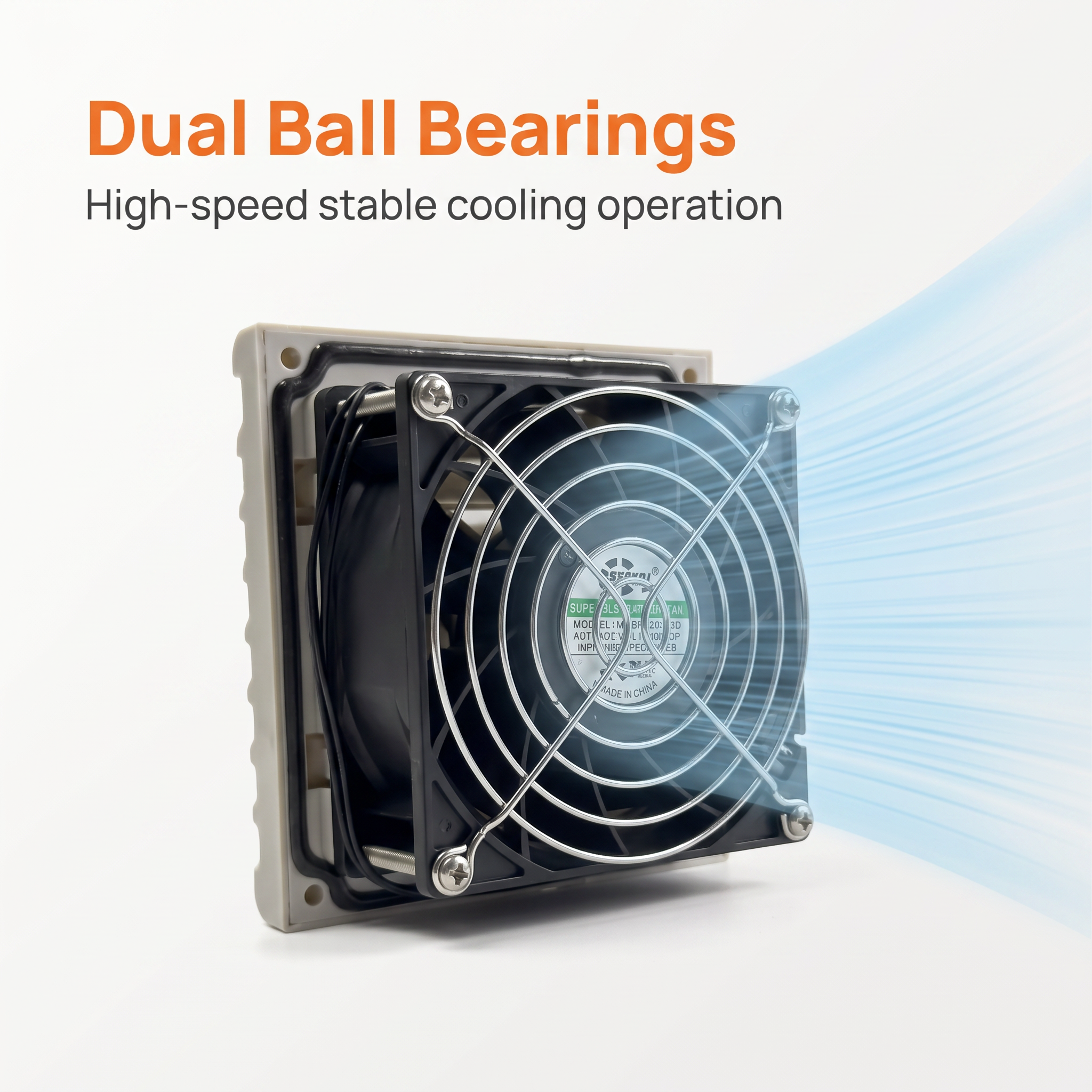

| Bearing | Dual ball bearing |
| Protection | IP54 when correctly installed: IP5X dust-protected and IPX4 protected against splashing water |
| Manufacturer | SXDOOL / SENSDA ELECTRONICS LIMITED |
| Package | Filter fan kit ×1, mounting screws ×4, terminal block ×1 |
Which 802EC9238 voltage should an engineer choose?
Choose 12V DC or 24V DC only when the cabinet provides the matching low-voltage DC supply. Choose the 115/230V AC model for a compatible mains-powered cabinet, and follow the product label and wiring instructions.
| SKU | Supply | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 802EC9238-12V | 12V DC | 92.3 CFM | 4000 RPM | 0.5 A | 48 dBA |
| 802EC9238-24V | 24V DC | 100.5 CFM | 4500 RPM | 0.5 A | 50 dBA |
| 802EC9238-AC | 115/230V AC, 50/60 Hz | 68.5 CFM | 3000 RPM | 5 W | 33 dBA |
Selection rule: voltage versions are not interchangeable. Check the cabinet supply, label, polarity or AC wiring instructions, airflow target and allowable noise before ordering.
When is this enclosure ventilation kit a good fit?

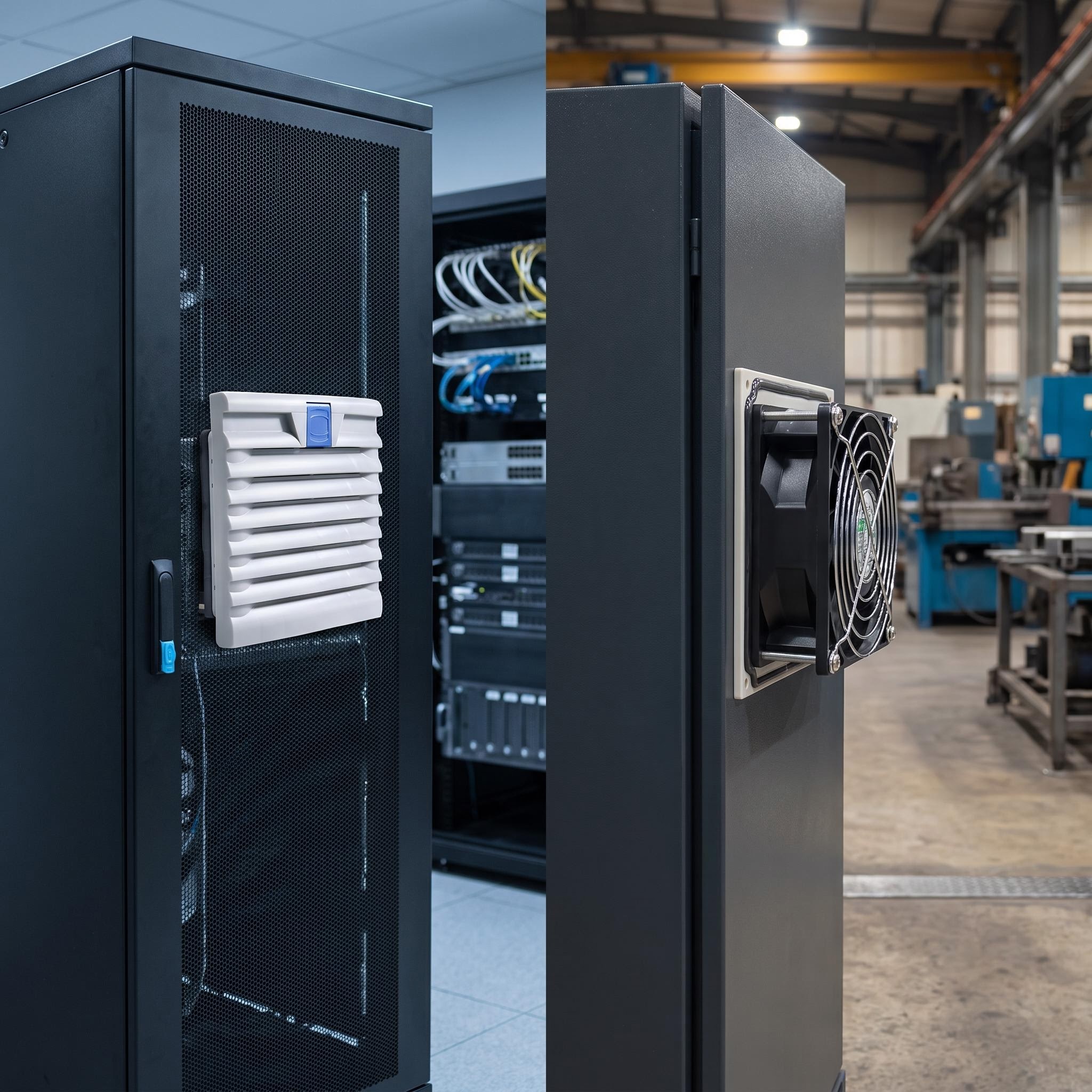

- Electrical control cabinets, PLC panels, automation boxes and electronics enclosures using open-loop ventilation.
- Projects that need medium-small electrical enclosures that need higher airflow from the 802-series format.
- Panels requiring front filter access for inspection, cleaning or replacement.
- OEM and batch procurement projects that need cable, terminal, label, filter-media, grille-color or packaging review.
Do not use open-loop ventilation when ambient air is hotter than the enclosure target, corrosive, heavily contaminated or otherwise unsuitable. In those environments, evaluate a properly engineered sealed-loop cooling system.

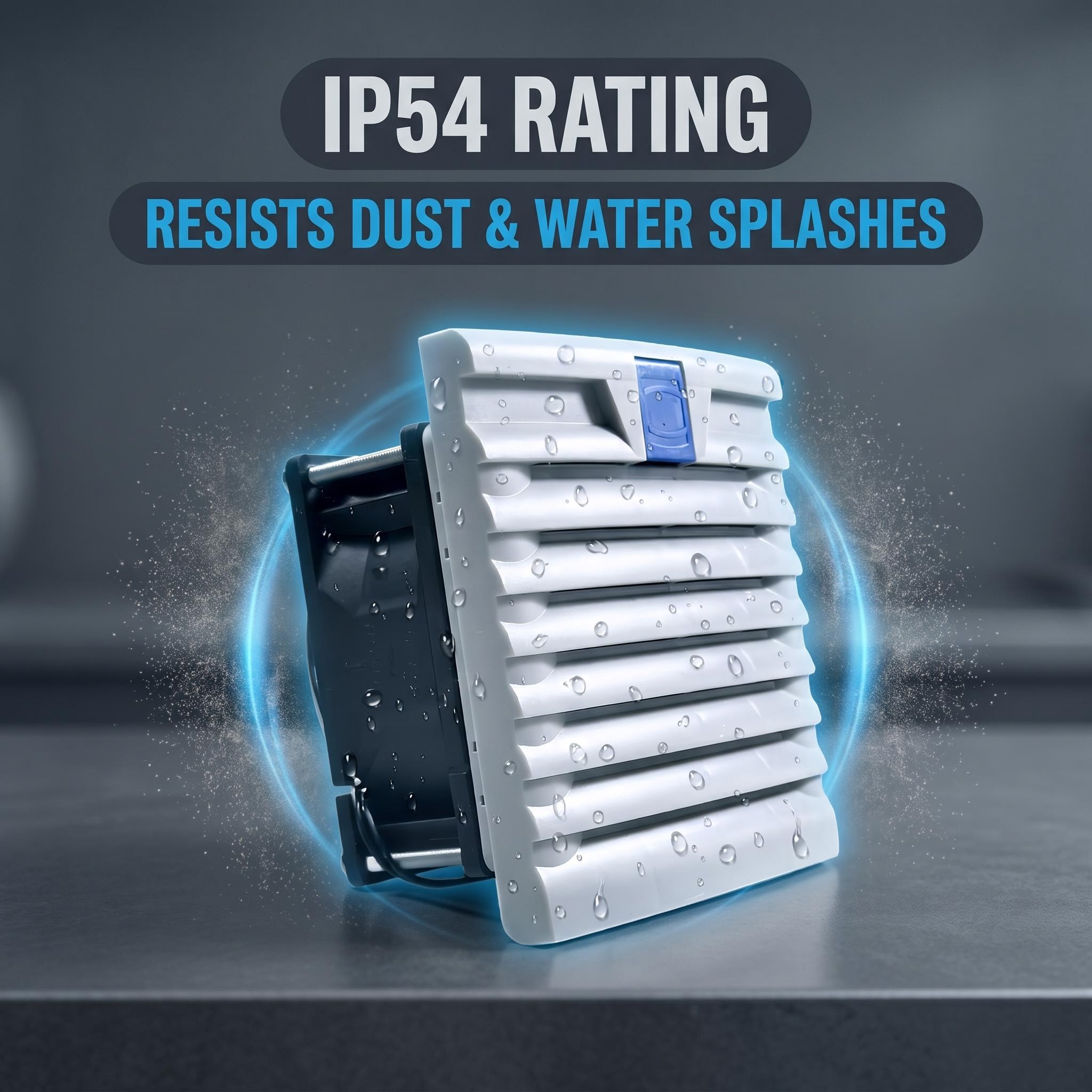

What does IP54 mean for this filter fan?
IP54 means the installed assembly is dust-protected under IP5X and protected against splashing water under IPX4. It does not mean waterproof, dust-tight, immersion-rated or suitable for direct high-pressure washdown. Correct protection depends on a flat panel, the specified cutout, full gasket contact and correct installation.
Installation and maintenance checklist
- Disconnect power and confirm the cabinet can be safely machined.
- Verify the 92 x 92 mm panel opening, 116.5 x 116.5 mm front clearance and available internal depth before cutting.
- Install on a flat surface with continuous gasket contact and the intended airflow direction.
- Wire only the selected 12V DC, 24V DC, 115/230V AC, 50/60 Hz version according to its product label.

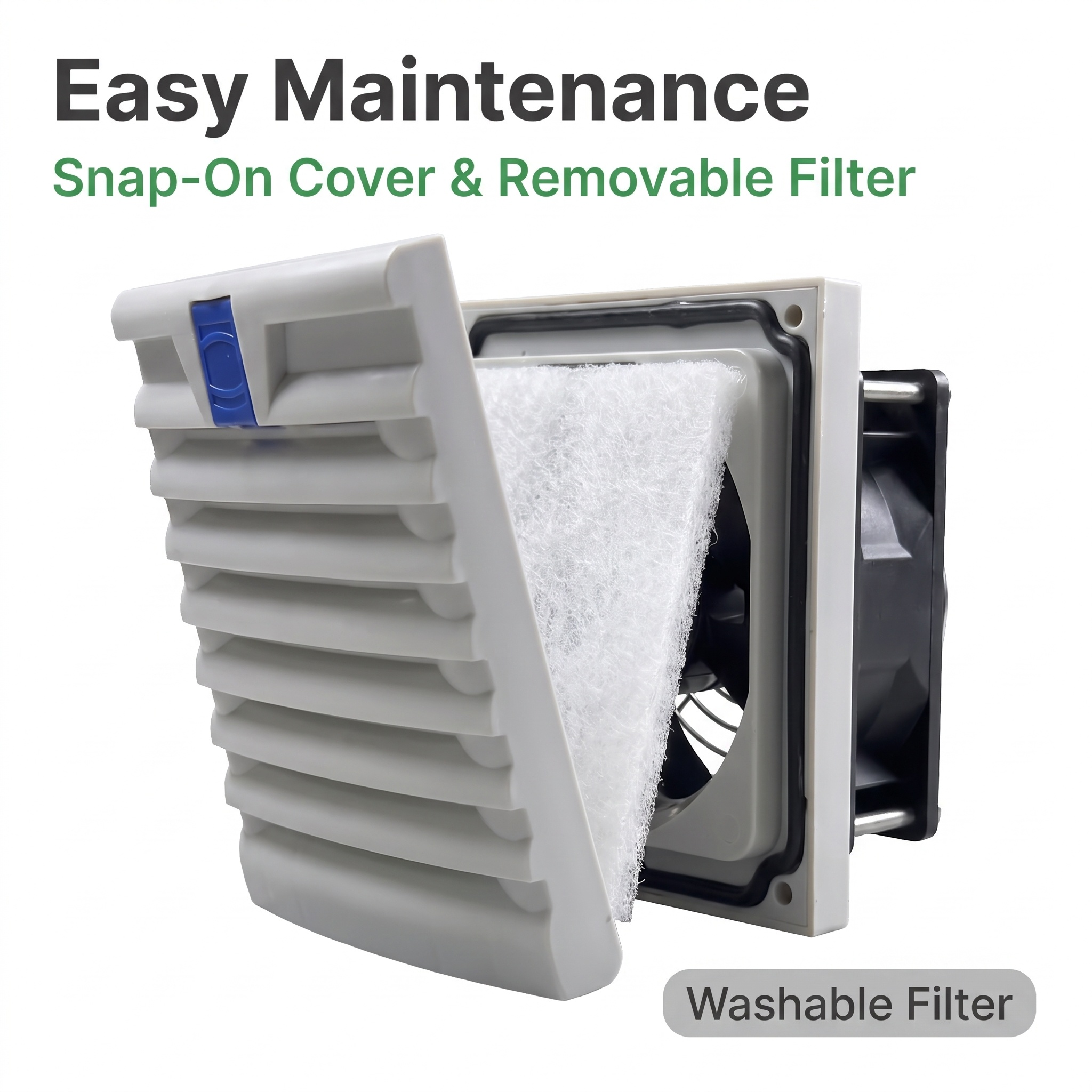

- Use the blue quick-release latch to inspect and replace the filter pad without removing the fan assembly from the panel.
Factory RFQ and technical review
For a fast response, include the selected child SKU, supply voltage, cabinet cutout, airflow target, airflow direction, filter requirement and quantity. Use the SXDOOL RFQ form, the fan selector, or browse all cabinet ventilator filter units.
SXDOOL 802EC9238 IP54 filter fan kit for higher-resistance panels

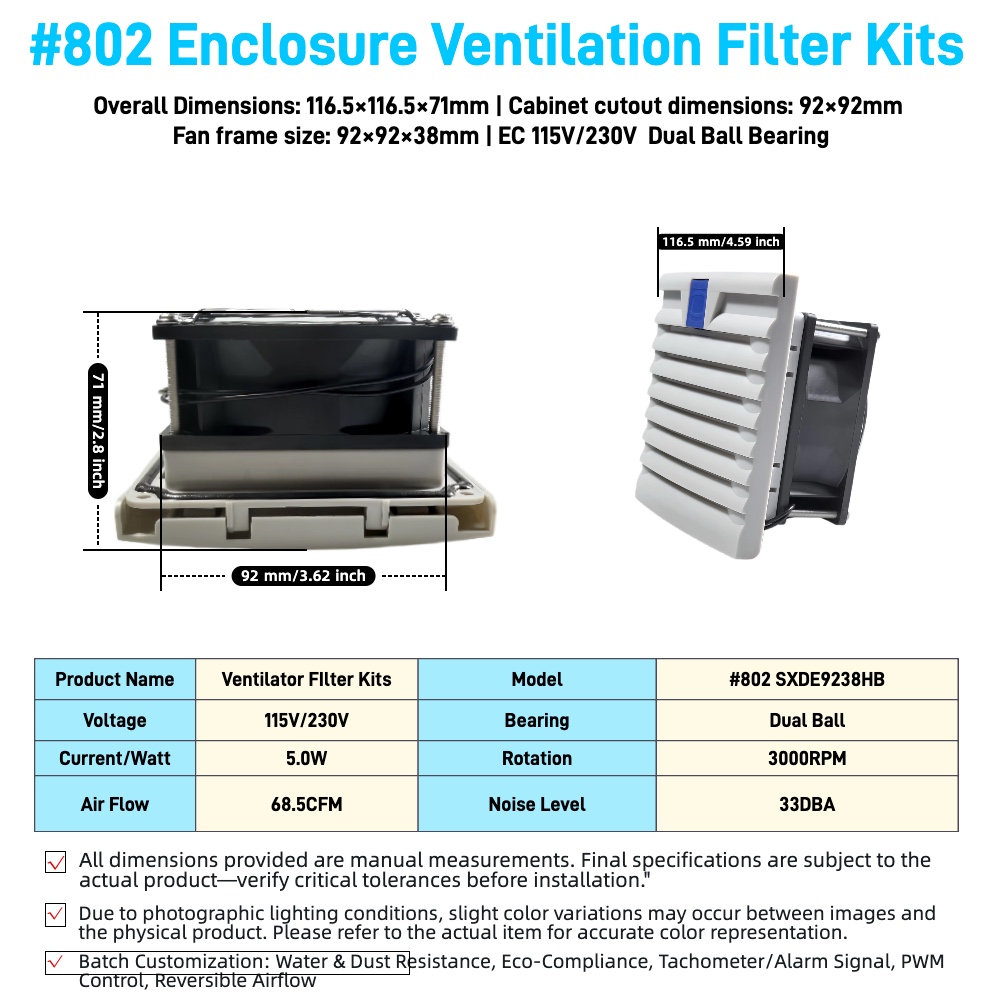

Engineering summary: This assembly uses a 92x92x38mm fan platform with a 116.5×116.5mm front face and 92x92mm recommended panel cutout. Its greater depth provides more airflow reserve than 802EC9225, while the final cabinet duty point still depends on filter loading and outlet resistance.
| Assembly reference | 802EC9238 enclosure filter fan assembly |
|---|---|
| Assembly dimensions | Fan frame 92x92x38mm; front face 116.5×116.5mm; recommended panel cutout 92x92mm |
| Voltage choices | 12V DC, 24V DC, or 115/230V AC-input EC configuration; select one approved assembly |
| Bearing | Dual ball bearing on the published assembly configurations |
| Ingress-protection boundary | The complete installed kit may support the stated IP54 result; the bare fan does not inherit that rating. The DC and AC-input EC options also require different wiring and protection. |
| Material / flammability boundary | Fan-family catalog reference: plastic frame and impeller, UL94V-0. The complete kit housing, gasket, and filter-media classification is not universally asserted and must follow the approved assembly specification |
| Static-pressure boundary | No universal numeric static-pressure value is asserted for the complete filter kit. Qualify clean and loaded-filter operating points in the final enclosure |
| Application fit | Industrial electrical panels, power cabinets, and automation enclosures with a 92mm cutout and enough internal depth for a higher-output filtered airflow assembly. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | Assembly dimensions and operating points are taken from the current product specification table. Final values, IP scope, materials, wiring, and compliance follow the approved production drawing and validated installed assembly. |
Model and configuration table
| Assembly option | Input | Current / power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| 12V DC assembly | 12V DC | 0.50A | 4000RPM | 92.3CFM | Not asserted for the complete kit | 48dBA |
| 24V DC assembly | 24V DC | 0.50A | 4500RPM | 100.5CFM | Not asserted for the complete kit | 50dBA |
| AC-input EC assembly | 115/230V AC, 50/60Hz | 5W | 3000RPM | 68.5CFM | Not asserted for the complete kit | 33dBA |
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Why can the 24V 100.5CFM assembly require more frequent filter inspection than a lower-output kit?
Higher airflow can collect airborne dust more quickly in the same environment. Filter life depends on contaminant type, duty cycle, media area, and site conditions, so set the service interval from measured pressure or cabinet temperature rather than calendar time alone.
How should an outlet grille be sized for 802EC9238?
The exhaust path should not create an avoidable bottleneck. Compare outlet free area, louver resistance, internal blockage, and recirculation with the intake filter assembly, then verify cabinet pressure and hotspot temperature in the final panel.
What does the 33dBA reference for the AC-input version mean in a finished cabinet?
It is a product reference under catalog conditions, not the complete panel sound level. Sheet-metal resonance, filter turbulence, outlet geometry, adjacent equipment, mounting, and room reflections can change the installed result.
Which records should be retained after validating an IP54 filter fan installation?
Retain the approved assembly drawing, cutout and panel-thickness evidence, gasket and fastener specification, installation photos, ingress-test scope, airflow and temperature results, filter-service instructions, and the exact fan voltage/model configuration.
Continue with the fan selector, review review the bare 9238 EC fan platform, compare the thinner 802EC9225 kit, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
