SXDOOL 803EC1225 IP54 Filter Fan Kit | 12025
803EC1225 IP54 enclosure filter fan kit for control cabinets that need a 120 mm fan platform with reduced installation depth. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 135.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.
| Frame size | 120 x 120 x 25 mm |
|---|---|
| Voltage | 12V DC, 24V DC, 115/230V AC, 50/60 Hz |
| Airflow | 100.2-135.5 CFM, depending on voltage version |
| Static pressure | No universal pressure point is published for the complete kit. Validate clean and loaded-filter operating points in the |
| Bearing | Dual ball bearing |
| IP rating | IP54 when correctly installed: IP5X dust-protected and IPX4 splash-water protected |
| Material | Corresponding 120 x 120 x 25 mm fan-family catalog reference: plastic frame and impeller, UL94V-0 |
803EC1225 IP54 enclosure filter fan kit: quick answer

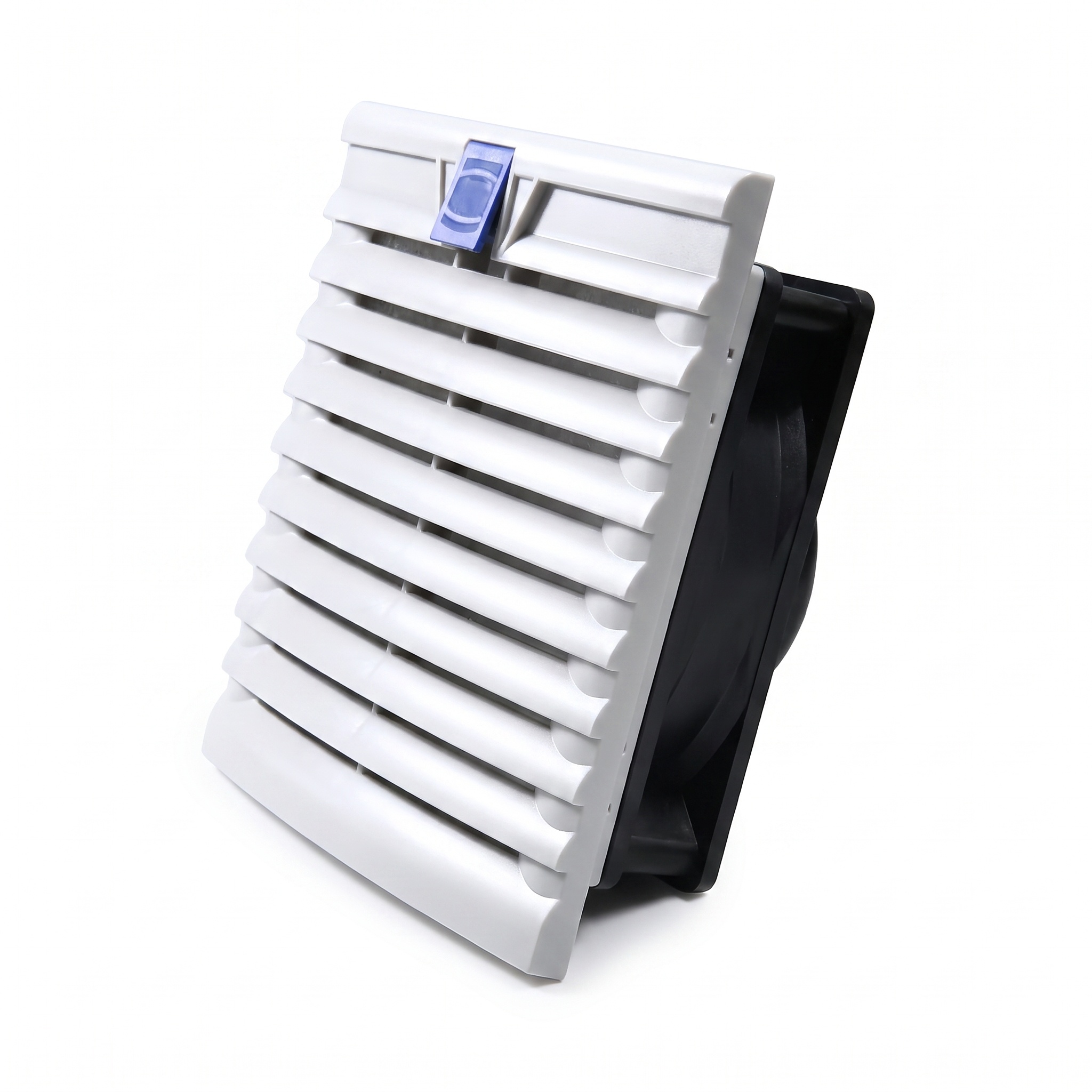

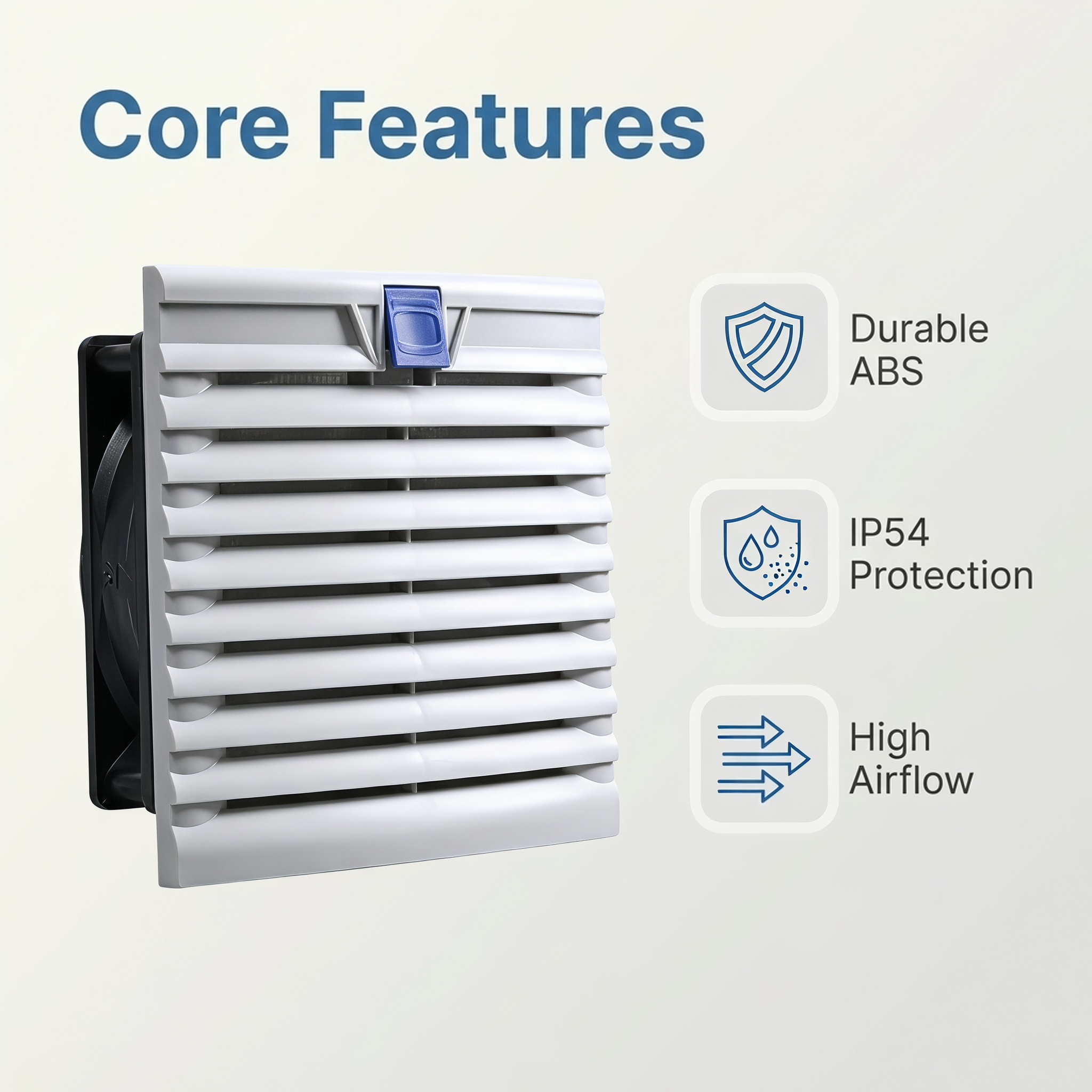

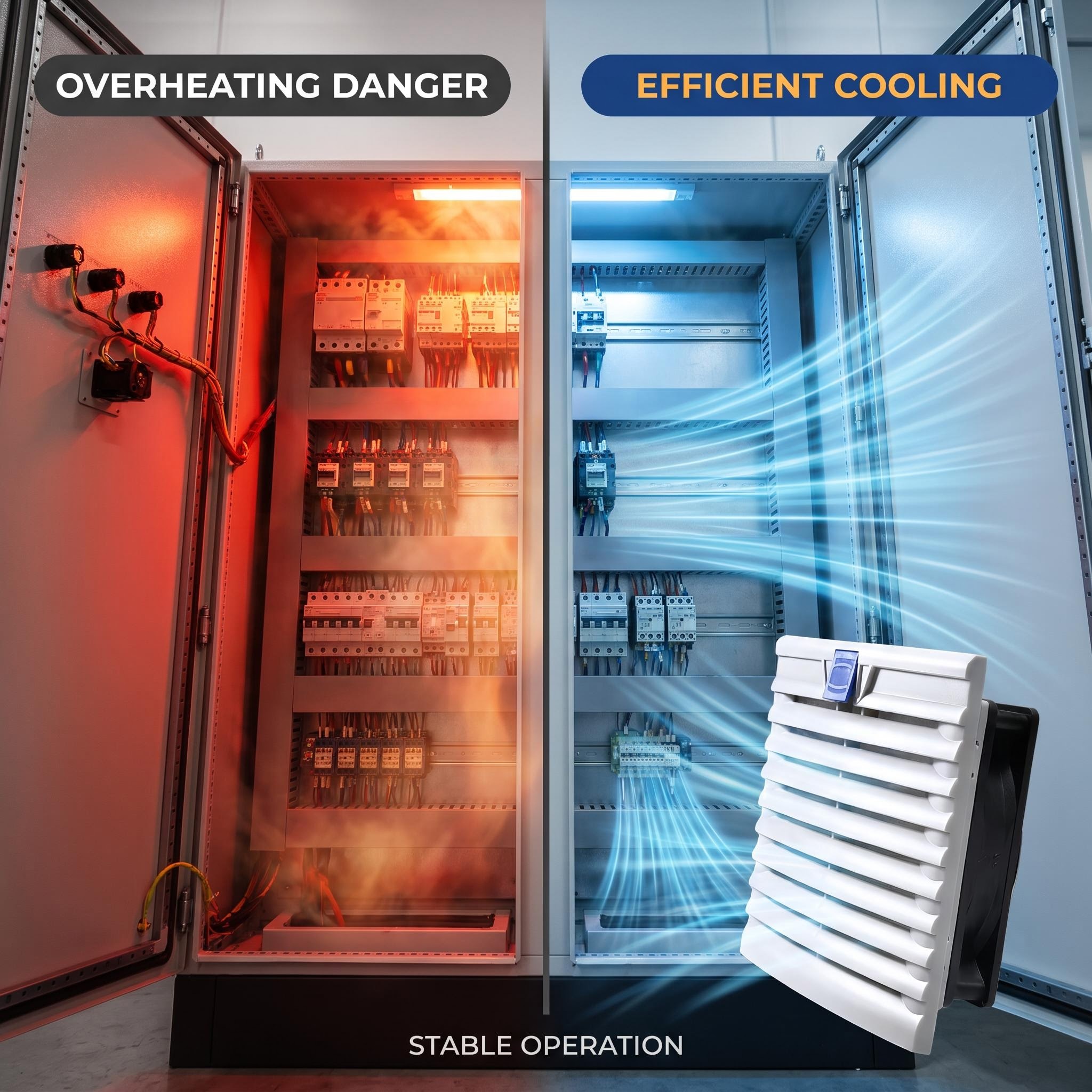

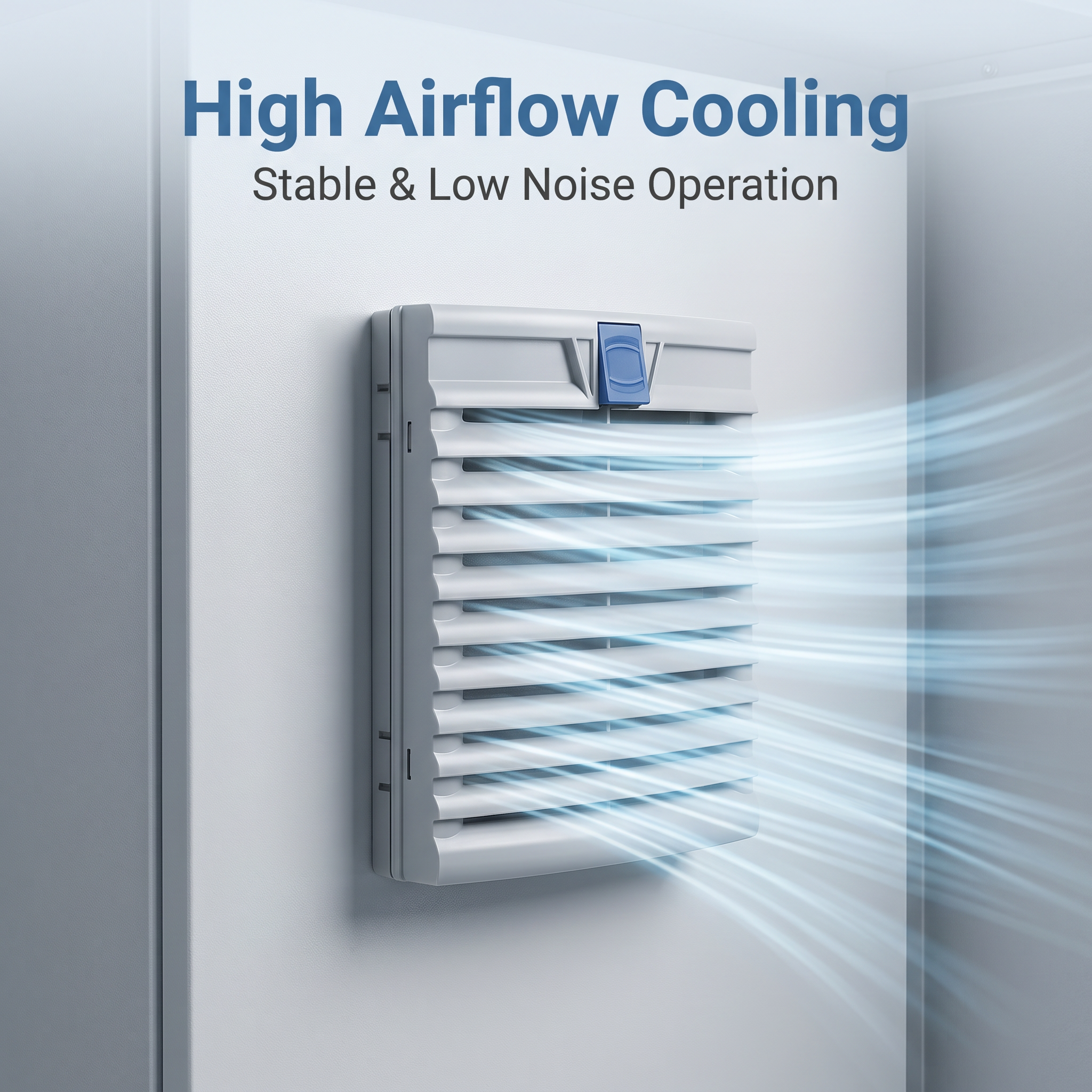

The SXDOOL 803EC1225 is a panel-mounted cabinet ventilation kit built around a 120 x 120 x 25 mm dual-ball-bearing axial fan. It combines forced airflow, a louvered grille, removable filter media, perimeter sealing and a quick-release front latch. It is designed for open-loop ventilation where the surrounding air is cooler and suitable for the equipment.
| Model | 803EC1225 |
|---|---|
| Also referenced as | 803EC12025 |
| Series | SXDOOL 803 Series, IP54 new version |
| Fan frame | 120 x 120 x 25 mm |

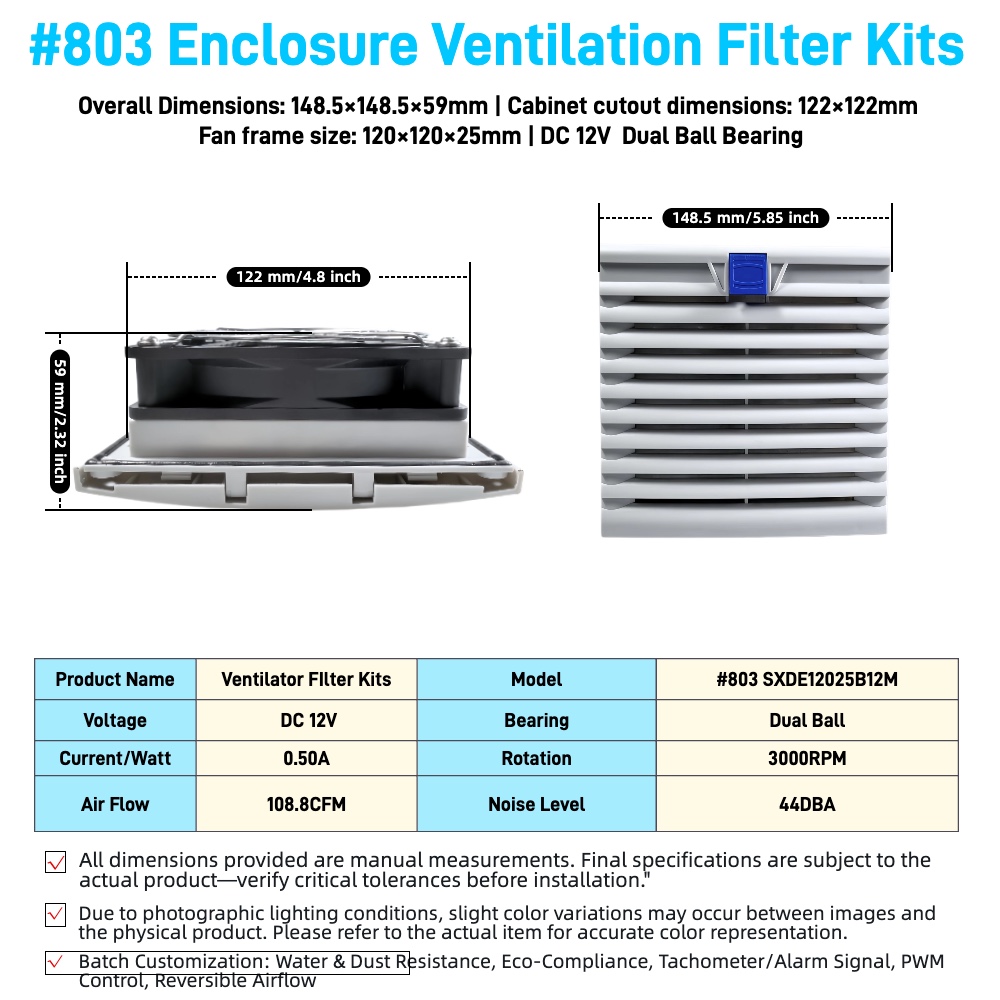

| Installed front face | 148.5 x 148.5 mm |
| Required panel cutout | 122 x 122 mm; measure the actual product before final cabinet machining |
| Voltage options | 12V DC, 24V DC, 115/230V AC, 50/60 Hz |
| Fan-rated airflow | 100.2-135.5 CFM, depending on voltage version |
| Bearing | Dual ball bearing |
| Protection | IP54 when correctly installed: IP5X dust-protected and IPX4 protected against splashing water |
| Manufacturer | SXDOOL / SENSDA ELECTRONICS LIMITED |
| Package | Filter fan kit ×1, mounting screws ×4, terminal block ×1 |
Which 803EC1225 voltage should an engineer choose?
Choose 12V DC or 24V DC only when the cabinet provides the matching low-voltage DC supply. Choose the 115/230V AC model for a compatible mains-powered cabinet, and follow the product label and wiring instructions.
| SKU | Supply | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 803EC1225-12V | 12V DC | 108.8 CFM | 3000 RPM | 0.5 A | 44 dBA |
| 803EC1225-24V | 24V DC | 135.5 CFM | 3800 RPM | 0.45 A | 49 dBA |
| 803EC1225-AC | 115/230V AC, 50/60 Hz | 100.2 CFM | 2600 RPM | 7 W | 38 dBA |
Selection rule: voltage versions are not interchangeable. Check the cabinet supply, label, polarity or AC wiring instructions, airflow target and allowable noise before ordering.

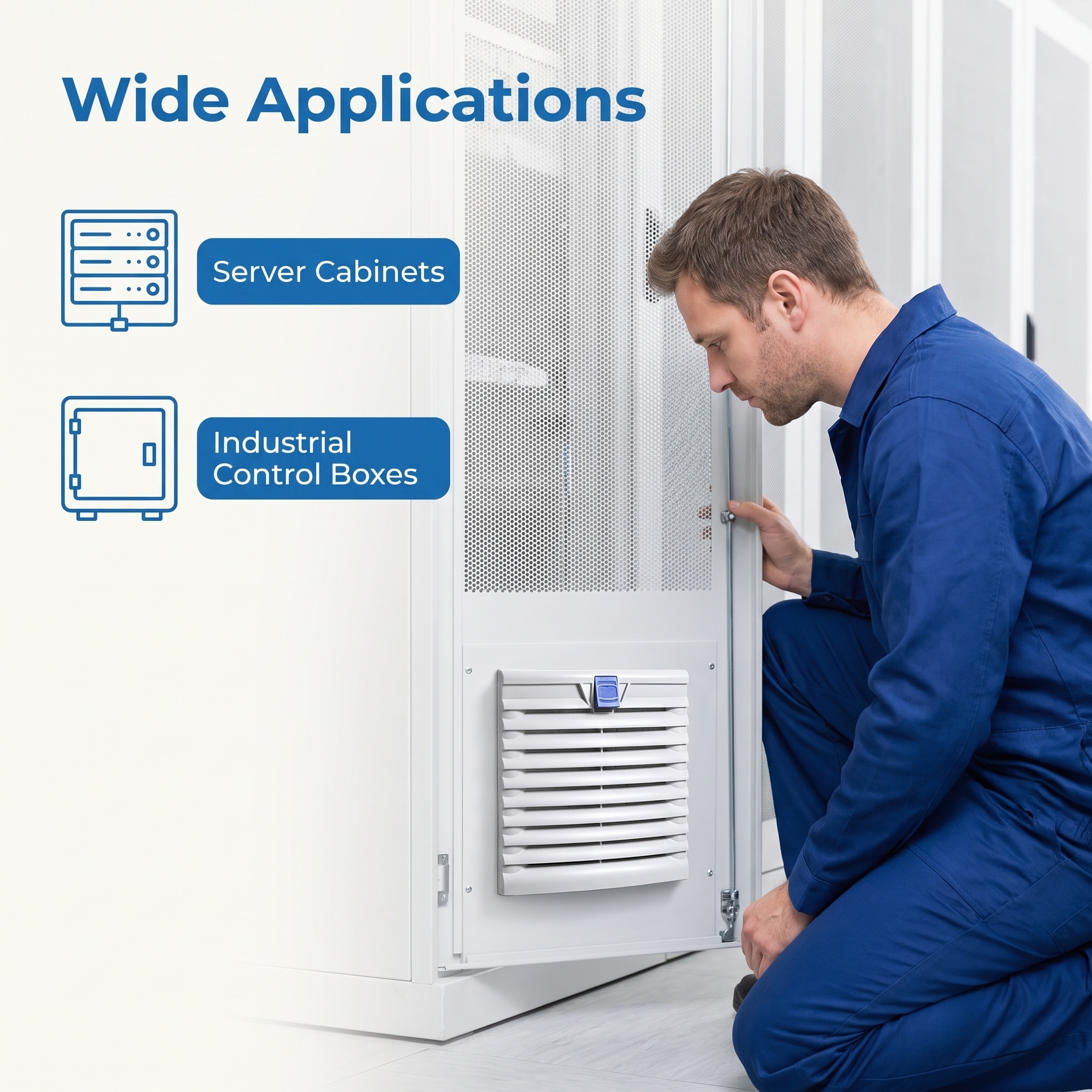

When is this enclosure ventilation kit a good fit?
- Electrical control cabinets, PLC panels, automation boxes and electronics enclosures using open-loop ventilation.
- Projects that need control cabinets that need a 120 mm fan platform with reduced installation depth.
- Panels requiring front filter access for inspection, cleaning or replacement.
- OEM and batch procurement projects that need cable, terminal, label, filter-media, grille-color or packaging review.
Do not use open-loop ventilation when ambient air is hotter than the enclosure target, corrosive, heavily contaminated or otherwise unsuitable. In those environments, evaluate a properly engineered sealed-loop cooling system.

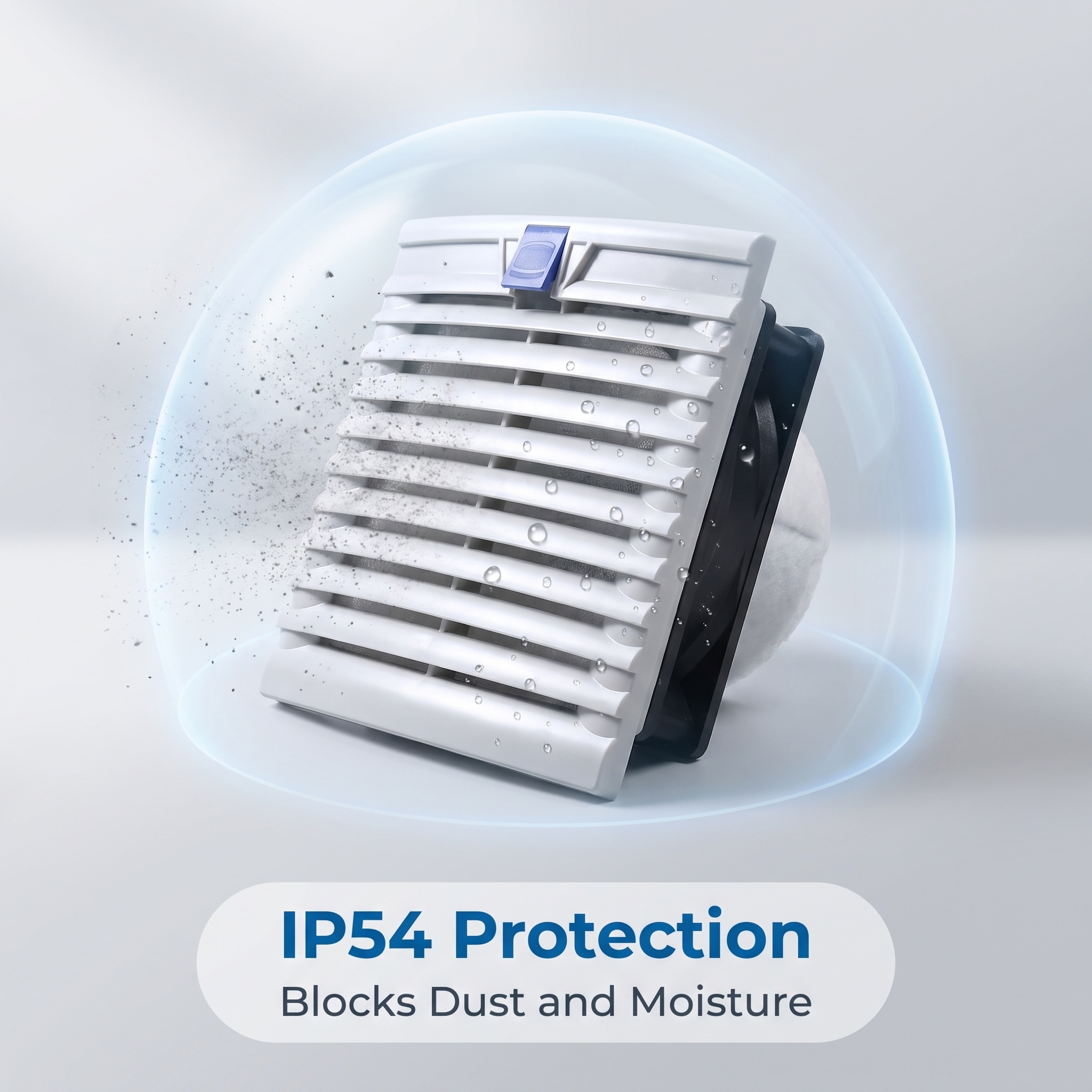

What does IP54 mean for this filter fan?
IP54 means the installed assembly is dust-protected under IP5X and protected against splashing water under IPX4. It does not mean waterproof, dust-tight, immersion-rated or suitable for direct high-pressure washdown. Correct protection depends on a flat panel, the specified cutout, full gasket contact and correct installation.
Installation and maintenance checklist
- Disconnect power and confirm the cabinet can be safely machined.
- Verify the 122 x 122 mm panel opening, 148.5 x 148.5 mm front clearance and available internal depth before cutting.
- Install on a flat surface with continuous gasket contact and the intended airflow direction.
- Wire only the selected 12V DC, 24V DC, 115/230V AC, 50/60 Hz version according to its product label.
- Use the blue quick-release latch to inspect and replace the filter pad without removing the fan assembly from the panel.
Factory RFQ and technical review
For a fast response, include the selected child SKU, supply voltage, cabinet cutout, airflow target, airflow direction, filter requirement and quantity. Use the SXDOOL RFQ form, the fan selector, or browse all cabinet ventilator filter units.
803EC1225 low-profile IP54 filter fan kit for 120mm panels
Engineering summary: The 803EC1225, also referenced as 803EC12025, uses a 120 x 120 x 25 mm fan platform behind a 148.5 x 148.5 mm front face. It is the lower-depth 803 option and should be compared with 803EC12038 when cabinet depth, airflow, current, and service-condition resistance are all considered.
| Assembly reference | 803EC1225; also referenced as 803EC12025 |
|---|---|
| Fan frame | 120 x 120 x 25 mm |
| Installed front face | 148.5 x 148.5 mm |
| Recommended panel cutout | 122 x 122 mm; final machining follows the approved assembly drawing and sample |
| Input options | 12V DC, 24V DC, or 115/230V AC, 50/60 Hz; select one approved assembly |
| Published fan-rated airflow | 100.2-135.5 CFM depending on voltage version |
| Bearing | Dual ball bearing on the published assembly configurations |
| Fan material / flammability | Corresponding 120 x 120 x 25 mm fan-family catalog reference: plastic frame and impeller, UL94V-0 |
| Kit-material boundary | The grille, gasket, filter medium, colour, and full material classification require the approved 803EC1225 assembly BOM |
| Static-pressure boundary | No universal pressure point is published for the complete kit. Validate clean and loaded-filter operating points in the target cabinet |
| Ingress boundary | IP54 when correctly installed: IP5X dust-protected and IPX4 splash-water protected |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Configuration | Input | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 803EC1225-12V | 12V DC | 108.8 CFM | 3000 RPM | 0.50 A | 44 dBA |
| 803EC1225-24V | 24V DC | 135.5 CFM | 3800 RPM | 0.45 A | 49 dBA |
| 803EC1225-AC | 115/230V AC, 50/60 Hz | 100.2 CFM | 2600 RPM | 7 W | 38 dBA |
Engineering release rule: Catalog and current page values are reference data under their stated test conditions. The approved drawing, complete model suffix, controlled datasheet, assembly BOM, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
When should 803EC1225 be preferred over the 38mm-deep 803EC12038 kit?
Choose the 25mm fan platform when rear clearance is limited and its validated duty point is sufficient. Evaluate 803EC12038 when the deeper fan can provide the required airflow or pressure margin without violating cabinet depth and acoustic limits.
Can one cabinet wiring design support all three 803EC1225 voltage versions?
No. The 12V DC, 24V DC, and 115/230V AC-input assemblies need different supply, protection, terminals, and safety review. Approve one exact configuration and wiring diagram for production.
Why does this 120mm kit use a 122 x 122 mm panel cutout and a 148.5 mm front face?
The 120 x 120 x 25 mm value describes the fan platform. The cutout and front face describe the complete filtered enclosure interface, including the mounting and sealing area.
How should filter service be included in 803EC1225 thermal validation?
Test the cabinet with a clean filter and with the intended service-condition pressure loss. Define inspection and replacement intervals from real dust loading, temperature trend, airflow loss, and access requirements.
Continue with the fan selector, compare the deeper 803EC12038 kit, review the control-cabinet application guide, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
803EC1225 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Static pressure / pressure-flow status | An assembly-level static-pressure or pressure-flow curve is not published for this exact filter fan kit. Individual fan free-air data must not be treated as installed kit airflow. Qualify the clean and loaded filter assembly against the enclosure system-resistance curve. |
|---|---|
| Model-specific release evidence | Approved assembly drawing, fan subassembly model, clean and loaded filter pressure-flow test, panel cutout, mounting depth, airflow direction, gasket or sealing interface, ingress test scope and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 803EC1225 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
