SXDOOL 801EC8025 IP54 Filter Fan Kit | 80mm
801EC8025 IP54 enclosure filter fan kit for compact cabinet ventilation where mounting depth is limited. Select 12V DC, 24V DC, 115/230V AC, 50/60 Hz; fan-rated airflow reaches 42.5 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.
801EC8025 IP54 enclosure filter fan kit: quick answer

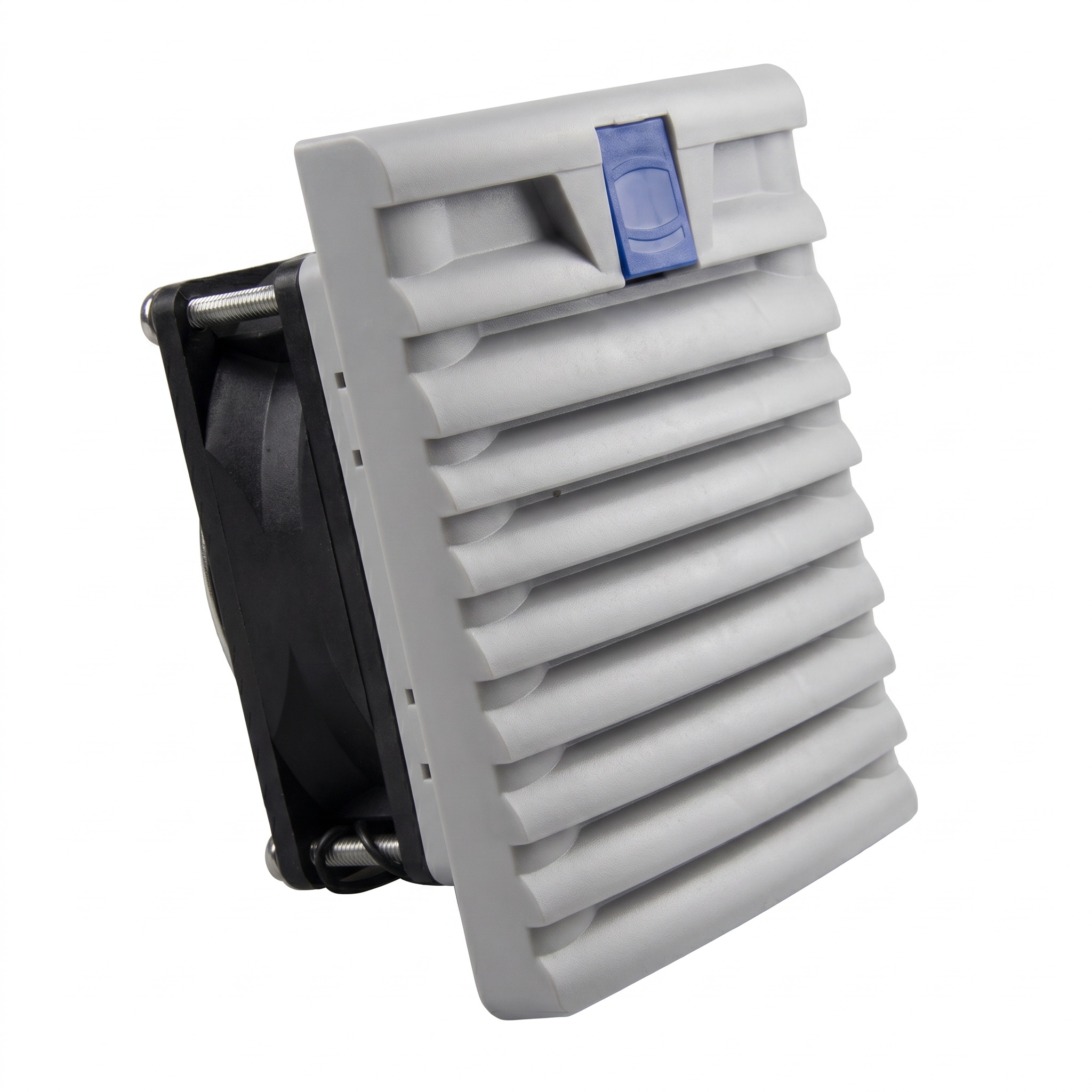

The SXDOOL 801EC8025 is a panel-mounted cabinet ventilation kit built around a 80 x 80 x 25 mm dual-ball-bearing axial fan. It combines forced airflow, a louvered grille, removable filter media, perimeter sealing and a quick-release front latch. It is designed for open-loop ventilation where the surrounding air is cooler and suitable for the equipment.
| Model | 801EC8025 |
|---|---|
| Series | SXDOOL 801 Series, IP54 new version |
| Fan frame | 80 x 80 x 25 mm |

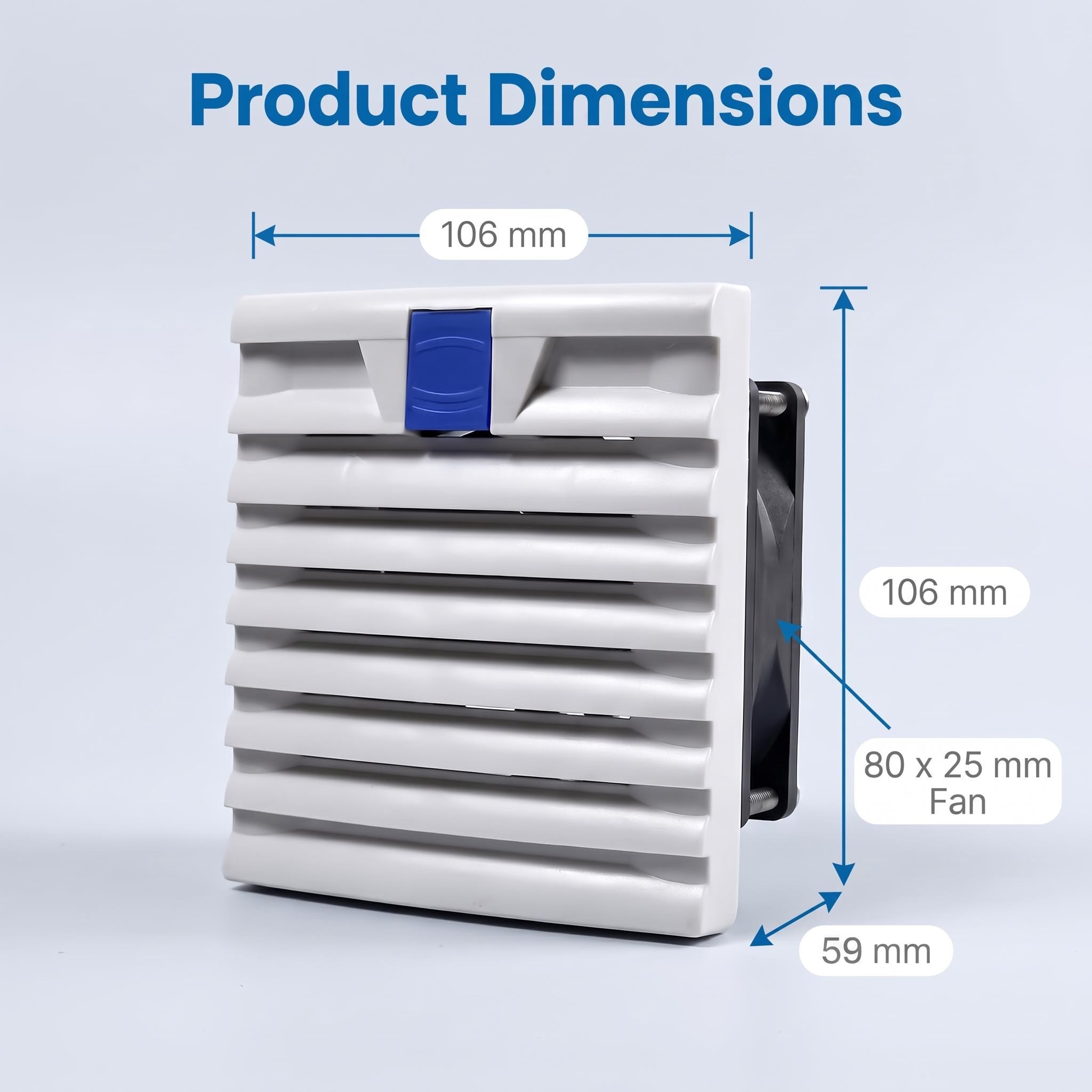

| Installed front face | 106 x 106 mm |
| Required panel cutout | 82 x 82 mm; measure the actual product before final cabinet machining |
| Voltage options | 12V DC, 24V DC, 115/230V AC, 50/60 Hz |
| Fan-rated airflow | 41.5-42.5 CFM, depending on voltage version |
| Bearing | Dual ball bearing |
| Protection | IP54 when correctly installed: IP5X dust-protected and IPX4 protected against splashing water |
| Manufacturer | SXDOOL / SENSDA ELECTRONICS LIMITED |
| Package | Filter fan kit ×1, mounting screws ×4, terminal block ×1 |
Which 801EC8025 voltage should an engineer choose?
Choose 12V DC or 24V DC only when the cabinet provides the matching low-voltage DC supply. Choose the 115/230V AC model for a compatible mains-powered cabinet, and follow the product label and wiring instructions.
| SKU | Supply | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 801EC8025-12V | 12V DC | 42 CFM | 3300 RPM | 0.3 A | 39 dBA |
| 801EC8025-24V | 24V DC | 41.5 CFM | 3000 RPM | 0.15 A | 33 dBA |
| 801EC8025-AC | 115/230V AC, 50/60 Hz | 42.5 CFM | 3200 RPM | 6 W | 34 dBA |
Selection rule: voltage versions are not interchangeable. Check the cabinet supply, label, polarity or AC wiring instructions, airflow target and allowable noise before ordering.
When is this enclosure ventilation kit a good fit?

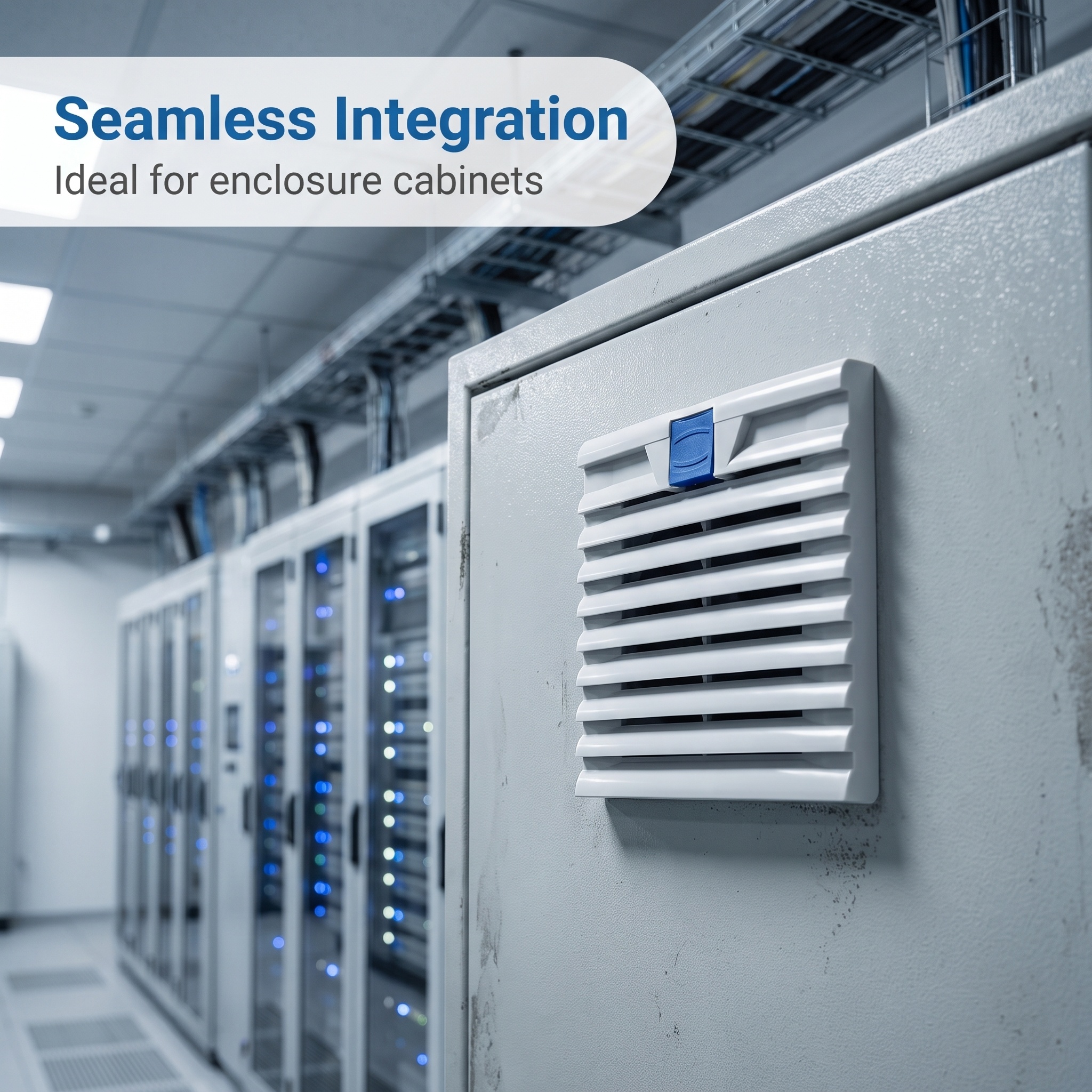

- Electrical control cabinets, PLC panels, automation boxes and electronics enclosures using open-loop ventilation.
- Projects that need compact cabinet ventilation where mounting depth is limited.
- Panels requiring front filter access for inspection, cleaning or replacement.
- OEM and batch procurement projects that need cable, terminal, label, filter-media, grille-color or packaging review.
Do not use open-loop ventilation when ambient air is hotter than the enclosure target, corrosive, heavily contaminated or otherwise unsuitable. In those environments, evaluate a properly engineered sealed-loop cooling system.
What does IP54 mean for this filter fan?
IP54 means the installed assembly is dust-protected under IP5X and protected against splashing water under IPX4. It does not mean waterproof, dust-tight, immersion-rated or suitable for direct high-pressure washdown. Correct protection depends on a flat panel, the specified cutout, full gasket contact and correct installation.
Installation and maintenance checklist
- Disconnect power and confirm the cabinet can be safely machined.
- Verify the 82 x 82 mm panel opening, 106 x 106 mm front clearance and available internal depth before cutting.
- Install on a flat surface with continuous gasket contact and the intended airflow direction.
- Wire only the selected 12V DC, 24V DC, 115/230V AC, 50/60 Hz version according to its product label.

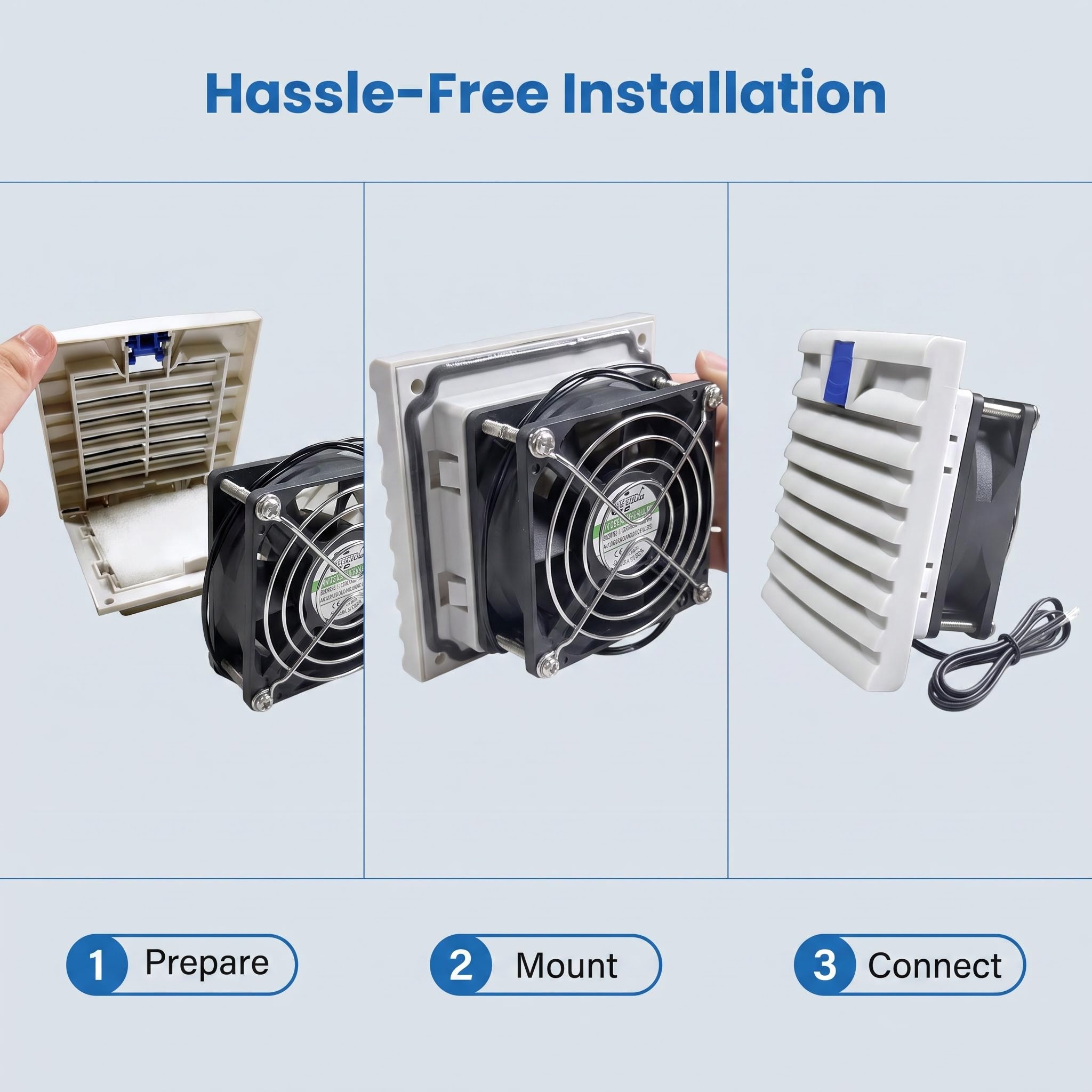

- Use the blue quick-release latch to inspect and replace the filter pad without removing the fan assembly from the panel.
Factory RFQ and technical review
For a fast response, include the selected child SKU, supply voltage, cabinet cutout, airflow target, airflow direction, filter requirement and quantity. Use the SXDOOL RFQ form, the fan selector, or browse all cabinet ventilator filter units.
801EC8025 compact IP54 filter fan kit for 80mm fan projects
Engineering summary: This compact cabinet-ventilation assembly combines an 80 x 80 x 25 mm fan platform with a 106 x 106 mm installed front face and an 82 x 82 mm recommended panel cutout. DC and AC-input versions must be treated as separate electrical configurations, not interchangeable voltage variants.
| Assembly reference | 801EC8025 cabinet filter fan kit |
|---|---|
| Fan frame | 80 x 80 x 25 mm |
| Installed front face | 106 x 106 mm |
| Recommended panel cutout | 82 x 82 mm; verify the approved drawing and actual sample before final cabinet machining |
| Input options | 12V DC, 24V DC, or 115/230V AC, 50/60 Hz; select one approved assembly |
| Published fan-rated airflow | 41.5-42.5 CFM depending on voltage version; this is not guaranteed airflow through a loaded filter or restricted cabinet |
| Bearing | Dual ball bearing on the published assembly configurations |
| Fan material / flammability | Corresponding 80 x 80 x 25 mm fan-family catalog reference: plastic frame and impeller, UL94V-0 |
| Kit-material boundary | Filter grille, gasket, filter medium, colour, and their material classifications must follow the approved 801EC8025 assembly BOM and drawing |
| Static-pressure boundary | No assembled-kit pressure point is published. Qualify both clean-filter and service-condition airflow in the final enclosure |
| Ingress boundary | IP54 when correctly installed: IP5X dust-protected and IPX4 splash-water protected; not an immersion or high-pressure washdown claim |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Configuration | Input | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 801EC8025-12V | 12V DC | 42 CFM | 3300 RPM | 0.30 A | 39 dBA |
| 801EC8025-24V | 24V DC | 41.5 CFM | 3000 RPM | 0.15 A | 33 dBA |
| 801EC8025-AC | 115/230V AC, 50/60 Hz | 42.5 CFM | 3200 RPM | 6 W | 34 dBA |
Engineering release rule: Catalog and current page values are reference data under their stated test conditions. The approved drawing, complete model suffix, controlled datasheet, assembly BOM, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Can a 24V DC 801EC8025 be replaced directly by the 115/230V AC version?
No. The DC and AC-input assemblies require different host wiring, protection, terminal treatment, and safety review. Freeze the exact voltage suffix, wiring diagram, label, and sample before batch approval.
Why is the 82 x 82 mm panel cutout different from the 80 x 80 x 25 mm fan frame?
The fan frame describes the internal fan platform, while the cabinet cutout and 106 x 106 mm front face describe the complete filter assembly interface. Cabinet machining must follow the assembly drawing rather than the bare-fan dimensions.
Will the cabinet always receive the published 41.5-42.5 CFM?
No. The published values are fan-rated references. Filter loading, louvres, cable congestion, internal components, exhaust area, and recirculation reduce delivered airflow, so test both a clean filter and the planned service condition.
Which 801EC8025 fan materials and IP54 assembly items still require BOM review?
The corresponding fan-family catalog identifies the fan frame and impeller as plastic UL94V-0. The filter grille, gasket, filter medium, colour, and complete assembly classification must still be confirmed on the approved kit BOM.
Continue with the fan selector, compare the deeper 801EC8038 kit, review the control-cabinet application guide, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
801EC8025 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Static pressure / pressure-flow status | An assembly-level static-pressure or pressure-flow curve is not published for this exact filter fan kit. Individual fan free-air data must not be treated as installed kit airflow. Qualify the clean and loaded filter assembly against the enclosure system-resistance curve. |
|---|---|
| Model-specific release evidence | Approved assembly drawing, fan subassembly model, clean and loaded filter pressure-flow test, panel cutout, mounting depth, airflow direction, gasket or sealing interface, ingress test scope and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 801EC8025 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
