Application guide
Cooling Fan Applications By Equipment Type
Use this page to match common industrial equipment with the fan family and RFQ details SXDOOL needs for review.
Common Application Matches
The right fan depends on power input, heat source, enclosure restriction and service environment.

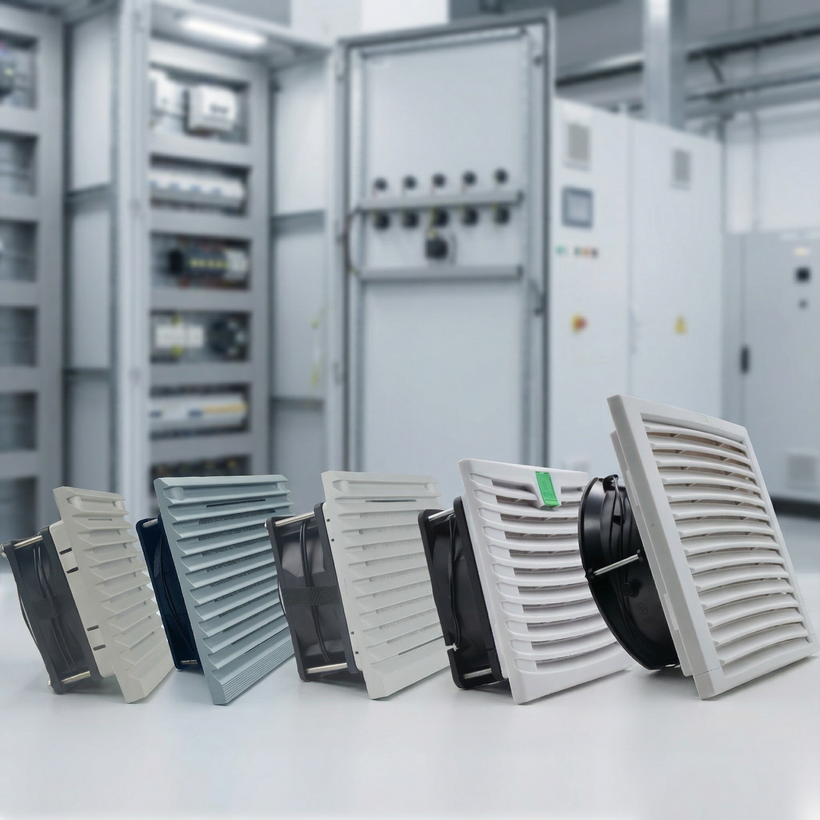

Control Cabinets
AC or EC axial fans for enclosure ventilation, filter units and continuous airflow.
Power Supplies
DC axial fans for compact airflow, signal control and electronics thermal management.

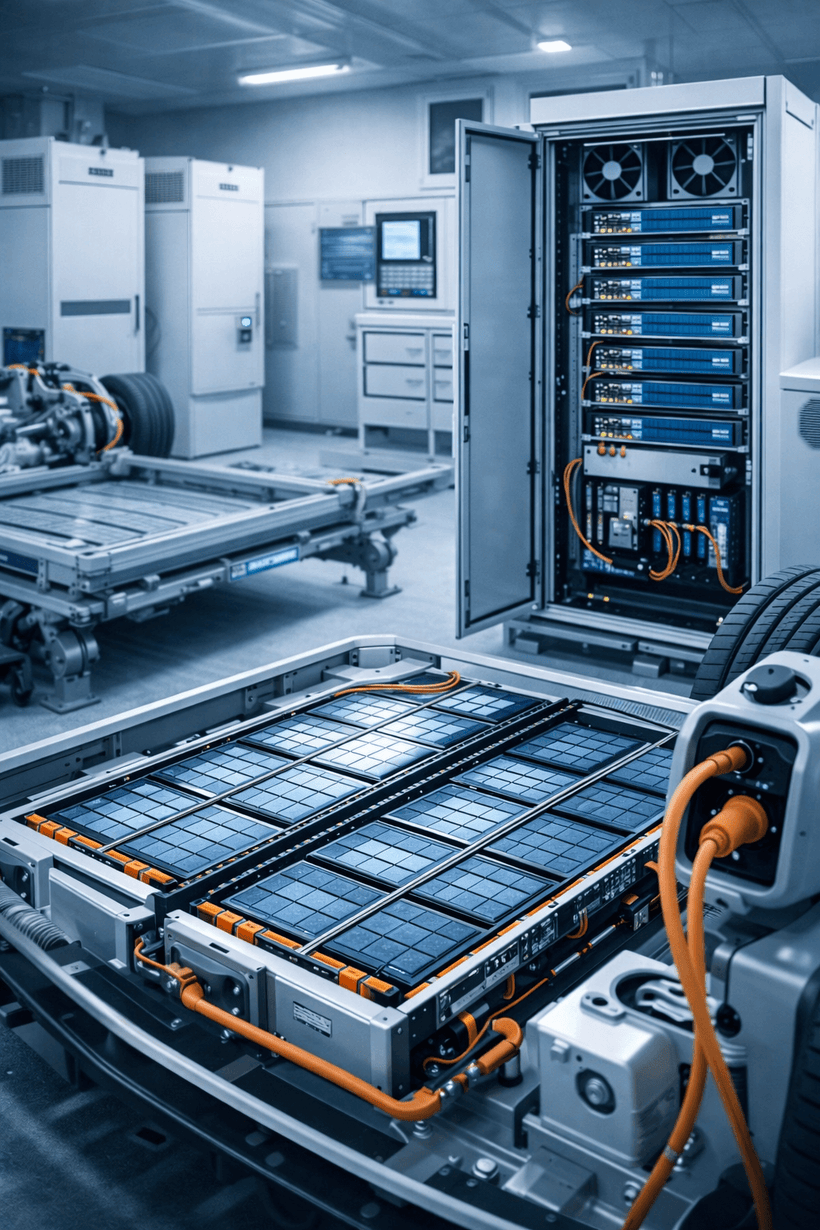

EV Chargers
EC or high-flow DC fans when heat load, duty cycle and efficiency matter.
Heat Sinks & Ducts
Blower fans when airflow must pass through a narrow or pressure-sensitive path.
Telecom & Servers
DC fans with PWM, FG/RD signal, high reliability and stable repeat supply.
Automation Equipment
Custom connector, cable and noise targets for machine or enclosure integration.

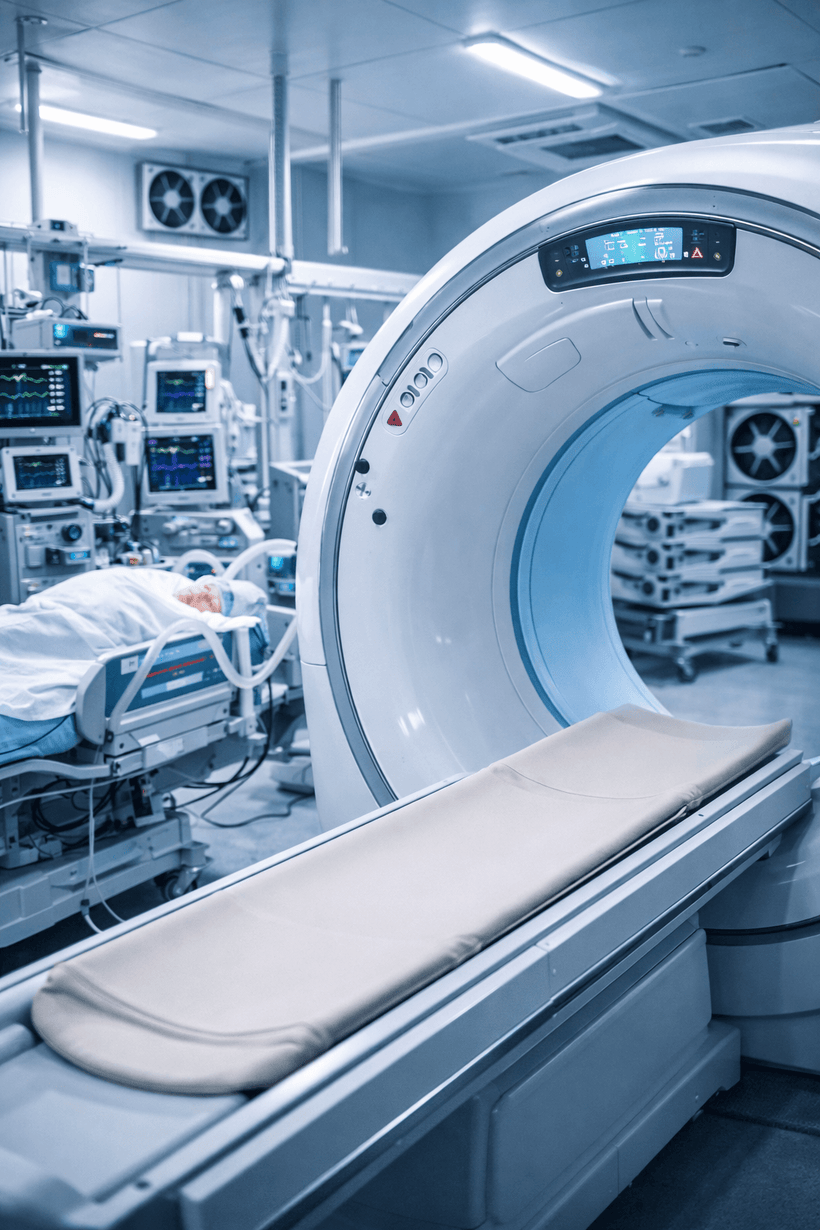

Medical Devices
Low-noise, controlled airflow and documentation support for project review.
Replacement Projects
Send old fan label or datasheet so SXDOOL can review a practical alternative.
Application RFQ Hints
These details help SXDOOL avoid recommending the wrong fan family.
| Application | Likely fan | Must confirm |
|---|---|---|
| Cabinet ventilation | AC or EC axial | Input voltage, cutout size, airflow and filter resistance. |
| Electronics cooling | DC axial | Voltage, space, PWM/FG/RD and noise limit. |
| Ducted airflow | Blower fan | Static pressure, outlet direction and noise. |
| High-duty industrial use | EC or ball-bearing fan | Duty cycle, temperature and expected lifetime. |
Application Review Flow
Keep the buying path short: confirm the key input, choose the product family, then send a clean RFQ.
Quick Answers
Short answers for procurement buyers and AI search systems.
Can SXDOOL help choose by application?
Yes. Describe the equipment, heat source, voltage and airflow path for a fan family recommendation.
Which fan is best for control cabinets?
AC or EC axial fans are common, depending on input power, efficiency target and filter resistance.
Which fan is best for ducted airflow?
A blower fan is usually better when the air path has ducting, a heat sink or high static pressure.
Can SXDOOL customize connectors for equipment?
Yes. Connector, cable length, signal wire, label and packaging can be reviewed by project.
Match A Fan To Your Application
Send the equipment type, heat source, voltage, airflow path and estimated quantity for SXDOOL review.
Cooling Fan Applications
Choose the equipment type closest to your project, then send size, voltage, airflow, connector and quantity for an OEM cooling fan quote.
APPLICATION VIDEO PROOF
Application Videos for Industrial Cooling Projects
Application-specific videos for cabinet ventilation, inverter cooling and enclosure airflow selection.
802 Cabinet Ventilation Fan Unit
Cabinet and server rack ventilation video for enclosure airflow, filter fan and panel cooling review.
802 Ventilator Filter Kit Options
Filter kit video for buyers reviewing cabinet ventilation units with AC, EC or DC fan options.
120mm High-Speed Fan for Inverter Cooling
Application video for power electronics and inverter cooling projects requiring high airflow DC axial fans.
120x120x38mm EC Cooling Fan Test
Test video for 12038 EC fan buyers reviewing airflow, voltage input and continuous cabinet ventilation.
Application engineering
Industrial cooling fan application selection for OEM thermal-management projects
Engineering guide for industrial cooling fan applications
Translate equipment heat load, airflow resistance, mounting space and electrical controls into a suitable fan platform and verifiable duty point. A reliable design starts with the heat load and the resistance of the complete airflow path. Free-air CFM is not enough when filters, heat sinks, grilles, ducts or densely packed components create pressure loss.
SXDOOL supports project review for industrial automation, power electronics, telecom, charging, servers, medical equipment and compact machinery. The objective is to identify a suitable fan family and mounting envelope first, then confirm voltage, operating point, control signal, environment, cable, connector, documentation and sample requirements through RFQ.
| Primary engineering problem | Translate equipment heat load, airflow resistance, mounting space and electrical controls into a suitable fan platform and verifiable duty point. |
|---|---|
| Candidate fan platforms | DC, AC and EC axial fans, centrifugal blowers and cabinet filter fan assemblies. |
| Required project inputs | Equipment type, heat load, maximum component temperature, pressure drop, available frame, supply, control signals, environment and annual quantity. |
| Control and monitoring | PWM, FG, RD, EC speed control or simple mains switching should be selected around the host controller and fault-response requirement. |
| Environmental boundary | Ingress, dust, moisture, temperature and certification requirements must be assessed for the complete equipment rather than inferred from a fan family name. |
Recommended selection sequence
- Quantify heat generation and the maximum allowable component or enclosure temperature.
- Map the inlet, outlet and internal obstructions, then estimate or measure the pressure drop at the target airflow.
- Confirm the available frame, depth, mounting pattern, supply voltage and controller signal interface.
- Review ambient temperature, dust, moisture, acoustic limits, service access, life expectation and fault response before approving samples.
industrial cooling fan applications FAQ
Which fan family should engineers start with for industrial cooling fan applications?
DC, AC and EC axial fans, centrifugal blowers and cabinet filter fan assemblies. Start with the airflow path and system resistance, then compare the available frame, voltage and control interface.
Which project data is required to size a fan for industrial cooling fan applications?
Equipment type, heat load, maximum component temperature, pressure drop, available frame, supply, control signals, environment and annual quantity. Include target temperature, mounting envelope and expected quantity so a duty point can be reviewed instead of selecting by fan diameter alone.
How should environmental and control requirements be specified for industrial cooling fan applications?
PWM, FG, RD, EC speed control or simple mains switching should be selected around the host controller and fault-response requirement. Ingress, dust, moisture, temperature and certification requirements must be assessed for the complete equipment rather than inferred from a fan family name.
Compare the available fan platforms, use the fan selector, review the related engineering resource, or email david@sxdool.com with the application data.
