SXDOOL 803EC12038 IP54 Filter Fan Kit | 12038
803EC12038 IP54 enclosure filter fan kit for industrial panels that need higher DC airflow from a 120 mm fan platform. Select 12V DC, 24V DC; fan-rated airflow reaches 142.6 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.
803EC12038 IP54 enclosure filter fan kit: quick answer

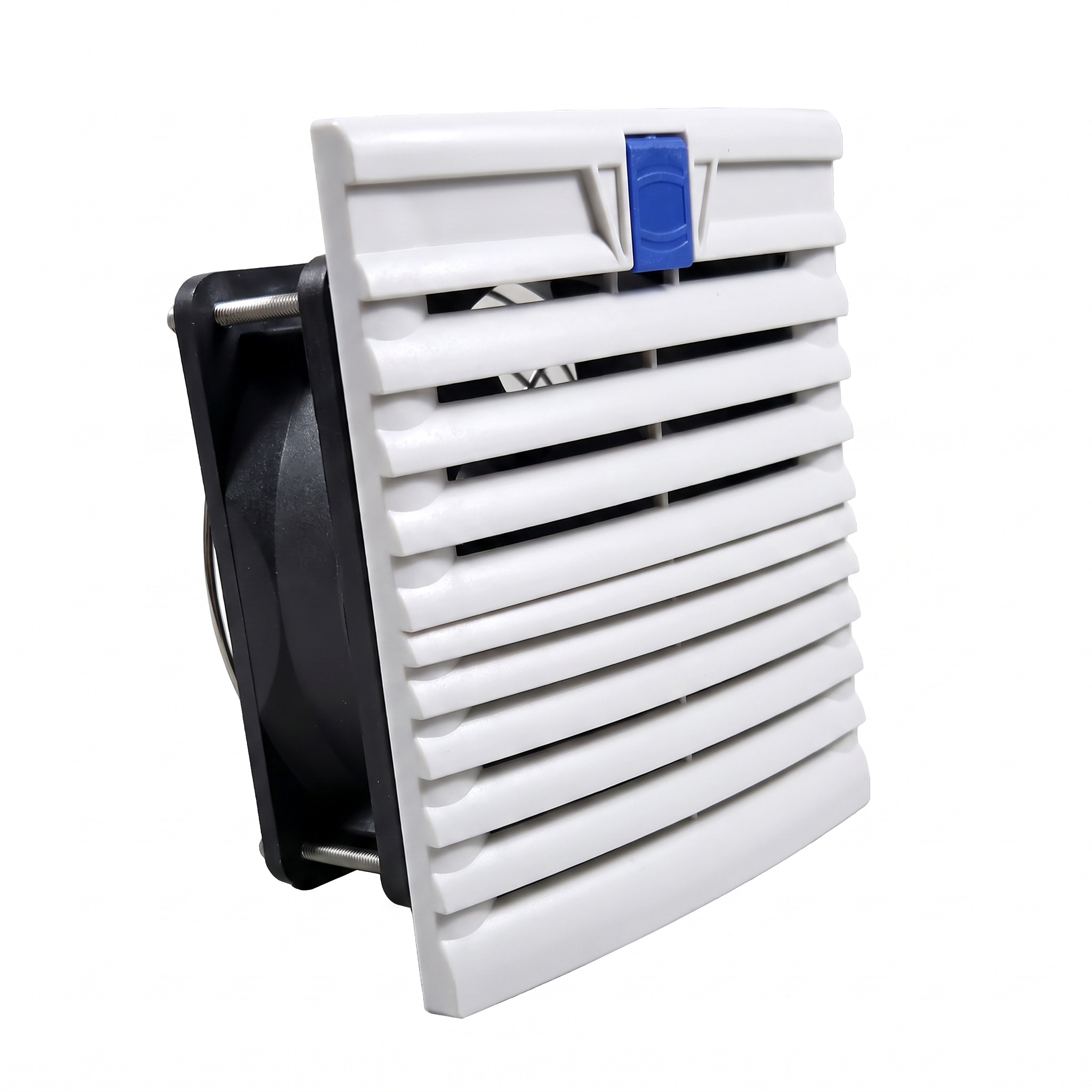

The SXDOOL 803EC12038 is a panel-mounted cabinet ventilation kit built around a 120 x 120 x 38 mm dual-ball-bearing axial fan. It combines forced airflow, a louvered grille, removable filter media, perimeter sealing and a quick-release front latch. It is designed for open-loop ventilation where the surrounding air is cooler and suitable for the equipment.
| Model | 803EC12038 |
|---|---|
| Also referenced as | 803EC1238 |
| Series | SXDOOL 803 Series, IP54 new version |

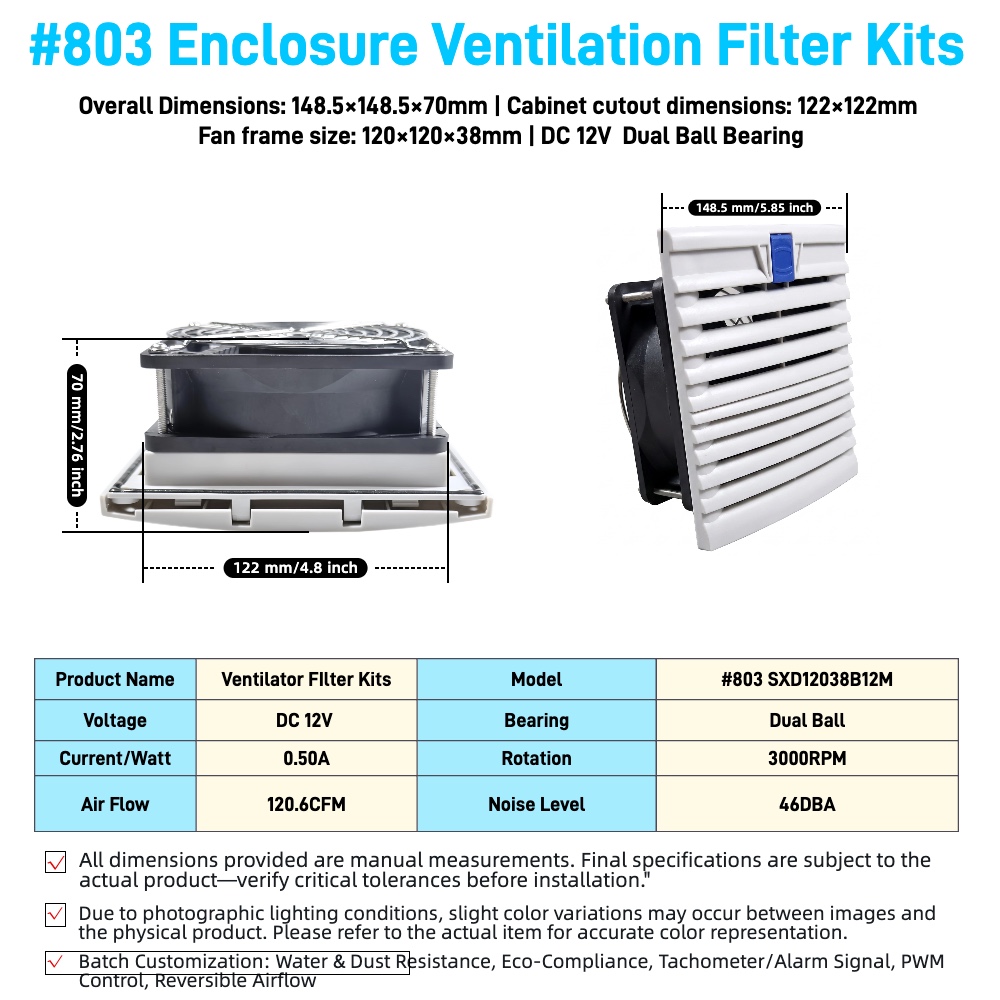

| Fan frame | 120 x 120 x 38 mm |
| Installed front face | 148.5 x 148.5 mm |
| Required panel cutout | 122 x 122 mm; measure the actual product before final cabinet machining |
| Voltage options | 12V DC, 24V DC |
| Fan-rated airflow | 120.6-142.6 CFM, depending on voltage version |

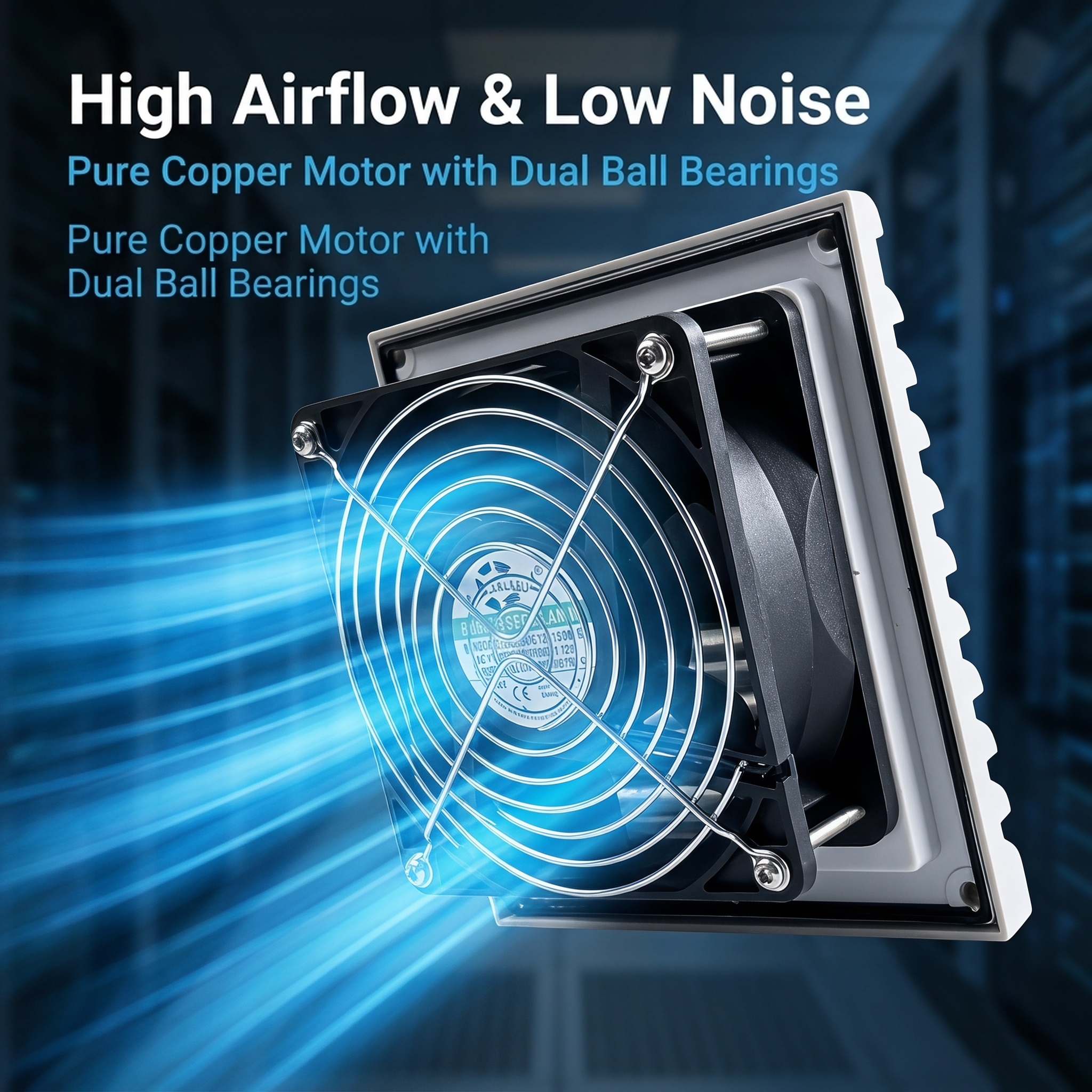

| Bearing | Dual ball bearing |

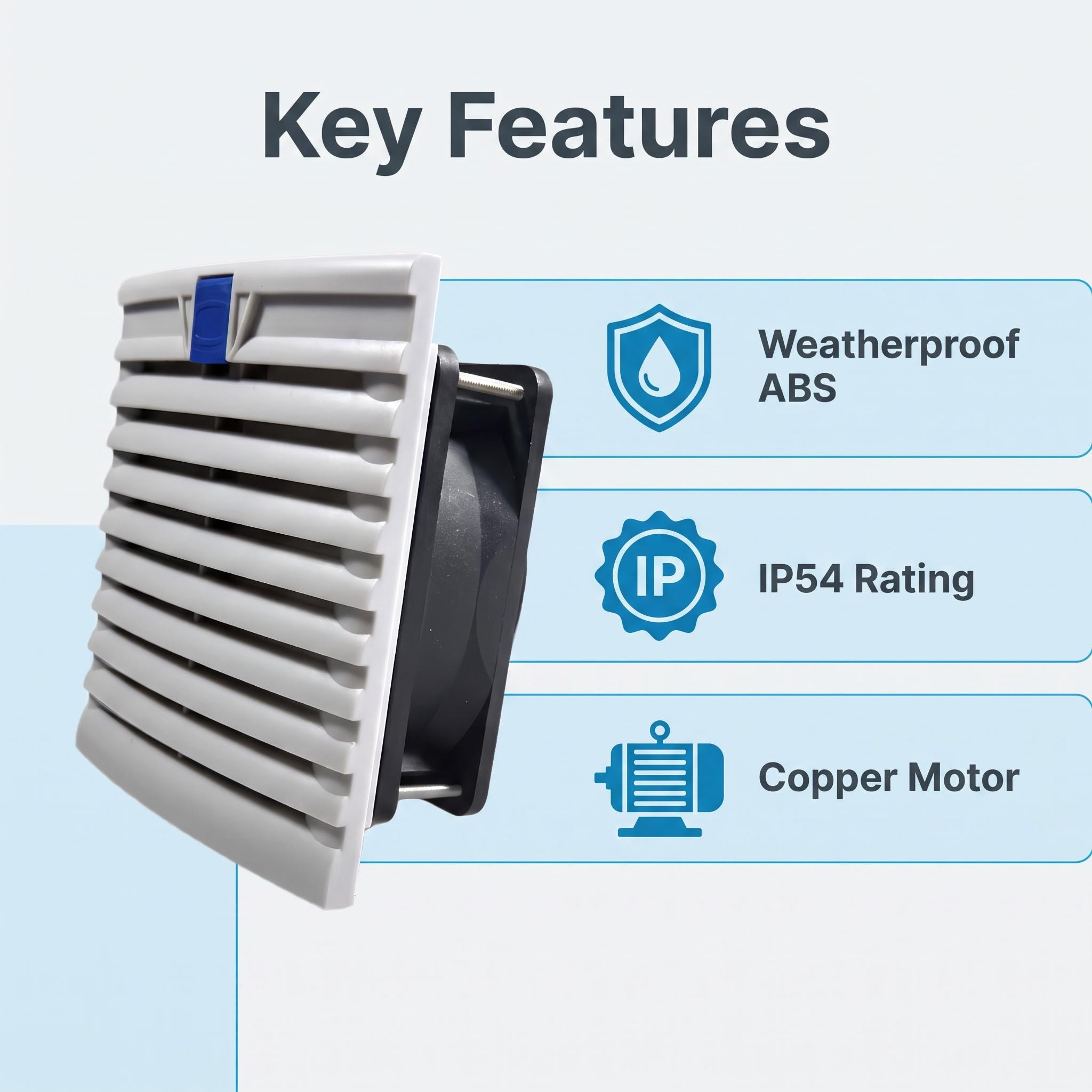

| Protection | IP54 when correctly installed: IP5X dust-protected and IPX4 protected against splashing water |
| Manufacturer | SXDOOL / SENSDA ELECTRONICS LIMITED |
| Package | Filter fan kit ×1, mounting screws ×4, terminal block ×1 |
Which 803EC12038 voltage should an engineer choose?
This page covers 12V DC and 24V DC versions. Choose only the model that matches the cabinet power supply and verify polarity on the product label before wiring.
| SKU | Supply | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 803EC12038-12V | 12V DC | 120.6 CFM | 3000 RPM | 0.5 A | 46 dBA |
| 803EC12038-24V | 24V DC | 142.6 CFM | 3500 RPM | 0.5 A | 49 dBA |
Selection rule: voltage versions are not interchangeable. Check the cabinet supply, label, polarity or AC wiring instructions, airflow target and allowable noise before ordering.
When is this enclosure ventilation kit a good fit?
- Electrical control cabinets, PLC panels, automation boxes and electronics enclosures using open-loop ventilation.
- Projects that need industrial panels that need higher DC airflow from a 120 mm fan platform.
- Panels requiring front filter access for inspection, cleaning or replacement.
- OEM and batch procurement projects that need cable, terminal, label, filter-media, grille-color or packaging review.
Do not use open-loop ventilation when ambient air is hotter than the enclosure target, corrosive, heavily contaminated or otherwise unsuitable. In those environments, evaluate a properly engineered sealed-loop cooling system.
What does IP54 mean for this filter fan?
IP54 means the installed assembly is dust-protected under IP5X and protected against splashing water under IPX4. It does not mean waterproof, dust-tight, immersion-rated or suitable for direct high-pressure washdown. Correct protection depends on a flat panel, the specified cutout, full gasket contact and correct installation.
Installation and maintenance checklist
- Disconnect power and confirm the cabinet can be safely machined.
- Verify the 122 x 122 mm panel opening, 148.5 x 148.5 mm front clearance and available internal depth before cutting.
- Install on a flat surface with continuous gasket contact and the intended airflow direction.
- Wire only the selected 12V DC, 24V DC version according to its product label.
- Use the blue quick-release latch to inspect and replace the filter pad without removing the fan assembly from the panel.
Factory RFQ and technical review
For a fast response, include the selected child SKU, supply voltage, cabinet cutout, airflow target, airflow direction, filter requirement and quantity. Use the SXDOOL RFQ form, the fan selector, or browse all cabinet ventilator filter units.
803EC12038 deep-frame IP54 filter fan kit for 12V and 24V cabinets
Engineering summary: The 803EC12038, also referenced as 803EC1238, uses a 120 x 120 x 38 mm fan platform behind the same 148.5 x 148.5 mm front format used by the thinner 803 family. Its deeper fan offers a different airflow and pressure opportunity, but it also requires 13 mm more rear clearance than a 12025-based kit.
| Assembly reference | 803EC12038; also referenced as 803EC1238 |
|---|---|
| Fan frame | 120 x 120 x 38 mm |
| Installed front face | 148.5 x 148.5 mm |
| Recommended panel cutout | 122 x 122 mm; final machining follows the approved assembly drawing and sample |
| Input options | 12V DC or 24V DC; select one approved assembly |
| Published fan-rated airflow | 120.6-142.6 CFM depending on voltage version |
| Bearing | Dual ball bearing on the published assembly configurations |
| Fan material / flammability | Corresponding 120 x 120 x 38 mm fan-family catalog reference: plastic frame and impeller, UL94V-0 |
| Kit-material boundary | Grille, gasket, filter medium, colour, and full material classification require the approved 803EC12038 assembly BOM |
| Static-pressure boundary | Do not copy a bare 12038 family pressure value onto the complete kit. Validate the selected fan suffix with clean and loaded-filter resistance in the target cabinet |
| Ingress boundary | IP54 when correctly installed: IP5X dust-protected and IPX4 splash-water protected |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Configuration | Input | Airflow | Speed | Current | Noise |
|---|---|---|---|---|---|
| 803EC12038-12V | 12V DC | 120.6 CFM | 3000 RPM | 0.50 A | 46 dBA |
| 803EC12038-24V | 24V DC | 142.6 CFM | 3500 RPM | 0.50 A | 49 dBA |
Engineering release rule: Catalog and current page values are reference data under their stated test conditions. The approved drawing, complete model suffix, controlled datasheet, assembly BOM, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
What mechanical difference separates 803EC12038 from a 12025-based 803 filter kit?
Both can use a 148.5 mm front format and 122 mm cutout, but the 12038 fan is 38 mm deep rather than 25 mm. Confirm the additional 13 mm rear clearance, cable exit, guard space, and internal obstruction.
Why do the published 12V and 24V versions both list 0.50 A?
The current page publishes 0.50 A for both configurations, while speed and airflow differ. Final power-supply sizing must still use the approved model tolerance and startup-current evidence rather than only the nominal current row.
Is 142.6 CFM the guaranteed cabinet duty point through the 24V filter kit?
No. It is a fan-rated free-air reference. The assembled duty point changes with filter resistance, loading, louvres, panel geometry, internal components, outlet area, and recirculation.
Can 803EC12038 replace another 120mm filter kit without a new panel cutout review?
Not from the fan-size label alone. Verify the 148.5 mm front face, 122 mm cutout, panel thickness, gasket, fasteners, 38 mm rear depth, airflow direction, cable route, and maintenance clearance.
Continue with the fan selector, compare the thinner 803EC1225 kit, review the control-cabinet application guide, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
803EC12038 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Static pressure / pressure-flow status | An assembly-level static-pressure or pressure-flow curve is not published for this exact filter fan kit. Individual fan free-air data must not be treated as installed kit airflow. Qualify the clean and loaded filter assembly against the enclosure system-resistance curve. |
|---|---|
| Model-specific release evidence | Approved assembly drawing, fan subassembly model, clean and loaded filter pressure-flow test, panel cutout, mounting depth, airflow direction, gasket or sealing interface, ingress test scope and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 803EC12038 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
