SXDOOL #803 Black 150x150mm IP54 Filter Fan Kit
SXDOOL #803 Black 150x150mm IP54 Filter Fan Kit. Black #803 150x150mm IP54 enclosure filter fan kit for control cabinets. Confirm 115V/230V, cutout, airflow direction and quantity. Source-factory OEM/ODM customization and batch RFQ review are available.

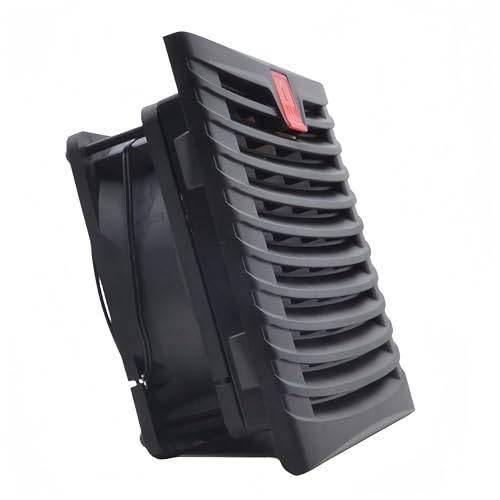

SXDOOL #803 Black IP54 enclosure filter fan kit

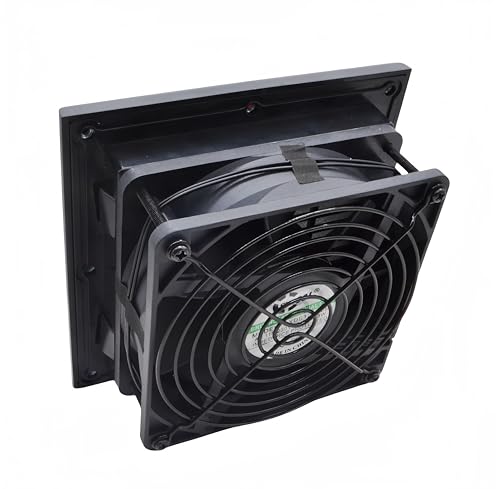

Engineering summary: a 150x150mm nominal cabinet ventilation format for 115V or 230V project review, combining a removable filter grille with a 120x38mm AC/EC fan platform. Final airflow performance depends on the selected fan, filter condition, and enclosure resistance.

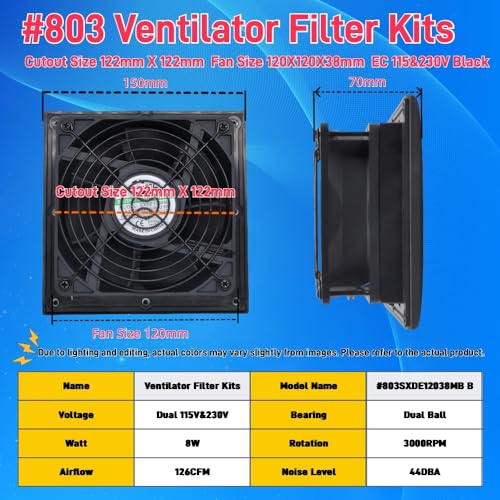

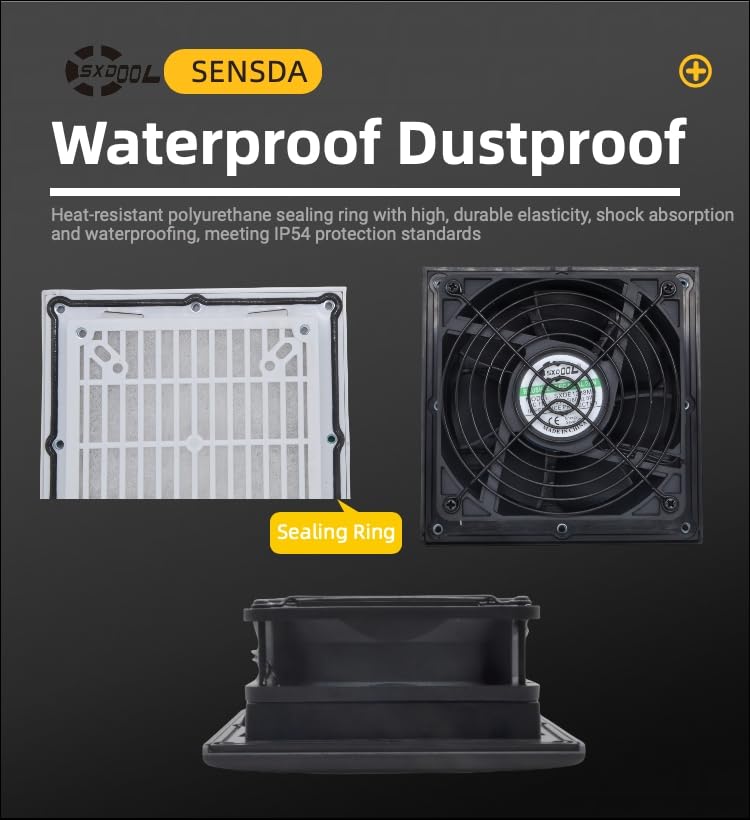

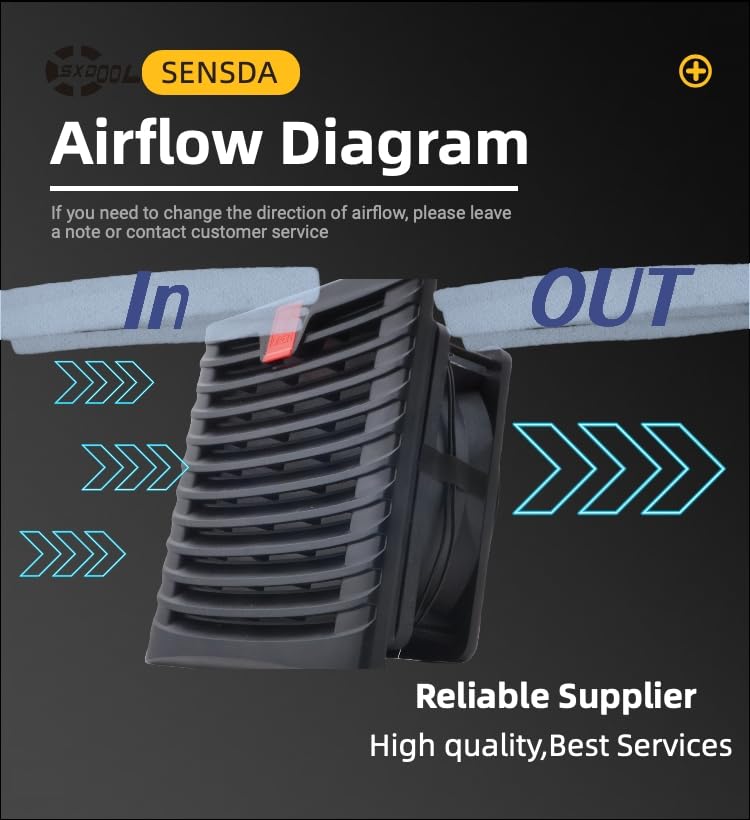

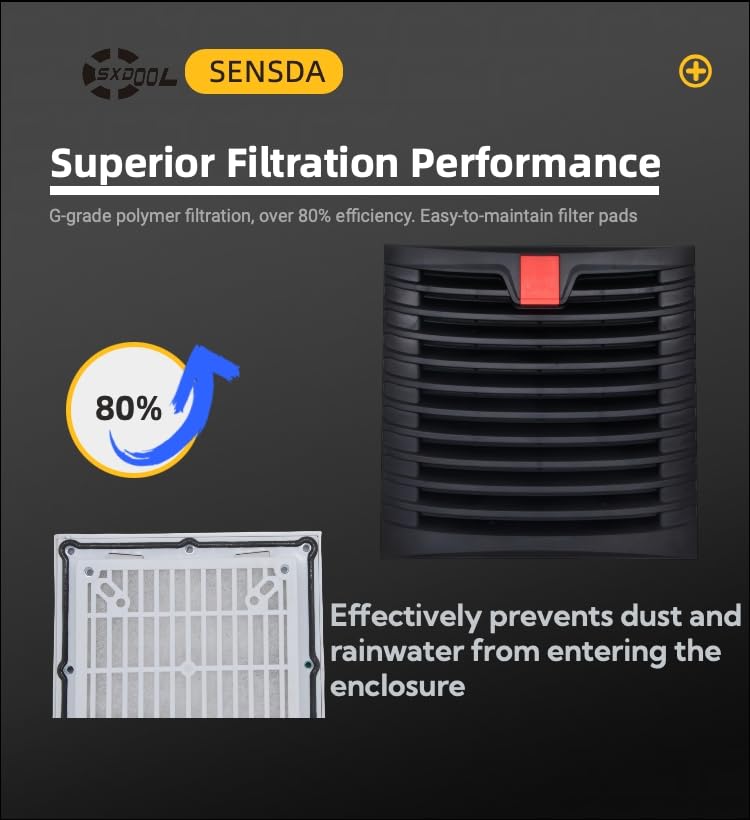

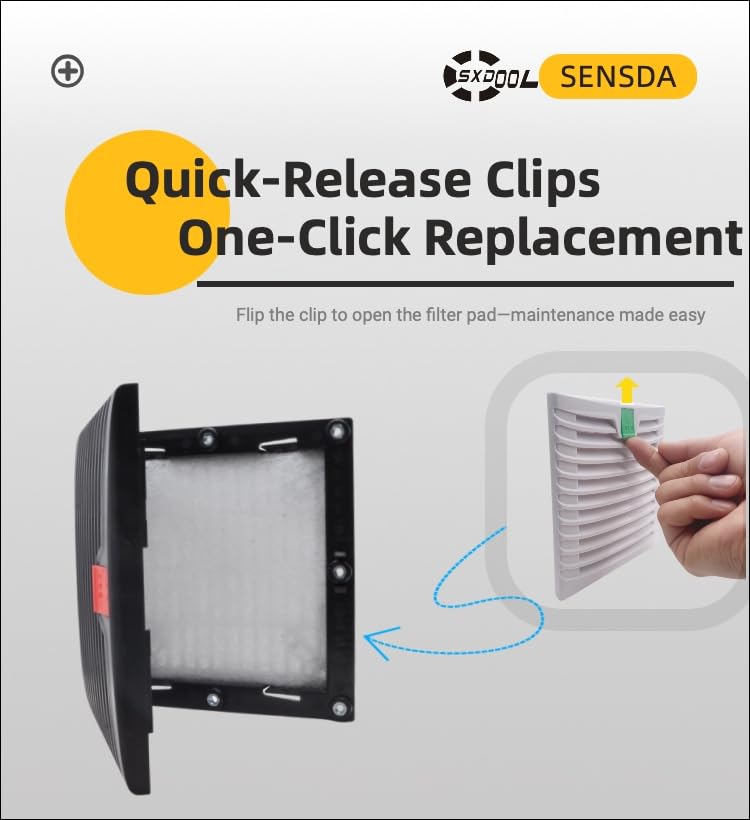

| Product reference | #803 Black enclosure filter fan kit |
|---|---|
| Nominal grille format | 150x150mm |
| Fan platform | 120x38mm AC / EC platform; final model follows the approved quotation |
| Voltage options | 115V / 230V project options; confirm one approved input specification |
| Ingress protection | IP54 tested to IEC 60529: IP5X dust-protected and IPX4 splash-water protected |
| Test evidence | Report TST20250201498-IPR, Dongguan True Safety Testing Co., Ltd., issued February 27, 2025 |
| Airflow and static pressure | No universal numeric duty point is published for every fan/filter combination. Validate the selected fan with clean and service-condition filter pressure drop. |
| Noise, current, and power | Confirm against the selected 115V or 230V fan model and approved production specification. |
| Filter and material | Replaceable filter media. Filter grade and grille material must follow the approved drawing or quotation; no universal grade is asserted on this page. |

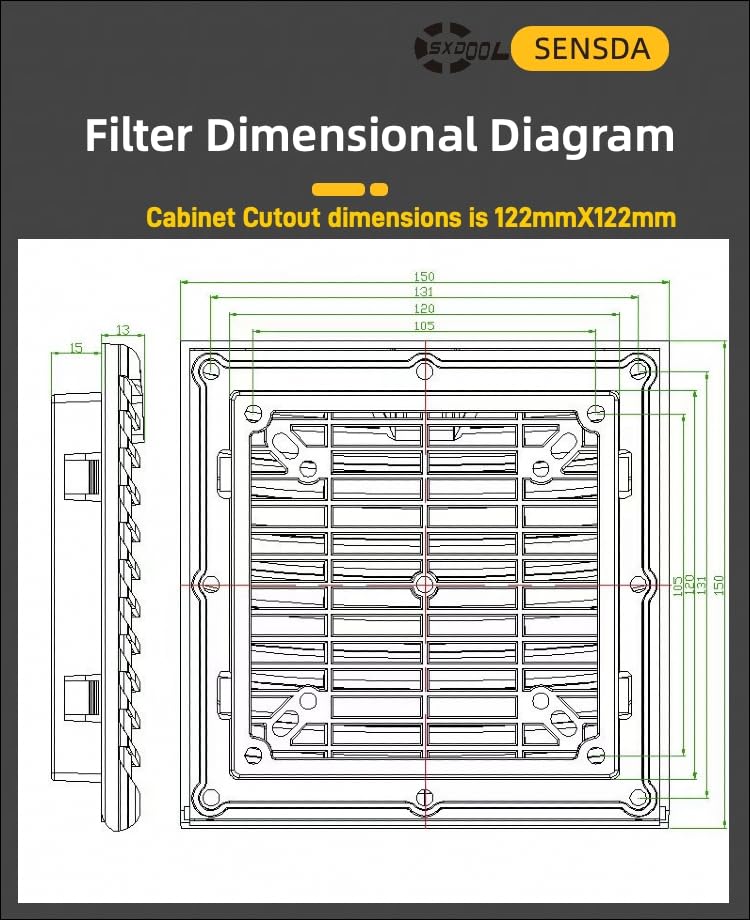

| Panel cutout | Confirm the approved drawing, panel thickness, tolerance, gasket compression, and service clearance before enclosure machining. |
| Best-fit applications | Black or dark control cabinets, machine enclosures, and equipment where the ventilation cover should visually integrate with a dark enclosure finish. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM requirements, Dynamic Balancing of the selected fan subassembly, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
SKU-specific engineering FAQ
What does the IP54 report for the #803 black filter fan kit cover?
The verified claim is IP54 under IEC 60529 for the tested assembly, covering IP5X dust-protected and IPX4 splash-water protected performance. It is not an immersion, high-pressure washdown, or unsheltered-rain claim.
How should engineers qualify the panel cutout and gasket for the #803 black kit?
Use the approved product drawing before machining. Confirm panel thickness, cutout tolerance, gasket contact, compression, fastener condition, airflow direction, cable route, and service clearance on the actual enclosure.
How does filter loading affect selection of the #803 black fan kit?
Filter loading raises pressure drop and can reduce delivered airflow. No universal duty point is published for every fan and filter combination, so validate clean-filter and service-condition airflow against the selected 115V or 230V fan platform.
When should the black #803 cover be selected instead of the white version?
Choose black for dark control cabinets and machine enclosures where the ventilation cover should visually integrate with the enclosure finish. The colour choice does not change the required thermal, ingress, and mounting qualification.
For the IP54 report, drawing review, sample validation, or a batch quotation, contact david@sxdool.com. Continue with the control-cabinet cooling guide or the fan selector.
