SXDOOL 804EC17251 IP54 Filter Fan Kit | 172mm
804EC17251 IP54 enclosure filter fan kit for larger electrical cabinets and switchgear requiring up to 208.2 CFM fan-rated airflow. Select 12V DC, 24V DC; fan-rated airflow reaches 208.2 CFM depending on the selected version. Confirm panel cutout, supply voltage, airflow direction and quantity for a factory RFQ.
804EC17251 IP54 enclosure filter fan kit: quick answer

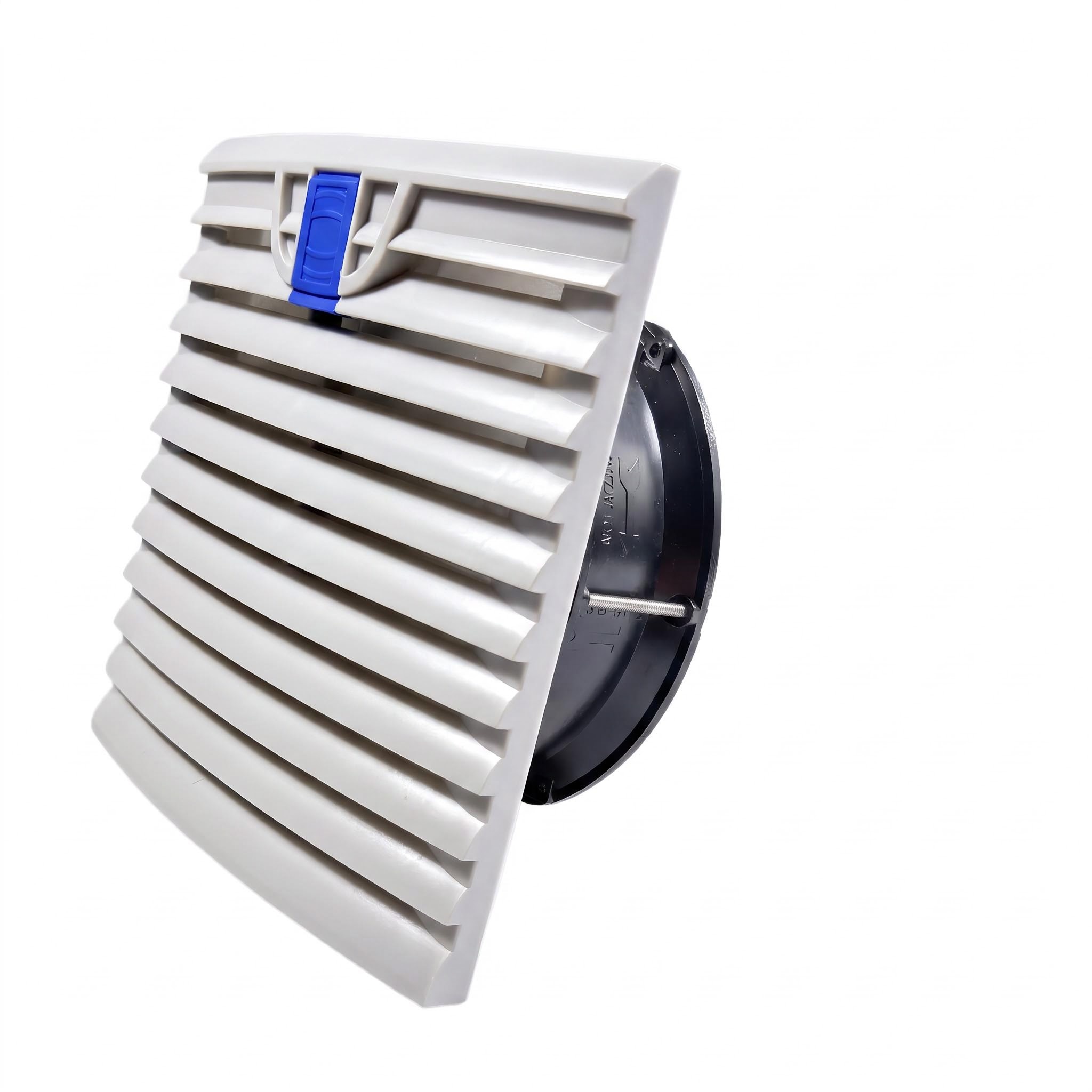

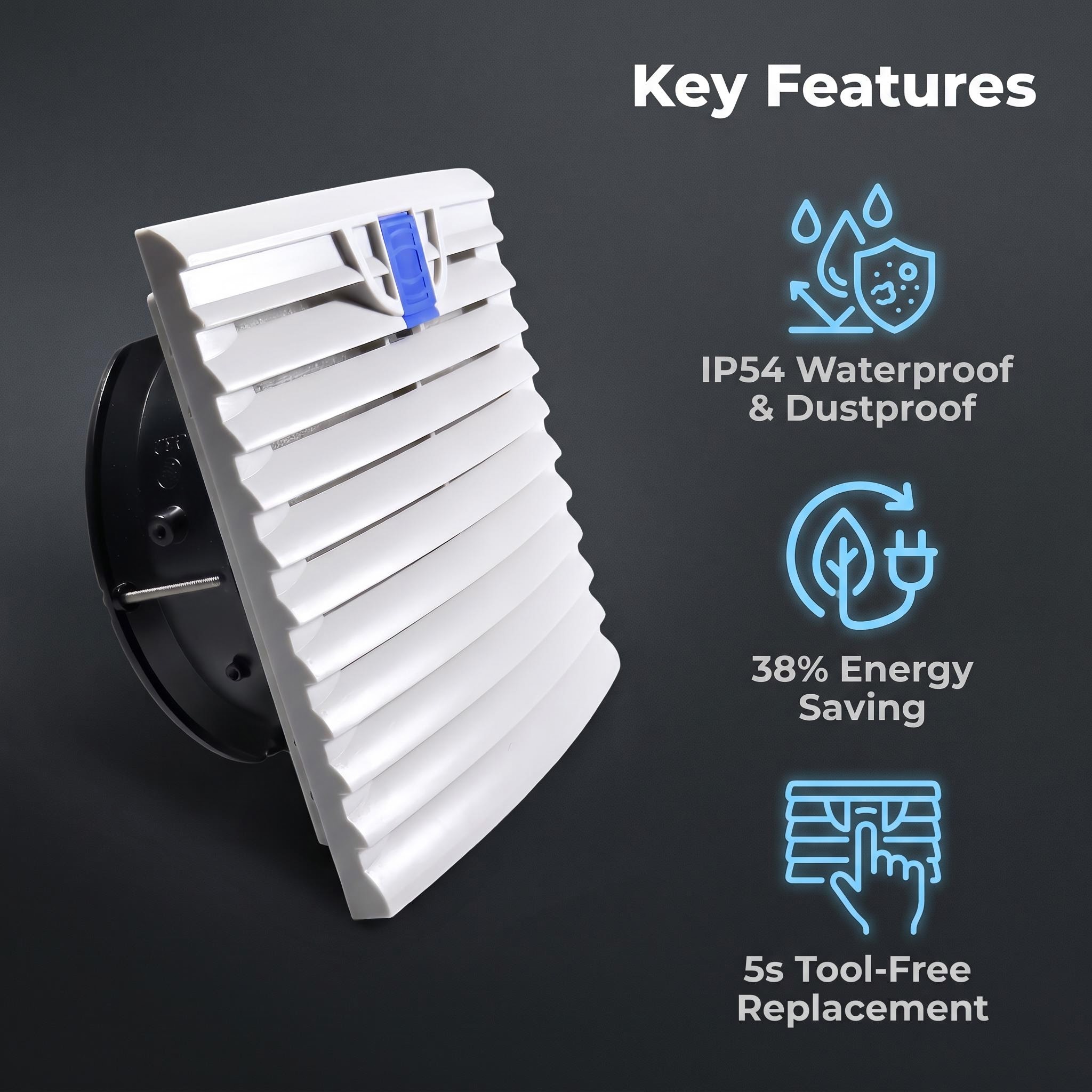

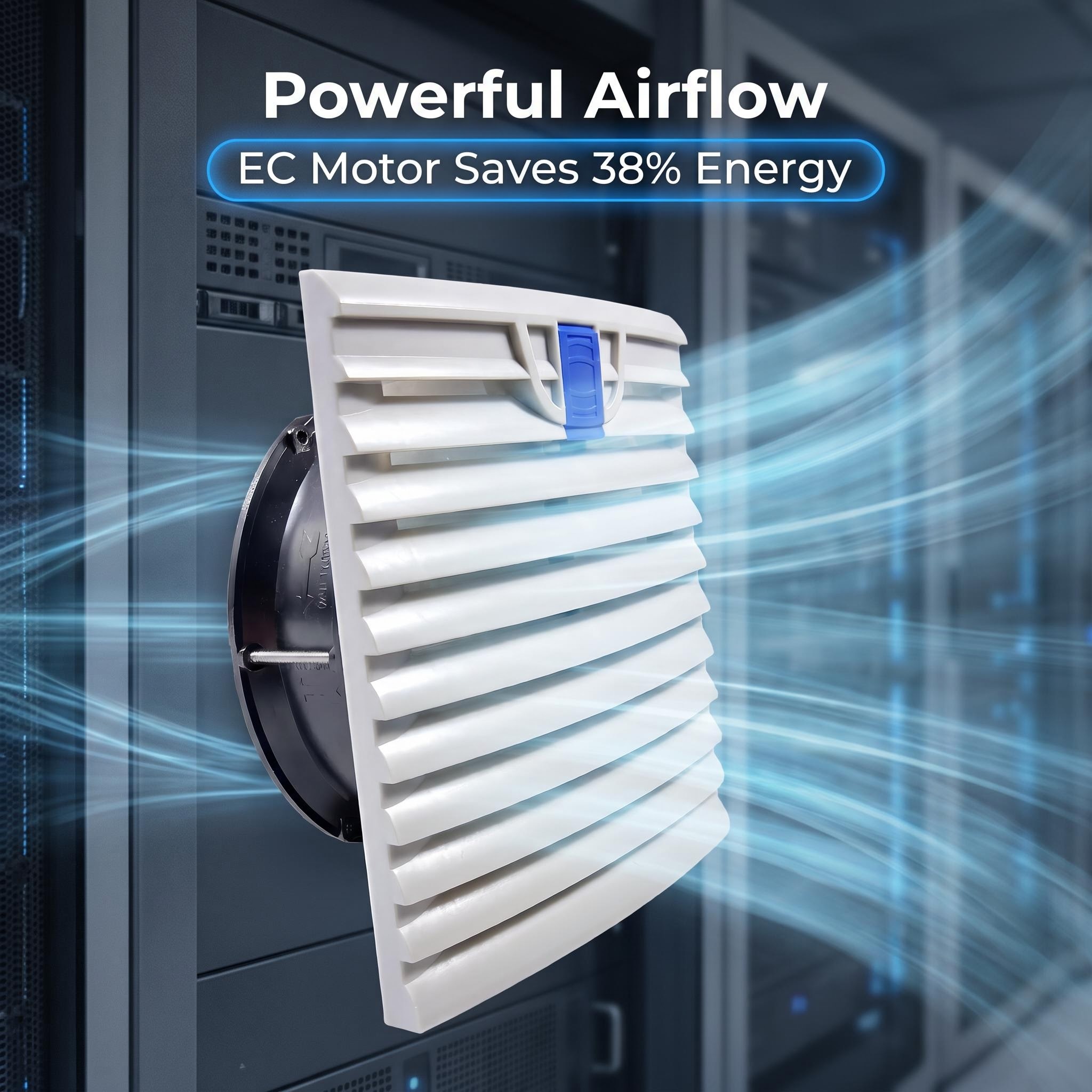

The SXDOOL 804EC17251 is a panel-mounted cabinet ventilation kit built around a 172 x 151 x 51 mm dual-ball-bearing axial fan. It combines forced airflow, a louvered grille, removable filter media, perimeter sealing and a quick-release front latch. It is designed for open-loop ventilation where the surrounding air is cooler and suitable for the equipment.
| Model | 804EC17251 |
|---|---|
| Series | SXDOOL 804 Series, IP54 new version |
| Fan frame | 172 x 151 x 51 mm |
| Installed front face | 204 x 204 mm |
| Required panel cutout | 175 x 175 mm; measure the actual product before final cabinet machining |
| Voltage options | 12V DC, 24V DC |
| Fan-rated airflow | 208.2 CFM, depending on voltage version |
| Bearing | Dual ball bearing |
| Protection | IP54 when correctly installed: IP5X dust-protected and IPX4 protected against splashing water |
| Manufacturer | SXDOOL / SENSDA ELECTRONICS LIMITED |
| Package | Filter fan kit ×1, mounting screws ×4, terminal block ×1 |
Which 804EC17251 voltage should an engineer choose?
This page covers 12V DC and 24V DC versions. Choose only the model that matches the cabinet power supply and verify polarity on the product label before wiring.
| SKU | Supply | Airflow | Speed | Current / power | Noise |
|---|---|---|---|---|---|
| 804EC17251-12V | 12V DC | 208.2 CFM | 3000 RPM | 1.2 A | 51 dBA |
| 804EC17251-24V | 24V DC | 208.2 CFM | 3000 RPM | 0.65 A | 51 dBA |
Selection rule: voltage versions are not interchangeable. Check the cabinet supply, label, polarity or AC wiring instructions, airflow target and allowable noise before ordering.

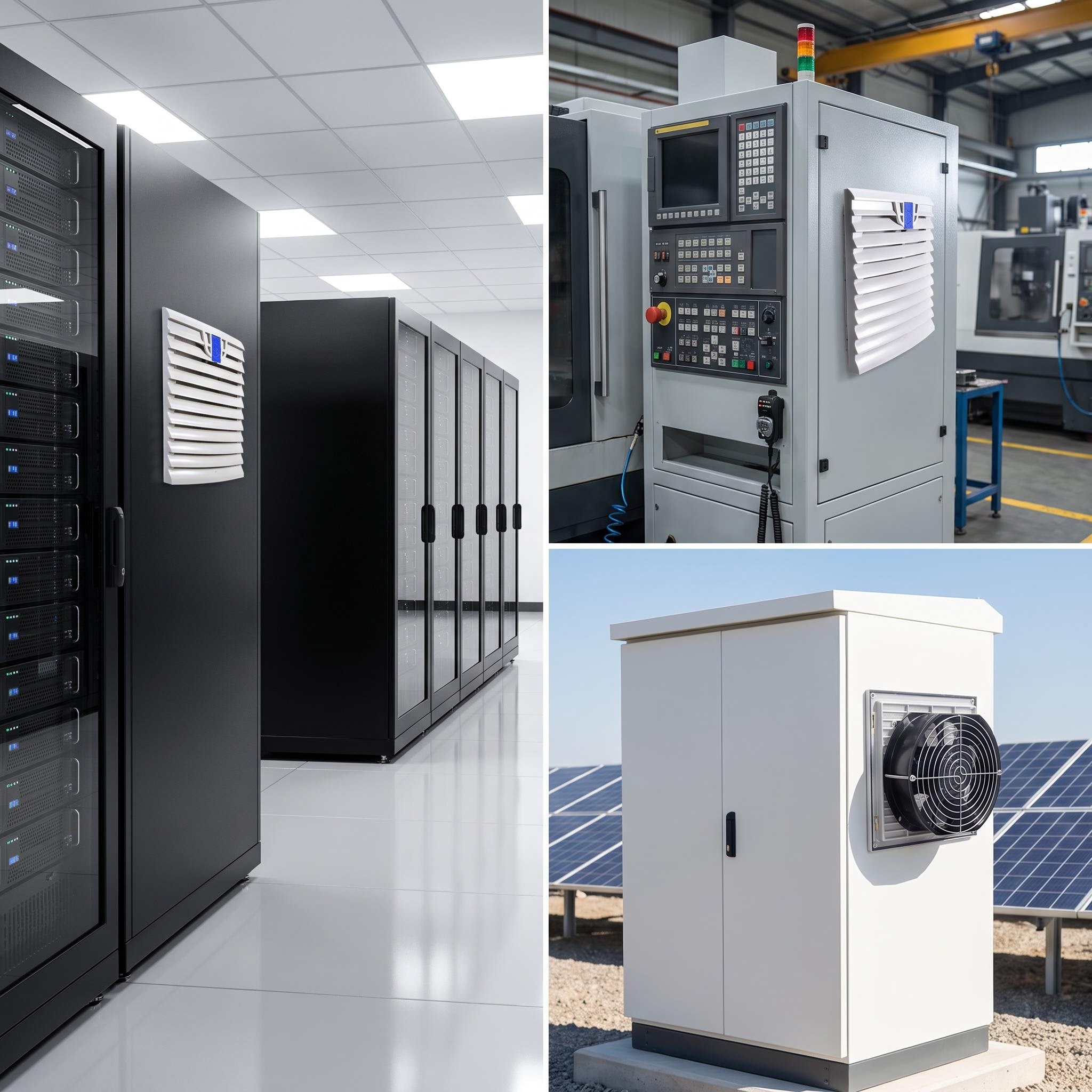

When is this enclosure ventilation kit a good fit?
- Electrical control cabinets, PLC panels, automation boxes and electronics enclosures using open-loop ventilation.
- Projects that need larger electrical cabinets and switchgear requiring up to 208.2 CFM fan-rated airflow.
- Panels requiring front filter access for inspection, cleaning or replacement.
- OEM and batch procurement projects that need cable, terminal, label, filter-media, grille-color or packaging review.
Do not use open-loop ventilation when ambient air is hotter than the enclosure target, corrosive, heavily contaminated or otherwise unsuitable. In those environments, evaluate a properly engineered sealed-loop cooling system.

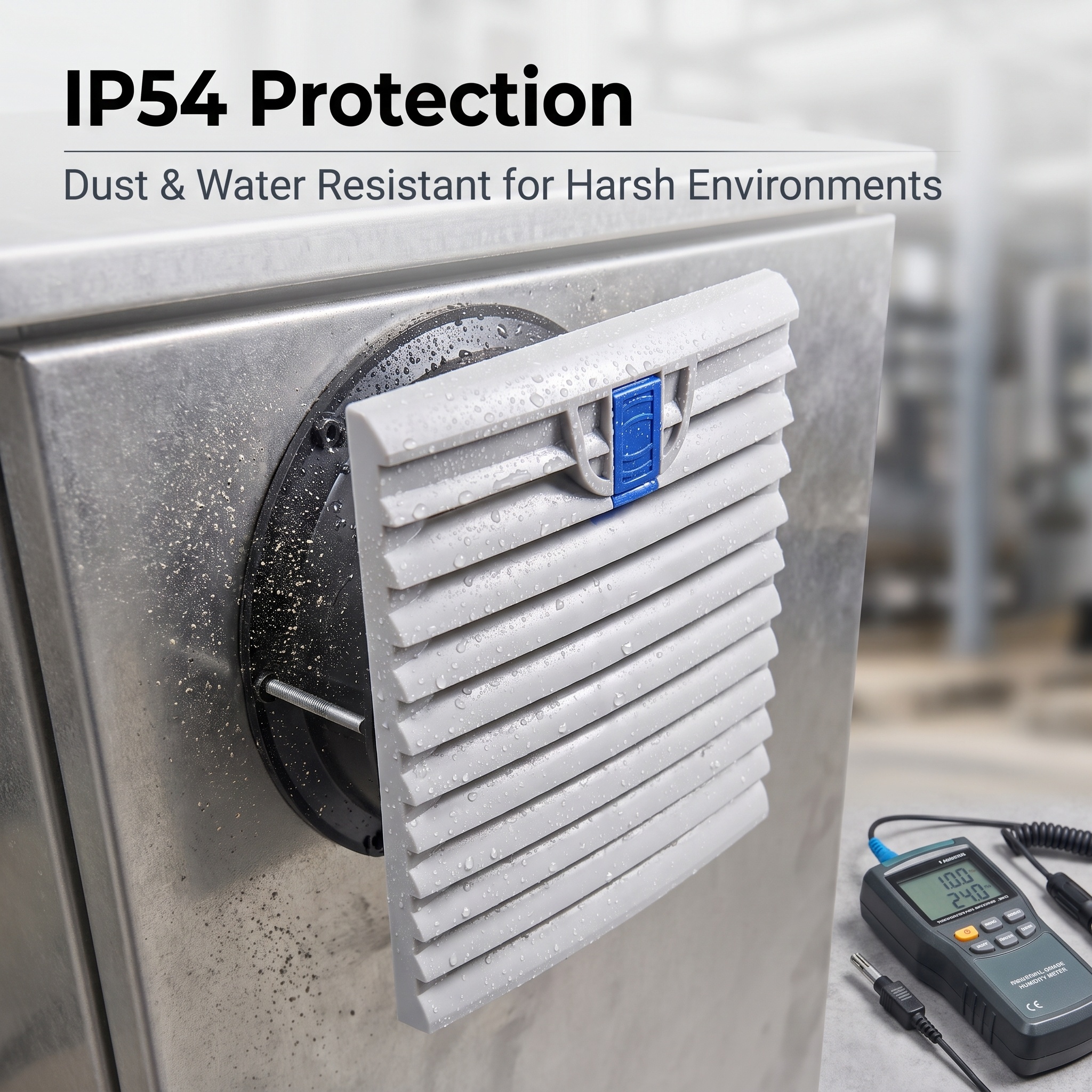

What does IP54 mean for this filter fan?

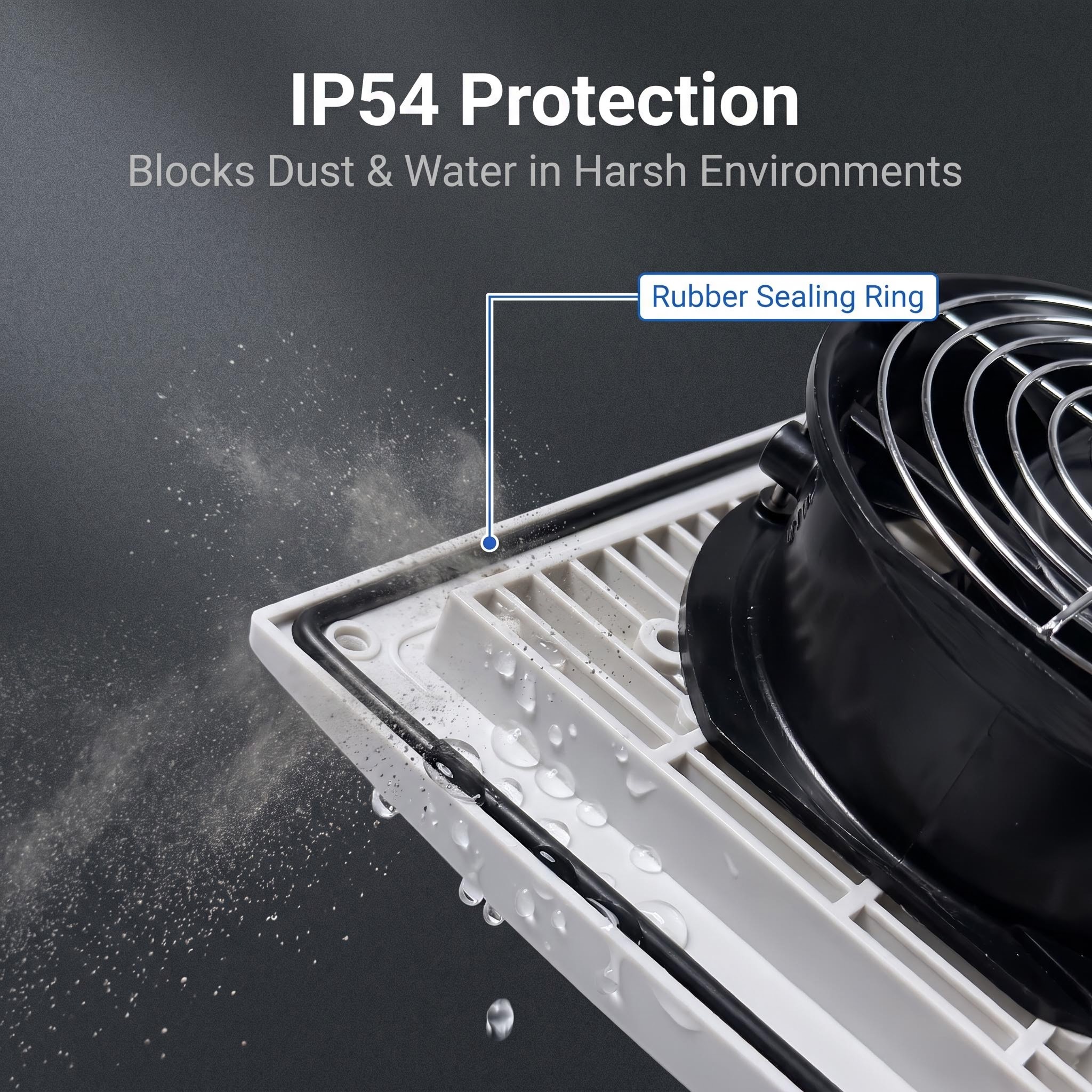

IP54 means the installed assembly is dust-protected under IP5X and protected against splashing water under IPX4. It does not mean waterproof, dust-tight, immersion-rated or suitable for direct high-pressure washdown. Correct protection depends on a flat panel, the specified cutout, full gasket contact and correct installation.
Installation and maintenance checklist
- Disconnect power and confirm the cabinet can be safely machined.
- Verify the 175 x 175 mm panel opening, 204 x 204 mm front clearance and available internal depth before cutting.
- Install on a flat surface with continuous gasket contact and the intended airflow direction.
- Wire only the selected 12V DC, 24V DC version according to its product label.

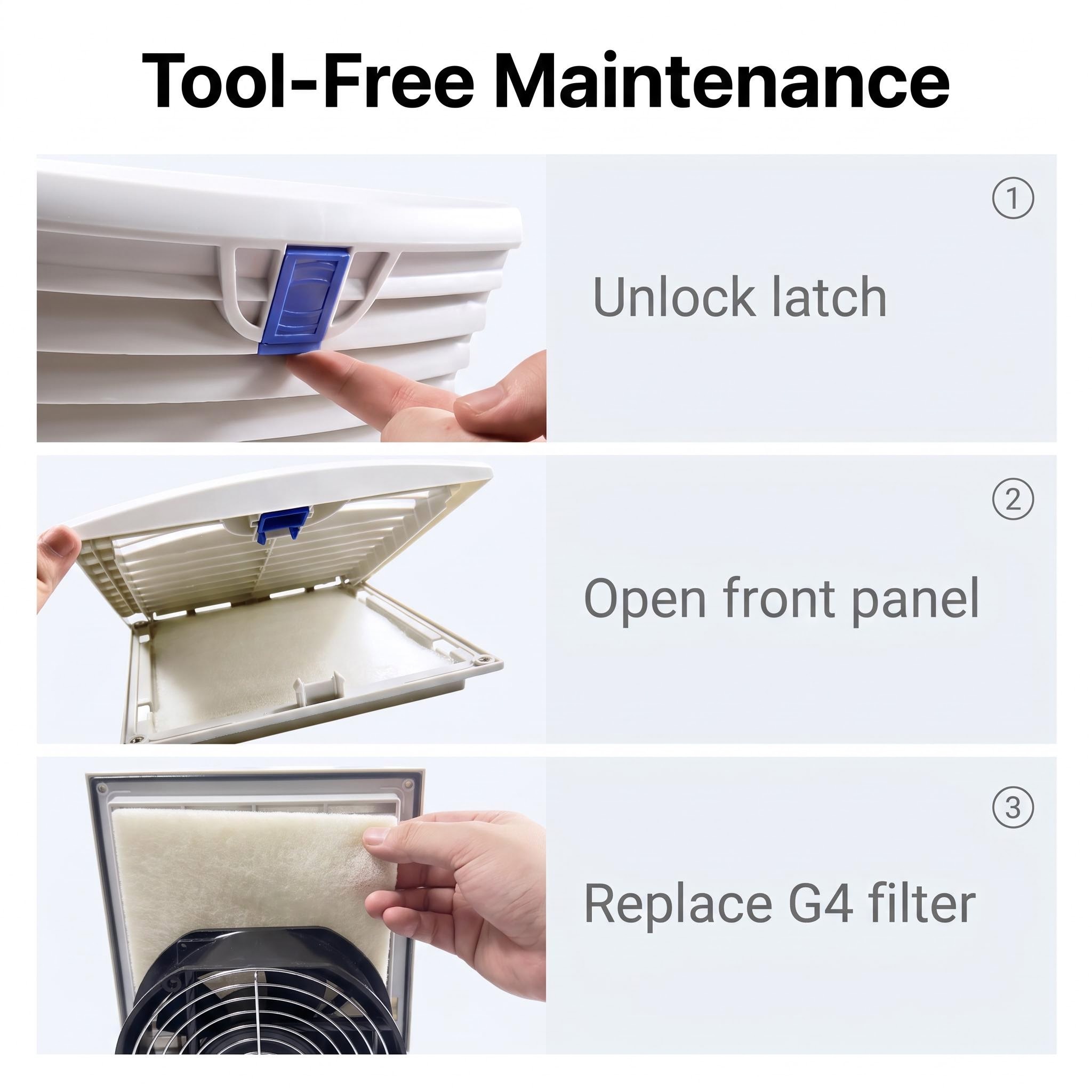

- Use the blue quick-release latch to inspect and replace the filter pad without removing the fan assembly from the panel.
Factory RFQ and technical review
For a fast response, include the selected child SKU, supply voltage, cabinet cutout, airflow target, airflow direction, filter requirement and quantity. Use the SXDOOL RFQ form, the fan selector, or browse all cabinet ventilator filter units.
804EC17251 high-airflow IP54 filter fan kit for large DC cabinets

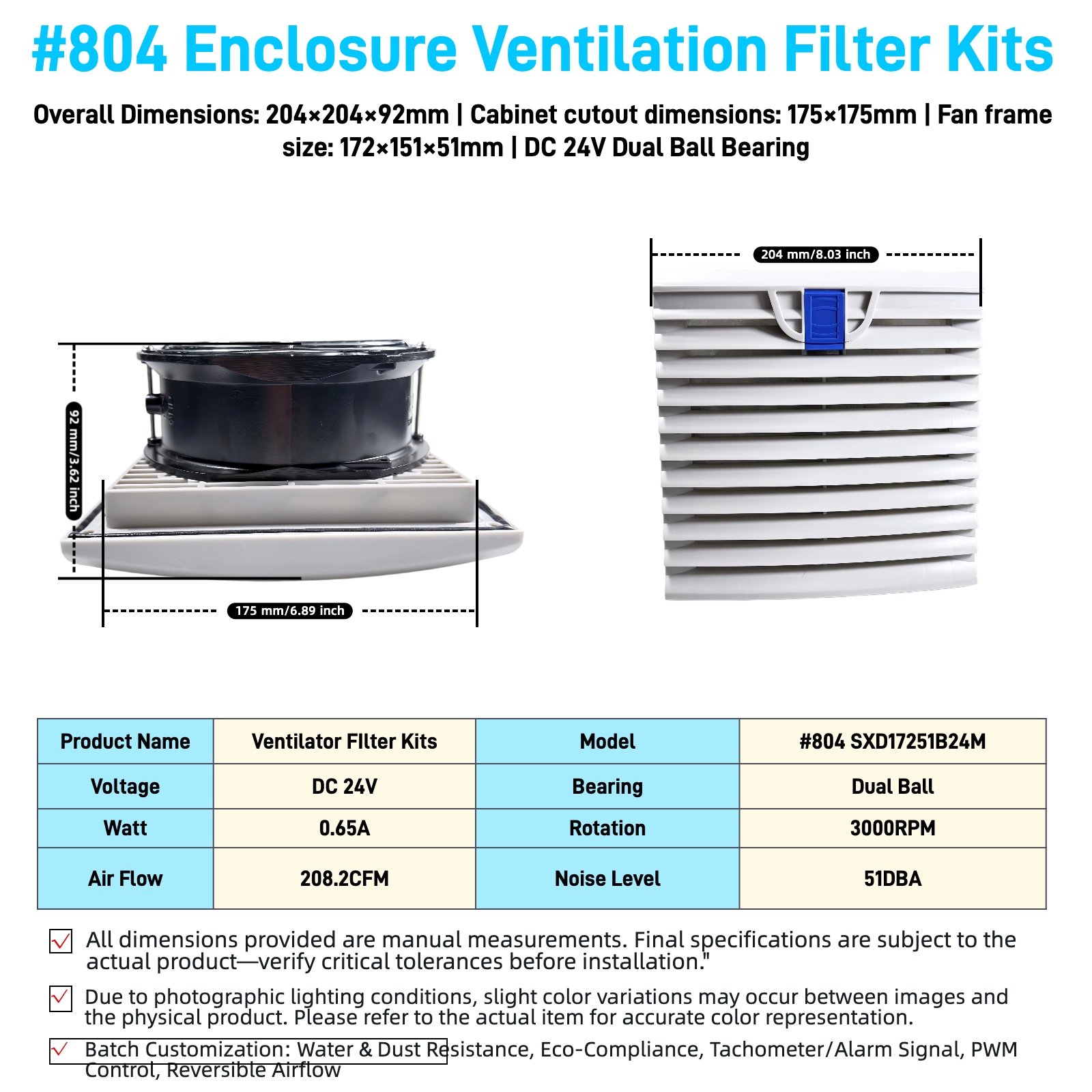

Engineering summary: This 12V/24V DC enclosure assembly uses a 172 x 151 x 51 mm fan platform, a 204 x 204 mm installed front face, and a 175 x 175 mm recommended panel cutout. Its 208.2 CFM free-air reference supports larger cabinet projects, but the installed operating point still depends on filter and enclosure resistance.
| Assembly reference | 804EC17251 cabinet filter fan kit |
|---|---|
| Fan frame | 172 x 151 x 51 mm |
| Installed front face | 204 x 204 mm |
| Recommended panel cutout | 175 x 175 mm; confirm panel thickness, tolerance, gasket contact, and the approved drawing |
| Input options | 12V DC or 24V DC; select one approved assembly |
| Published fan-rated airflow | 208.2 CFM for the published 12V and 24V configurations |
| Bearing | Dual ball bearing on the published assembly configurations |
| Fan material / flammability | Corresponding 172-class fan-family catalog reference: plastic frame and impeller, UL94V-0 |
| Kit-material boundary | Filter grille, gasket, filter medium, colour, and full material classification require the approved 804EC17251 assembly BOM |
| Static-pressure boundary | Do not transfer a nearby 172-class bare-fan pressure value to this kit without matching the exact fan model suffix. Validate the assembled clean and loaded-filter operating point |
| Ingress boundary | IP54 when correctly installed: IP5X dust-protected and IPX4 splash-water protected |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Configuration | Input | Airflow | Speed | Current | Noise |
|---|---|---|---|---|---|
| 804EC17251-12V | 12V DC | 208.2 CFM | 3000 RPM | 1.20 A | 51 dBA |
| 804EC17251-24V | 24V DC | 208.2 CFM | 3000 RPM | 0.65 A | 51 dBA |
Engineering release rule: Catalog and current page values are reference data under their stated test conditions. The approved drawing, complete model suffix, controlled datasheet, assembly BOM, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Why do the 12V and 24V 804EC17251 versions publish the same airflow but different current?
Both configurations publish 208.2 CFM at 3000 RPM, while the rated-current reference changes from 1.20 A at 12V to 0.65 A at 24V. The host supply must still include startup and tolerance margin from the approved production specification.
Should the cabinet panel cutout match the 172 x 151 mm fan dimensions?
No. The complete kit uses a 204 x 204 mm front face and a recommended 175 x 175 mm panel cutout. Use the approved assembly drawing and sample, not the bare-fan frame, for cabinet machining.
Does 208.2 CFM describe the delivered cabinet duty point after filter pressure loss?
It is a published fan-rated reference, not a guaranteed enclosure duty point. Pressure loss from the clean filter, dust loading, louvres, narrow exhaust paths, and internal obstruction must be included in thermal validation.
Which large-cabinet projects are a better fit for 804EC17251 than a 120mm kit?
Consider it when the enclosure can accept the larger cutout and needs more free-air capacity for inverter, power-conversion, CNC, automation, or battery-system cabinets. Confirm noise, current, service access, and the actual system curve before release.
Continue with the fan selector, compare the 205mm AC-input EC kit, review the control-cabinet application guide, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
804EC17251 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Static pressure / pressure-flow status | An assembly-level static-pressure or pressure-flow curve is not published for this exact filter fan kit. Individual fan free-air data must not be treated as installed kit airflow. Qualify the clean and loaded filter assembly against the enclosure system-resistance curve. |
|---|---|
| Model-specific release evidence | Approved assembly drawing, fan subassembly model, clean and loaded filter pressure-flow test, panel cutout, mounting depth, airflow direction, gasket or sealing interface, ingress test scope and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 804EC17251 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
