SXDOOL 8038 80x80x38mm EC Axial Fan AC Input
SXDOOL 8038 80x80x38mm EC axial fan for filtered enclosures and rugged controls. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Frame size | 80x80x38mm |
|---|---|
| Bearing | Sleeve or ball-bearing family options; final bearing and complete model suffix must follow the approved production drawi |
| Control & feedback | Do not infer low-voltage DC PWM, FG, RD, polarity, or connector behavior. Use the approved EC wiring diagram and host sa |
| Material | Catalog family reference: plastic frame and impeller, UL94V-0. Final resin and compliance documentation must match the a |
| Speed | 2500–4000 RPM |
| Airflow | 34.8–59.2 CFM |
| Static pressure | 4.2–10.7 mmH2O |
| Noise | 32–45 dBA |
| Power | 3–6 W |
SXDOOL 8038 EC fan for universal AC-input cabinet cooling
Engineering summary: This 80x80x38mm electronically commutated platform accepts 100-264V operation on a 115/230V, 50/60Hz product family and provides three catalog grades from 34.8 to 59.2CFM. It is an AC-input EC fan, not a low-voltage 12V/24V DC fan.
| Product / model reference | SXDE8038HB / SXDE8038MX / SXDE8038LX |
|---|---|
| Fan family | Electronically commutated axial fan with AC input |
| Dimensions | 80x80x38mm |
| Input platform | 115/230V rated family, 50/60Hz, 100-264V operating range |
| Bearing selection | Sleeve or ball-bearing family options; final bearing and complete model suffix must follow the approved production drawing |
| Control / wiring boundary | Do not infer low-voltage DC PWM, FG, RD, polarity, or connector behavior. Use the approved EC wiring diagram and host safety design |
| Material / flammability boundary | Catalog family reference: plastic frame and impeller, UL94V-0. Final resin and compliance documentation must match the approved production specification |
| Catalog operating environment | -10 to 70C operation, 35%-85%RH; -40 to 80C storage, 35%-85%RH. Validate mains, derating, surge, and condensation conditions |
| Application fit | Control cabinets and industrial equipment that need a compact 80mm fan powered from a wide-range AC input without a separate low-voltage fan supply. |
| Page differentiation | The EC motor electronics accept the listed AC-input range. Do not connect this platform to a 12V or 24V DC fan header or infer DC tach/PWM behavior. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | EC family values are catalog-typical under nominal voltage. Catalog noise is referenced one meter from the air intake. Current approved model documents and samples govern the final specification. |
Model and configuration table
| Model grade | Input range | Frequency | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| SXDE8038HB | 115/230V; 100-264V operating range | 50/60Hz | 0.06A | 6.0W | 4000RPM | 59.2CFM | 10.7mmH2O | 45dBA |
| SXDE8038MX | 115/230V; 100-264V operating range | 50/60Hz | 0.04A | 4.0W | 3000RPM | 41.7CFM | 6.0mmH2O | 37dBA |
| SXDE8038LX | 115/230V; 100-264V operating range | 50/60Hz | 0.03A | 3.0W | 2500RPM | 34.8CFM | 4.2mmH2O | 32dBA |

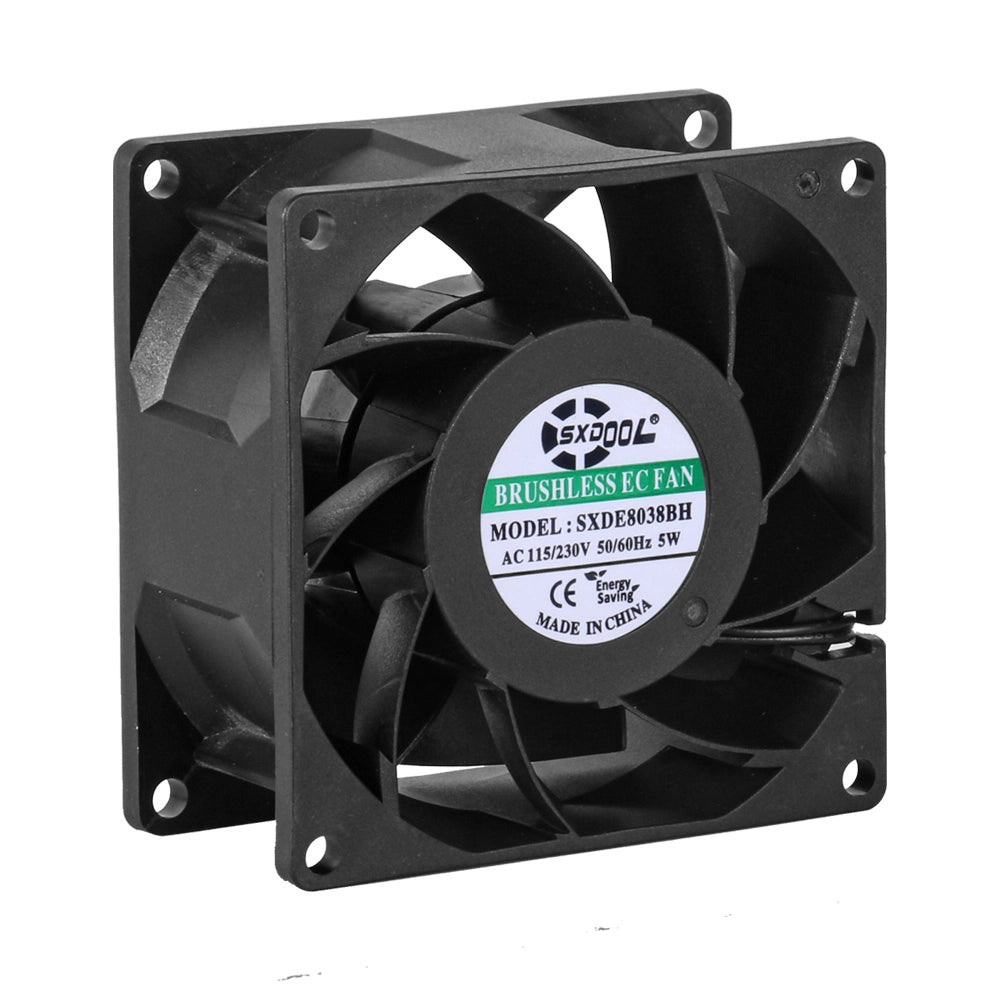

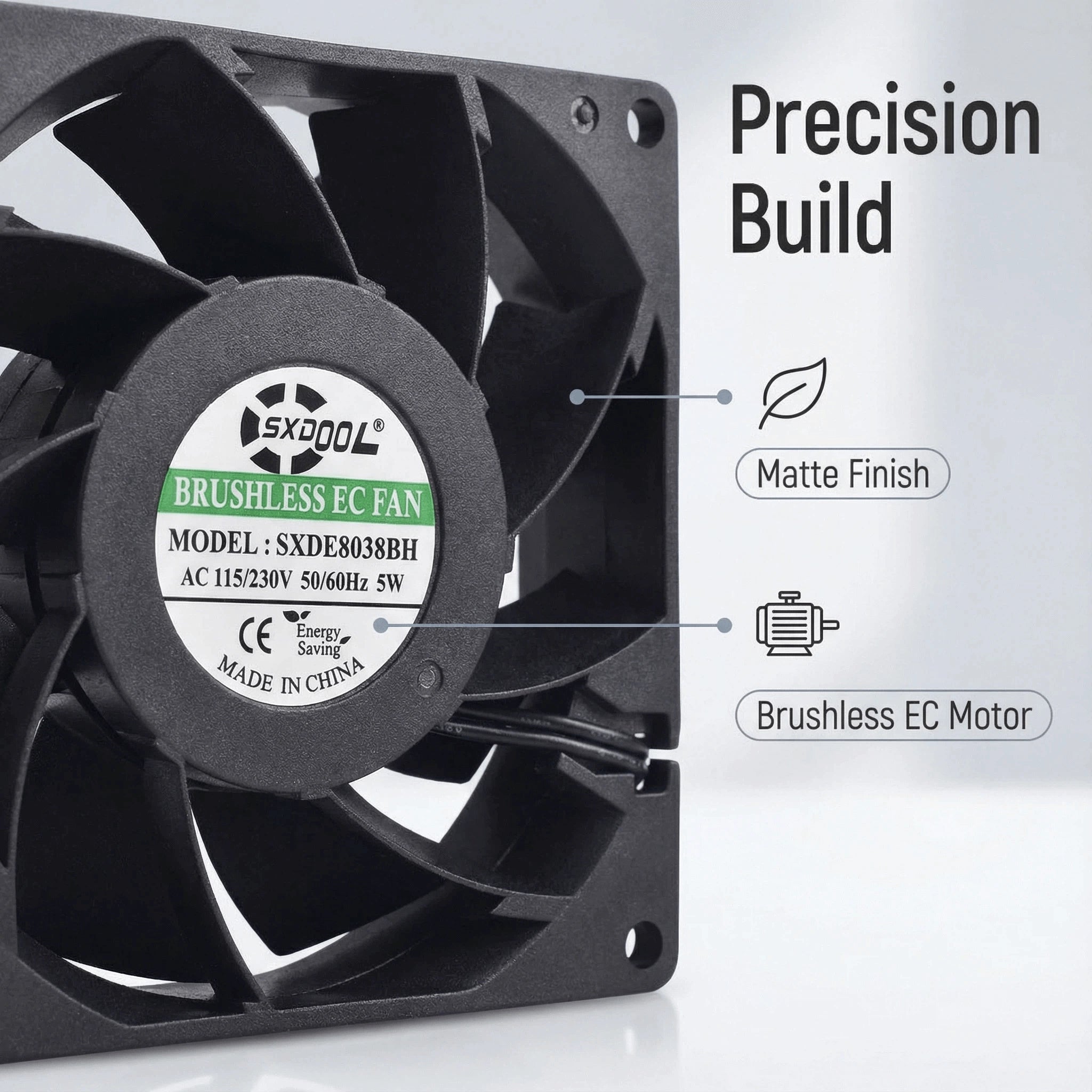

Image evidence reconciliation: The photographed SXDE8038BH label identifies AC 115/230V, 50/60Hz and 5W. The controlled 8038 catalog lists the HB grade at 6.0W, 4000RPM, 59.2CFM, 10.7mmH2O and 45dBA. The photographed 5W configuration and the 6.0W catalog row are separate evidence records and must not be merged into one purchasable specification without an approved drawing and model-specific datasheet. Historical graphics citing 52CFM, a DC motor, generic long-life or dual-ball-bearing claims, and generated installation scenes were removed from this gallery because they conflict with the EC platform or lack configuration-specific qualification evidence.
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
How should procurement resolve the photographed 5W label and 6.0W catalog row before SXDE8038 production release?
Keep the photographed 5W configuration and the 6.0W catalog grade as separate evidence records. Before release, obtain the complete model suffix, approved drawing and current model-specific datasheet, then reconcile the sample label and measured input power with those documents. Do not assign the catalog grade to the photographed fan until that mapping is approved.
Which system resistance and pressure-loss test supports SXDE8038 HB, MX or LX grade selection in a filtered cabinet?
Choose from the system resistance and thermal target: HB provides the highest catalog output, MX balances output and power, and LX provides the lowest speed and noise reference. Verify temperature rise and airflow with the cabinet filter and louver installed.
Which mains wiring, insulation and overcurrent checks are required before SXDE8038 equipment release?
Confirm the approved wiring diagram, insulation system, protective-earth requirements if any, overcurrent protection, creepage and clearance in the host assembly, cable retention, terminal rating, enclosure access, and regional compliance documentation.
Which maintenance and input-voltage records should document the SXDE8038 100-264V and 50/60Hz operating envelope?
Record the released model suffix, approved drawing and datasheet revisions, sample label, intended supply voltage and frequency, wiring and protection requirements, and the operating environment. Include maintenance access and the inspection plan for the installed equipment. Confirm the selected model against its approved input specification rather than using the family range or URL alone.
Continue with the fan selector, review compare the low-voltage DC 8038 platform, review the 801EC8038 filter fan kit, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
