SXDOOL 12025 120x120x25mm EC Axial Fan AC Input
SXDOOL 12025 120x120x25mm EC axial fan for equipment panels and server accessories. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
12025 EC fan AC-input selection matrix

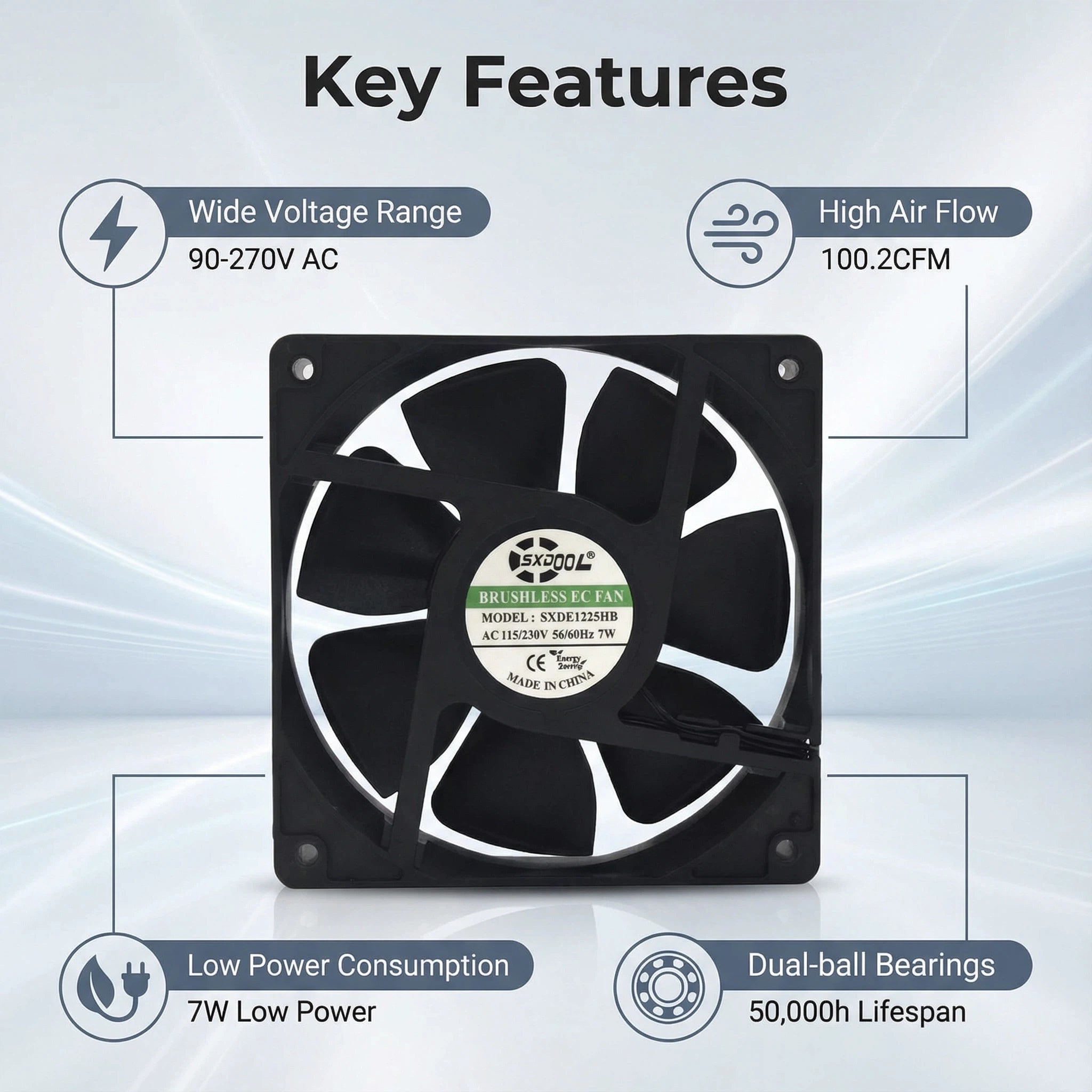

Engineering summary: A 120x120x25mm EC axial platform rated at 115/230VAC and 50/60Hz. The supplied catalog defines a 100-264VAC operating range and three performance grades; use that controlled range unless a project-specific document approves otherwise.

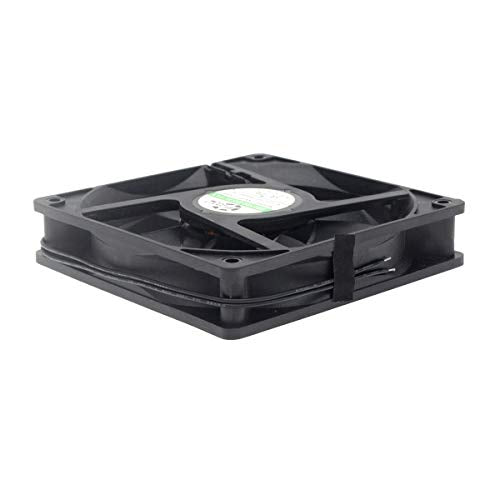

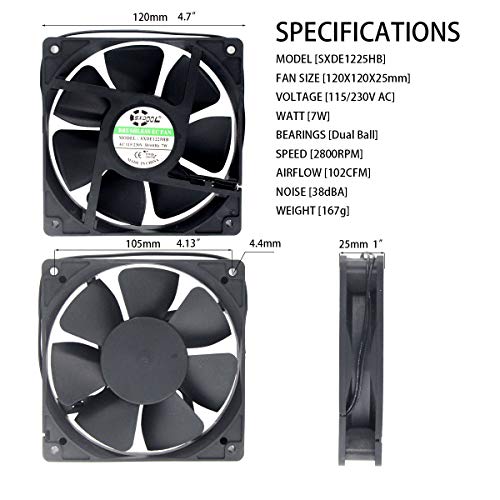

| Product reference | 12025 EC axial fan family |
|---|---|
| Fan family | EC energy-saving axial fan |
| Dimensions | 120x120x25mm |
| Rated input / frequency | 115/230VAC, 50/60Hz |
| Catalog operating-voltage range | 100-264VAC; do not use a wider range without written model-specific approval |
| Rated current / power | HX: 0.08A / 7.0W; MX: 0.07A / 4.5W; LX: 0.05A / 3.5W |
| Speed / airflow | HX: 2600RPM / 100.2CFM; MX: 2200RPM / 85.5CFM; LX: 1800RPM / 68.6CFM |
| Static pressure | HX: 4.2mmH2O; MX: 3.0mmH2O; LX: 2.1mmH2O |
| Noise | HX: 38dBA; MX: 33dBA; LX: 28dBA |

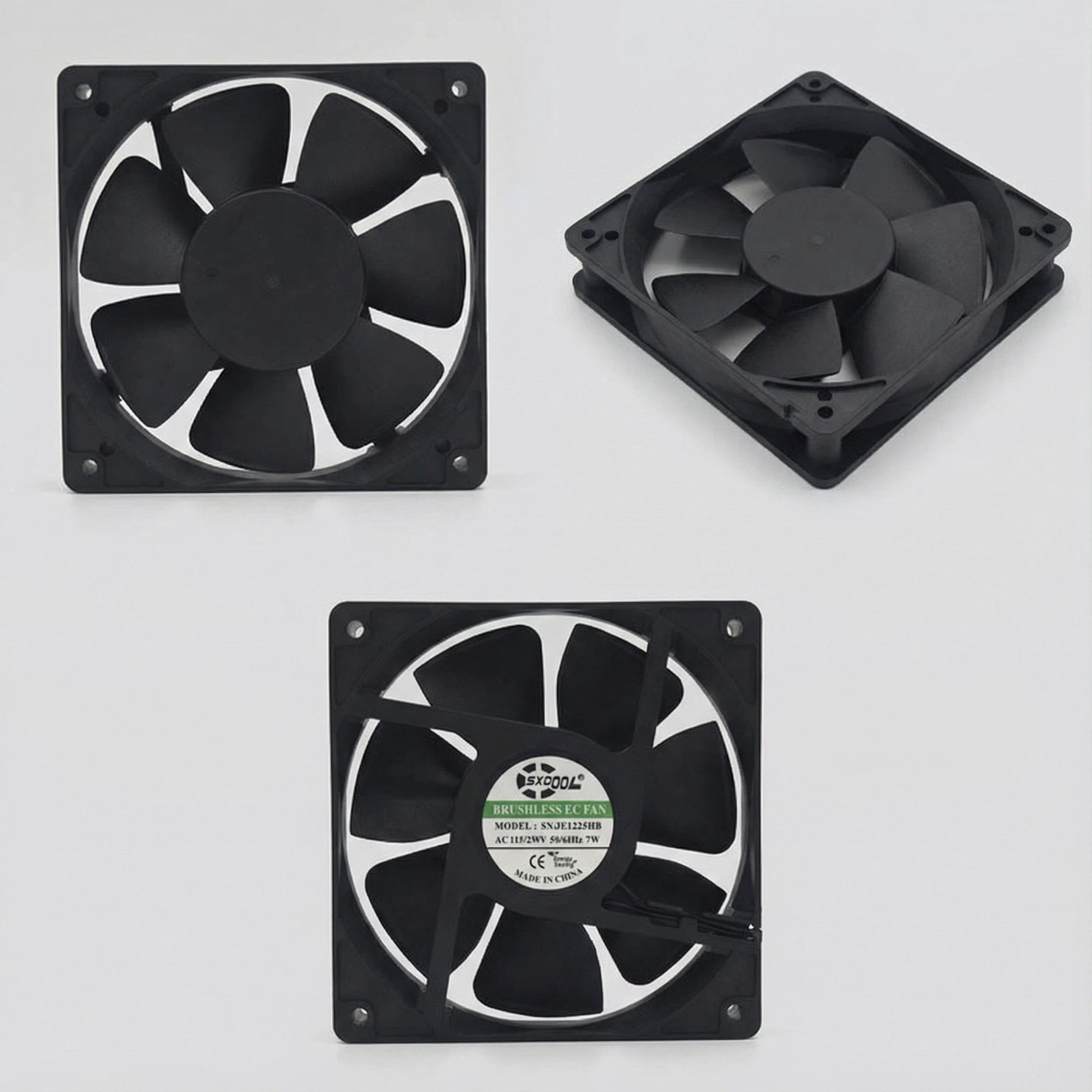

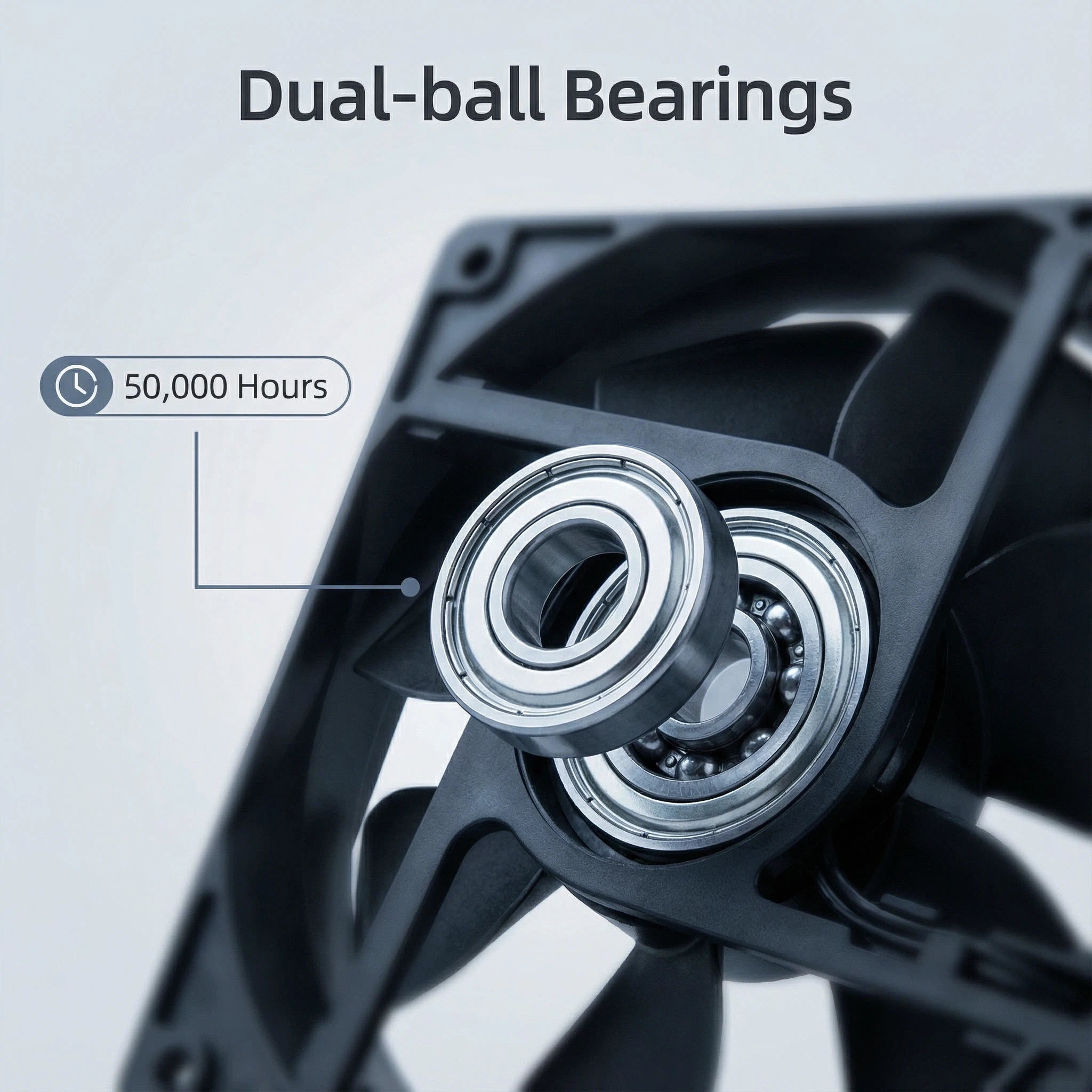

| Bearing type | Sleeve-bearing and ball-bearing configurations are cataloged; specify the ordered bearing |
| Material / flammability | Frame and impeller: Plastic (UL94V-0) |
| Control / wiring boundary | Confirm AC wiring, grounding, insulation, connector and any speed-control or alarm interface on the approved model drawing |
| Operation / storage environment | -10C to 70C, 35%-85% RH operation; -40C to 80C, 35%-85% RH storage |

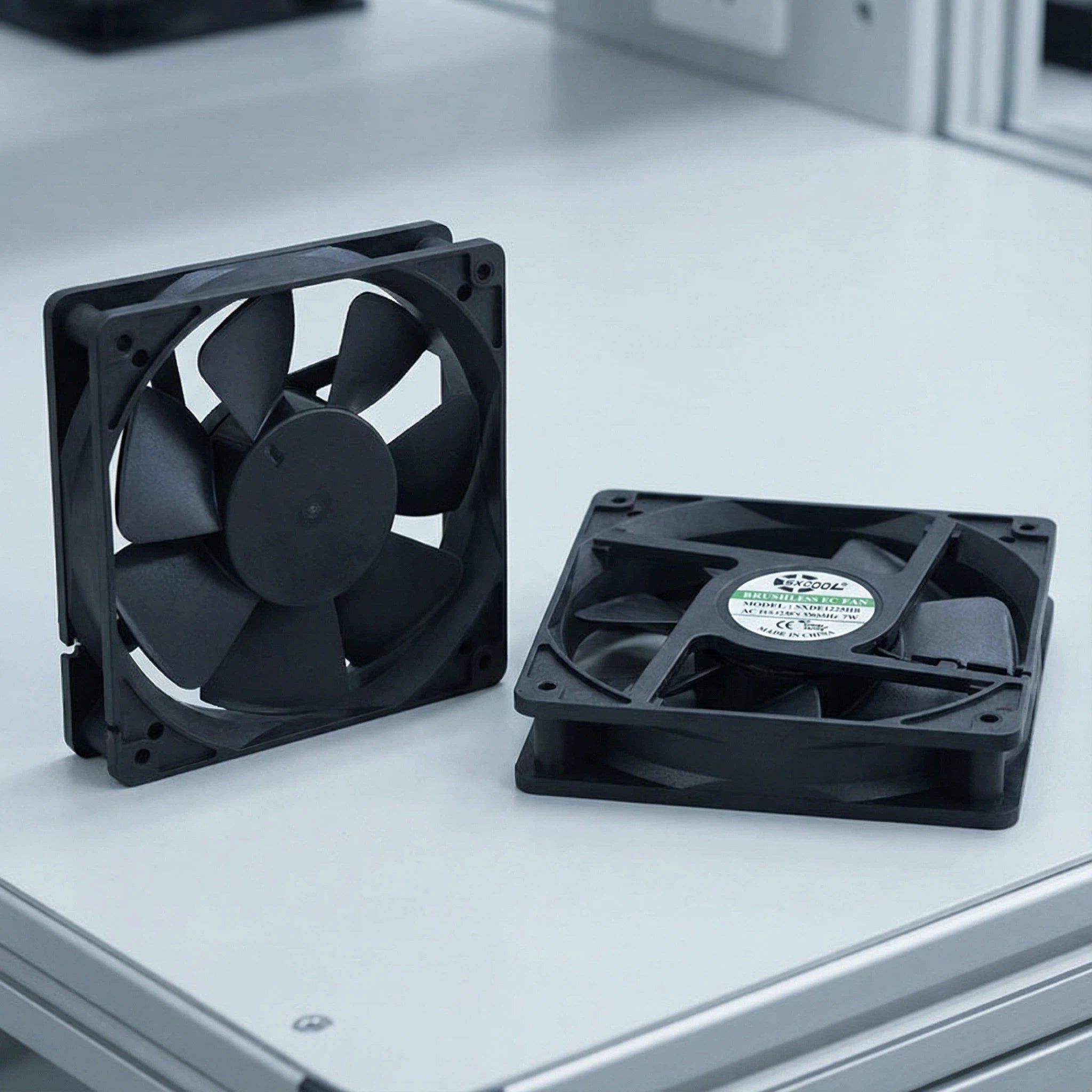

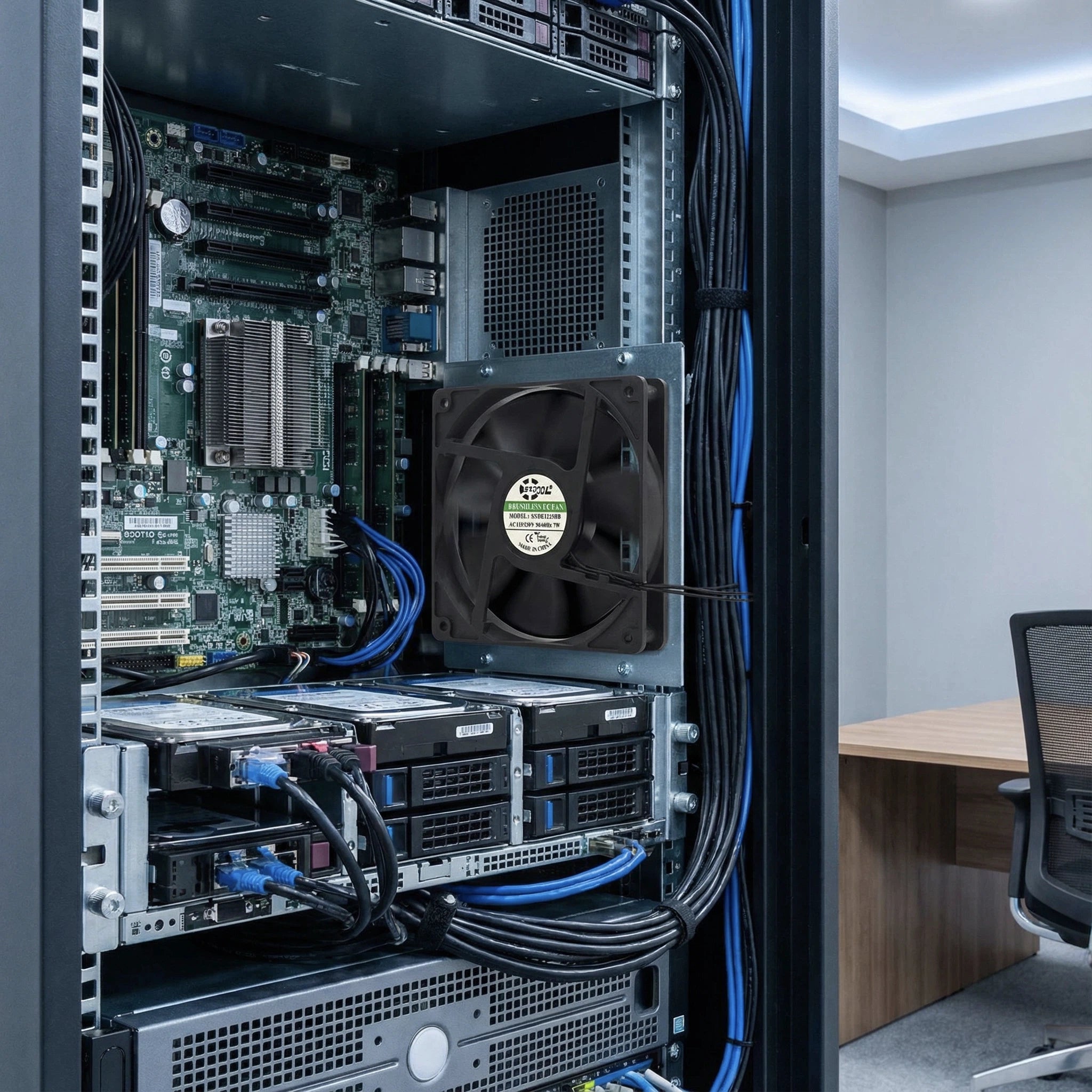

| Best-fit buyer intent | AC-input cabinets and equipment needing EC efficiency in a 25mm frame, with grade selected from duty point and acoustic target |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Catalog model | Rated input | Operating range | Current | Power | Speed | Airflow | Pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| SXDE12025HX | 115/230VAC 50/60Hz | 100-264VAC | 0.08A | 7.0W | 2600RPM | 100.2CFM | 4.2mmH2O | 38dBA |
| SXDE12025MX | 115/230VAC 50/60Hz | 100-264VAC | 0.07A | 4.5W | 2200RPM | 85.5CFM | 3.0mmH2O | 33dBA |
| SXDE12025LX | 115/230VAC 50/60Hz | 100-264VAC | 0.05A | 3.5W | 1800RPM | 68.6CFM | 2.1mmH2O | 28dBA |
Engineering release rule: Catalog and current-page values are reference data under their stated conditions. The approved drawing, complete model suffix, controlled datasheet, sample label and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Which input range should an engineer use for the current 12025 EC catalog?
Use 115/230VAC rated input, 50/60Hz and the catalog operating range of 100-264VAC. Any wider input claim requires a model-specific controlled document.
How do HX, MX and LX change the EC fan selection?
HX provides the highest 100.2CFM and 4.2mmH2O reference, MX is intermediate, and LX reduces power and noise. Select from the equipment duty point and acoustic requirement.
Can this EC fan be wired like a low-voltage DC 12025 fan?
No. It is an AC-input EC platform. Wiring, grounding, insulation, connector and protection must follow the approved EC drawing and applicable equipment safety design.
What must be tested before replacing an AC fan with the 12025 EC platform?
Confirm input range, frequency, startup, power, grounding, delivered airflow, temperatures, noise, EMC implications and any control or alarm interface in the final equipment.
Continue with the fan selector, 120mm fan series and server/cabinet airflow guidance, or submit a model-specific RFQ.
