12038 EC axial fan selection for AC-input cabinet airflow
Engineering summary: This page covers the 120 x 120 x 38 mm EC axial platform. The catalog-controlled 220-240V family includes three performance grades; a broader 90-270V project request must be mapped to an approved model suffix rather than inferred from the family label.

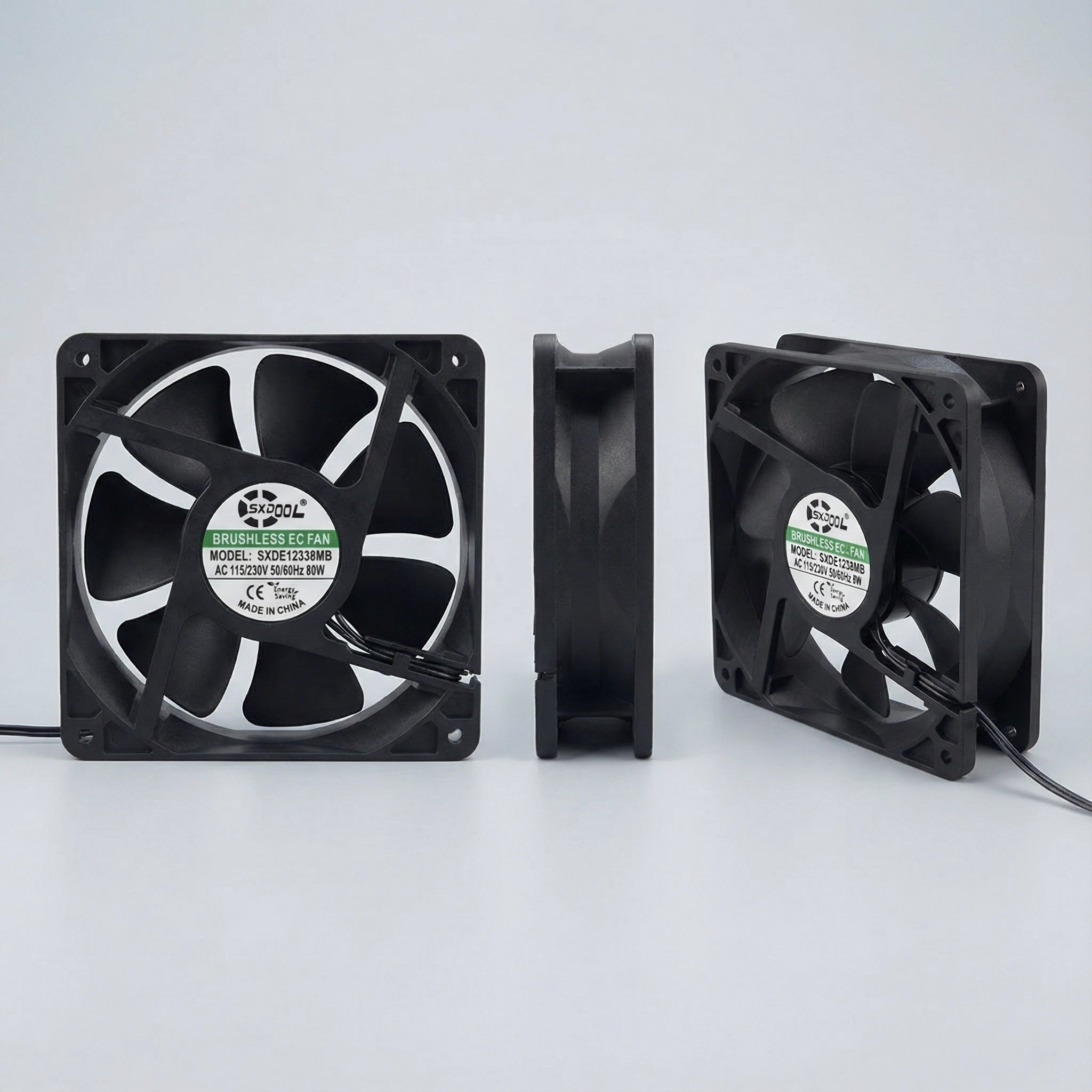

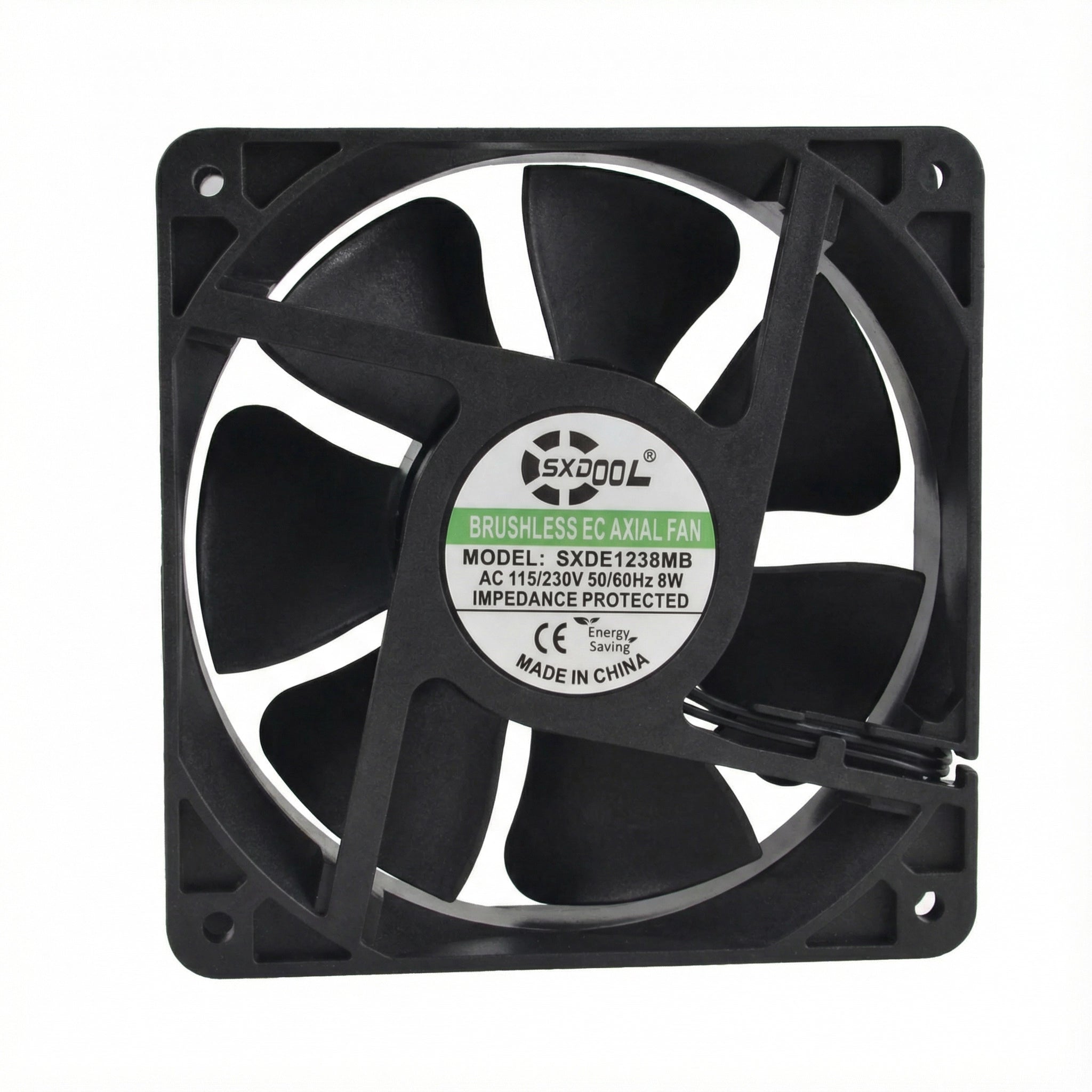

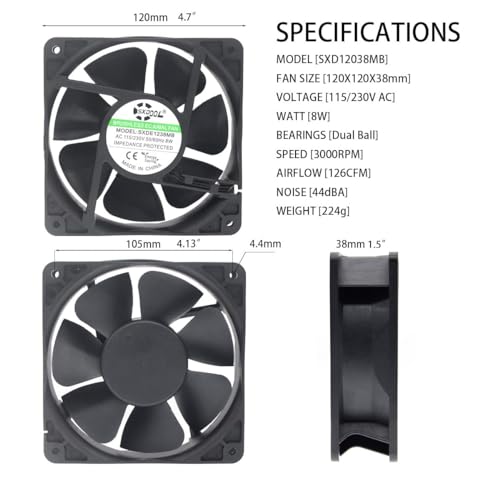

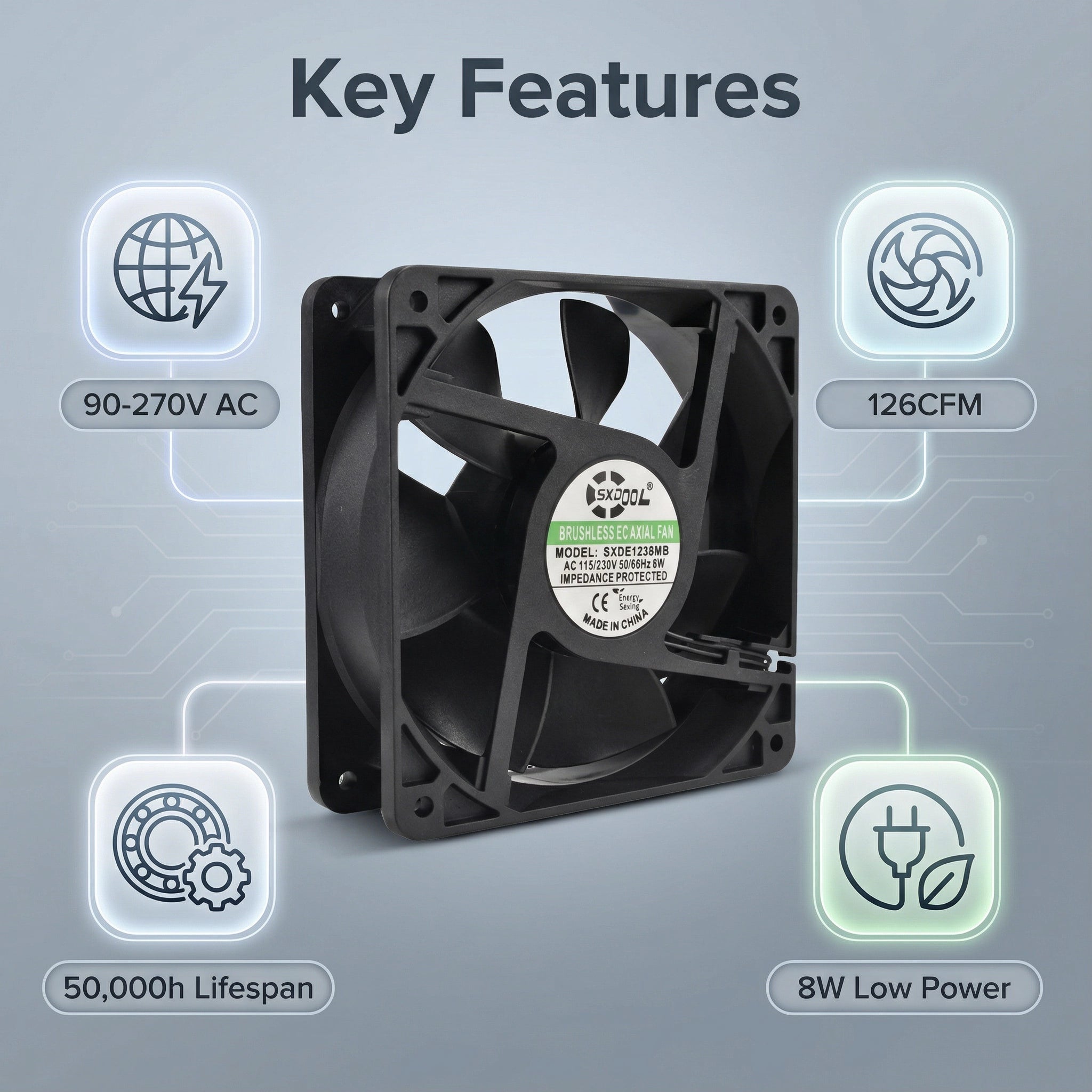

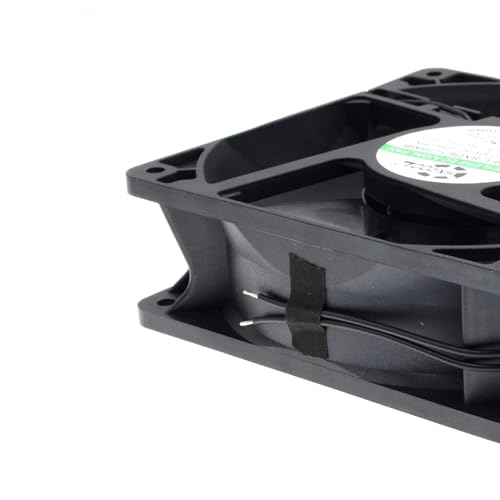

| Platform reference | SXDOOL 120 x 120 x 38 mm EC axial fan |
|---|---|
| Catalog model family | SXDE12038H2X, SXDE12038M2X, SXDE12038L2X |
| Dimensions | 120 x 120 x 38 mm |
| Catalog rated input | 220-240V AC, 50/60 Hz |
| Catalog operating-voltage reference | 150-264V AC for the H2X/M2X/L2X family |
| Broader-input boundary | Do not assume the catalog H2X/M2X/L2X values apply to a separate 90-270V or 110/115V project; require its approved suffix and controlled datasheet |
| Bearing options | Sleeve bearing or ball-bearing family options; final bearing requires the approved model suffix |
| Material / flammability | Catalog family reference: plastic frame and impeller, UL94V-0 |
| Catalog operating environment | -10 to 70C operation, 35%-85%RH; -40 to 80C storage, 35%-85%RH |
| Control boundary | AC-input EC platform. Do not infer low-voltage DC PWM, FG, RD, polarity, or connector behaviour without the approved EC wiring specification |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Catalog model | Rated input | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|
| SXDE12038H2X | 220-240V AC | 0.10 A | 8 W | 3000 RPM | 115 CFM | 9.8 mmH2O | 45 dBA |
| SXDE12038M2X | 220-240V AC | 0.08 A | 5 W | 2600 RPM | 94.5 CFM | 6.5 mmH2O | 39 dBA |
| SXDE12038L2X | 220-240V AC | 0.06 A | 3 W | 2300 RPM | 80.5 CFM | 5.1 mmH2O | 36 dBA |
Engineering release rule: Catalog and current page values are reference data under their stated test conditions. The approved drawing, complete model suffix, controlled datasheet, assembly BOM, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Can the published 220-240V catalog grades be used automatically for a 90-270V project?
No. The H2X/M2X/L2X table is a catalog-controlled 220-240V family with a 150-264V operating reference. A broader-input project needs a separately approved model suffix, wiring specification, and datasheet.
How should an engineer choose between 115, 94.5, and 80.5 CFM grades?
Select from the required operating point rather than free-air airflow alone. Compare the equipment resistance with the 9.8, 6.5, or 5.1 mmH2O catalog pressure reference, then validate temperature and acoustics in the final enclosure.
Is this EC fan controlled like a normal 12V or 24V PWM fan?
No. It is an AC-input electronically commutated platform. Low-voltage PWM, FG, RD, connector pinout, and polarity must not be assumed from DC fan practice; use the approved EC interface and host safety design.
Which identifiers must appear on the sample approval record for a 12038 EC fan?
Record the complete model suffix, input range, frequency, current, power, speed grade, bearing, cable, connector, airflow direction, label revision, wiring diagram, acceptance tests, and packaging reference.
Continue with the fan selector, compare the low-voltage DC 12038 family, review the inverter-cooling application guide, or submit a model-specific RFQ.
