SXDOOL 9238 DC Fan 92x92x38mm 12V-48V
SXDOOL 9238 92x92x38mm DC axial fan for compact servers and filtered boxes. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 12V, 24V, 48V |
|---|

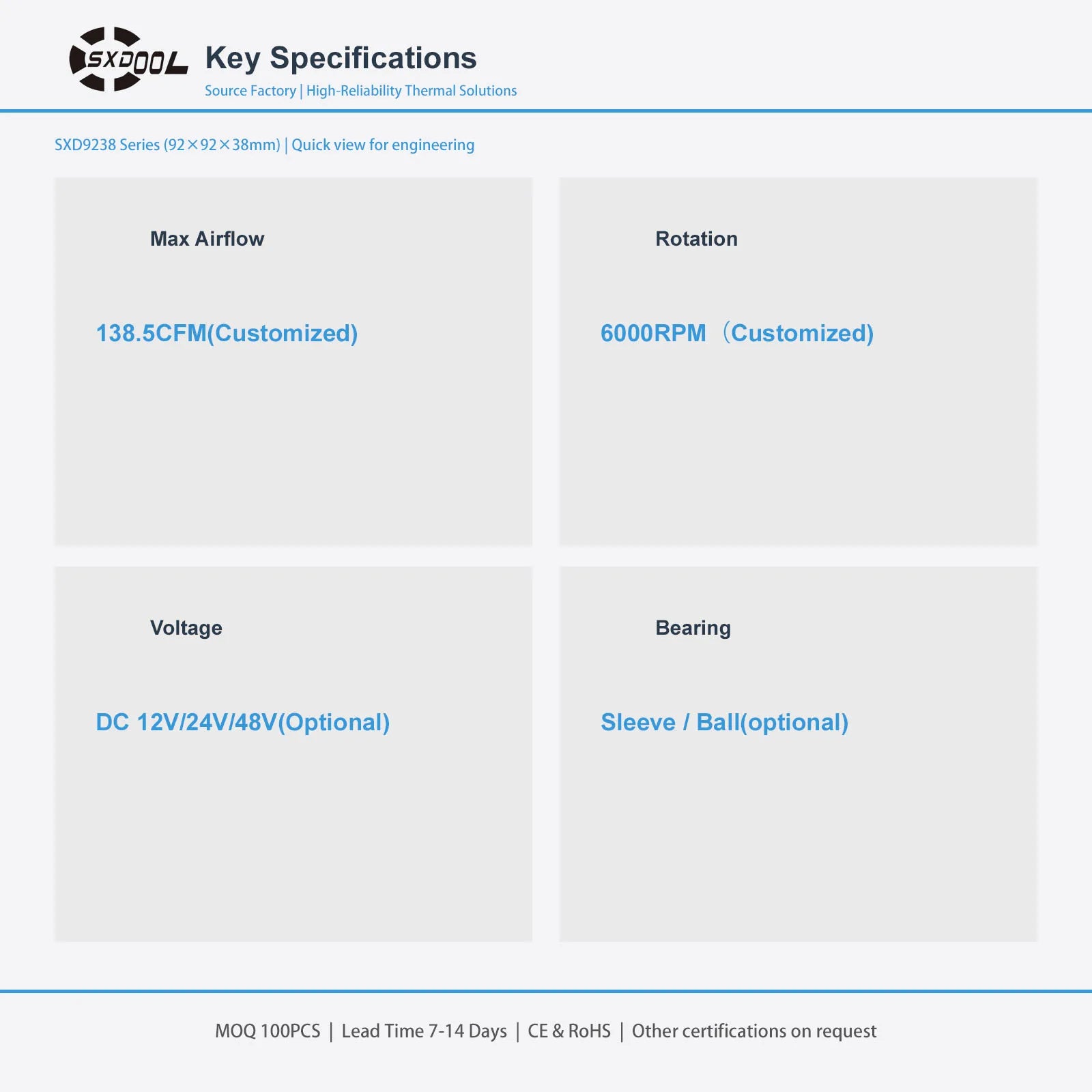

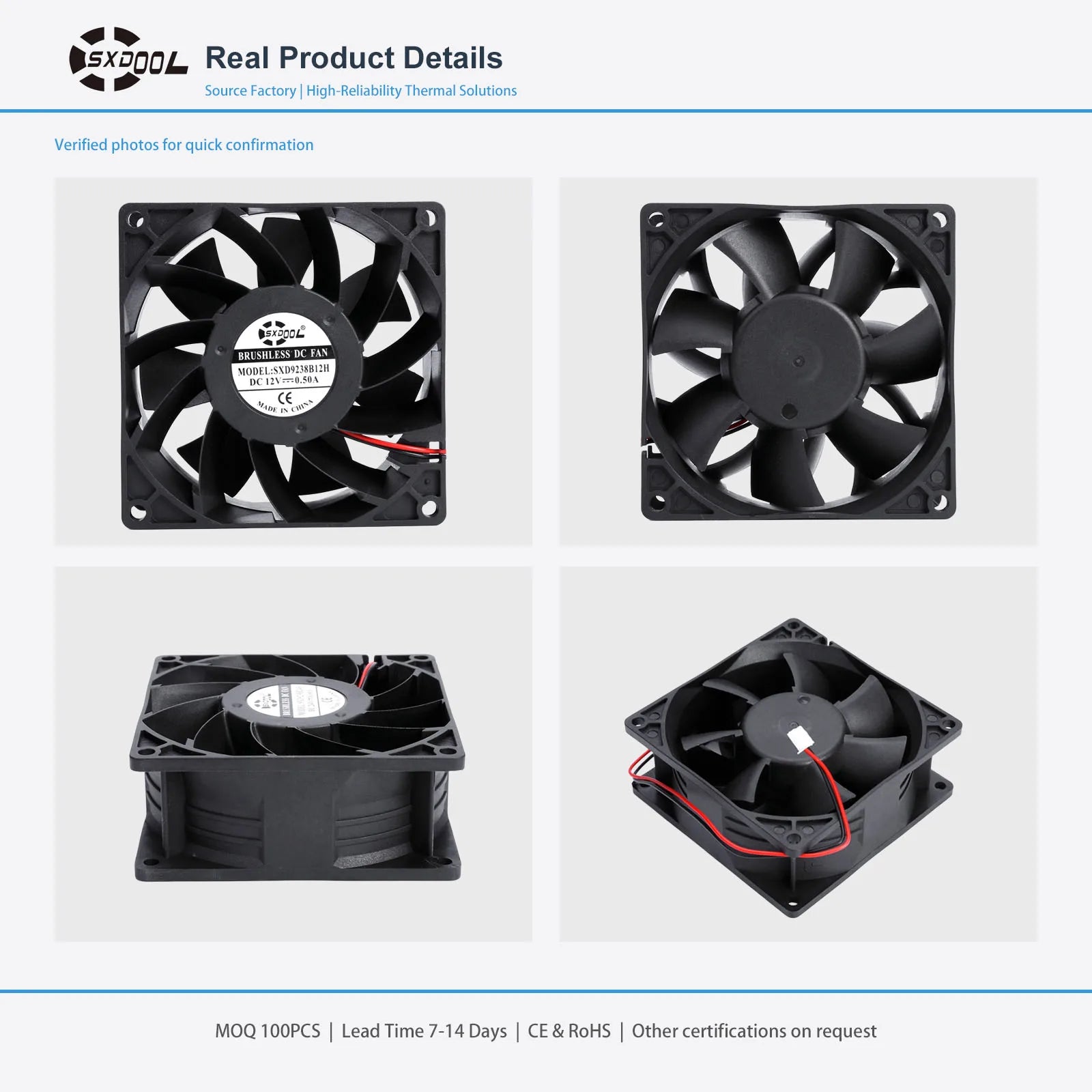

SXDOOL 9238 DC fan for higher-resistance 92mm installations
Engineering summary: This 92x92x38mm M/L platform provides a thicker airflow channel than 9225 and publishes 92.3-115.4CFM with 11.7-18.4mmH2O reference pressure. It is the multi-voltage catalog page, separate from the 12V 4600RPM and 24V single-configuration product pages.
| Product / model reference | SXD9238M / SXD9238L catalog grades |
|---|---|
| Fan family | Brushless DC axial fan |

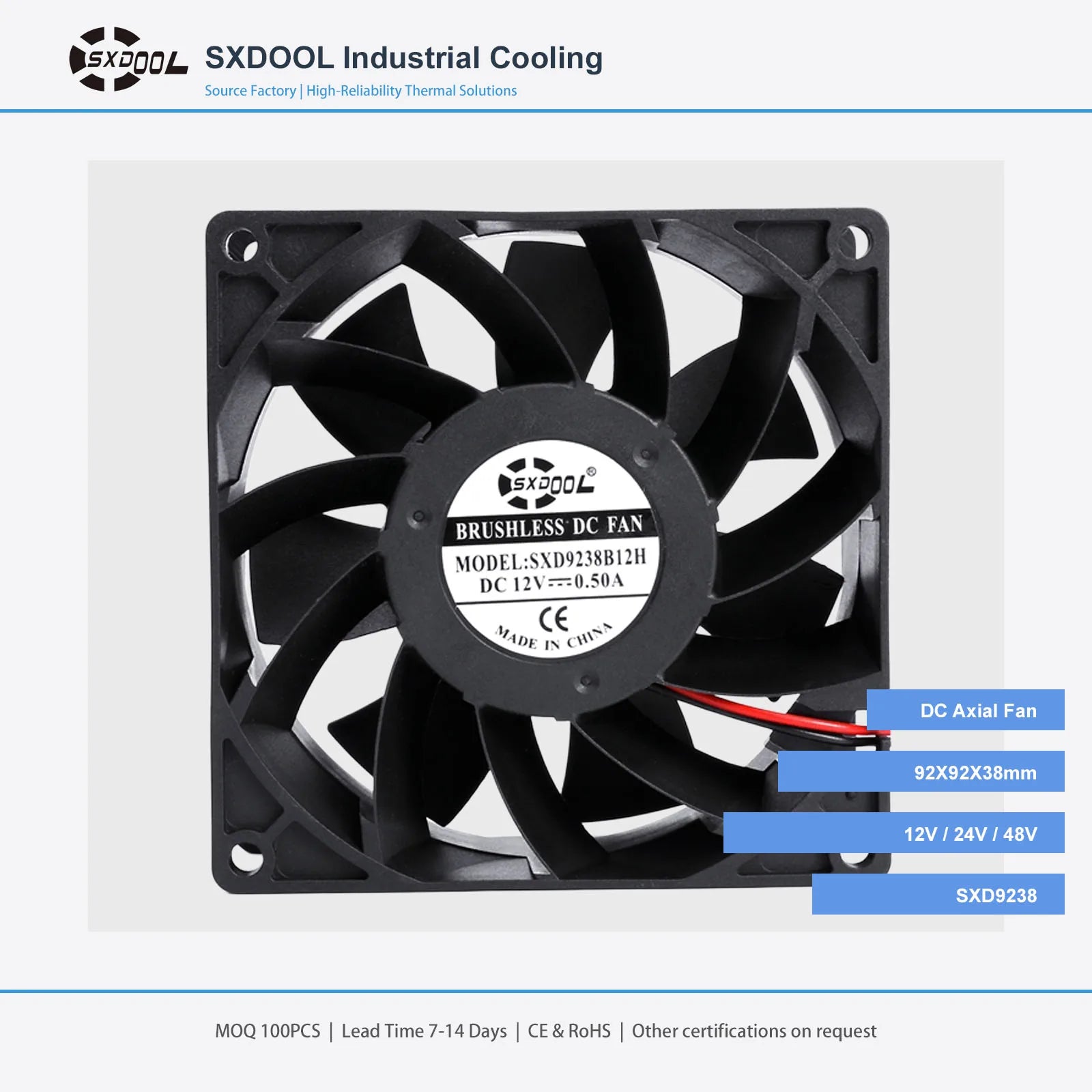

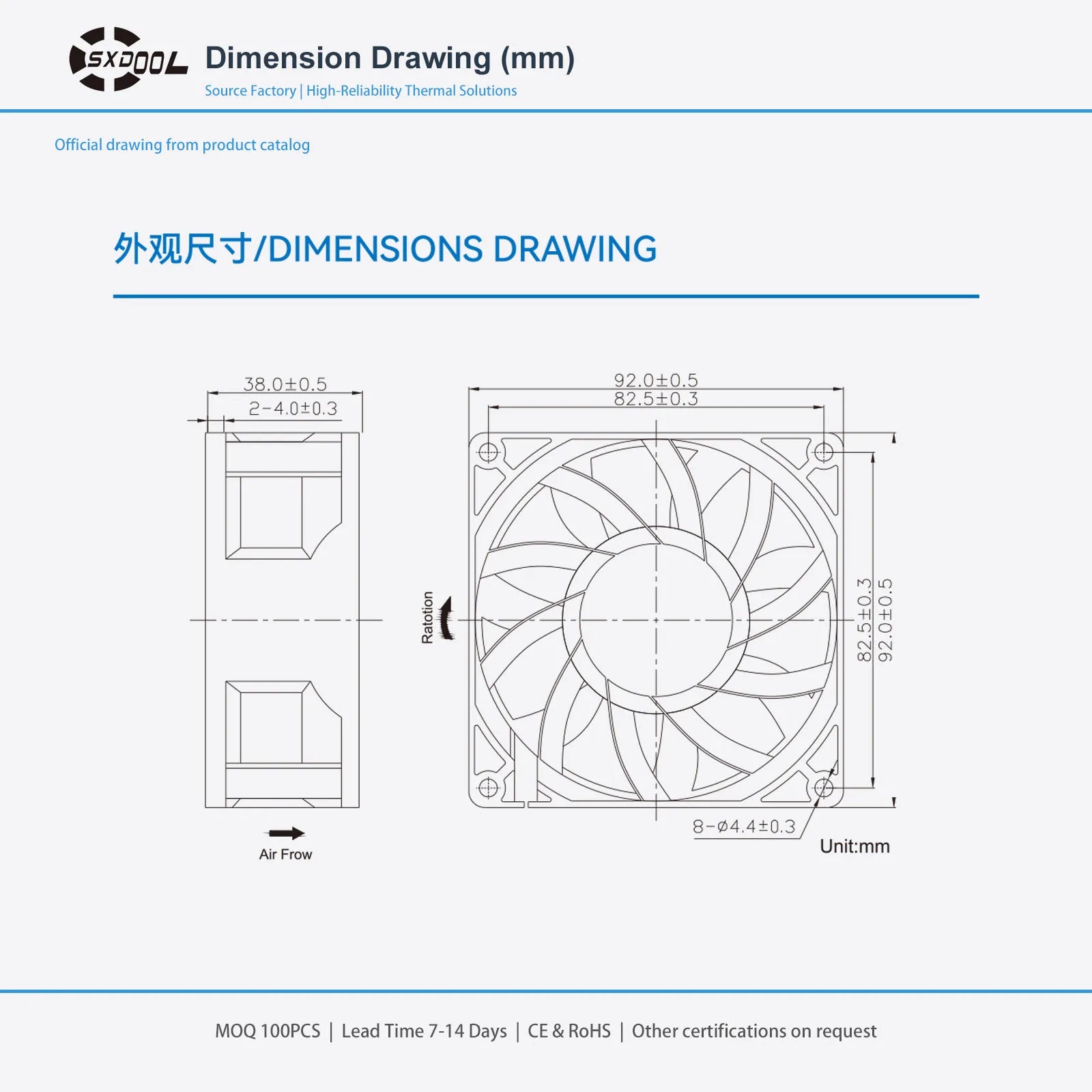

| Dimensions | 92x92x38mm |
| Rated-voltage choices | 12V / 24V / 48V DC |
| Bearing selection | Sleeve or ball-bearing family options; the complete voltage, speed, bearing, cable, connector, and signal suffix must follow the approved production drawing |

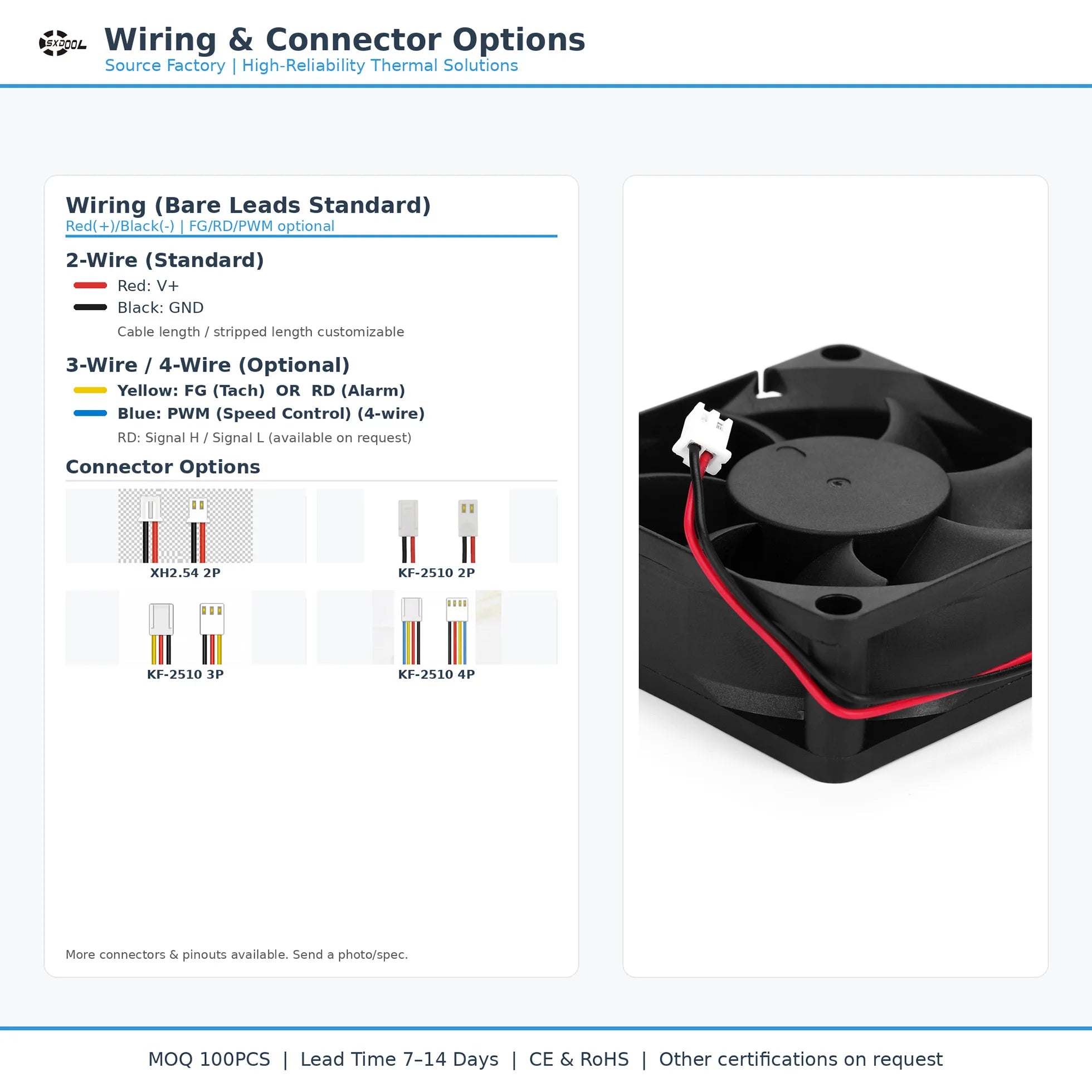

| Signal options | Auto-restart, PWM speed input, FG speed feedback, and RD alarm are configuration-dependent options; none is included unless shown on the approved interface specification |
| Material / flammability boundary | Catalog family reference: plastic frame and impeller, UL94V-0. Final resin, colour, and compliance documentation must match the approved production specification |
| Catalog operating environment | -10 to 70C operation, 35%-85%RH; -40 to 80C storage, 35%-85%RH. Validate application-specific derating and condensation risk |
| Application fit | Telecom cabinets, inverter housings, server subsystems, power converters, and other 92mm openings where a 38mm fan can provide additional pressure reserve. |
| Page differentiation | This page defines the multi-voltage M/L catalog grades. The voltage-specific 12V and 24V product pages require their own approved drawing and must not inherit this table automatically. |

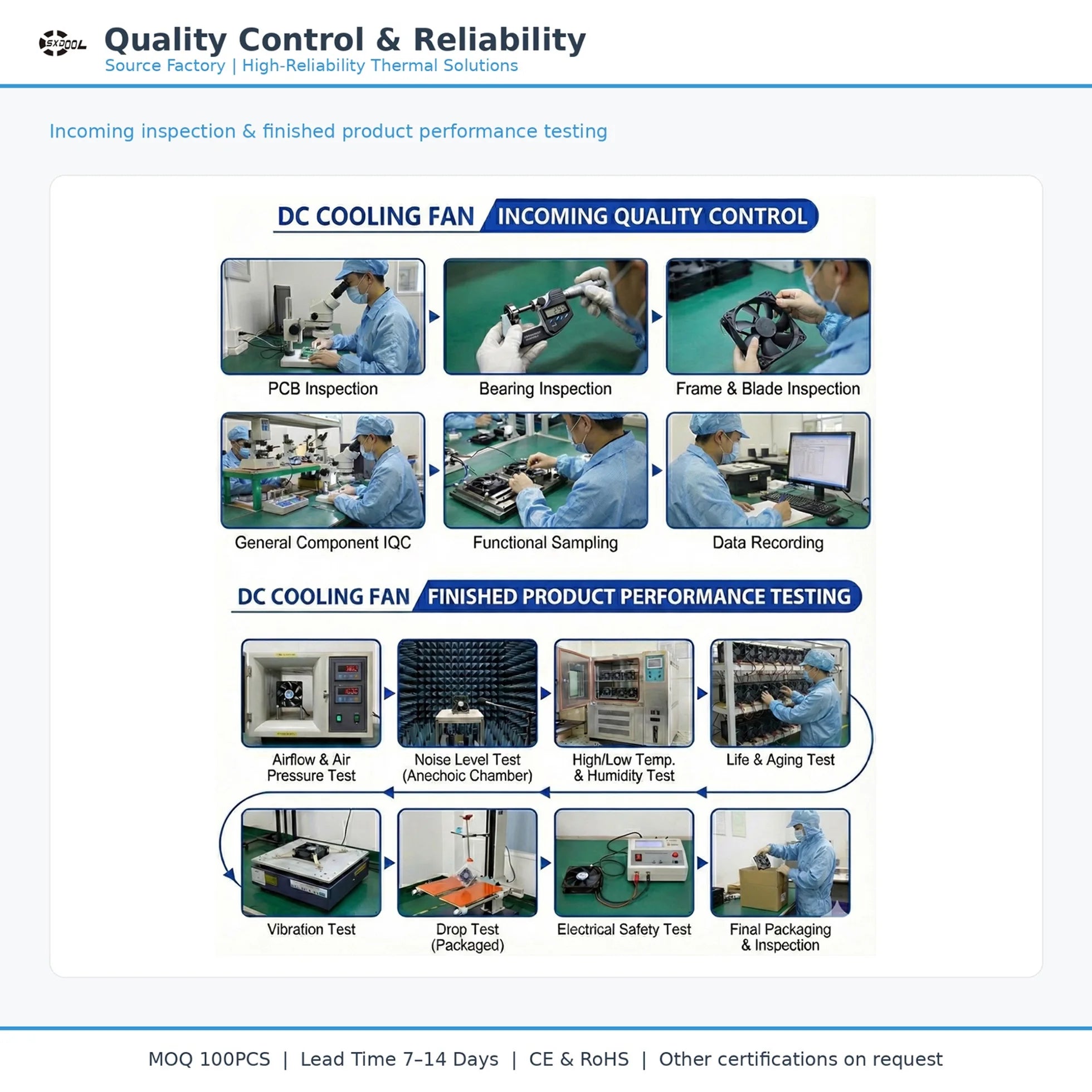

| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | DC family values are catalog-typical under nominal voltage. Catalog noise is referenced one meter from the air intake. Current approved model documents and samples govern the final specification. |
Model and configuration table

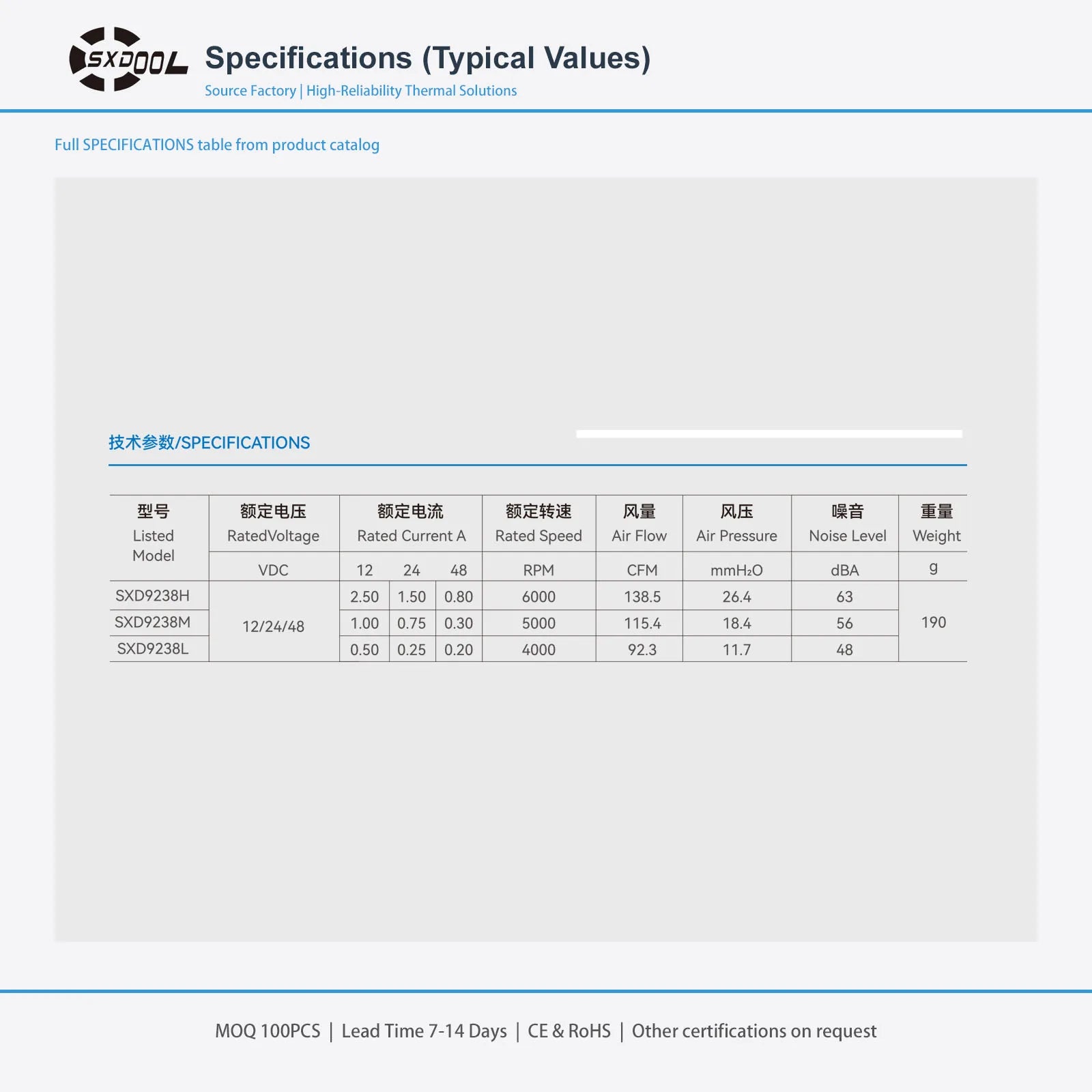

| Model grade | Rated voltage | Rated current | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| SXD9238M | 12V | 1.00A | 5000RPM | 115.4CFM | 18.4mmH2O | 56dBA |
| SXD9238M | 24V | 0.75A | 5000RPM | 115.4CFM | 18.4mmH2O | 56dBA |
| SXD9238M | 48V | 0.30A | 5000RPM | 115.4CFM | 18.4mmH2O | 56dBA |
| SXD9238L | 12V | 0.50A | 4000RPM | 92.3CFM | 11.7mmH2O | 48dBA |
| SXD9238L | 24V | 0.25A | 4000RPM | 92.3CFM | 11.7mmH2O | 48dBA |
| SXD9238L | 48V | 0.20A | 4000RPM | 92.3CFM | 11.7mmH2O | 48dBA |
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
What advantage can 9238 provide over 9225 in the same 92mm opening?
The 38mm frame can support more pressure capability and airflow reserve, but it also needs more installation depth and may draw more power or create more noise. Compare both fan curves against the actual system resistance and verify physical clearance.
How should SXD9238M and SXD9238L be evaluated for a telecom cabinet?
Map the cabinet system curve in clean and dirty-filter conditions. The M grade publishes 115.4CFM and 18.4mmH2O, while the L grade publishes 92.3CFM and 11.7mmH2O. Validate hotspot temperature, power budget, acoustic result, and service condition.
What clearance is needed on the inlet and outlet of a 92x92x38mm fan?
Leave enough unobstructed area to avoid blade-tip turbulence and recirculation, and check guard, filter, heat sink, cable, and panel geometry. The final requirement depends on the enclosure; use the approved drawing and a representative airflow test.
Why are the single-voltage 9238 product pages not assigned this M/L table by default?
Their public identifiers and imagery represent voltage-specific commercial configurations. Until the approved model drawing confirms grade, current, airflow, pressure, noise, bearing, and connector, copying the family table could create a false SKU-level specification.
Continue with the fan selector, review compare the thinner 9225 pressure branch, review the 12V voltage-specific 9238 page, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
