SXDOOL 9225 92x92x25mm EC Axial Fan AC Input
SXDOOL 9225 92x92x25mm EC axial fan for industrial PCs and power supplies. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
SXDOOL 9225 EC fan for thin AC-input ventilation assemblies
Engineering summary: This 92x92x25mm EC platform combines a thin frame with 100-264V operation and three catalog grades from 39.4 to 60.0CFM. It is intended for AC-input OEM equipment and should not inherit the voltage, current, or signal assumptions of a 5V-48V DC 9225 fan.
| Product / model reference | SXDE9225HB / SXDE9225MX / SXDE9225LX |
|---|---|
| Fan family | Electronically commutated axial fan with AC input |
| Dimensions | 92x92x25mm |
| Input platform | 115/230V rated family, 50/60Hz, 100-264V operating range |
| Bearing selection | Sleeve or ball-bearing family options; final bearing and complete model suffix must follow the approved production drawing |
| Control / wiring boundary | Do not infer low-voltage DC PWM, FG, RD, polarity, or connector behavior. Use the approved EC wiring diagram and host safety design |
| Material / flammability boundary | Catalog family reference: plastic frame and impeller, UL94V-0. Final resin and compliance documentation must match the approved production specification |
| Catalog operating environment | -10 to 70C operation, 35%-85%RH; -40 to 80C storage, 35%-85%RH. Validate mains, derating, surge, and condensation conditions |
| Application fit | Slim cabinets, access-control equipment, industrial displays, instruments, and AC-powered control assemblies with limited fan depth. |
| Page differentiation | Use the EC page where the host supplies AC input. The similarly sized DC page offers 5V-48V configurations and a different electrical interface. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | EC family values are catalog-typical under nominal voltage. Catalog noise is referenced one meter from the air intake. Current approved model documents and samples govern the final specification. |
Model and configuration table
| Model grade | Input range | Frequency | Current | Power | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|---|---|
| SXDE9225HB | 115/230V; 100-264V operating range | 50/60Hz | 0.06A | 6.0W | 3200RPM | 60.0CFM | 3.5mmH2O | 35dBA |
| SXDE9225MX | 115/230V; 100-264V operating range | 50/60Hz | 0.05A | 3.5W | 2500RPM | 49.3CFM | 2.4mmH2O | 30dBA |
| SXDE9225LX | 115/230V; 100-264V operating range | 50/60Hz | 0.03A | 2.5W | 2000RPM | 39.4CFM | 1.5mmH2O | 25dBA |

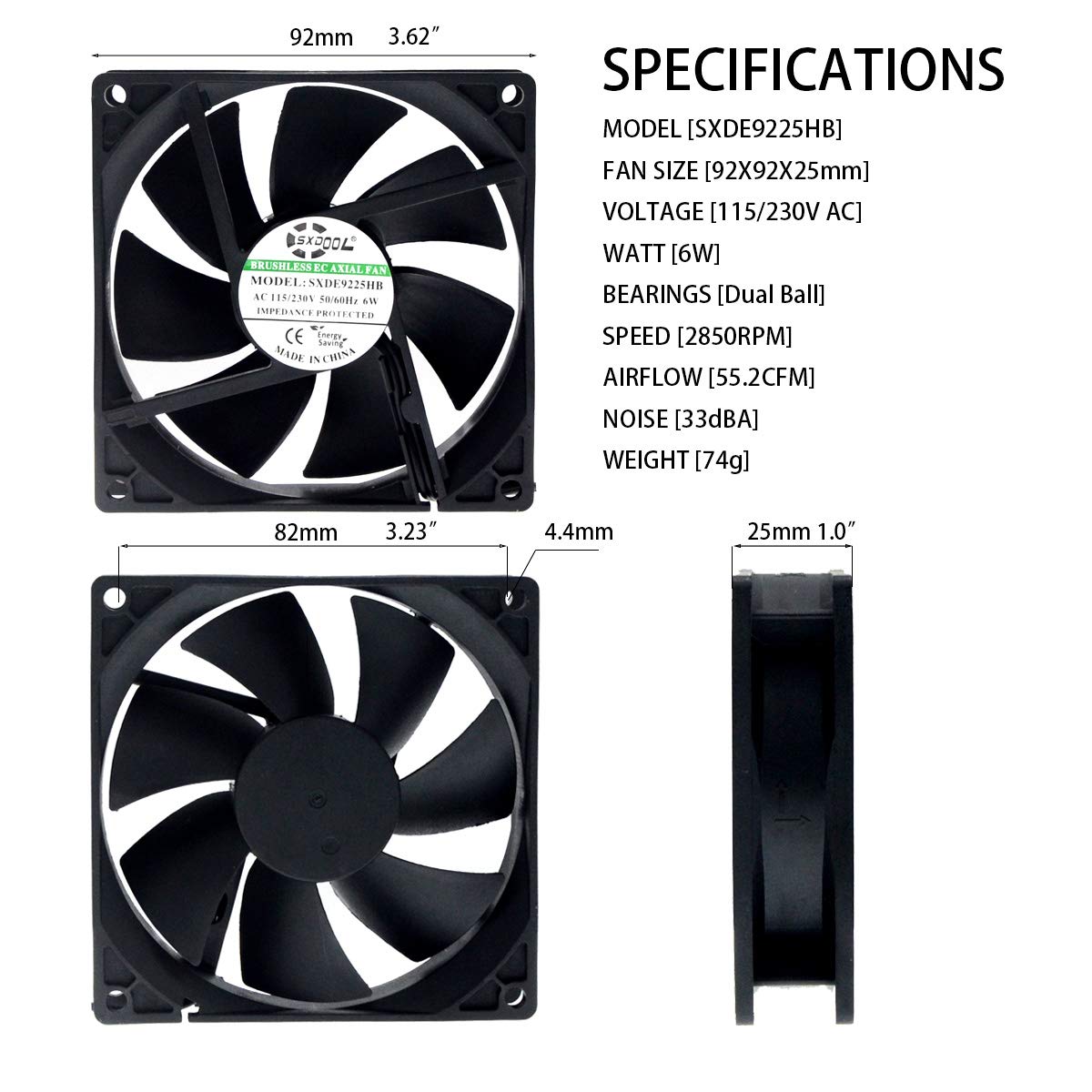

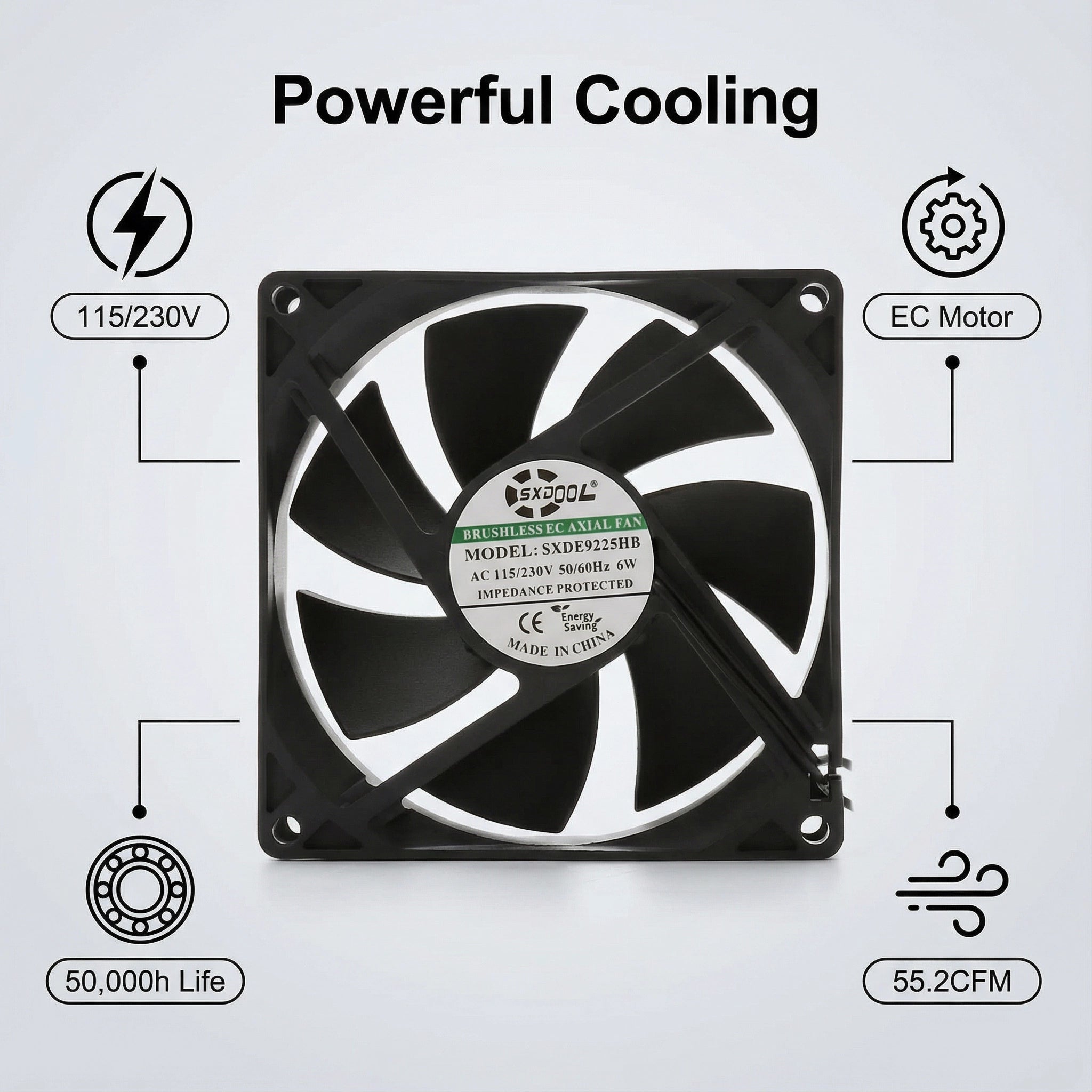

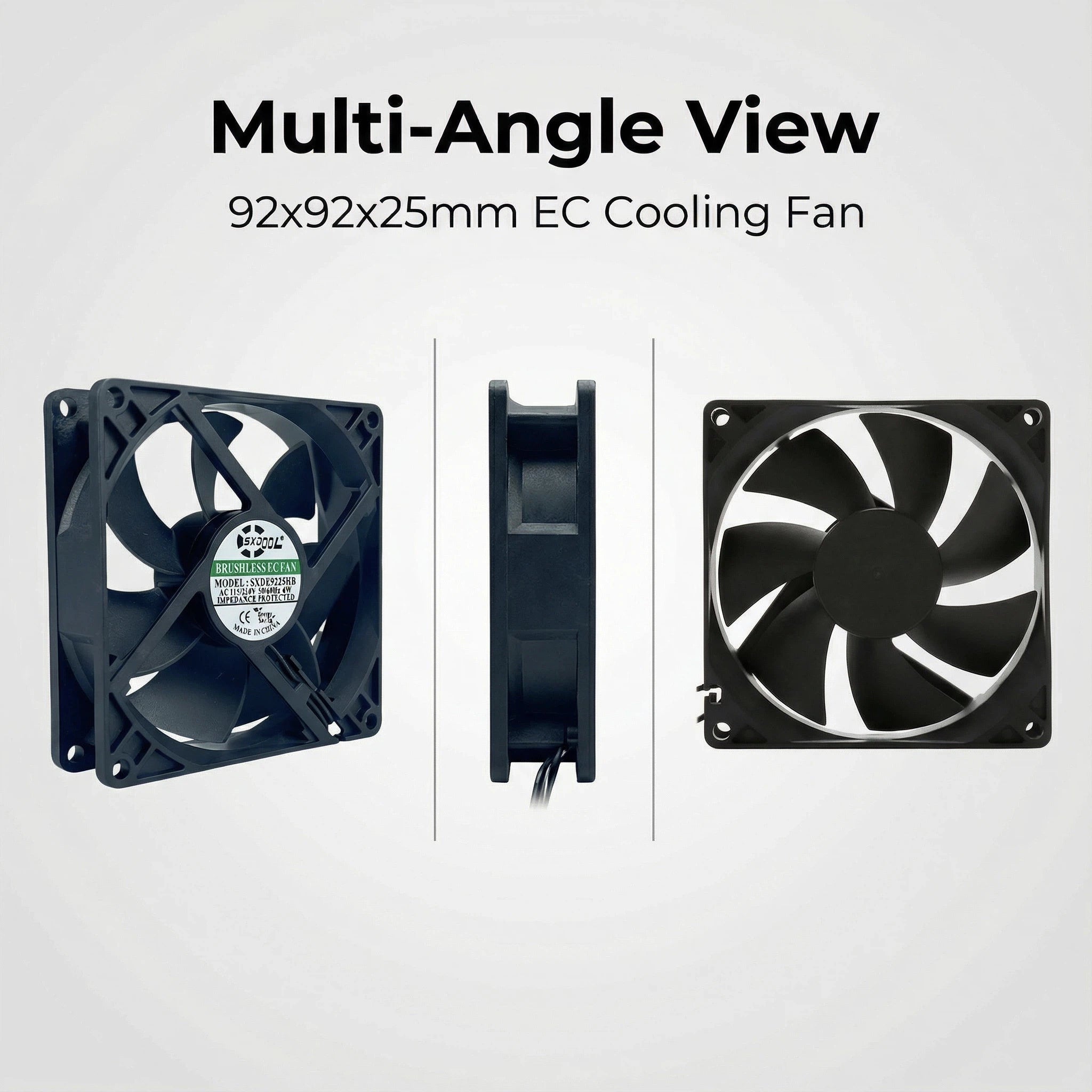

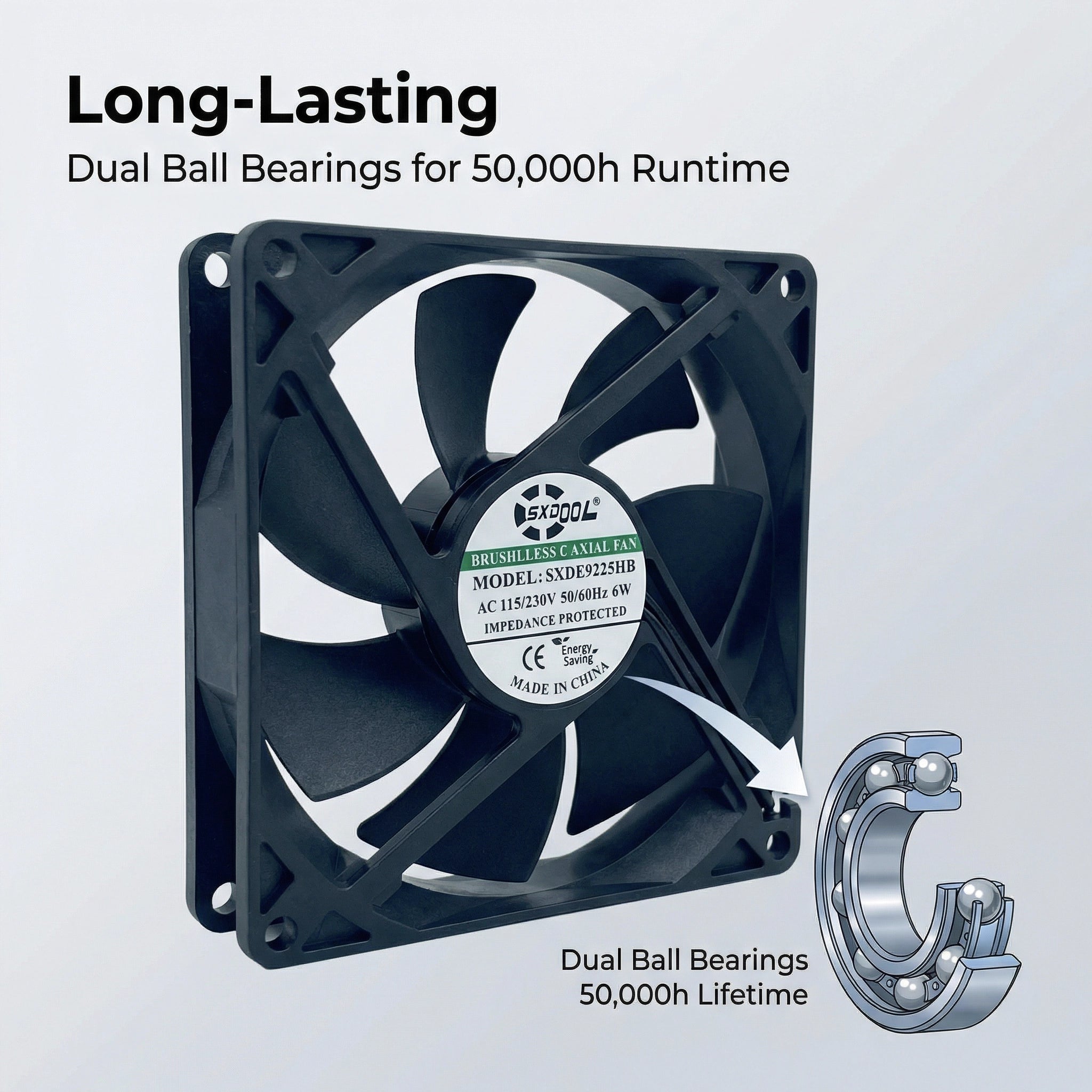

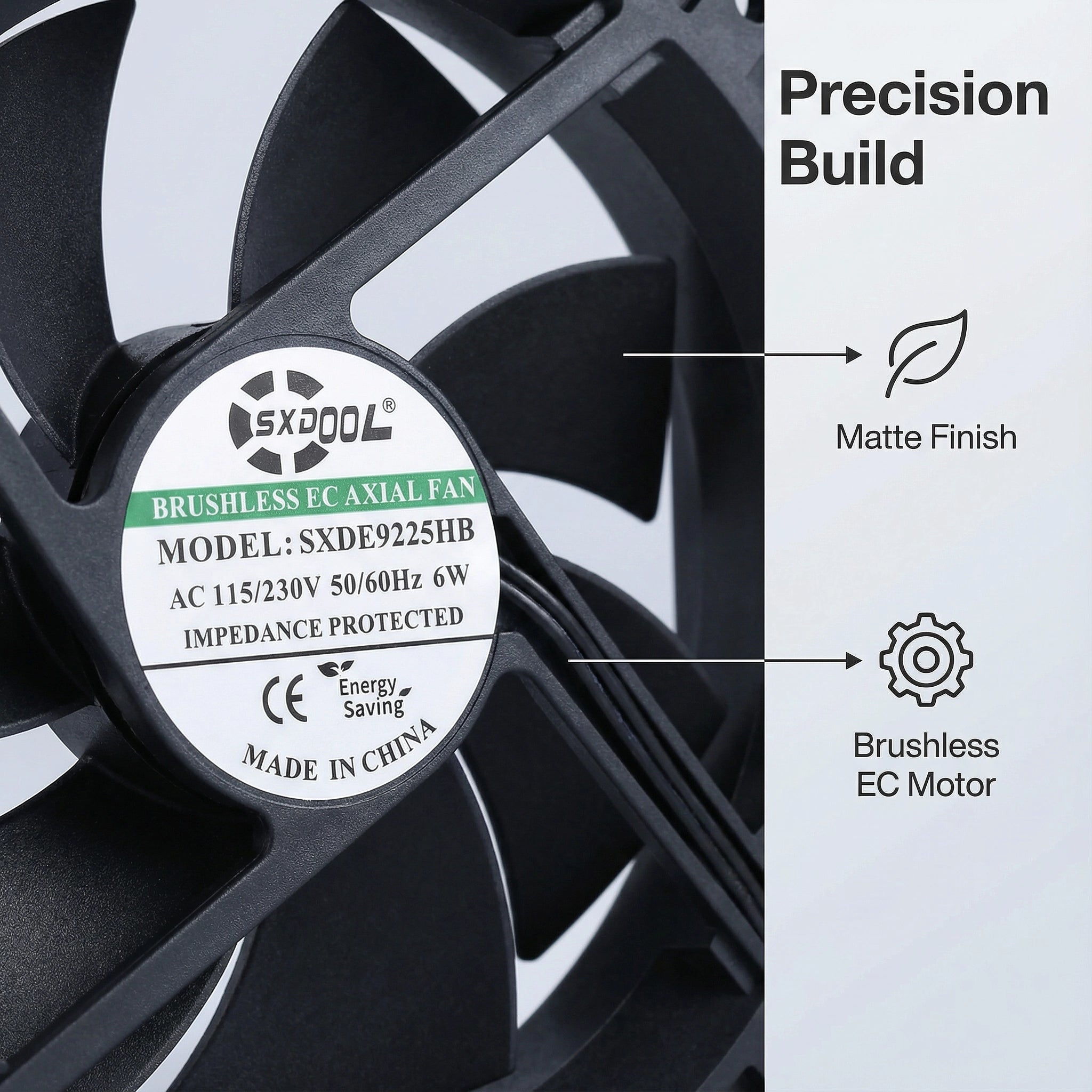

Image evidence reconciliation: The photographed SXDE9225HB label confirms AC 115/230V, 50/60Hz and 6W. The controlled catalog H row provides typical 3200RPM, 60.0CFM, 3.5mmH2O and 35dBA values for SXDE9225HB. Historical graphics citing 2850RPM, 55.2CFM, 33dBA, 174g or a generic 50,000-hour lifetime were removed from this product gallery because they conflict with the controlled catalog or lack model-specific qualification evidence.
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Why would a designer choose a 25mm EC fan instead of an AC shaded-pole fan?
The EC platform uses electronic commutation and can provide efficient wide-range input operation in a compact frame. The final decision must still compare airflow, pressure, power, noise, EMC, lifetime, certification, and cost at the real duty point.
How can the 9225 EC fan be qualified behind a cabinet grille?
Measure the grille and enclosure pressure loss, then test the chosen HB, MX, or LX sample in the final panel opening. Record cabinet temperature rise, airflow, input power, startup behavior, vibration, and sound under the intended mains conditions.
Are the HB, MX, and LX current values interchangeable across the product family?
No. Each catalog grade has its own current, power, speed, airflow, pressure, and noise references. The purchase specification must identify the complete model grade and approved drawing rather than using only the 9225 frame size.
What must an OEM confirm if the 9225 EC fan is installed near sensitive electronics?
Review conducted and radiated EMC, cable routing, protective spacing, grounding strategy, surge environment, switching noise coupling, airflow direction, and thermal interaction with nearby components using the approved fan sample.
Continue with the fan selector, review compare the low-voltage DC 9225 platform, review the 802EC9225 filter fan kit, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
