SXDOOL 6025 60x60x25mm EC Axial Fan AC Input
SXDOOL 6025 60x60x25mm EC axial fan for industrial electronics and equipment enclosures. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
SXDE6025BH evidence reconciliation for compact EC cooling

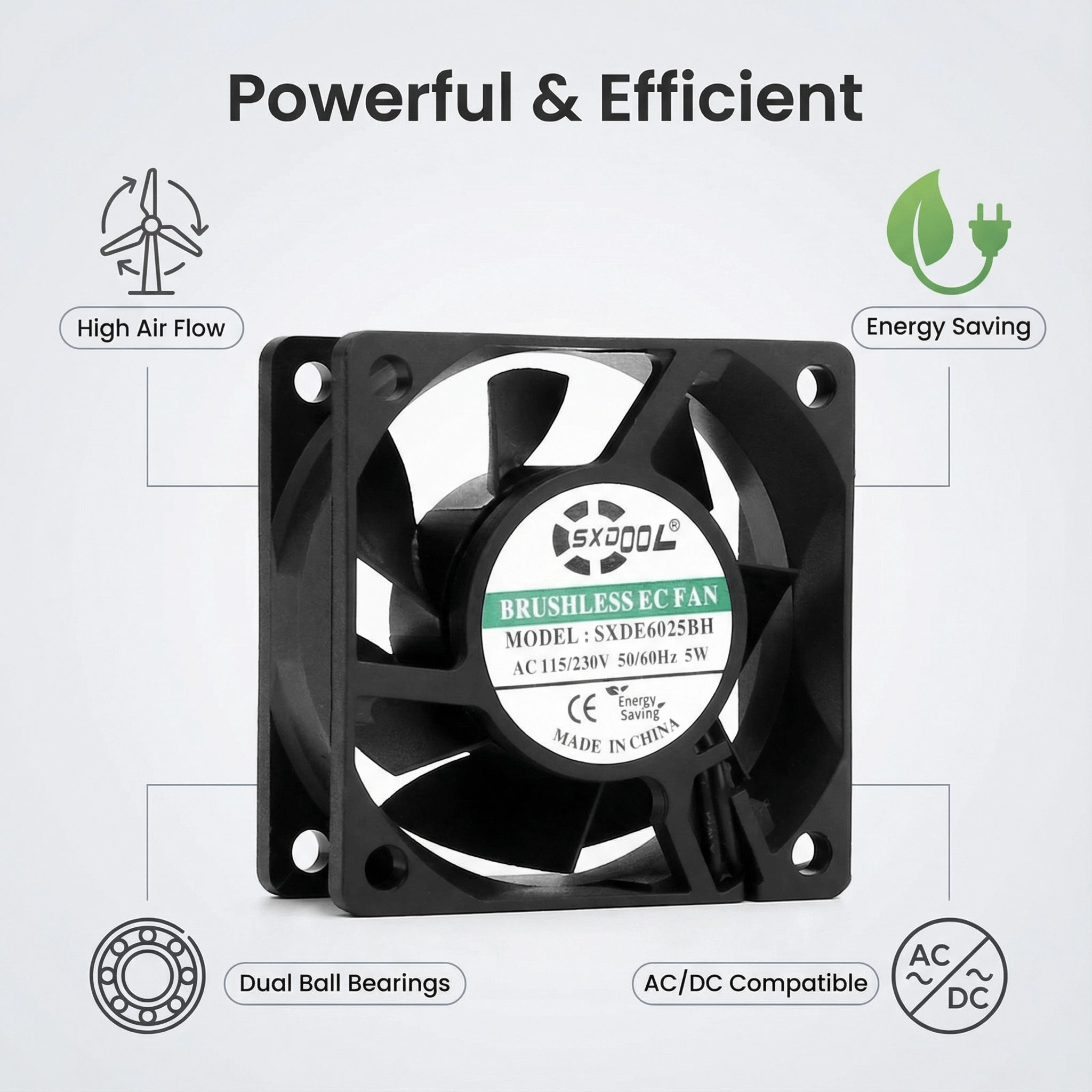

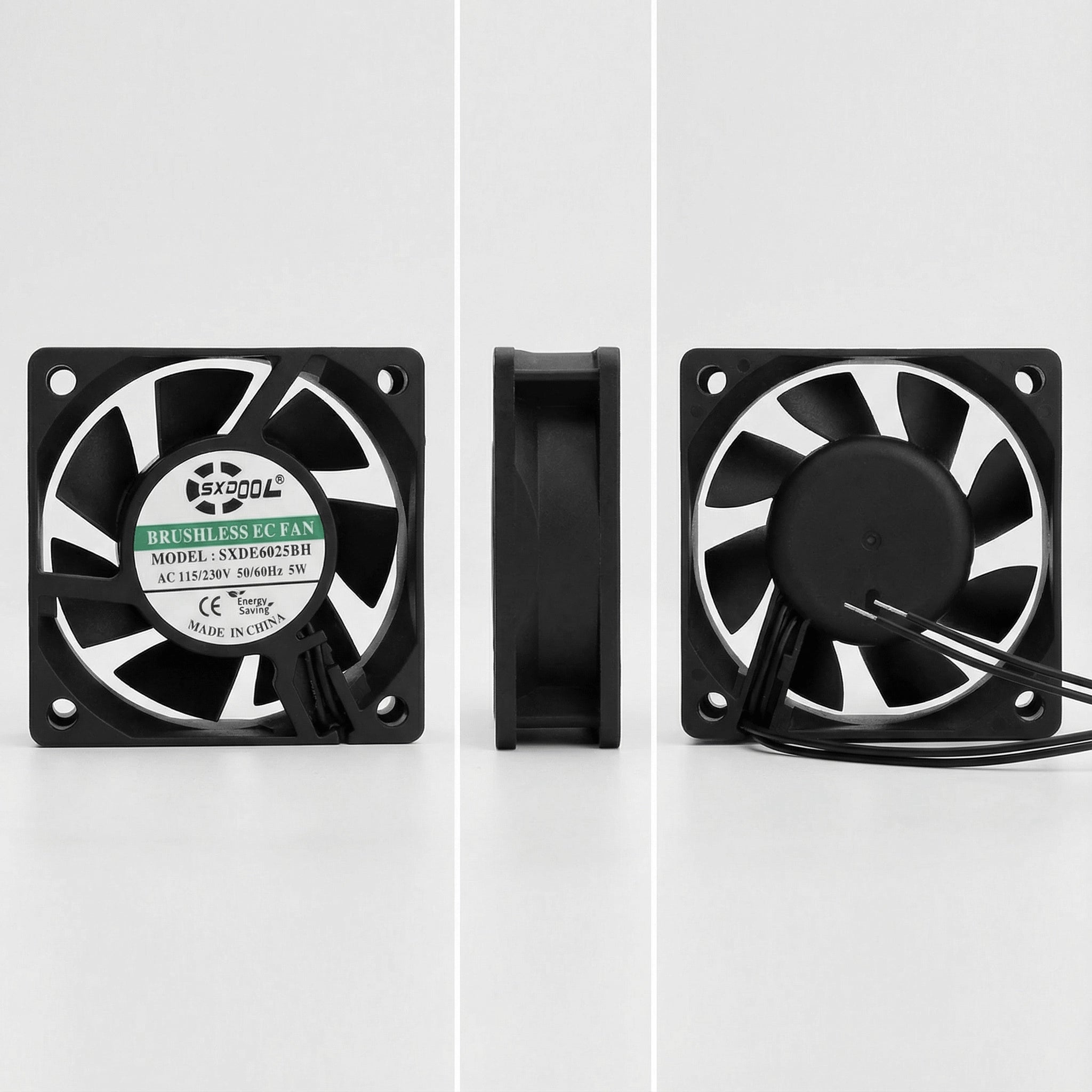

Engineering summary: The photographed label identifies SXDE6025BH at AC 115/230V, 50/60Hz and 5W. The controlled 60x60x25mm catalog instead lists H, M and L rows at 4W, 3W and 2W. This page keeps those sources separate so engineers do not assign the 4W catalog performance row to the photographed 5W product by assumption.
| Exact photographed model | SXDE6025BH |
|---|---|
| Fan size | 60 x 60 x 25 mm EC axial fan |
| Product-label input | AC 115/230V, 50/60Hz |
| Product-label power | 5W |
| 6025 catalog working range | 100-264VAC; final wiring and input behavior must follow the approved model drawing |
| Exact BH airflow, pressure, speed and noise | Not confirmed by one controlled SXDE6025BH performance table; the photographed 5W label does not match the 4W catalog H row |

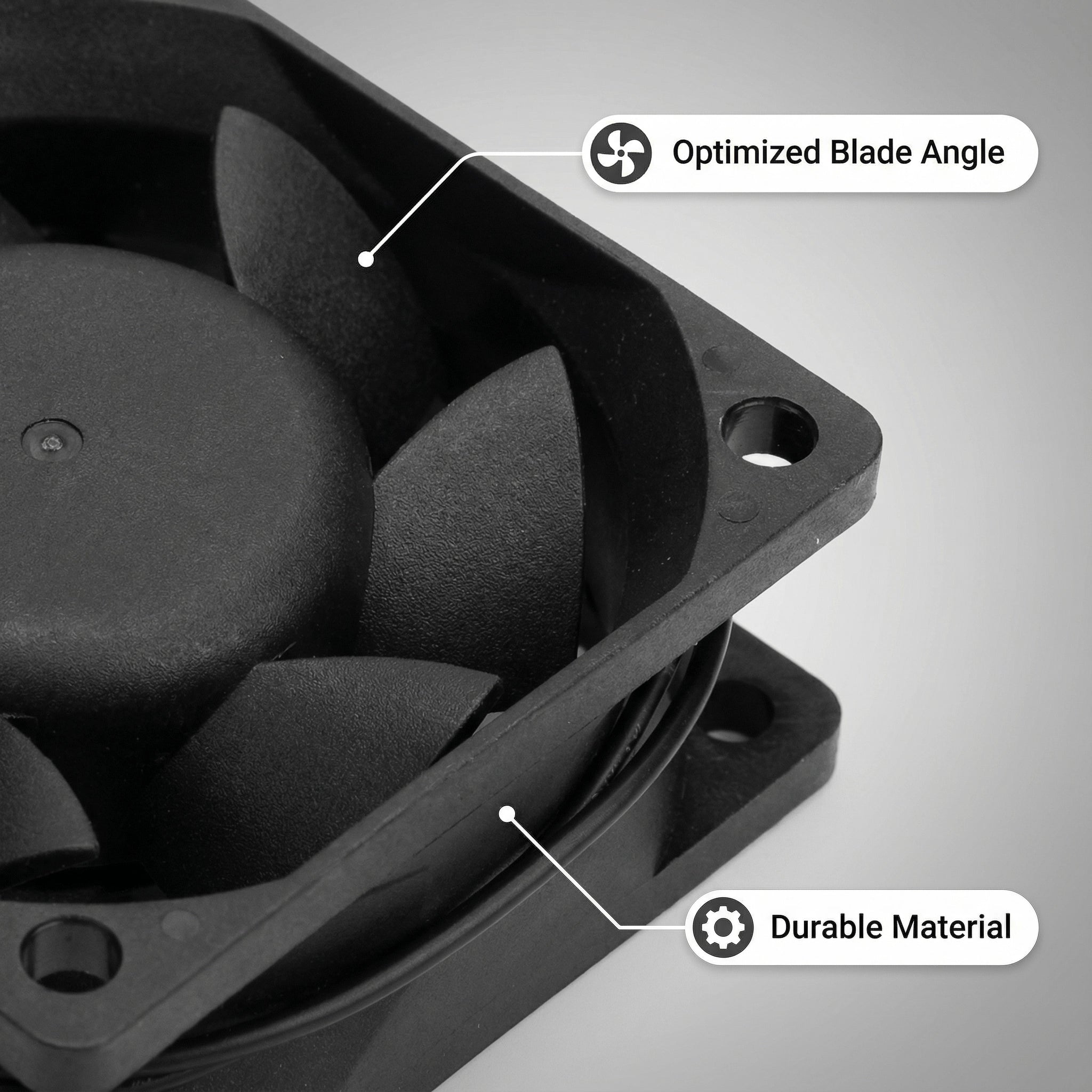

| Frame and impeller material | Plastic (UL94V-0) |
| Lead wire | UL type; conductor assignment, length, connector and termination require the approved wiring specification |
| Operating environment | -10°C to 70°C and 35% to 85% RH |
| Storage environment | -40°C to 80°C and 35% to 85% RH |

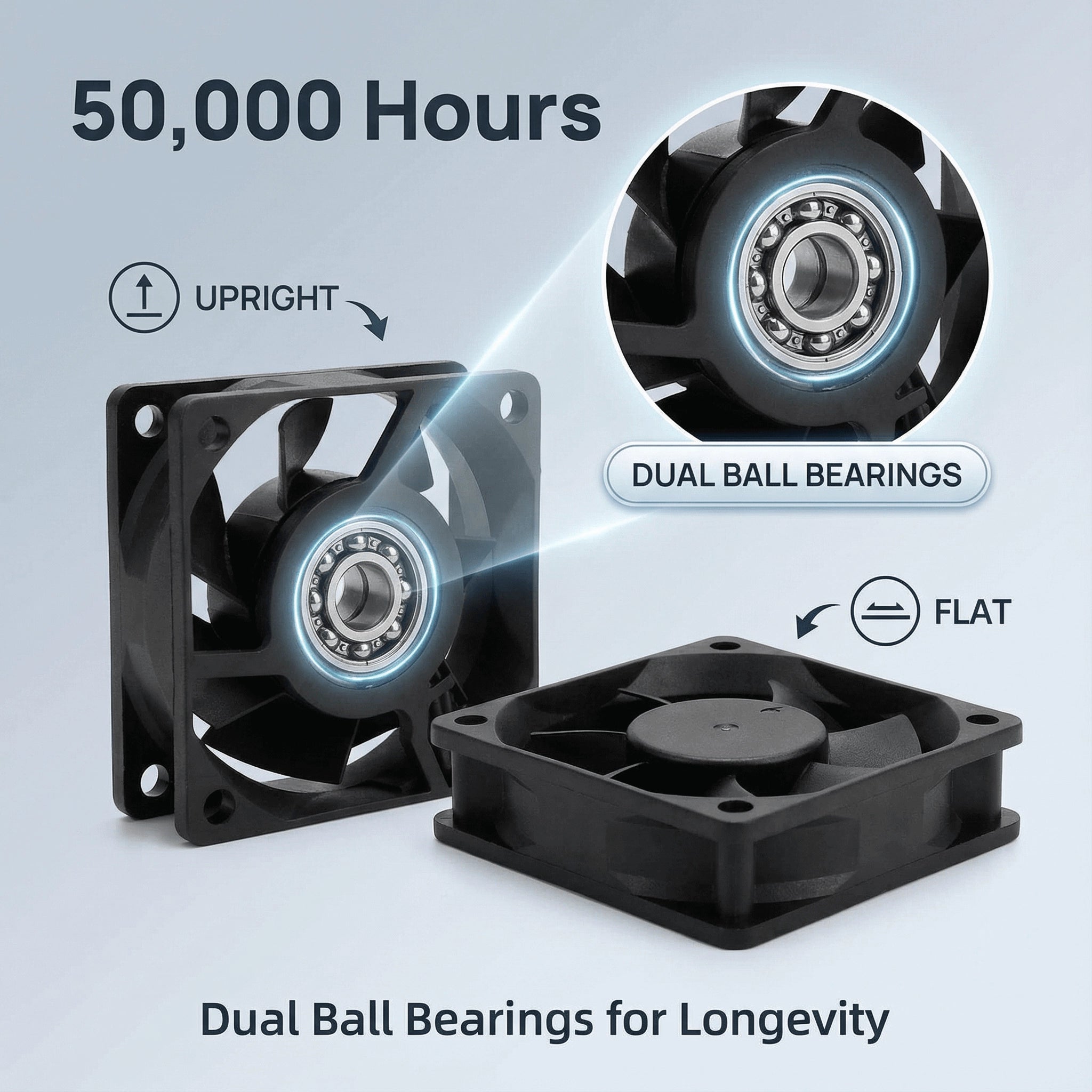

| Bearing evidence boundary | Existing BH SKU media presents a dual-ball-bearing configuration, while the 6025 catalog lists sleeve and ball bearing as family options. The quotation and approved sample must bind the final bearing code. |
| Catalog evidence boundary | Catalog readings are typical at nominal voltage and catalog noise is measured one meter from the fan intake. The H, M and L rows are family references, not an automatic mapping to the photographed 5W BH label. |
| OEM release evidence | Approved SXDE6025BH drawing, controlled datasheet, wiring diagram, label revision, connector, tolerance, bearing code, performance curve and representative equipment validation |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. Source Factory Direct project review, ISO 9001:2015 quality-management documentation, Dynamic Balancing, OEM/ODM Customization and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
SXDE6025BH label evidence and 6025 catalog grades
| Evidence source | Model | Current | Power | Speed | Airflow | Static pressure | Noise | Release use |
|---|---|---|---|---|---|---|---|---|
| Photographed product label | SXDE6025BH | Not printed | 5W | Not printed | Not controlled | Not controlled | Not controlled | Label evidence only |
| Catalog high-speed H grade | SXDE6025HX | 0.05A | 4.0W | 4500 RPM | 25.2 CFM | 6.5 mmH2O | 35 dBA | Family reference |
| Catalog medium-speed M grade | SXDE6025MX | 0.04A | 3.0W | 4000 RPM | 20.5 CFM | 4.5 mmH2O | 29 dBA | Family reference |
| Catalog low-speed L grade | SXDE6025LX | 0.03A | 2.0W | 3000 RPM | 15.1 CFM | 2.6 mmH2O | 24 dBA | Family reference |
Release boundary: The 4W H row, 3W M row and 2W L row are catalog-family references. They must not be assigned to the photographed 5W SXDE6025BH by assumption. The removed 4300 RPM / 37 dBA / 53 g graphic also conflicts with the catalog and is not used as release evidence.
SXDE6025BH engineering FAQ
Can the 25.2 CFM catalog value be assigned to the photographed 5W SXDE6025BH?
Not without a controlled model-specific datasheet. The 25.2 CFM value belongs to the 4W SXDE6025HX catalog row, while the photographed SXDE6025BH label states 5W. Installed airflow also depends on system resistance, so procurement release must bind one model, one performance curve and one approved sample.
Why does the photographed SXDE6025BH 5W label differ from the 4W H-grade catalog row?
They are separate evidence records. The label confirms model, input class, frequency and 5W power. The H, M and L catalog rows provide family comparison points but do not establish that the BH product has the same speed, current, airflow, pressure, noise or weight.
Does the 115/230V SXDE6025BH label allow direct substitution into every compact cabinet supply?
No. The 6025 catalog lists a 100-264VAC working range, but the approved wiring diagram must define conductor colors, grounding, connector, protection and input behavior. Check the available installation depth, 50mm mounting-hole spacing, intake clearance and equipment resistance before energizing a sample.
How should the SXDE6025BH bearing and lifetime be qualified before production release?
Do not release the order from a generic 50,000-hour graphic. State the required bearing code, duty cycle, mounting orientation, temperature profile and lifetime evidence in the RFQ. Approve the sample, label revision and production control plan before batch manufacture.
Continue with the fan selector, review the EC fan family, review the control-cabinet application guide, or submit a model-specific RFQ.
