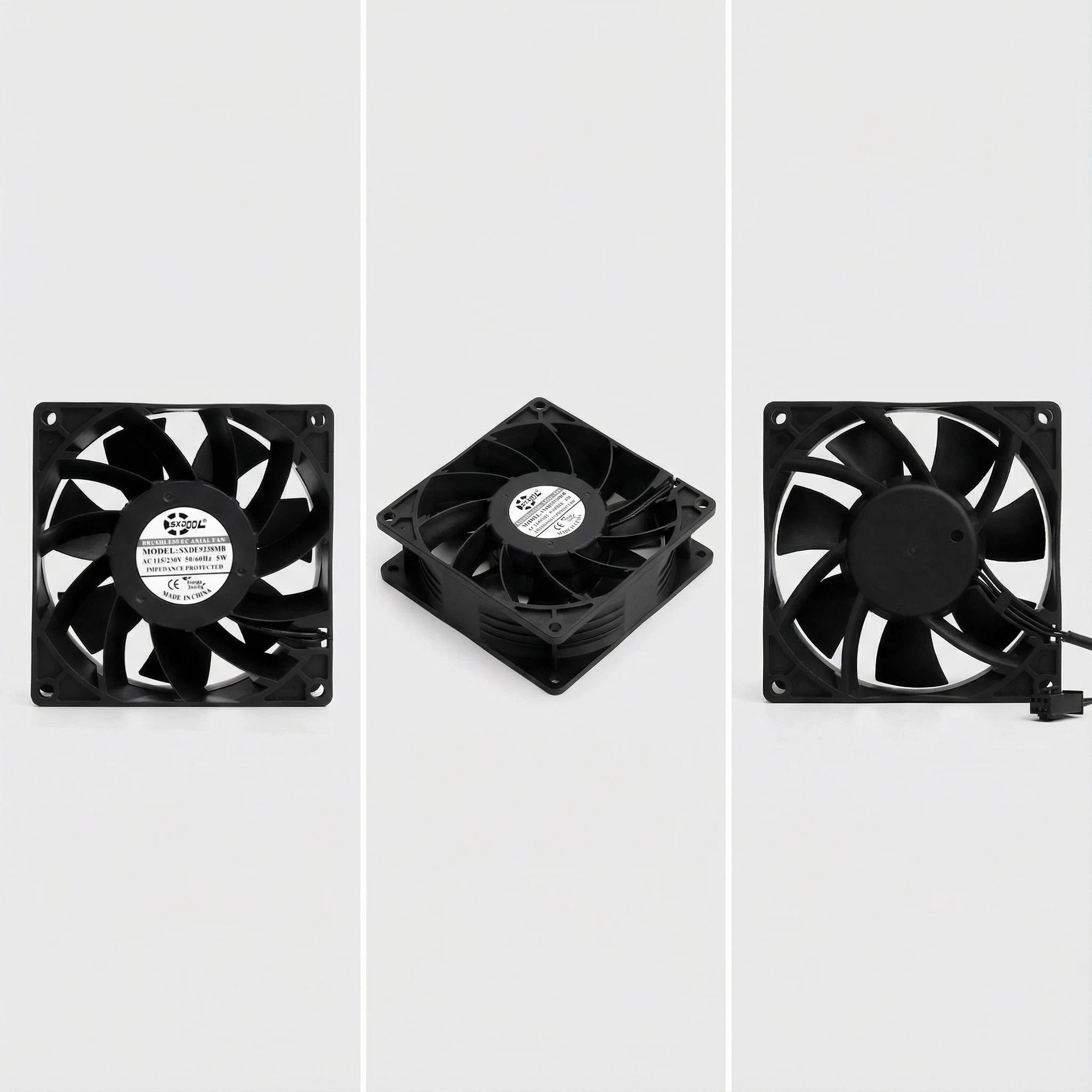

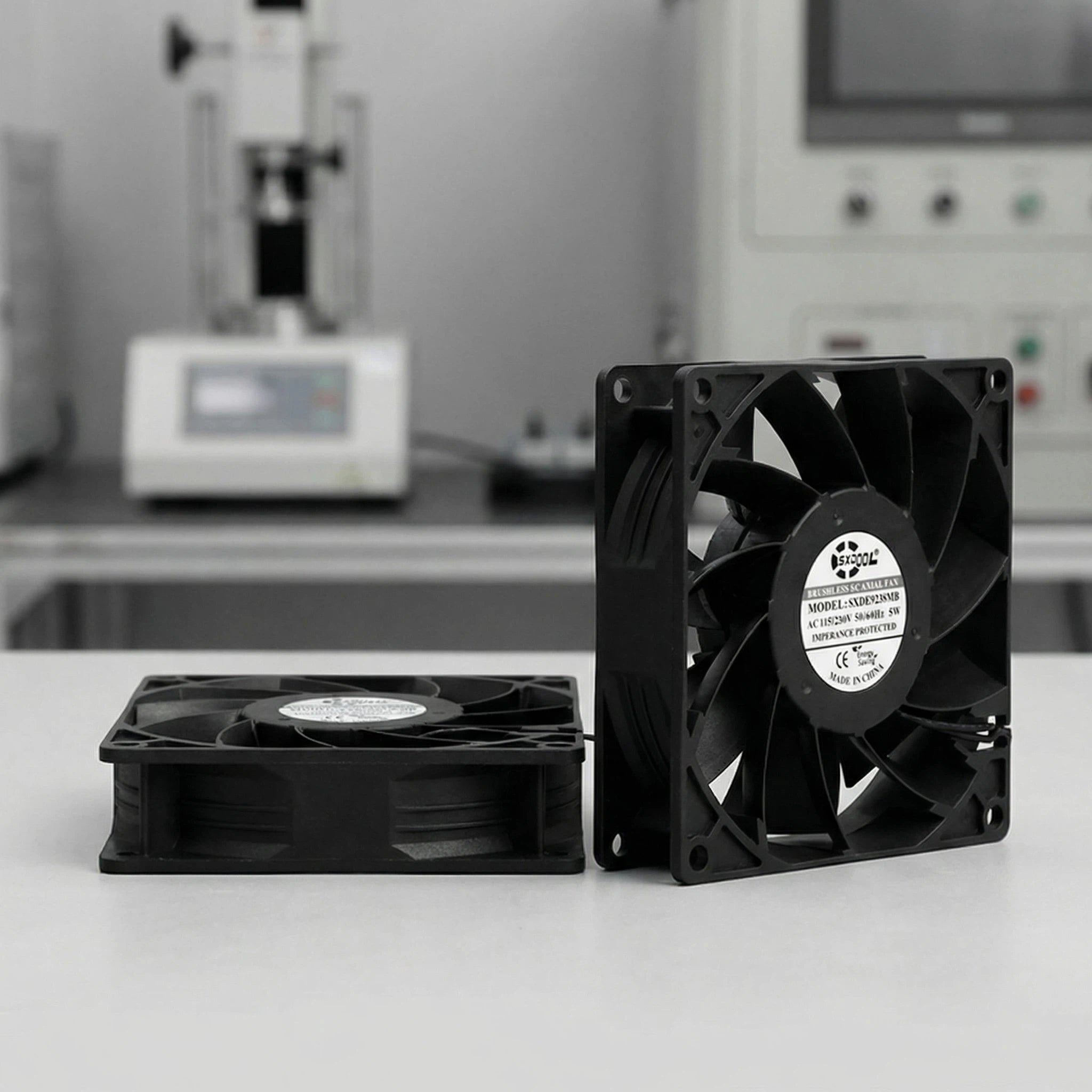

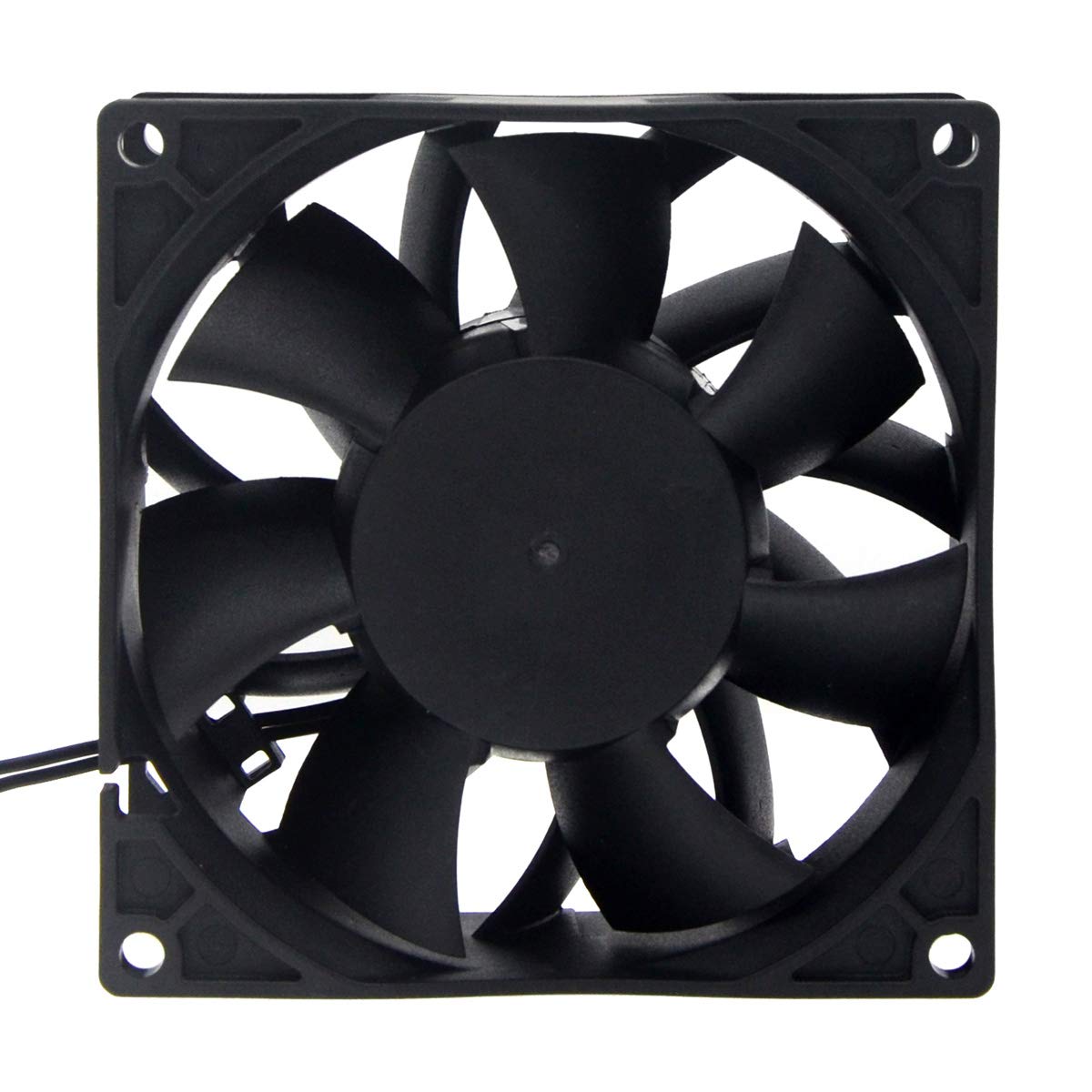

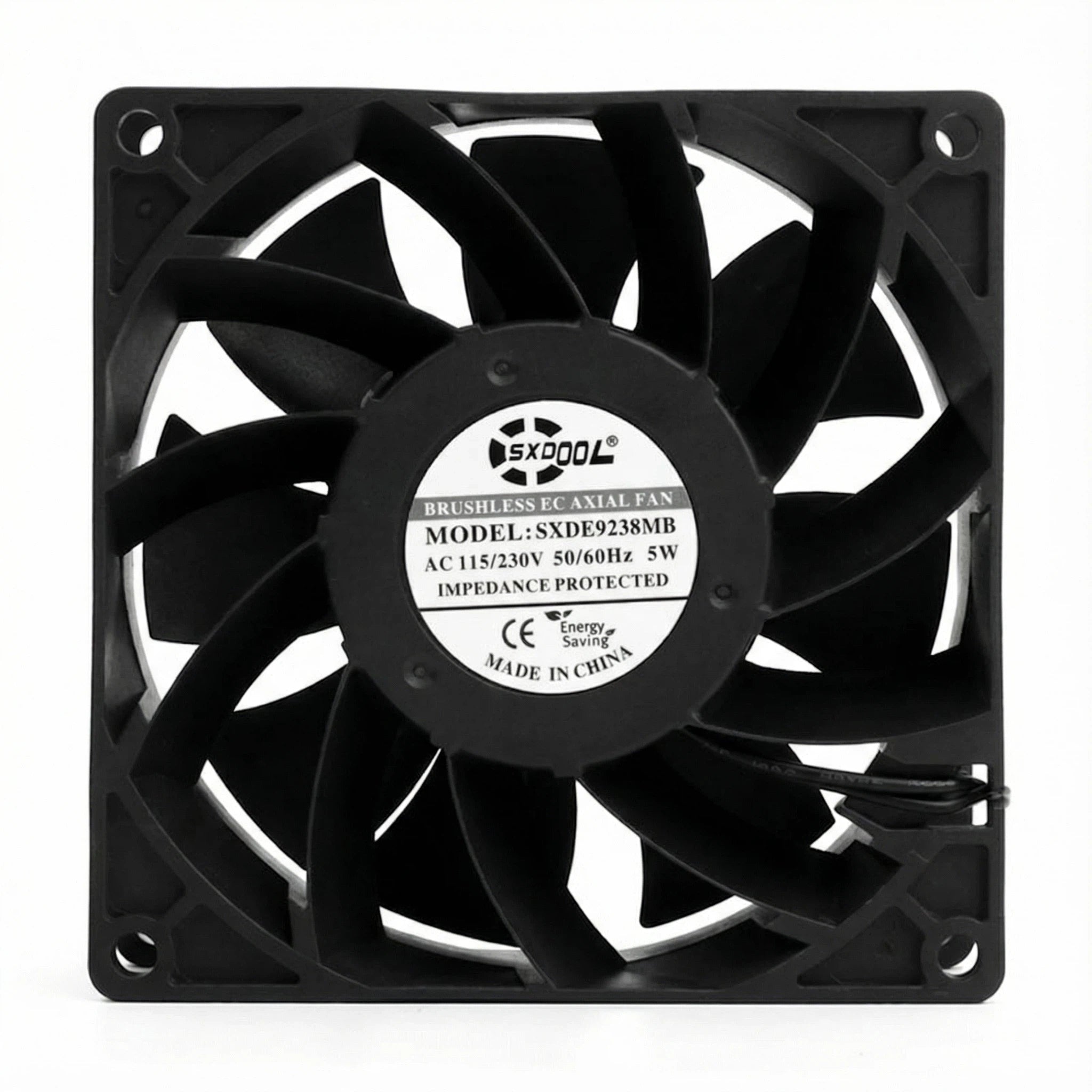

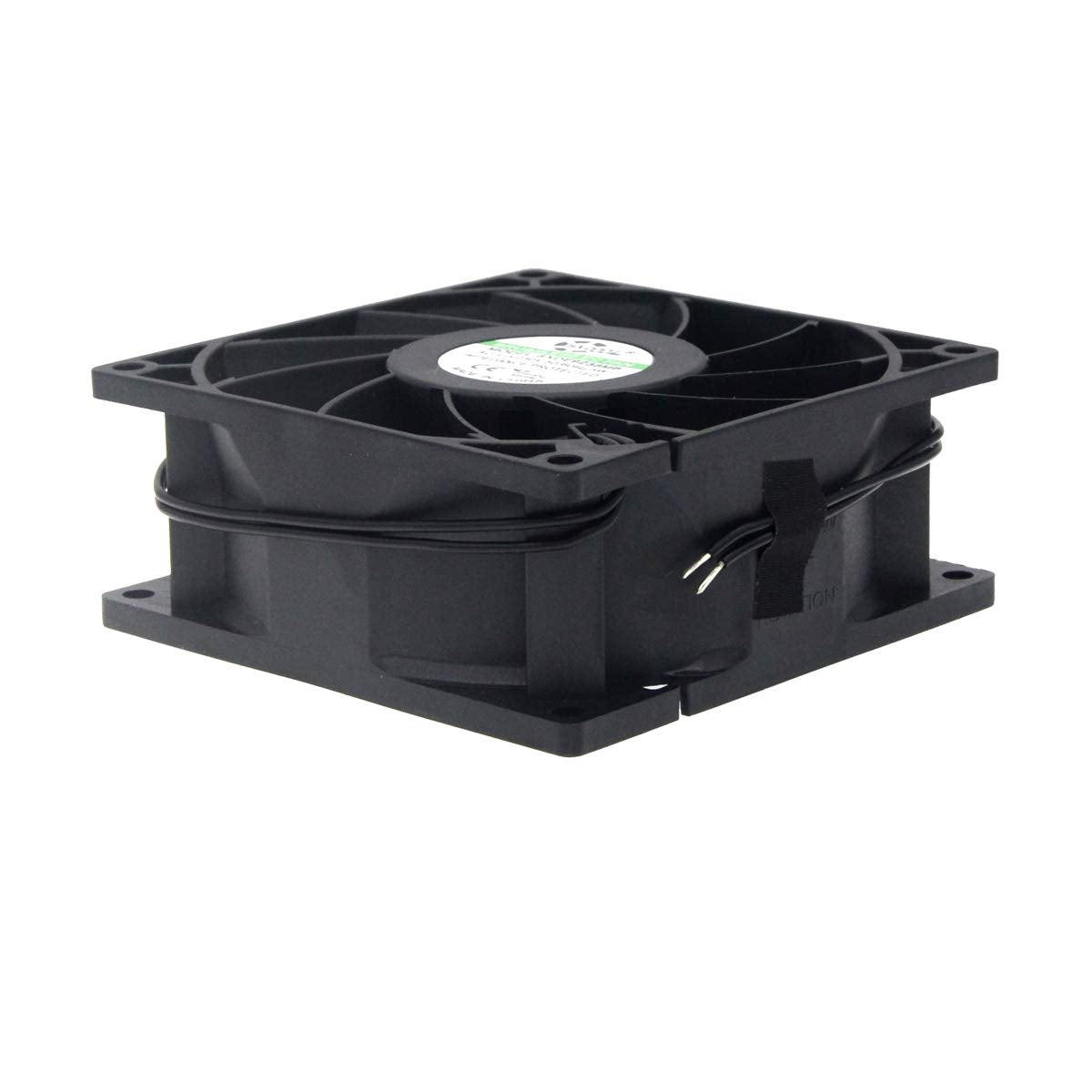

SXDOOL 9238 92x92x38mm EC Axial Fan AC Input
SXDOOL 9238 92x92x38mm EC axial fan for compact servers and filtered boxes. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
SXDOOL 9238 92x92x38mm EC axial fan for compact servers and filtered boxes
Use this page when a compact fan footprint needs extra depth for airflow through guards, filters, mesh or dense components. Best fit where a 92mm footprint needs higher pressure than a 25mm-depth fan.
Engineers normally specify this EC platform by frame size (92x92x38mm / 9238), AC input range (110V / 120V / 240V / 115V/230V), airflow, noise target, speed-control requirement, bearing, cable and connector. EC projects should be reviewed separately from low-voltage DC axial fans.
| Frame size | 92x92x38mm |
|---|---|
| Model code | 9238 |
| Platform | EC Axial Fan |
| Voltage options | 110V / 120V / 240V / 115V/230V |
| Signal options | PWM / FG tach / RD alarm |
| RFQ review | Cable length, connector, bearing, airflow direction, label, certification and quantity. |
Where Buyers Use This SKU

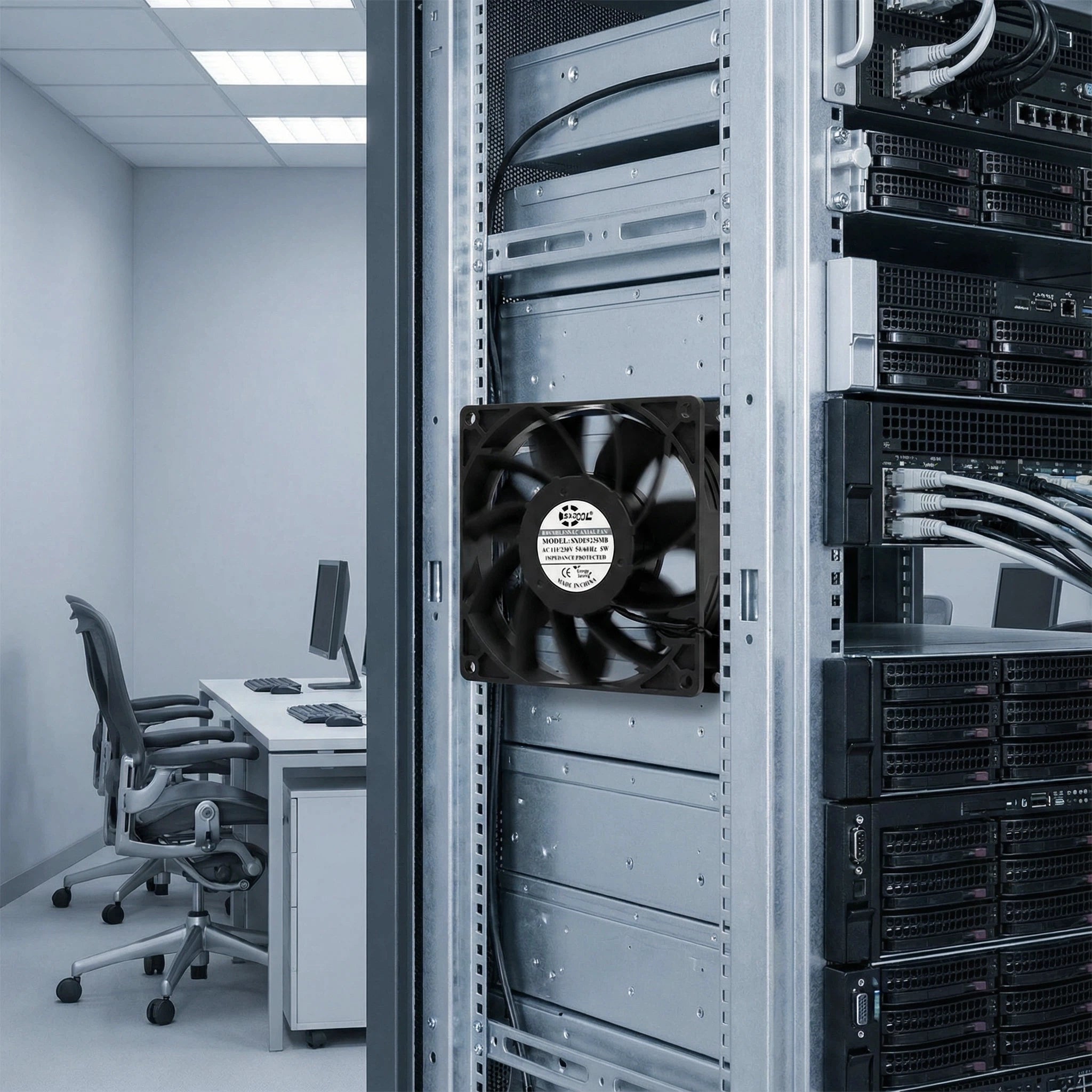

- compact servers
- filtered boxes
- power modules
- dense electronics
Engineering Questions
How should engineers specify this 9238 fan?
Send AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity, plus the application environment and expected sample or batch quantity. SXDOOL will review the fan platform before quotation.
When should buyers choose EC instead of standard AC or DC axial fans?
EC fans are useful when the project needs AC input with better energy efficiency, speed-control options or continuous cabinet airflow review.
When should buyers change frame depth or fan family?
Choose deeper frames such as 38mm or above when filters, guards, vents or dense components create airflow resistance. Choose 25mm or thinner frames when installation depth and noise are more important.
92x92x38mm EC Axial Fan for 92mm compact pressure cooling

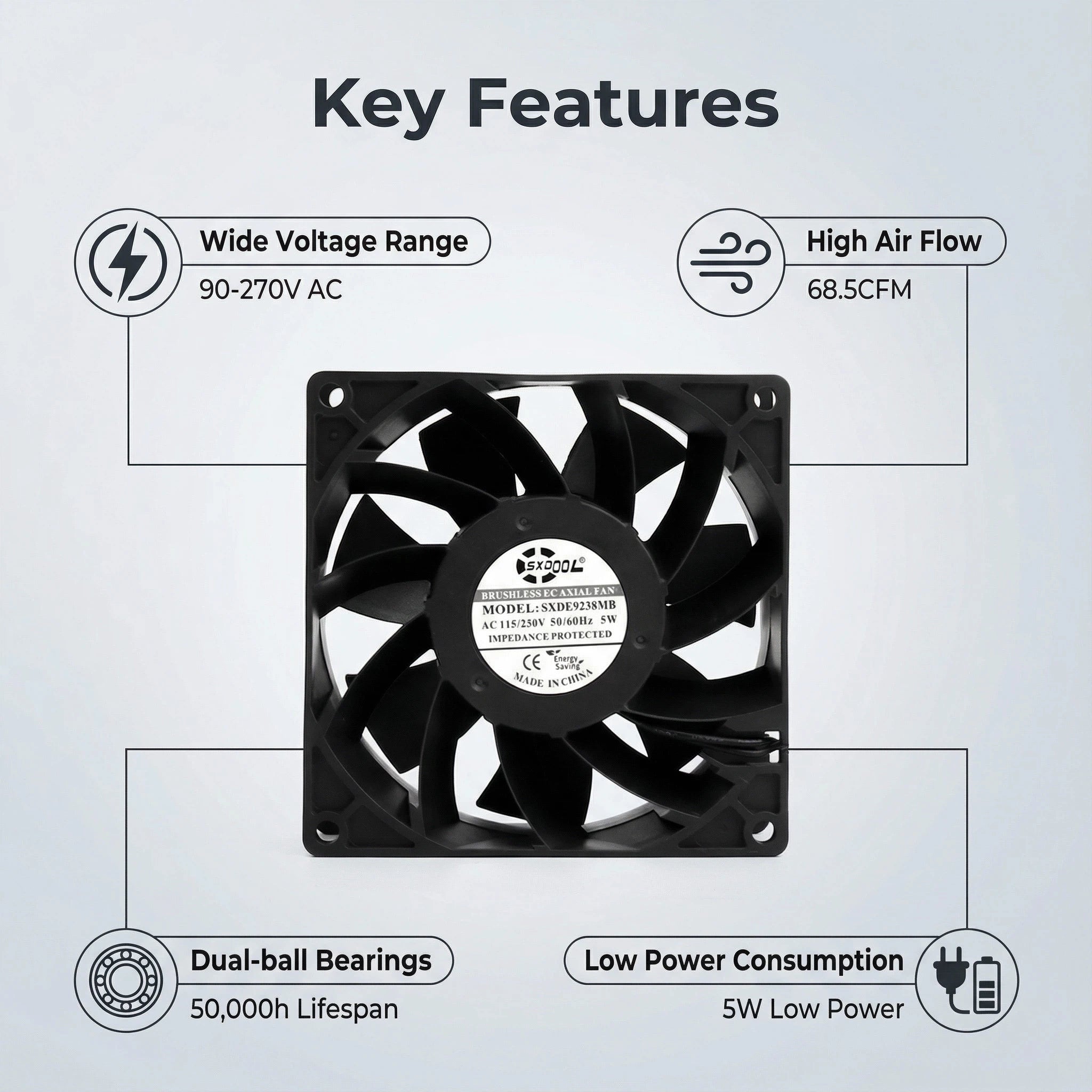

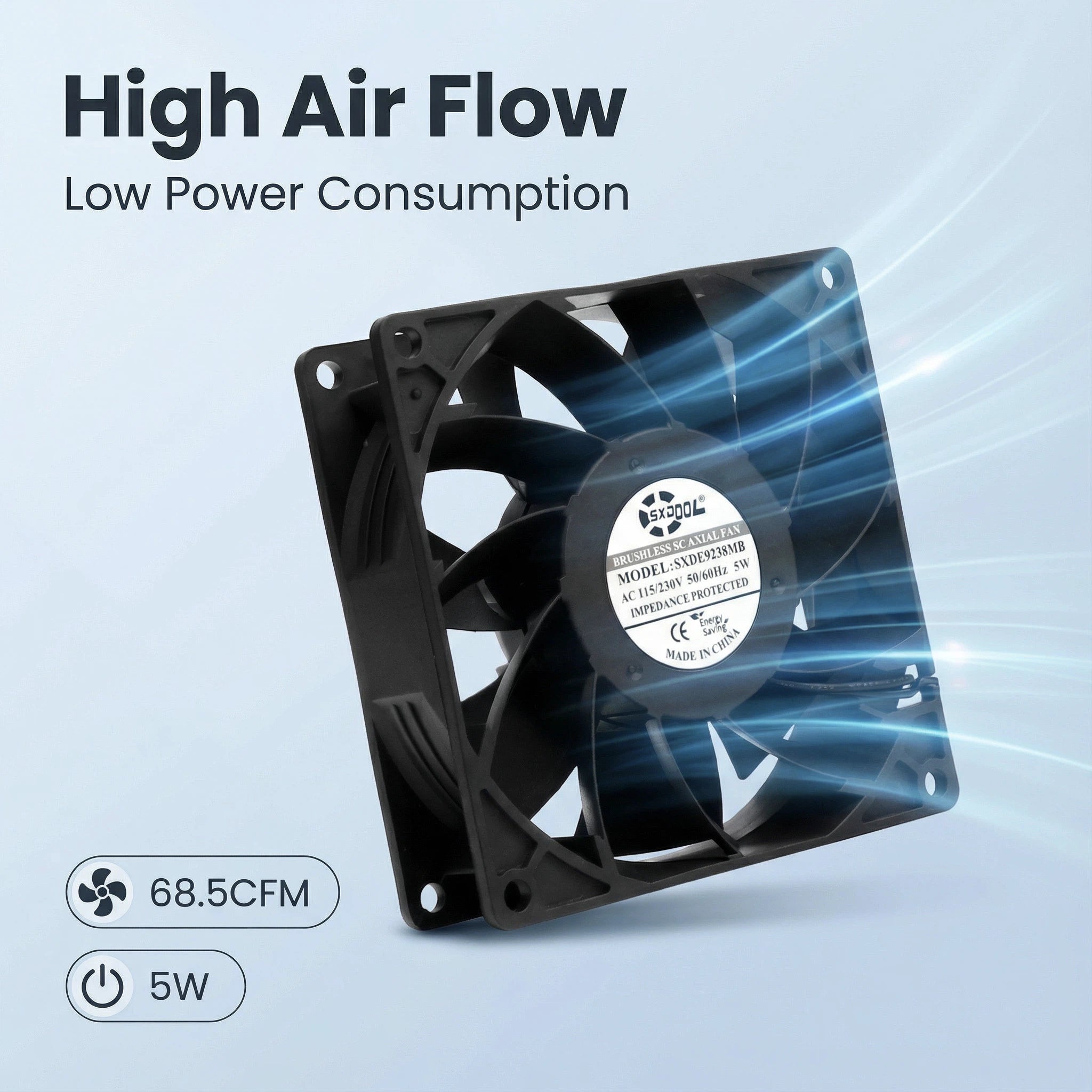

SXDOOL 92x92x38mm 115V/230V EC Axial Fan 68.5CFM Dual Ball Bearing is engineered for high-resistance 92mm vents, filtered equipment exhaust, power-supply cooling. For B2B engineers and procurement teams, this SKU should be evaluated by real voltage, airflow resistance, connector format and installation depth rather than by frame size alone.
SXDOOL provides Factory-direct support, ISO 9001:2015 Certified production management, Dynamic Balancing, 100% End-of-Line Testing and OEM/ODM Customization for low-MOQ samples and repeat industrial fan programs.

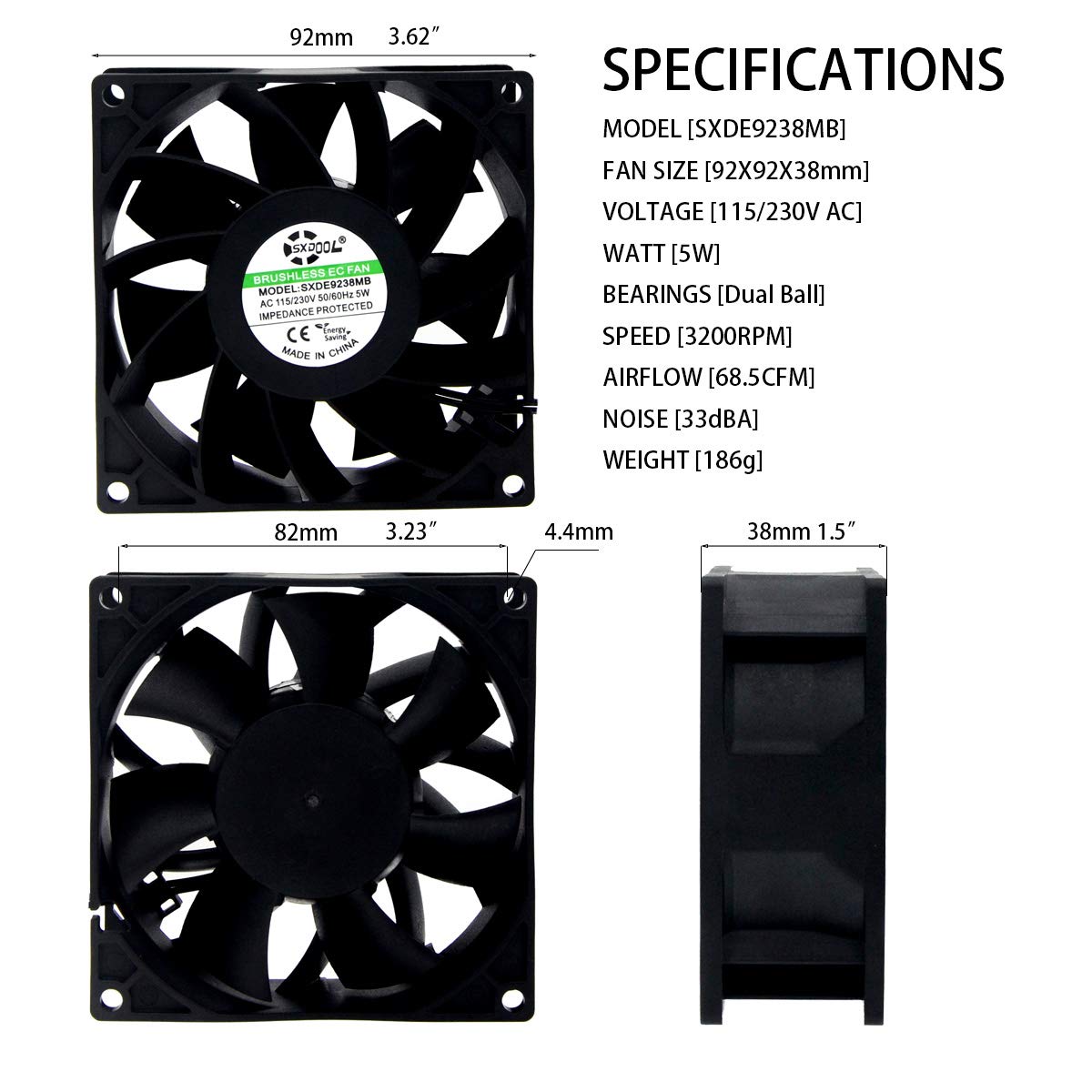

| Dimensions | 92x92x38mm |
|---|---|
| Fan Type | EC Axial Fan |
| Voltage | 115V/230V / 115V / 230V / 110V / 120V / 240V |
| Current | Datasheet/RFQ confirmed |
| Speed | 3200 RPM |
| Airflow | 68.5 CFM |
| Static Pressure | Datasheet/RFQ confirmed |
| Noise | Application-dependent; confirm by sample test |

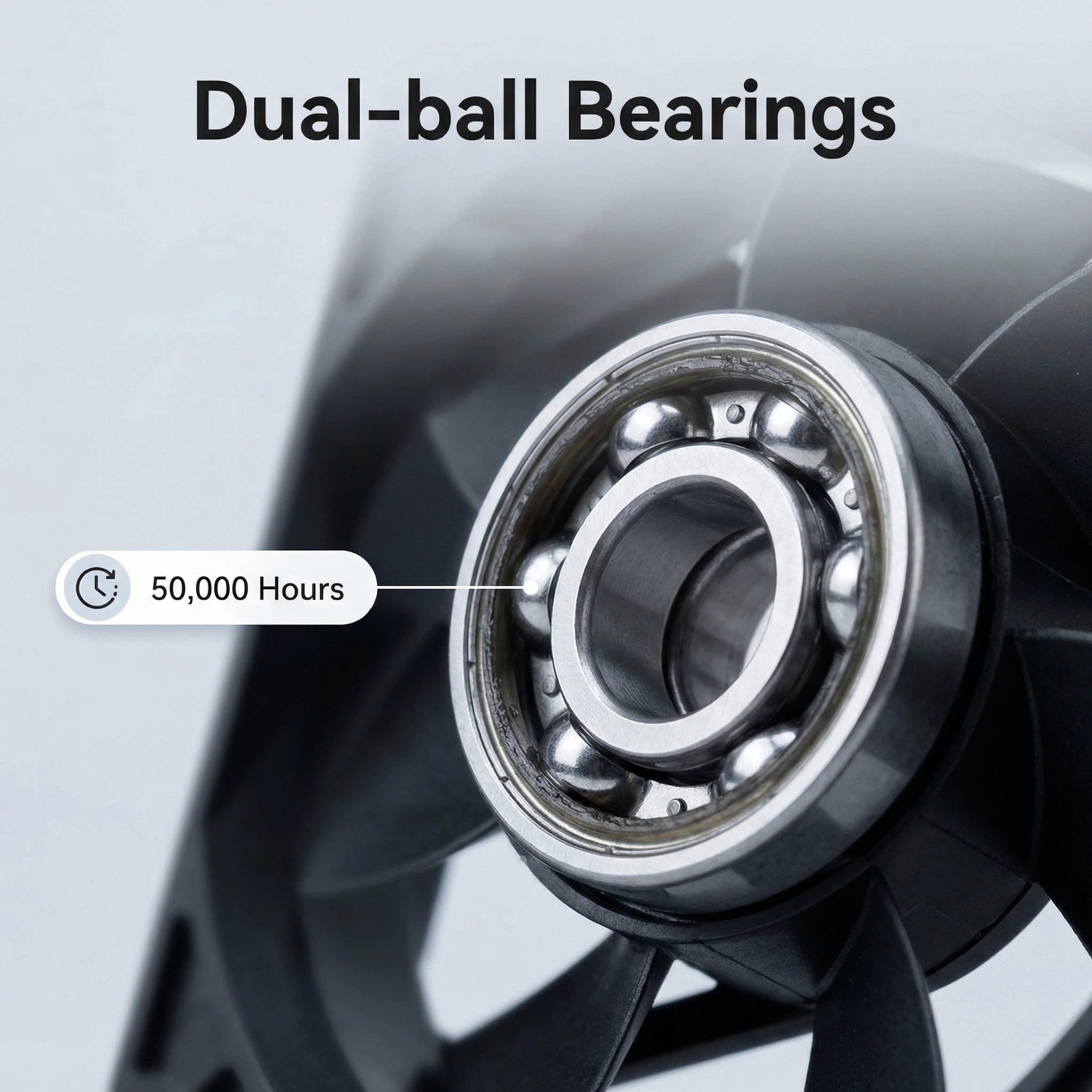

| Bearing Type | Dual Ball Bearing (Japanese NMB option, L10 up to 70,000h) |
| Material | PBT Plastic housing and impeller; UL94V-0 option |
| Protection Rating | Open-frame fan; IP rating by OEM project |
| Signal / Control | PWM speed control, FG tach feedback, RD alarm output |
| Application Fit | high-resistance 92mm vents, filtered equipment exhaust, power-supply cooling |
| Industry Fit | compact servers, power supplies, filtered boxes |
Recommended Engineering Applications
- high-resistance 92mm vents
- filtered equipment exhaust
- power-supply cooling
Technical FAQ
Is the SXDOOL 9238 suitable for high-resistance 92mm vents?
Yes. The SXDOOL 9238 is positioned for 92mm compact pressure cooling and should be selected when the enclosure, voltage and airflow path match high-resistance 92mm vents. SXDOOL can validate the final airflow and noise level by engineering sample before batch production.
Which voltage and signal options should engineers specify for this 92x92x38mm model?
The current product data supports 115V/230V / 115V / 230V / 110V / 120V / 240V. Engineers should also specify PWM speed control, FG tach feedback, RD alarm output, connector type, cable length, airflow direction and control logic so the sample matches the real equipment harness.
Why source this EC Axial Fan from SXDOOL instead of a generic catalog supplier?
SXDOOL supports Factory-direct RFQs, OEM/ODM Customization, Dynamic Balancing, 100% End-of-Line Testing and ISO 9001:2015 Certified manufacturing control for low-MOQ samples and repeat B2B production.
For OEM customization, sample validation or batch RFQ support, contact david@sxdool.com or send your project details through the SXDOOL contact page.
