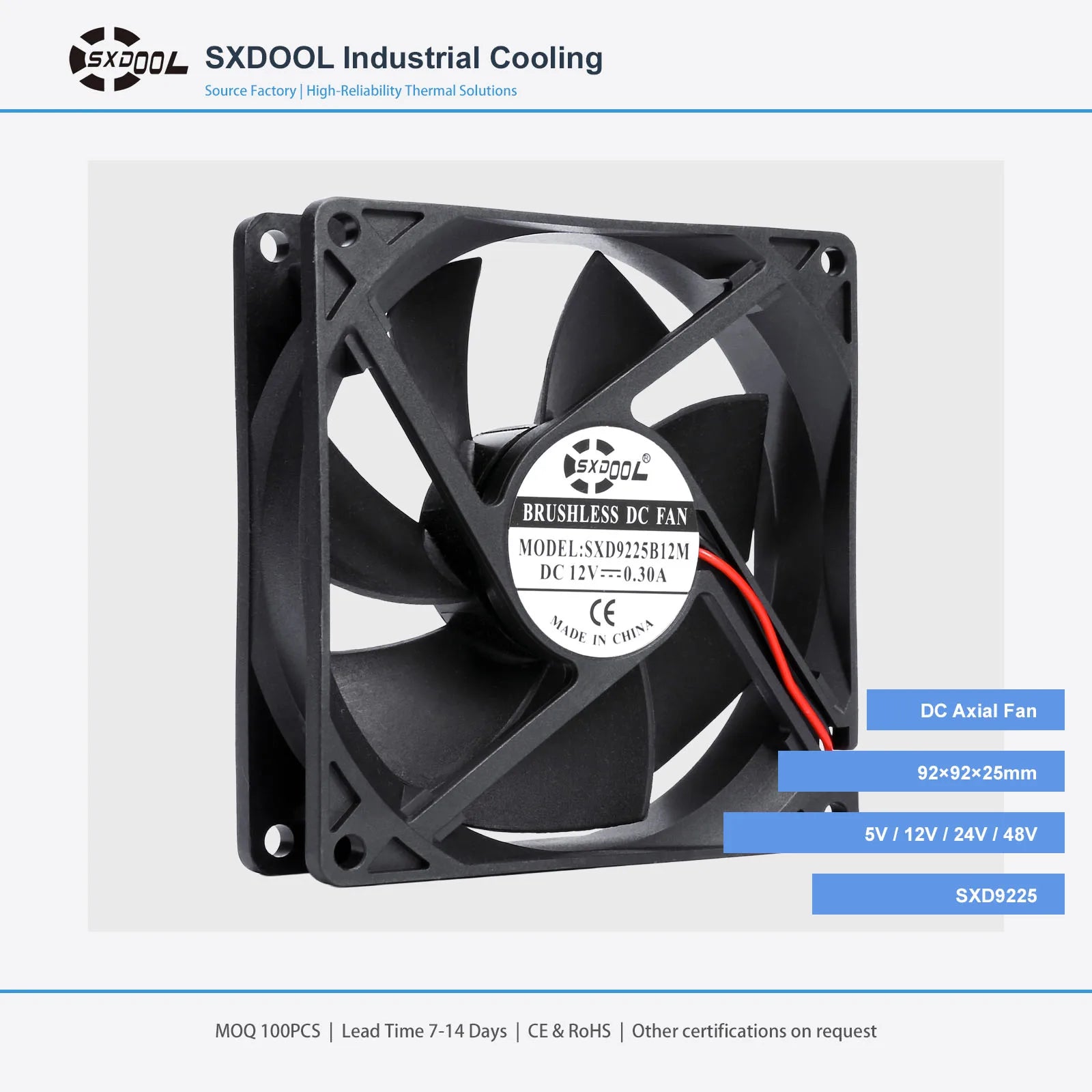

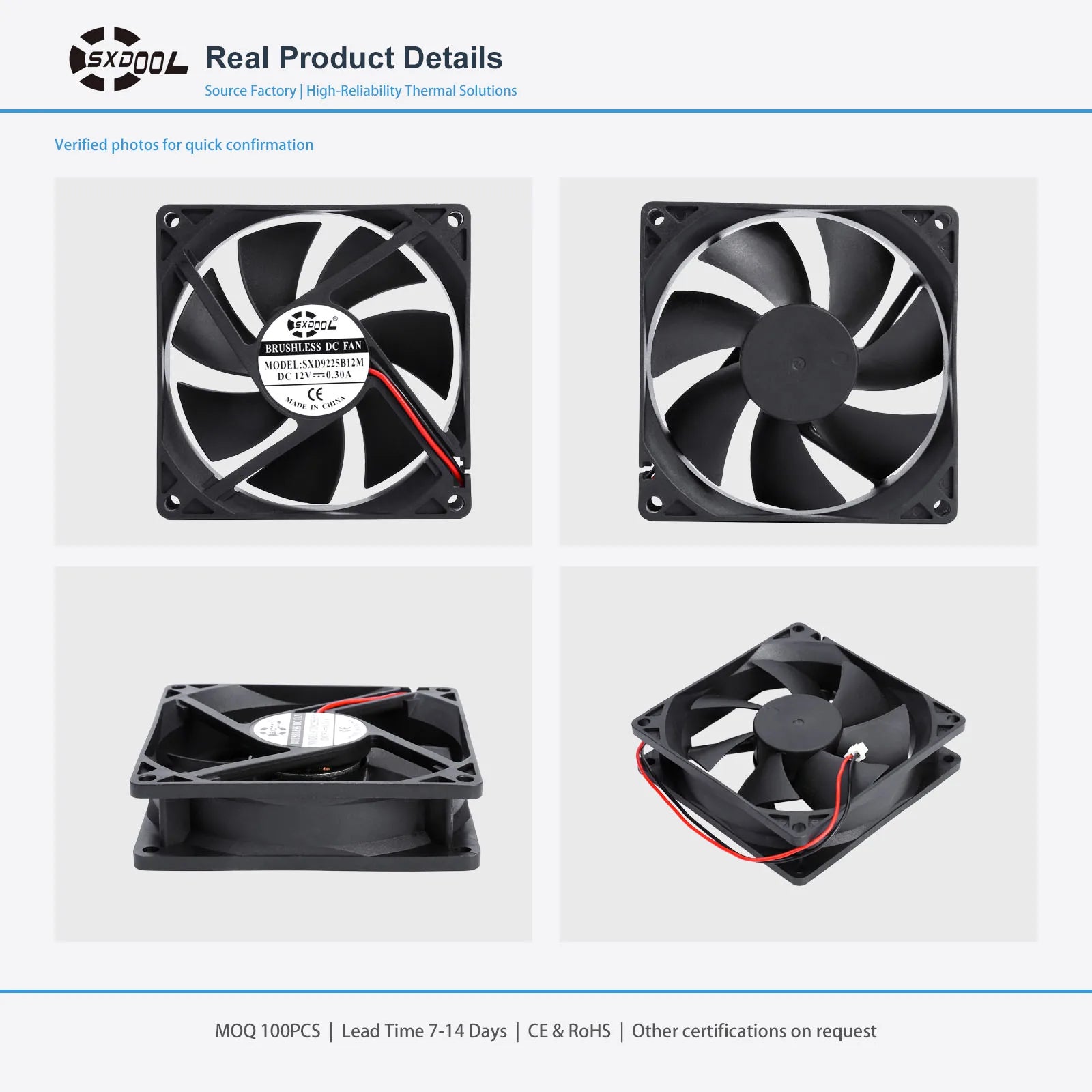

SXDOOL 9225 Standard DC Fan 92x92x25mm 5V-48V
SXDOOL 9225 92x92x25mm DC axial fan for industrial PCs and power supplies. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.

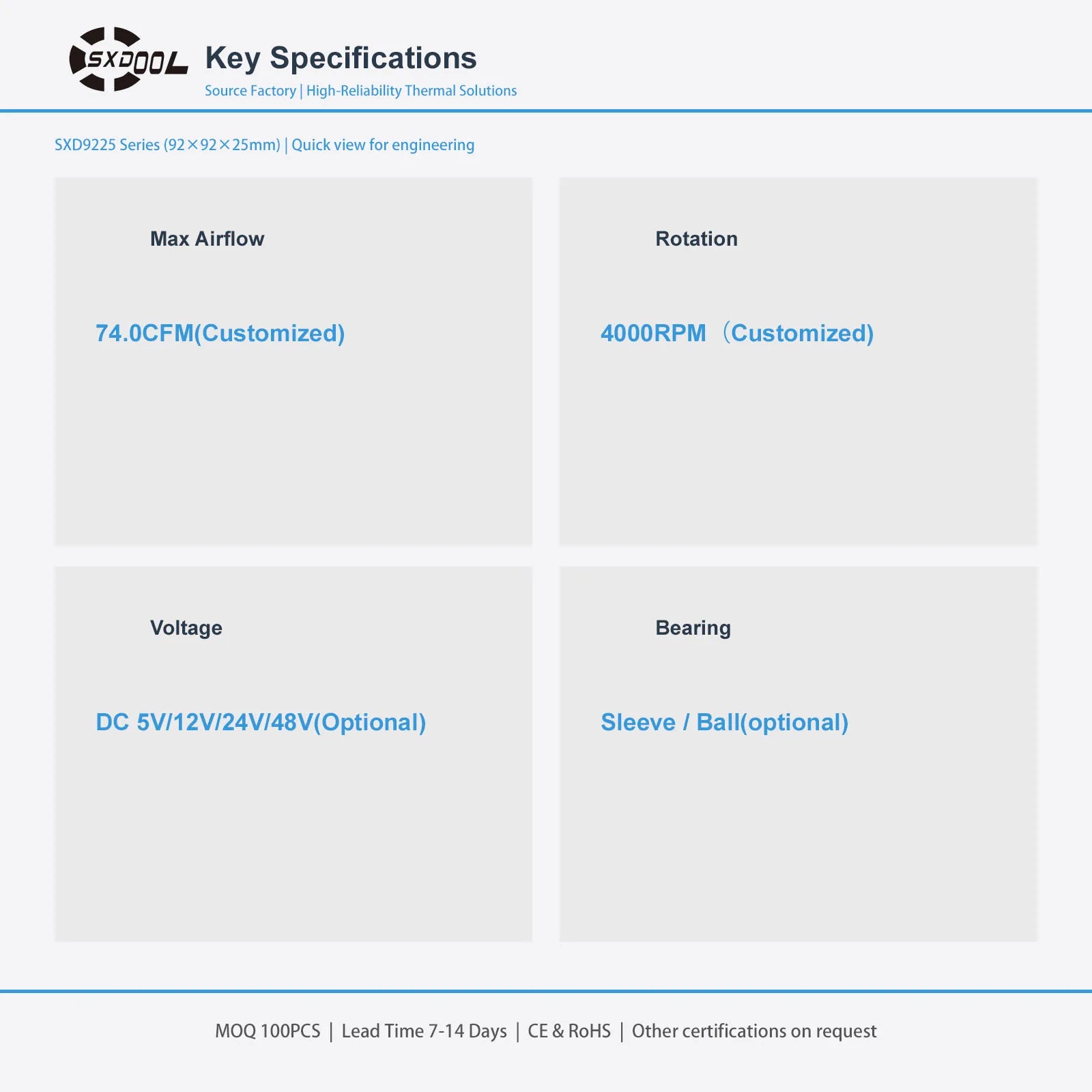

| Voltage | 5V, 12V, 24V, 48V |
|---|
SXDOOL 9225 standard-output DC fan with 5V-48V choices
Engineering summary: This 92x92x25mm standard-output branch covers 5V, 12V, 24V, and 48V selections and 39.2-74.0CFM catalog grades. It is intended for general OEM thermal design and is not the separate 90.2CFM pressure-oriented branch.
| Product / model reference | SXD9225H / SXD9225M / SXD9225L standard-output catalog branch |
|---|---|
| Fan family | Brushless DC axial fan |

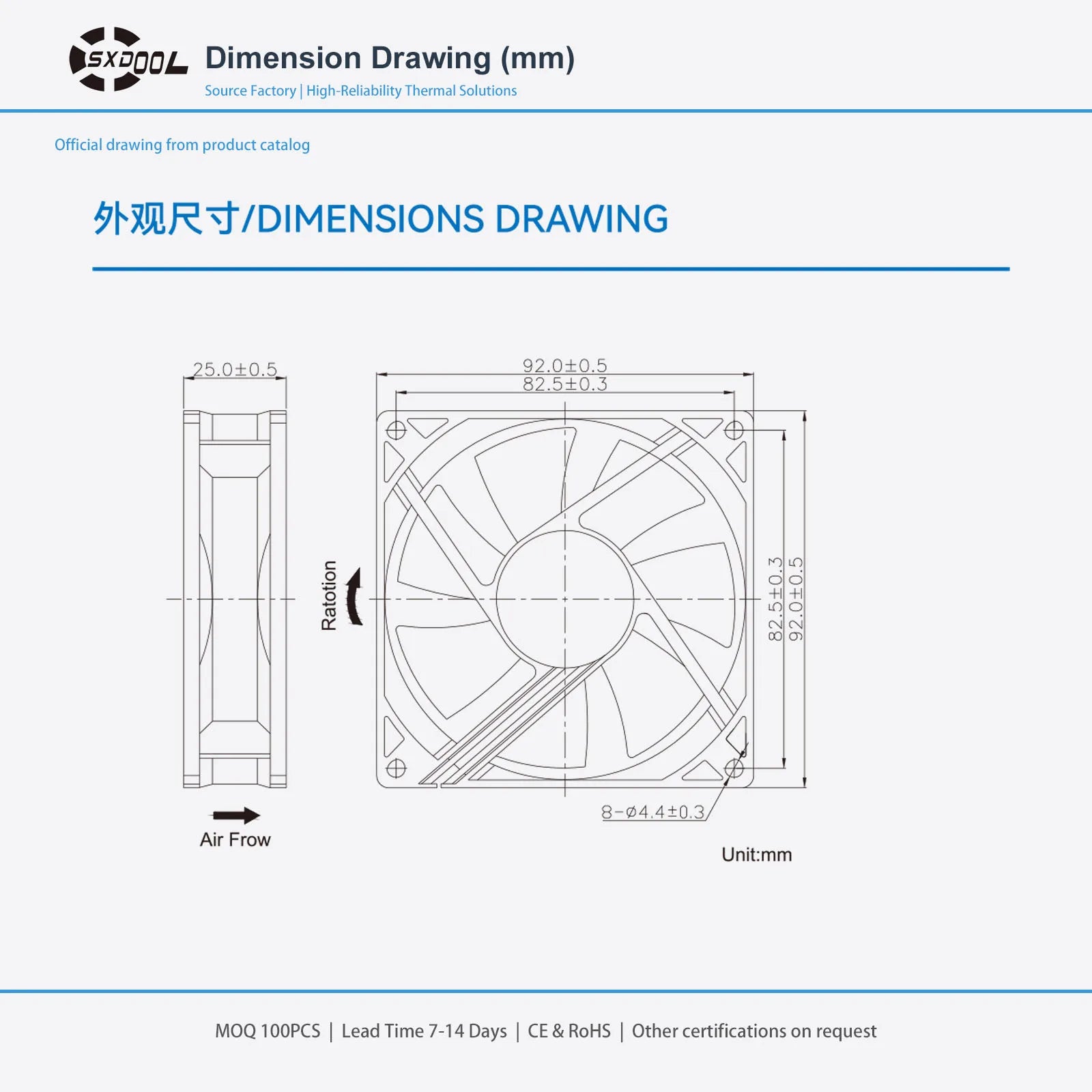

| Dimensions | 92x92x25mm |
| Rated-voltage choices | 5V / 12V / 24V / 48V DC |
| Bearing selection | Sleeve or ball-bearing family options; the complete voltage, speed, bearing, cable, connector, and signal suffix must follow the approved production drawing |

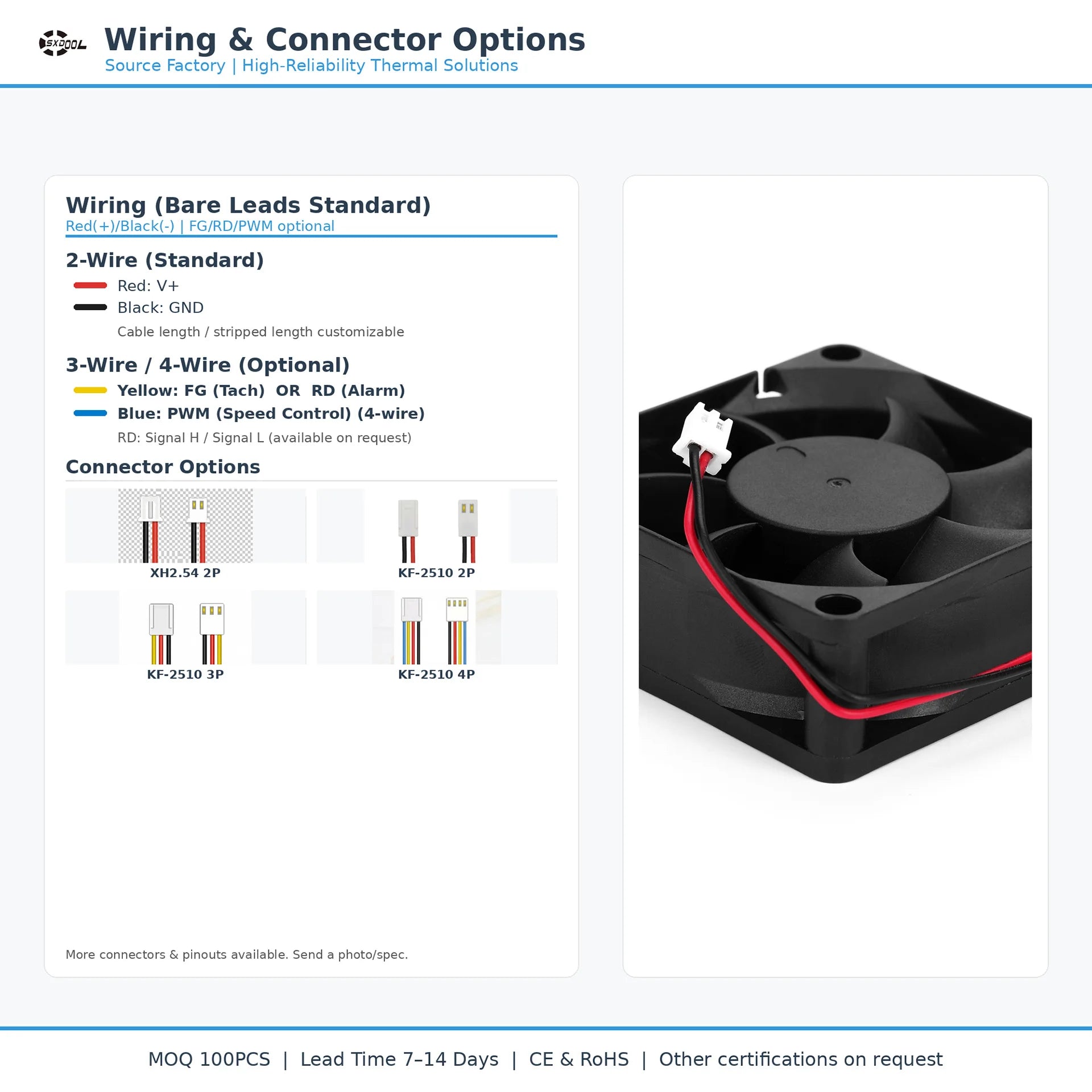

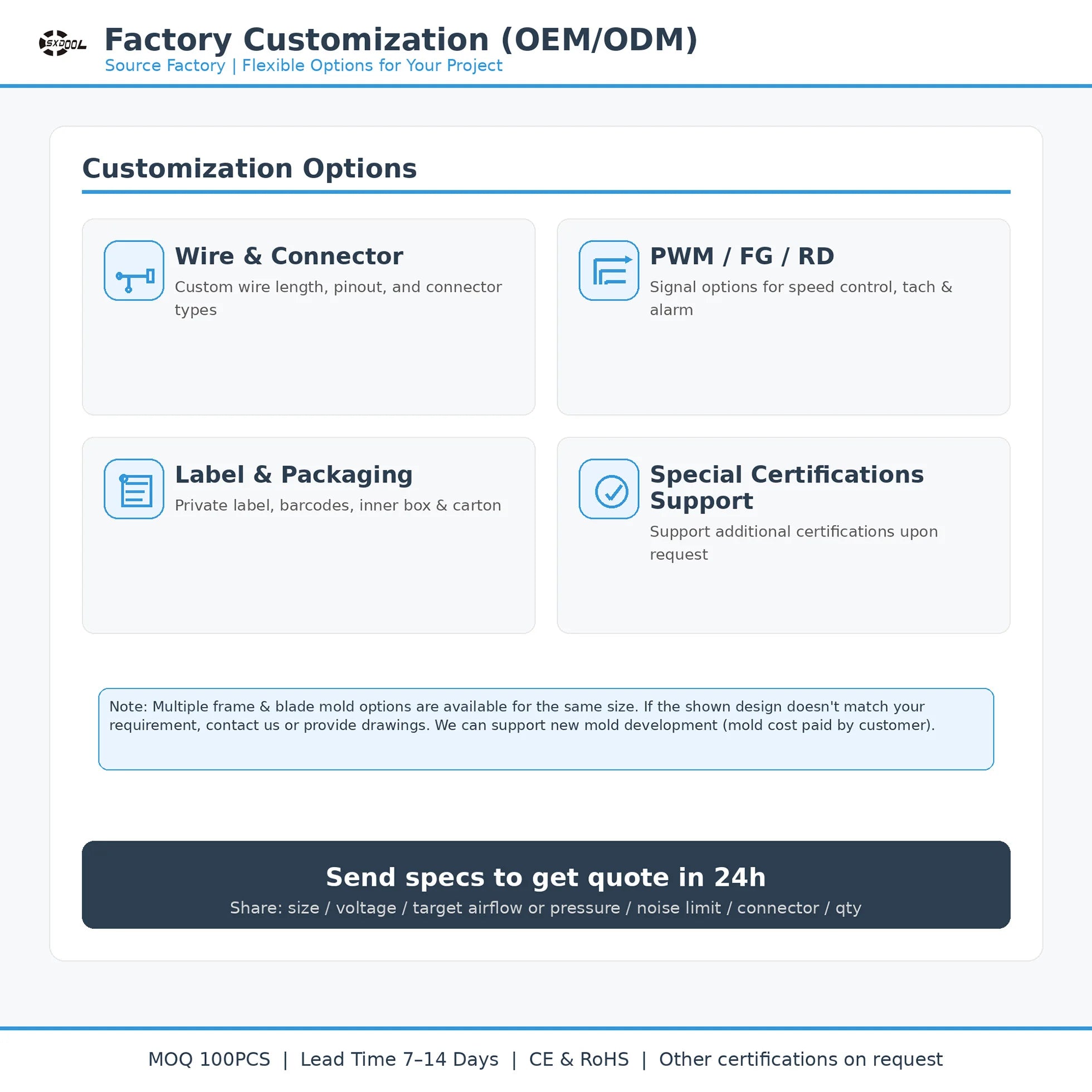

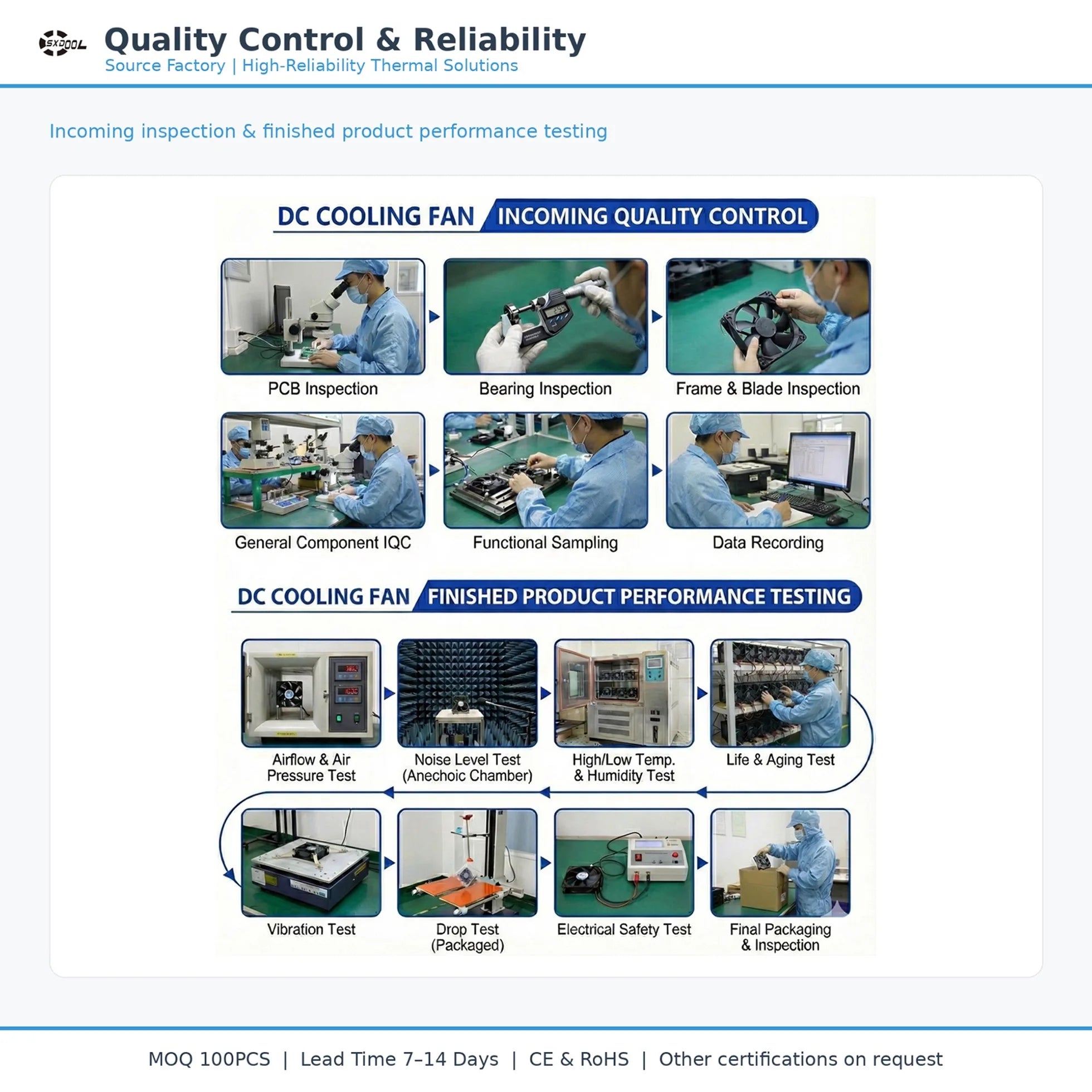

| Signal options | Auto-restart, PWM speed input, FG speed feedback, and RD alarm are configuration-dependent options; none is included unless shown on the approved interface specification |
| Material / flammability boundary | Catalog family reference: plastic frame and impeller, UL94V-0. Final resin, colour, and compliance documentation must match the approved production specification |
| Catalog operating environment | -10 to 70C operation, 35%-85%RH; -40 to 80C storage, 35%-85%RH. Validate application-specific derating and condensation risk |
| Application fit | General electronics, instruments, compact cabinets, and OEM platforms that need a 92mm fan with broad voltage choices and moderate restriction. |
| Page differentiation | This is the standard 39.2-74.0CFM branch. Buyers requiring 68.0-90.2CFM and higher pressure should review the separate pressure-oriented 9225 page. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | DC family values are catalog-typical under nominal voltage. Catalog noise is referenced one meter from the air intake. Current approved model documents and samples govern the final specification. |
Model and configuration table

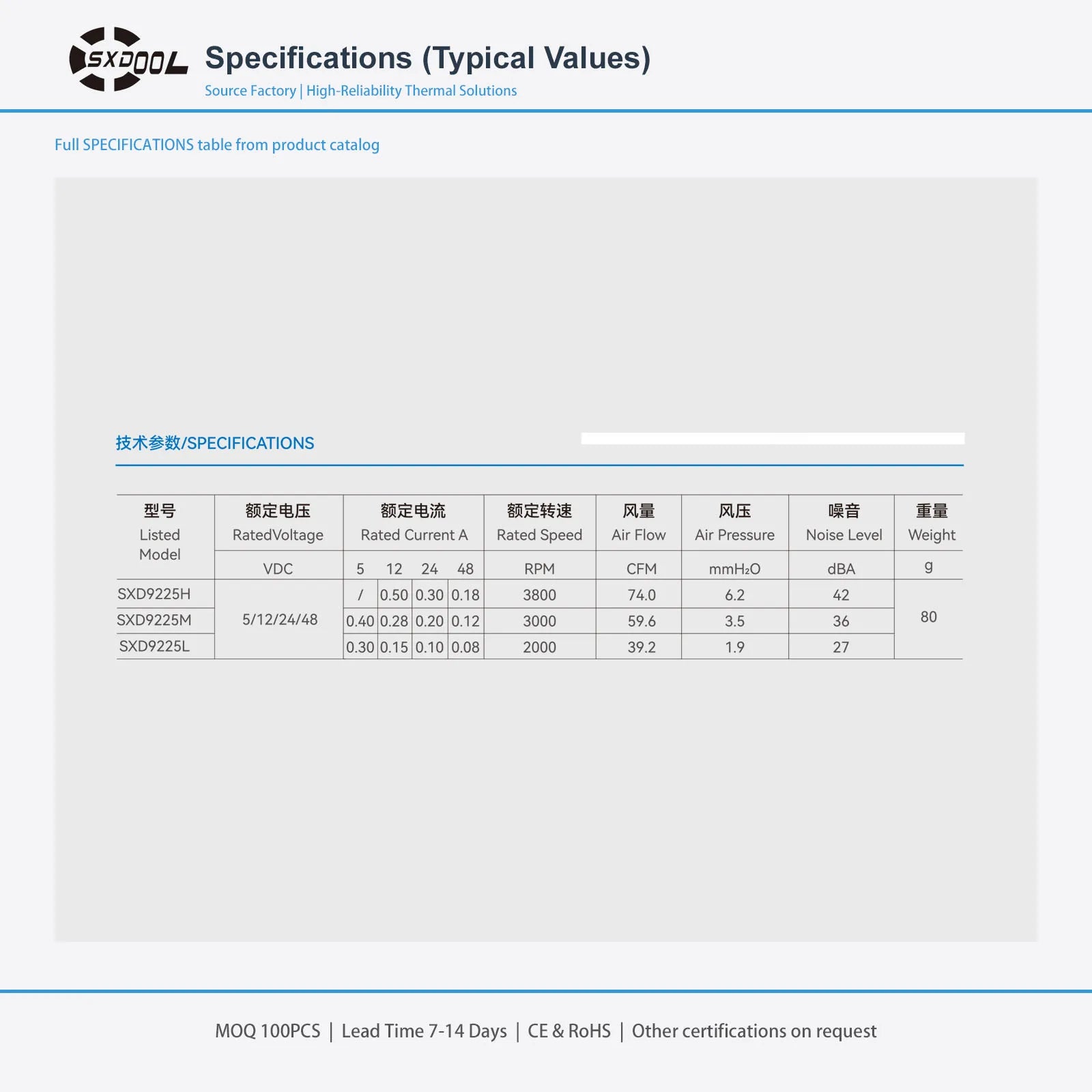

| Model grade | Rated voltage | Rated current | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| SXD9225H | 5V | 0.50A | 3800RPM | 74.0CFM | 6.2mmH2O | 42dBA |
| SXD9225H | 12V | 0.30A | 3800RPM | 74.0CFM | 6.2mmH2O | 42dBA |
| SXD9225H | 24V | 0.18A | 3800RPM | 74.0CFM | 6.2mmH2O | 42dBA |
| SXD9225H | 48V | Confirm drawing | 3800RPM | 74.0CFM | 6.2mmH2O | 42dBA |
| SXD9225M | 5V | 0.40A | 3000RPM | 59.6CFM | 3.5mmH2O | 36dBA |
| SXD9225M | 12V | 0.28A | 3000RPM | 59.6CFM | 3.5mmH2O | 36dBA |
| SXD9225M | 24V | 0.12A | 3000RPM | 59.6CFM | 3.5mmH2O | 36dBA |
| SXD9225M | 48V | Confirm drawing | 3000RPM | 59.6CFM | 3.5mmH2O | 36dBA |
| SXD9225L | 5V | 0.30A | 2000RPM | 39.2CFM | 1.9mmH2O | 27dBA |
| SXD9225L | 12V | 0.15A | 2000RPM | 39.2CFM | 1.9mmH2O | 27dBA |
| SXD9225L | 24V | 0.08A | 2000RPM | 39.2CFM | 1.9mmH2O | 27dBA |
| SXD9225L | 48V | Confirm drawing | 2000RPM | 39.2CFM | 1.9mmH2O | 27dBA |
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
What design situation makes the 5V version of the 9225 platform useful?
A 5V variant can simplify integration where the host already provides a regulated 5V rail, but voltage availability does not establish the final model. Confirm current, startup margin, cable loss, connector, airflow grade, and controller behavior on the approved 5V drawing.
Which standard 9225 grade is suitable when acoustic headroom is limited?
SXD9225L has the lowest catalog speed and noise reference at 2000RPM and 27dBA, but it also has the lowest airflow and pressure. Verify that 39.2CFM and the actual duty point still hold component temperatures below limit in the assembled product.
Can a customer change from 12V to 24V while keeping the same harness and connector?
Do not assume so. The frame and target grade may be shared, but current, lead identification, connector keying, supply protection, and part number must match the approved voltage-specific drawing. Use configuration control to prevent mixed-voltage assembly.
How should a procurement team compare two 9225 quotations that both say SXD9225M?
Require the complete voltage and bearing suffix, approved drawing revision, airflow and pressure reference, current tolerance, cable length, connector pinout, signal options, label, test requirement, and packaging specification. The short grade name alone is not a complete purchasable configuration.
Continue with the fan selector, review compare the pressure-oriented 9225 branch, open the 9225 OEM configuration hub, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
