12012 Slim DC Axial Fan | 120 x 120 x 12 mm

12012 slim DC axial fan family. Use this 120 x 120 x 12 mm platform when installation depth is the first constraint. Select a voltage-specific 5V, 12V or 24V configuration, then review inlet clearance, cable exit and the actual equipment airflow path before RFQ. Photos show an SXD12012S12M 12V sample; confirm the ordered configuration separately.

Voltage5V, 12V, 24V
Frame size120x120x12mm
MaterialConfirm the frame and impeller resin grade and UL 94 flammability class for the ordered configuration.
Need a quick engineering check? Send the model, voltage, airflow target and estimated quantity.
WhatsApp RFQ
Description

A 12 mm-deep axial platform for shallow assemblies

The SXDOOL 12012 is a 120 x 120 x 12 mm DC axial fan platform for projects where the available installation depth limits fan selection. This page lists 5V, 12V and 24V configurations; select a voltage-specific version rather than treating those options as one operating range.

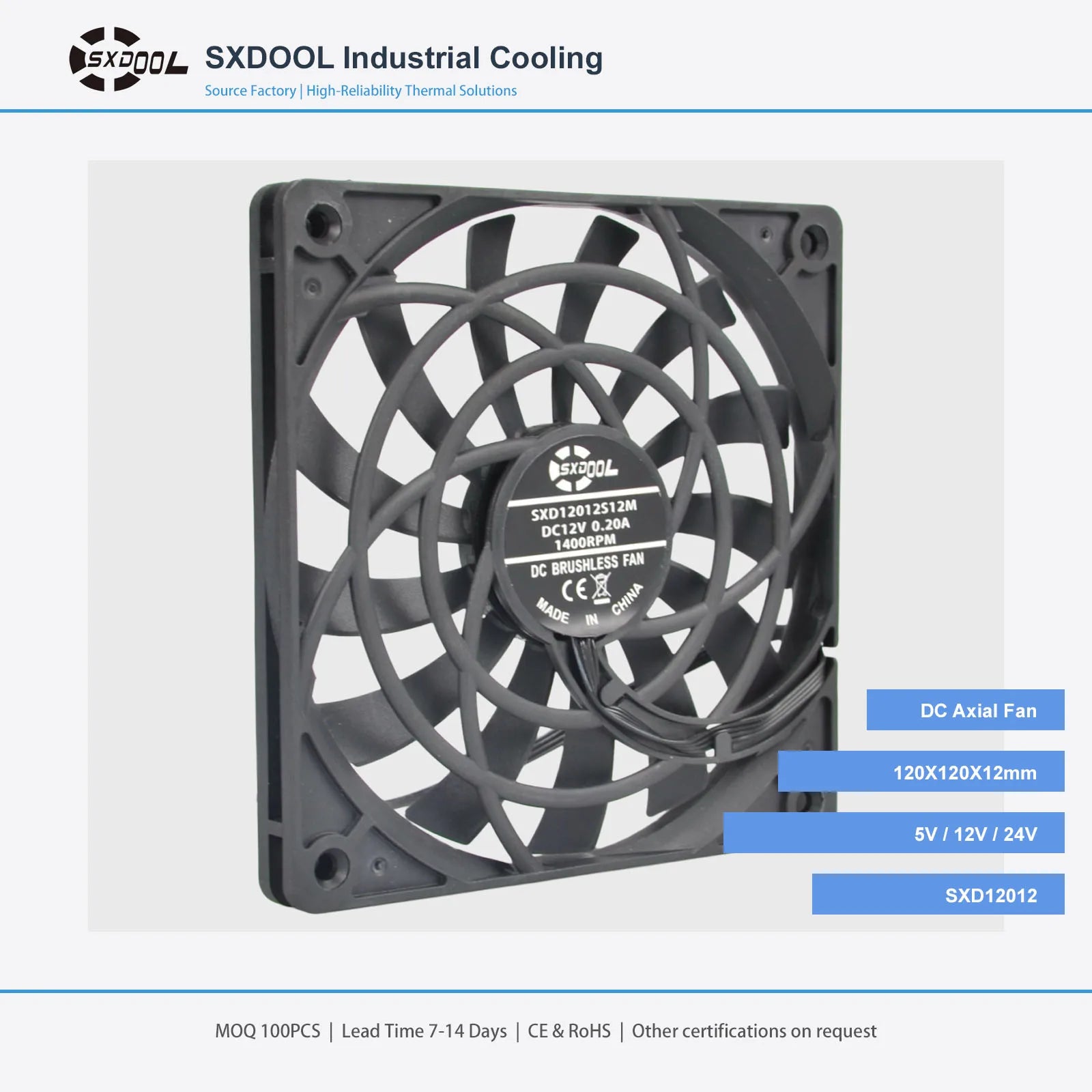

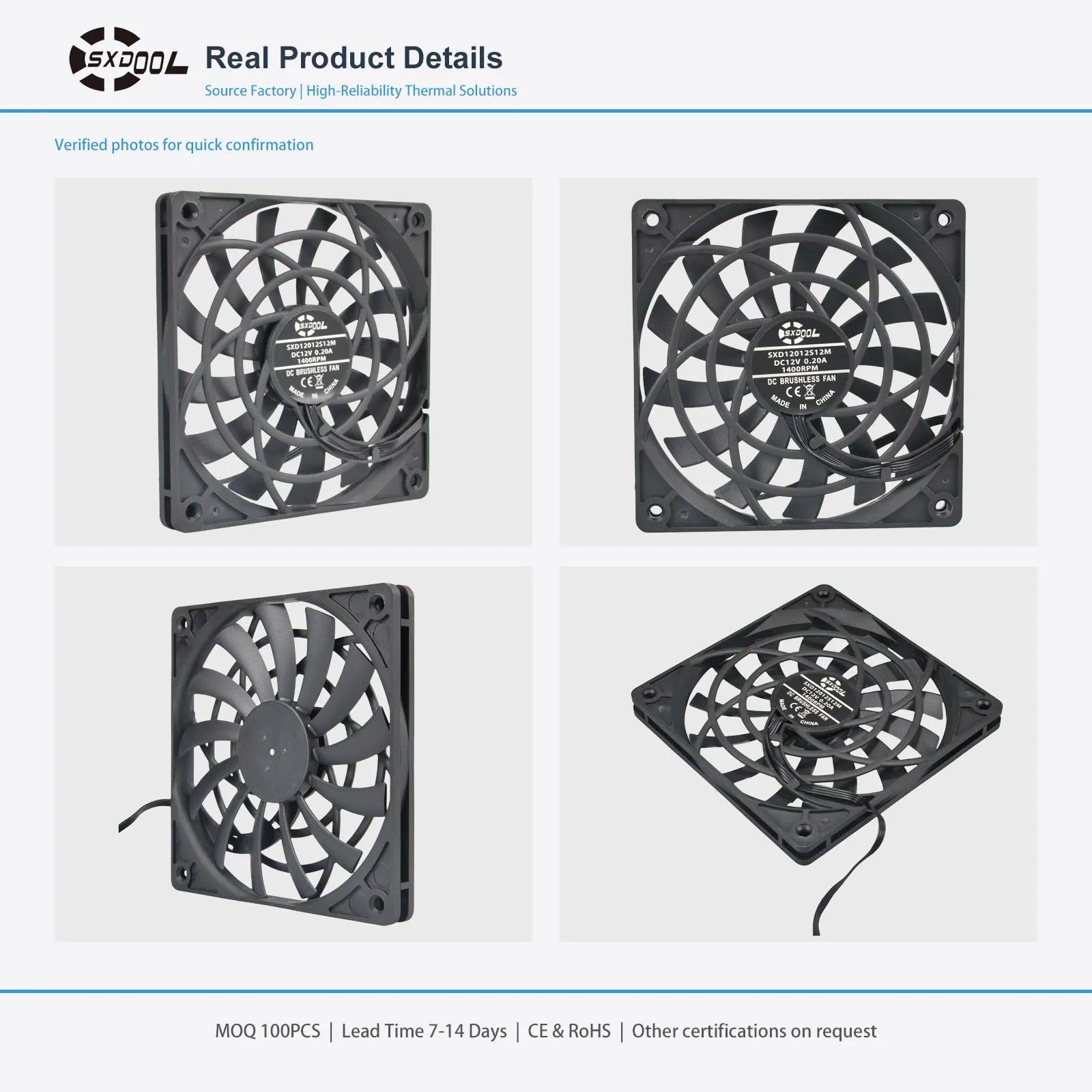

The photos show an SXD12012S12M 12V sample. Confirm the ordered voltage, label and wiring against the exact configuration before approval.

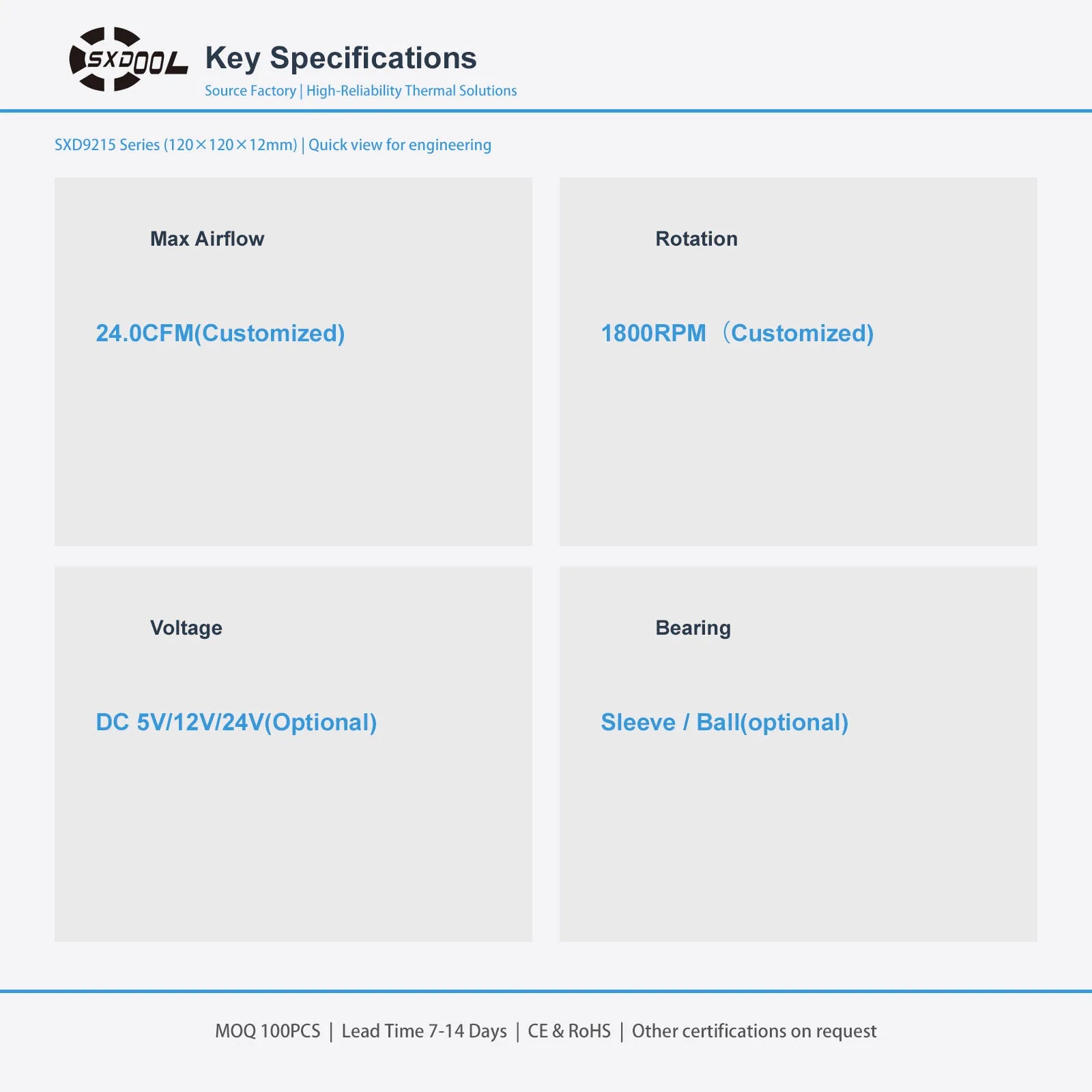

Product reference 120x120x12mm 5V / 12V / 24V
Fan family DC axial fan
Frame / dimensions 120x120x12mm
Voltage / input 5V / 12V / 24V

Start with the complete installation envelope

Consider this slim platform for shallow control-electronics housings, instrument enclosures or space-limited display assemblies with an axial airflow path. Check the full installation stack: fan depth, guard, mounting hardware, inlet clearance, cable exit and nearby components. A 12 mm fan frame does not mean the finished assembly needs only 12 mm of space.

Slimness alone does not establish quiet operation or adequate pressure capability. If the air path includes a filter, a dense heat sink or restricted vents, compare the required operating point with a curve for the selected configuration. Where more depth is available, compare a 12025 platform without assuming the two are interchangeable. These are design-review examples, not verified end-use approvals.

12012 selection FAQ

Does a 12 mm frame fit in a 12 mm enclosure gap?

Not necessarily. Allow for the guard, mounting hardware, cable bend and clearance on the inlet and outlet sides. Check the assembly drawing with nearby components in place before selecting the slim frame.

Can a 12012 replace a 12025 fan using the same 120 mm space?

The shared nominal width does not establish a drop-in replacement. Compare the mounting drawing, available depth, harness and airflow-pressure curve. A thinner fan must still deliver the required airflow through the actual equipment resistance.

Do the 5V, 12V and 24V options mean one universal-input fan?

No. They are configuration options on this family page. Confirm the rated and operating voltage of the exact ordered version, together with its current and wiring definition.

What should a shallow-enclosure sample test include?

Use the intended guard, vents and cable route. Record component temperatures and noise with the enclosure closed, and check that nearby surfaces do not obstruct the fan inlet. Request configuration-specific performance data before approving the design.

Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.

Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.

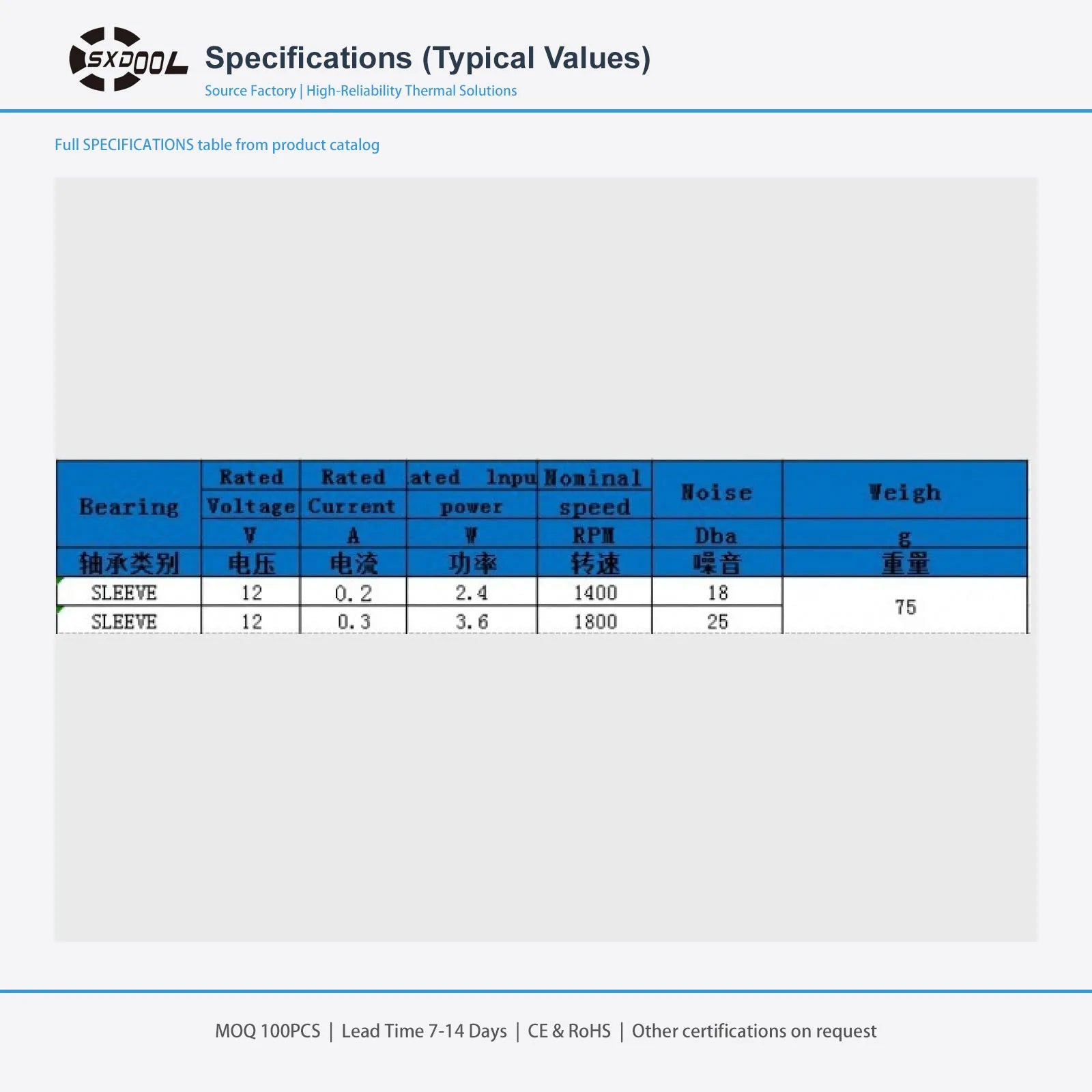

12012 specification status and release evidence

This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.

Material / flammability status The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here.

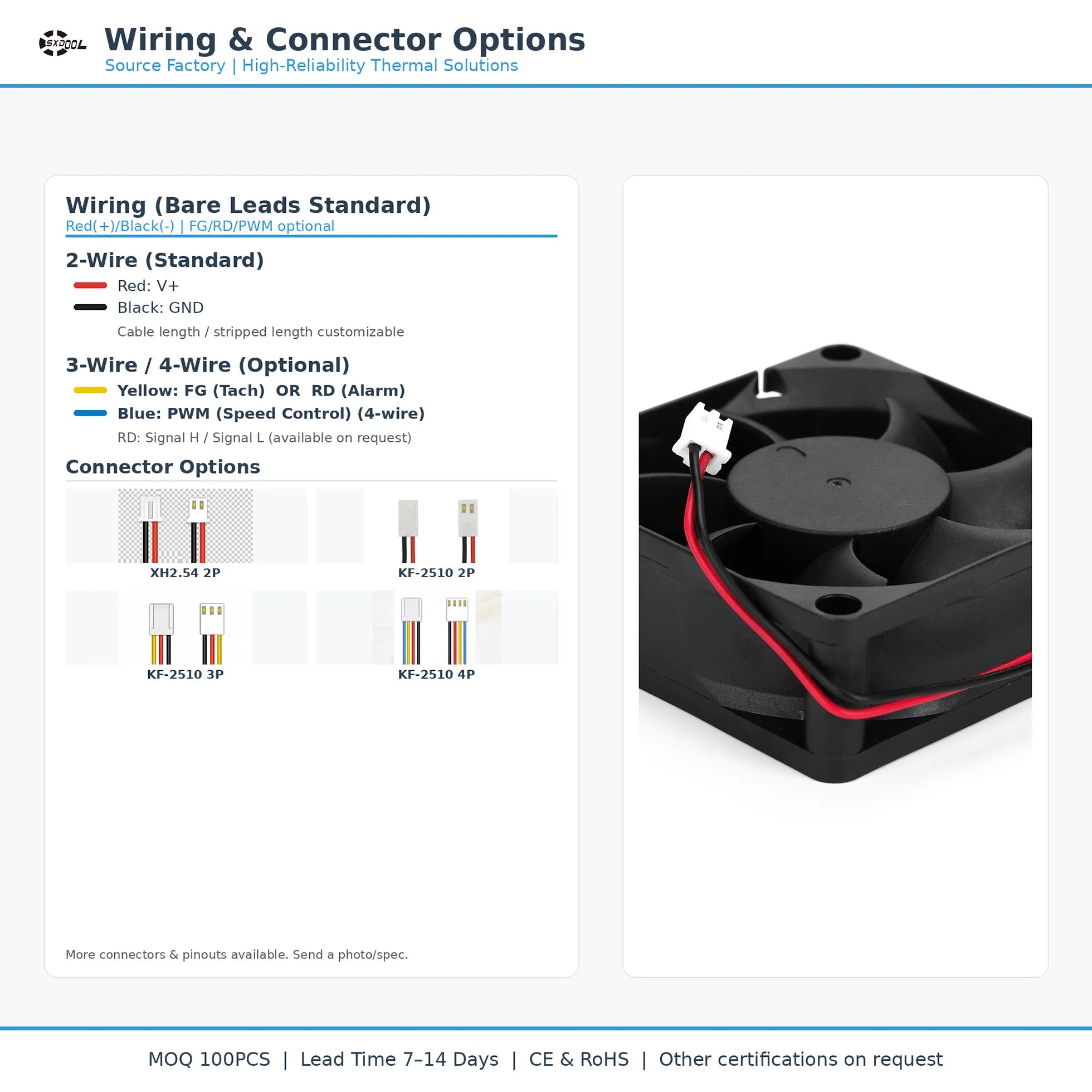

Model-specific release evidence Approved DC fan drawing, frame and impeller BOM, exact voltage-grade current, pressure-flow curve, acoustic condition, bearing code, signal and wiring definition, connector and final inspection plan.

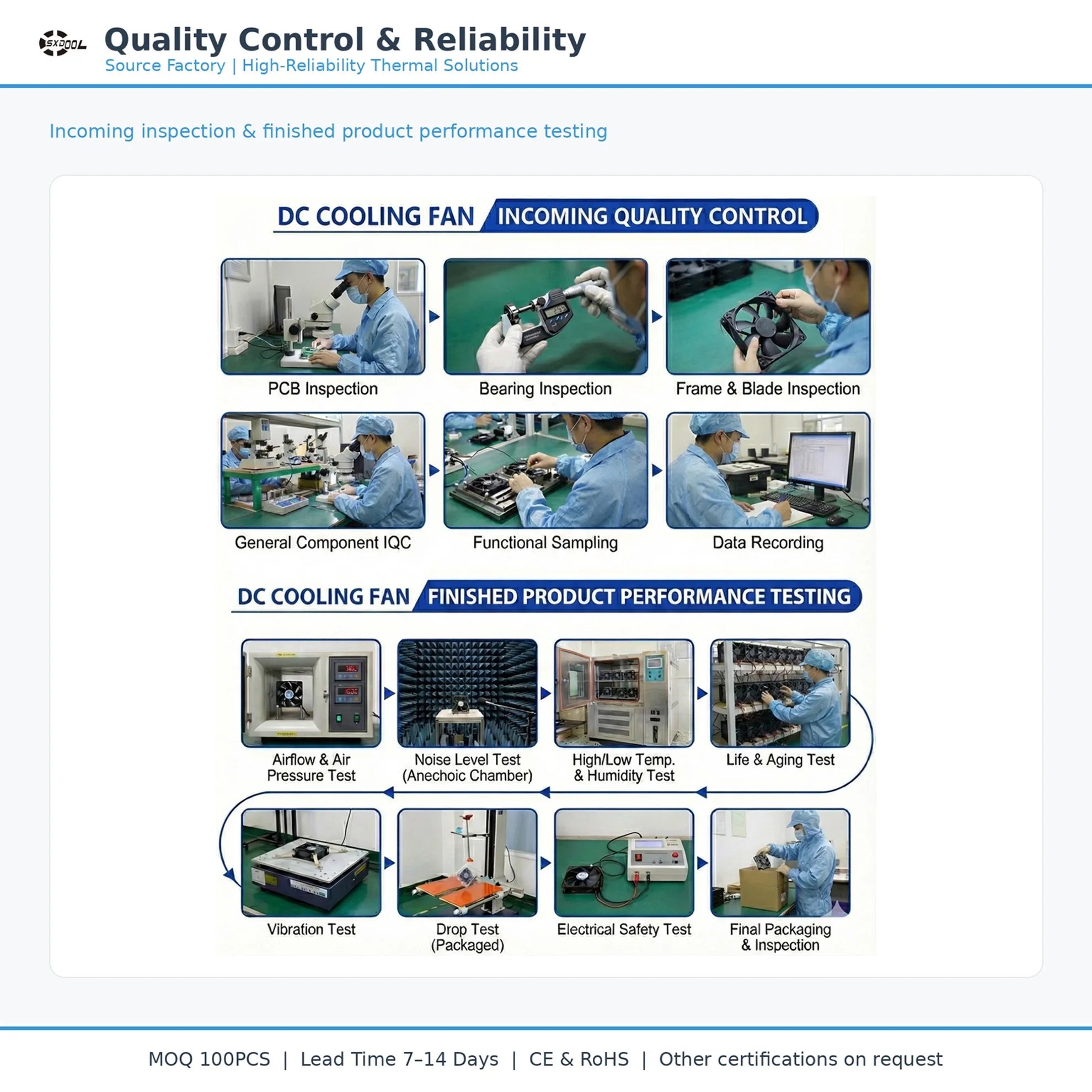

Quality and traceability evidence SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration.
Evidence request Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 12012 from david@sxdool.com before qualification.
