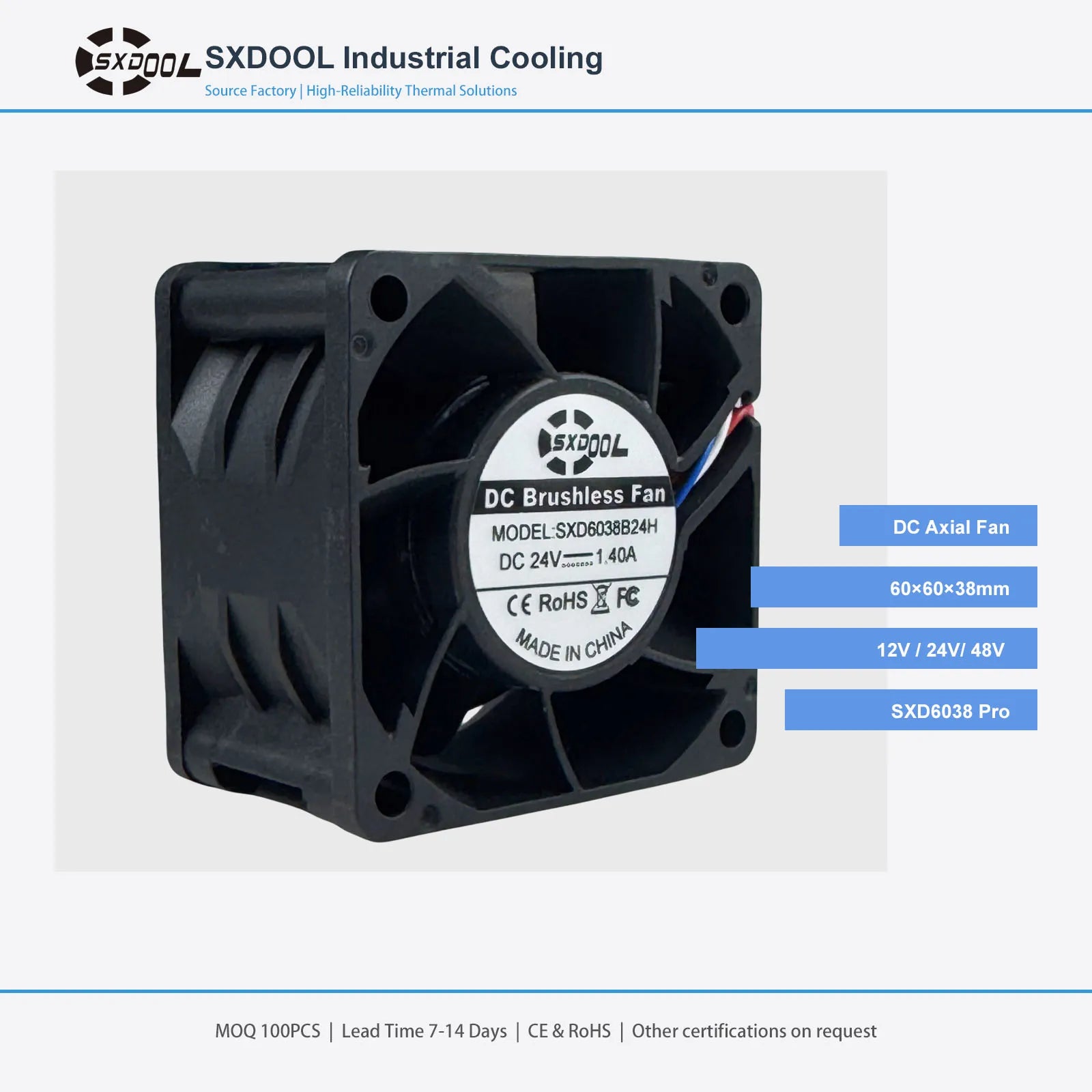

SXDOOL 6038 60x60x38mm DC Axial Fan 12V-48V
SXDOOL 6038 60x60x38mm DC axial fan for rugged controllers and power electronics. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 12V, 24V, 48V |
|---|
60x60x38mm 12V / 24V / 48V engineering selection facts
This page is the product-level source for engineers comparing DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | 60x60x38mm 12V / 24V / 48V |
|---|---|
| Fan family | DC axial fan |
| Frame / dimensions | 60x60x38mm |
| Voltage / input | 12V / 24V / 48V |
SKU-specific engineering FAQ
60x60x38mm 12V / 24V / 48V duty-point validation: How can published performance be verified at the real operating point?
This page identifies the fan family, frame and voltage platform but does not publish one universal operating point. Compare the published grade with measured system resistance, component temperature, startup current, vibration and acoustic limits before using the available speed margin.
60x60x38mm 12V / 24V / 48V electrical qualification: What supply and signal checks are required?
The page maps this SKU to 12V / 24V / 48V. Confirm polarity, running and startup current, wire gauge, connector pinout and any tachometer or alarm requirement before sample approval.
60x60x38mm 12V / 24V / 48V application fit: Which operating conditions should accompany the OEM request?
The 60x60x38mm DC axial fan platform is a candidate for power supplies, controllers and compact electronics. Confirm heat load, pressure drop, noise limit, duty cycle, cable, connector, quantity and the actual operating environment in a representative sample assembly.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
6038 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved high-speed fan drawing, frame and impeller BOM, voltage-grade current and startup limit, pressure-flow curve, acoustic condition, impeller balance or run-out evidence, wiring definition and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 6038 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.

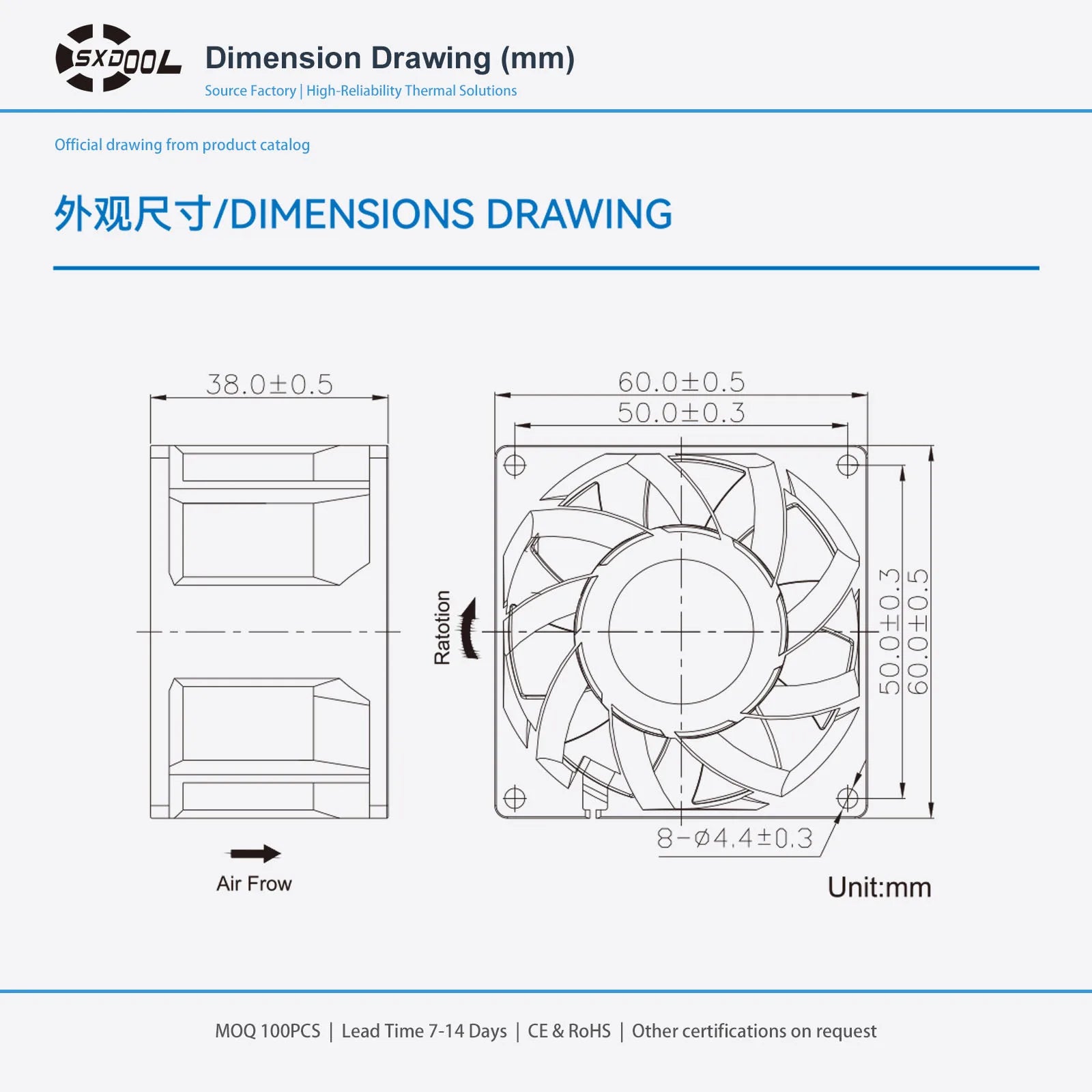

What mechanical checks matter when a 60x60x38mm fan runs in a high-speed application?
Check the 38mm installation depth, inlet and outlet clearance, guard or duct restriction, fastener retention, cable strain relief and vibration at the qualified operating point. The sample should be tested inside the actual assembly because an open-bench airflow result does not establish vibration, noise or cooling margin after installation.
