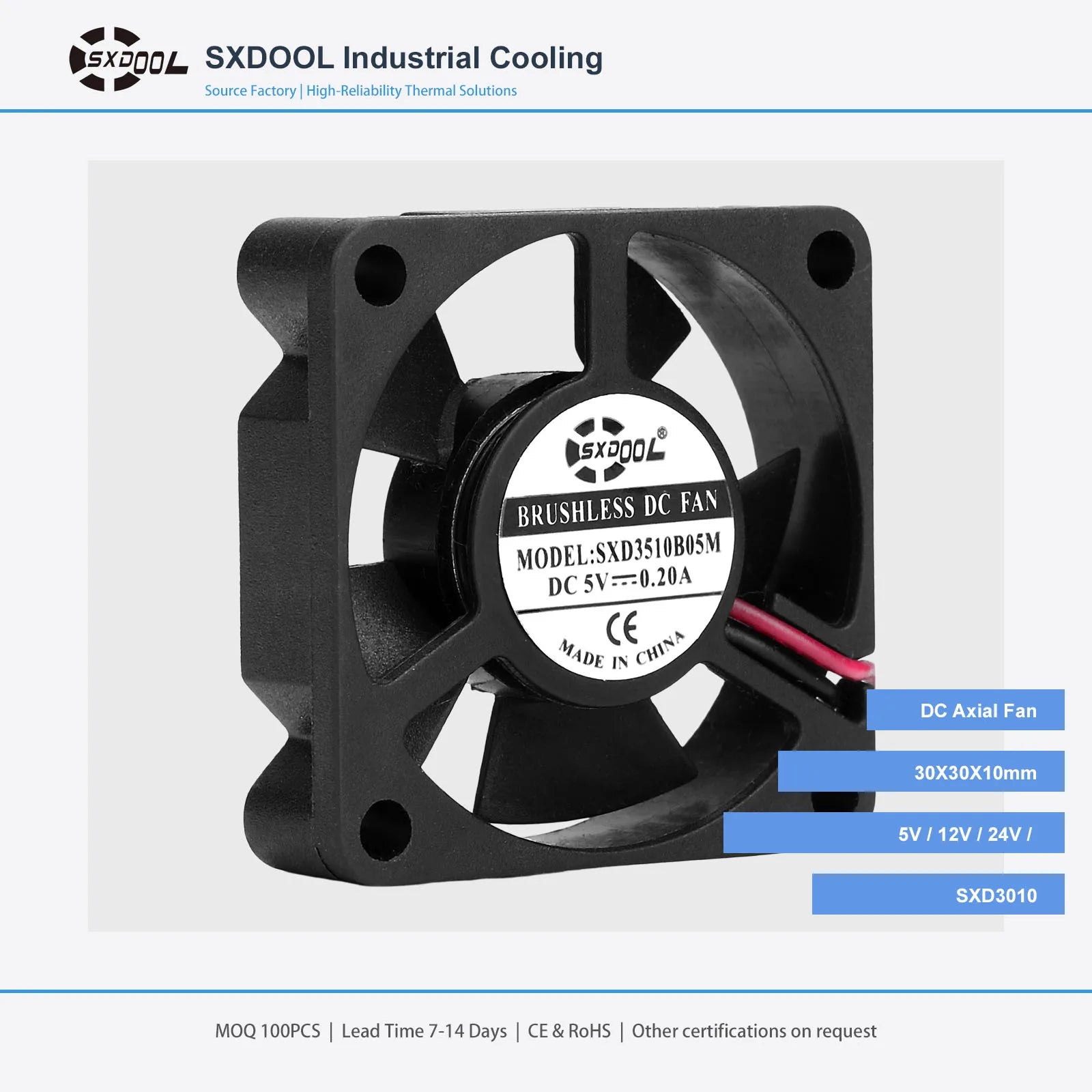

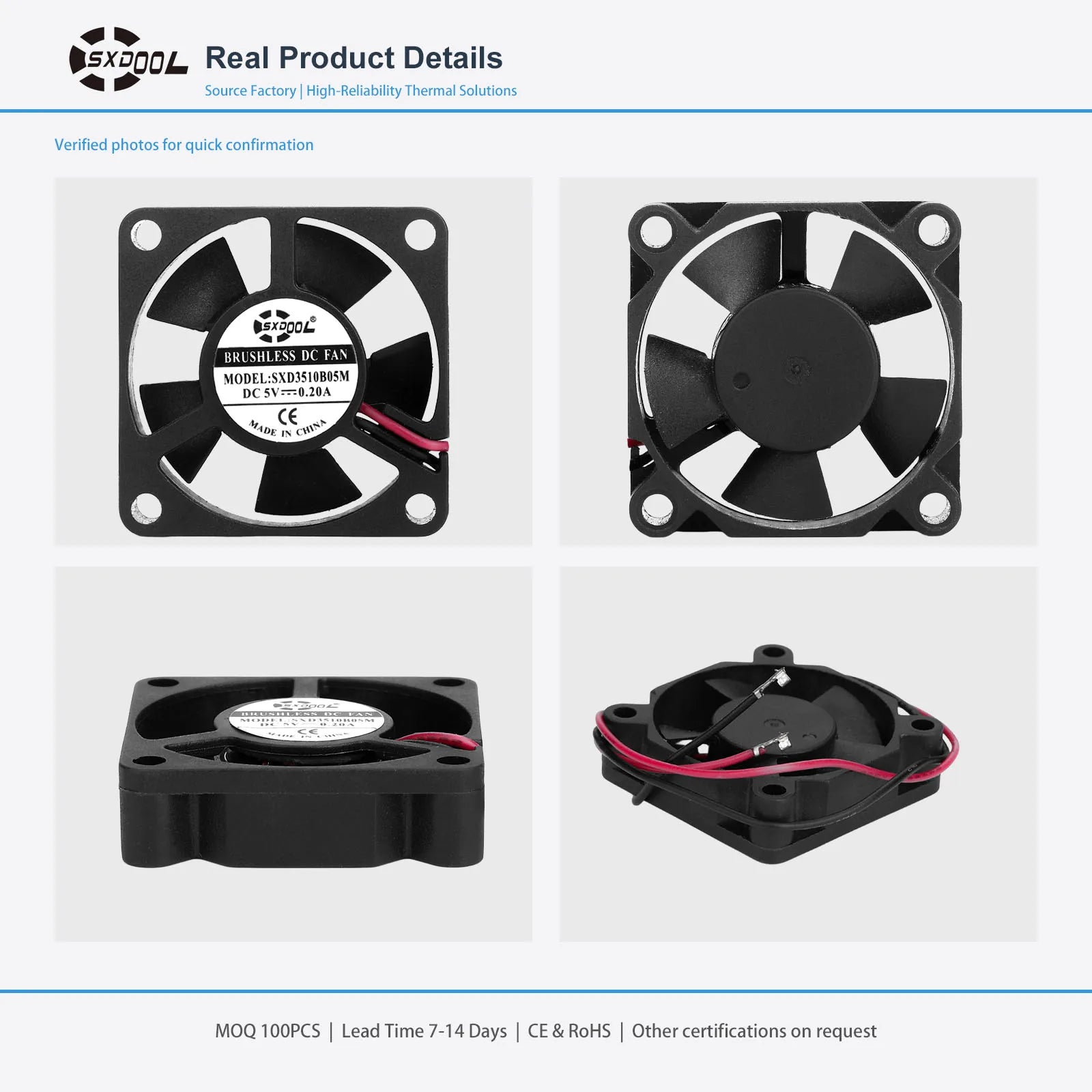

SXDOOL 3510 35x35x10mm DC Axial Fan 5V-24V
SXDOOL 3510 35x35x10mm DC axial fan for industrial electronics and equipment enclosures. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 5V, 12V, 24V |
|---|
35x35x10mm 5V / 12V / 24V engineering selection facts
This page is the product-level source for engineers comparing DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | 35x35x10mm 5V / 12V / 24V |
|---|---|
| Fan family | DC axial fan |
| Frame / dimensions | 35x35x10mm |
| Voltage / input | 5V / 12V / 24V |
SKU-specific engineering FAQ
35x35x10mm 5V / 12V / 24V installation review: How should the 35x35x10mm envelope be validated in the actual equipment?

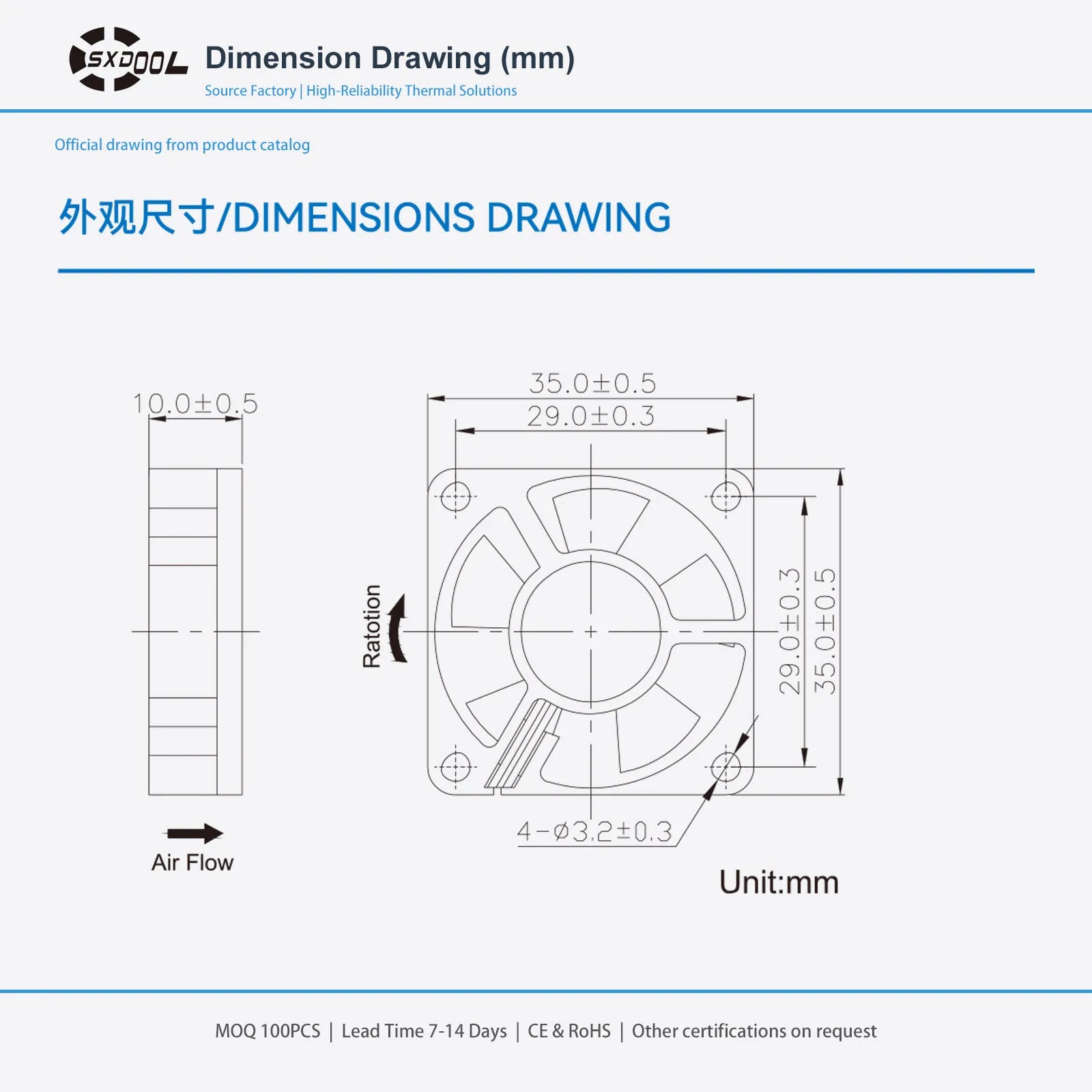

The published frame is 35x35x10mm. Verify depth, mounting-hole pattern, inlet clearance, guard or filter stack-up and cable-exit direction against the equipment drawing.
35x35x10mm 5V / 12V / 24V electrical qualification: What controller-interface information should the buyer provide?

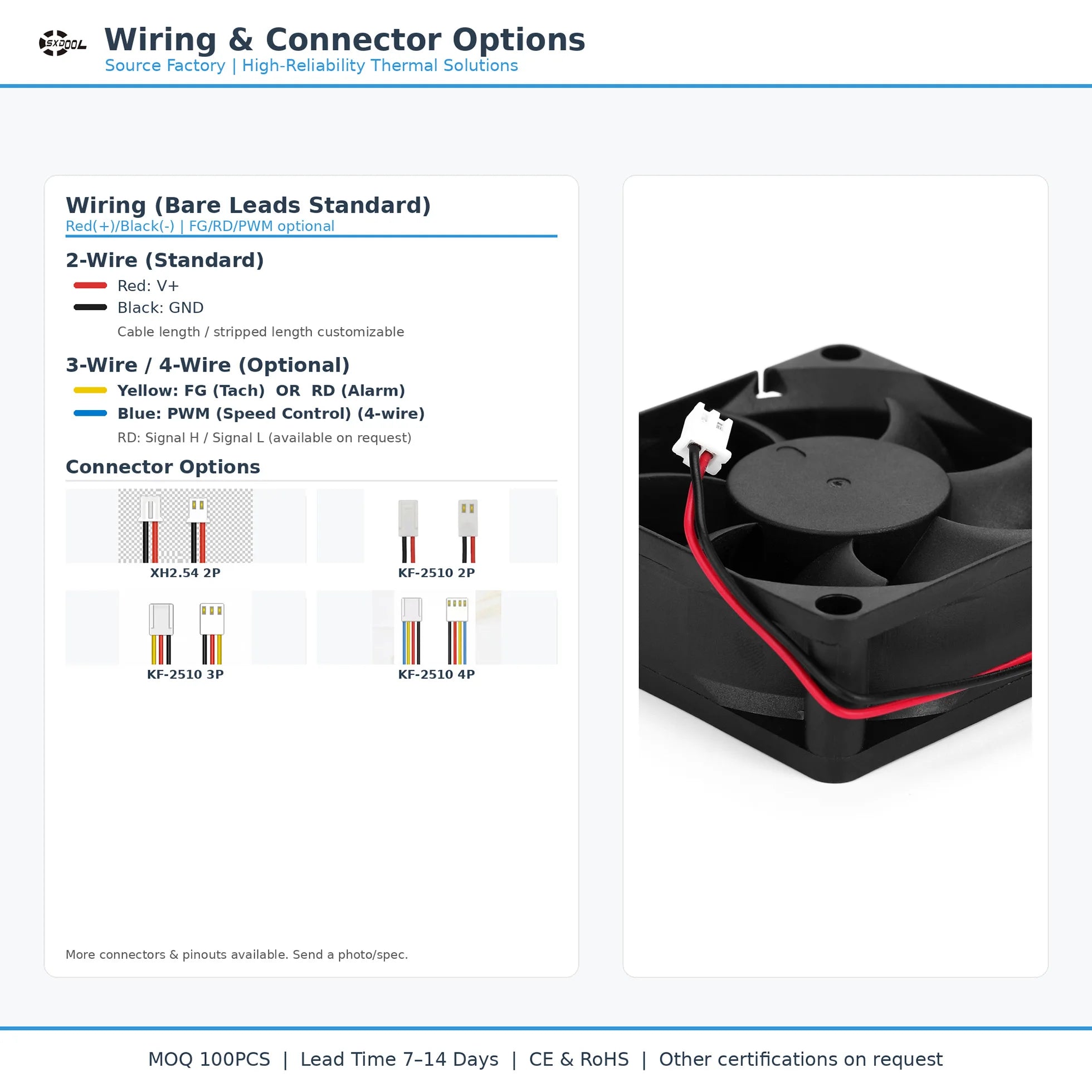

The page maps this SKU to 5V / 12V / 24V. Confirm polarity, running and startup current, wire gauge, connector pinout and any tachometer or alarm requirement before sample approval.
35x35x10mm 5V / 12V / 24V application fit: Does this platform suit the intended compact electronics, 3D printers and local component cooling duty cycle?
The 35x35x10mm DC axial fan platform is a candidate for compact electronics, 3D printers and local component cooling. Confirm heat load, pressure drop, noise limit, duty cycle, cable, connector, quantity and the actual operating environment in a representative sample assembly.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
3510 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved DC fan drawing, frame and impeller BOM, exact voltage-grade current, pressure-flow curve, acoustic condition, bearing code, signal and wiring definition, connector and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 3510 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
Which drawing dimensions must be frozen before a 35x35x10mm fan becomes a repeat-order item?
Freeze the overall frame, thickness, mounting-hole pattern, lead exit, cable length, connector orientation and airflow direction on the approved drawing. A 35mm square footprint alone is not enough to establish interchangeability between suppliers or model suffixes.
