SXDOOL 9228 92x92x28mm DC Axial Fan 12V-48V
SXDOOL 9228 92x92x28mm DC axial fan for industrial electronics and equipment enclosures. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 12V, 24V, 48V |
|---|
92x92x28mm 12V / 24V / 48V engineering selection facts
This page is the product-level source for engineers comparing DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | 92x92x28mm 12V / 24V / 48V |
|---|---|
| Fan family | DC axial fan |
| Frame / dimensions | 92x92x28mm |
| Voltage / input | 12V / 24V / 48V |
SKU-specific engineering FAQ
92x92x28mm 12V / 24V / 48V installation review: What should the enclosure cutout and fastener check cover?

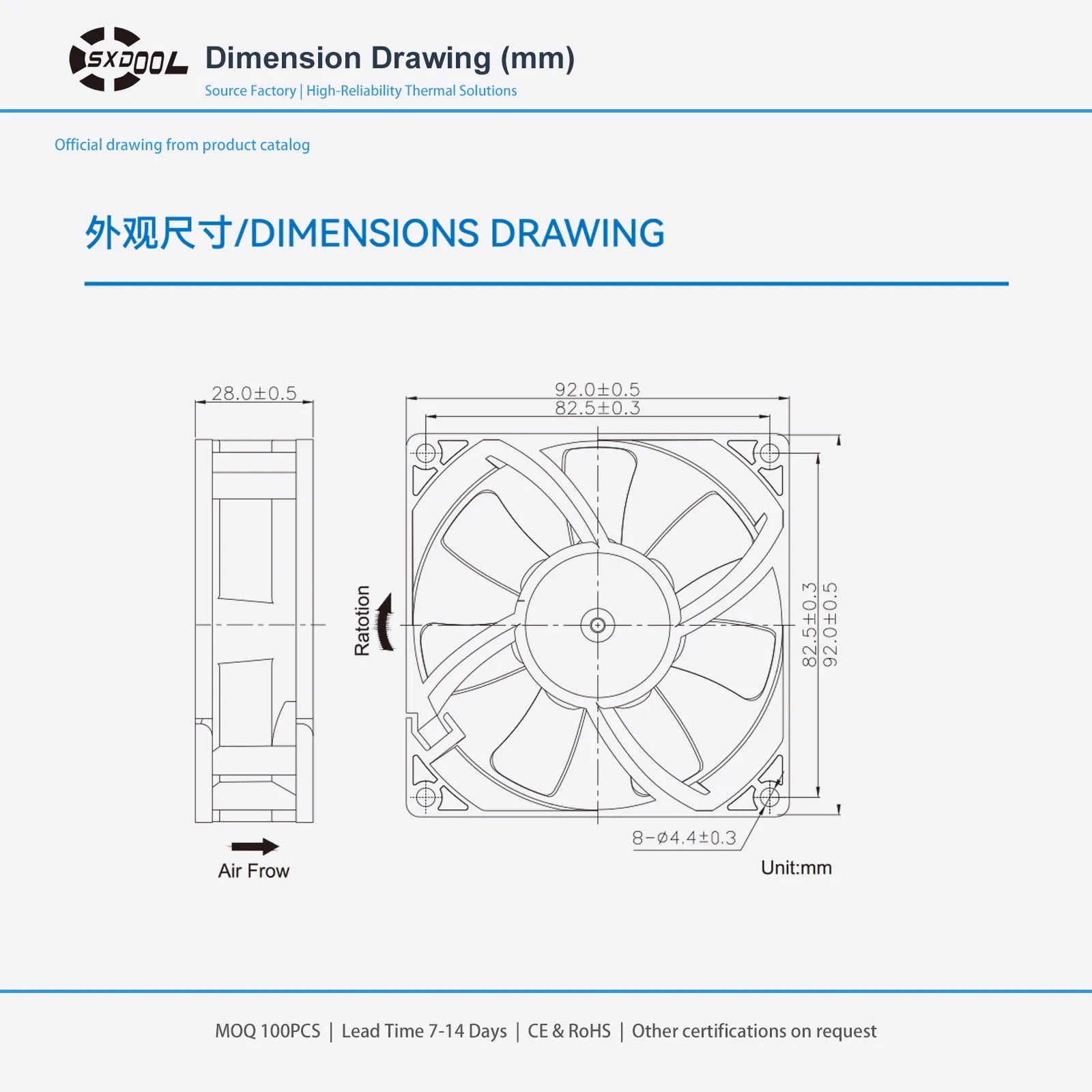

The published frame is 92x92x28mm. Verify depth, mounting-hole pattern, inlet clearance, guard or filter stack-up and cable-exit direction against the equipment drawing.
92x92x28mm 12V / 24V / 48V electrical qualification: What supply and signal checks are required?

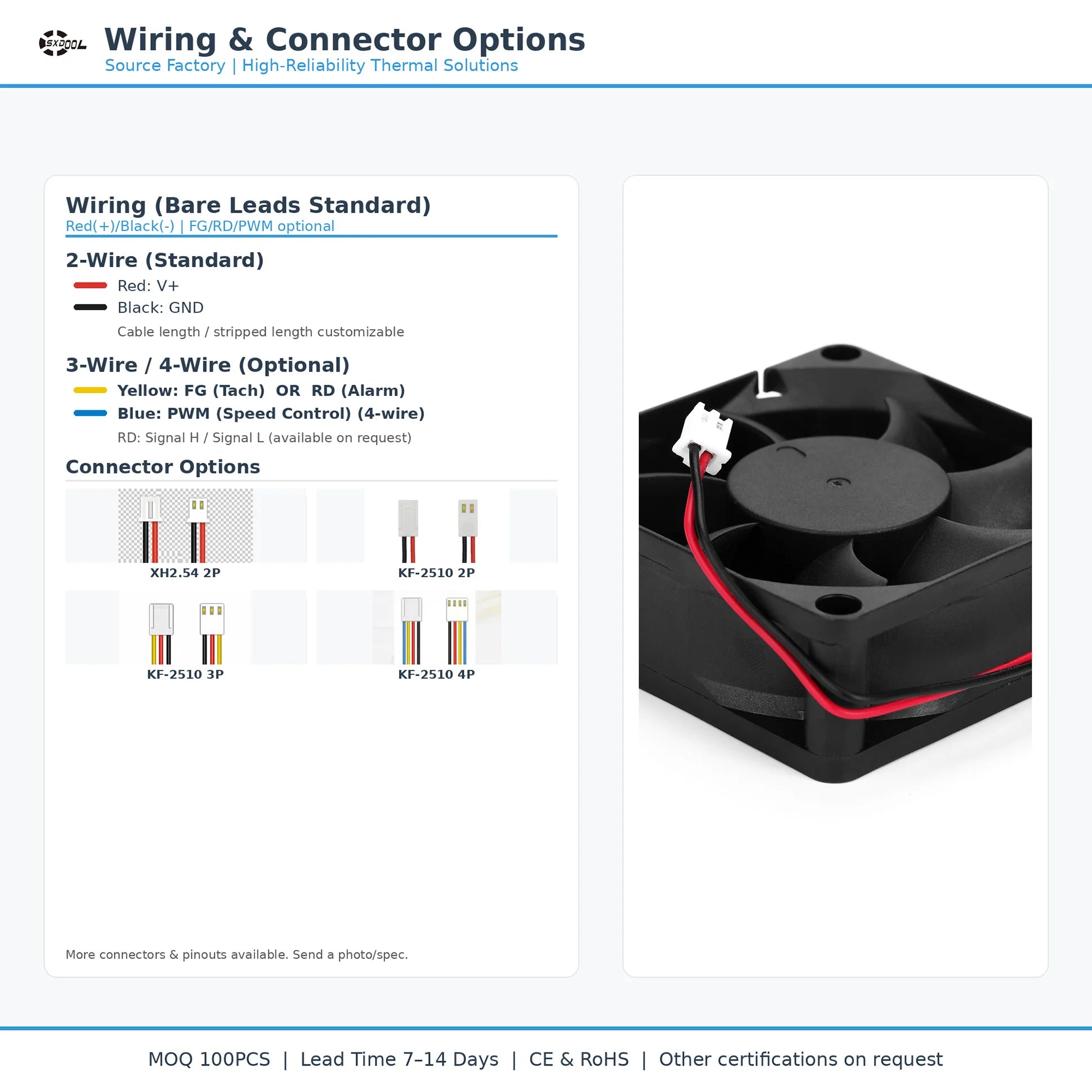

The page maps this SKU to 12V / 24V / 48V. Confirm polarity, running and startup current, wire gauge, connector pinout and any tachometer or alarm requirement before sample approval.
92x92x28mm 12V / 24V / 48V application fit: How can procurement confirm equipment fit rather than size alone?
The 92x92x28mm DC axial fan platform is a candidate for telecom equipment, power electronics and server subsystems. Confirm heat load, pressure drop, noise limit, duty cycle, cable, connector, quantity and the actual operating environment in a representative sample assembly.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
9228 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved DC fan drawing, frame and impeller BOM, exact voltage-grade current, pressure-flow curve, acoustic condition, bearing code, signal and wiring definition, connector and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 9228 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
How should a 92x92x28mm fan be compared with 25mm and 38mm-deep alternatives?
Compare available installation depth, mounting pattern, system resistance, measured airflow, acoustic result and electrical load in the target assembly. The 28mm frame is an intermediate mechanical platform; it should not be treated as a drop-in substitute until the drawing and duty-point test both agree.
