SXDOOL 9225 High-Pressure DC Fan 92x92x25mm
SXDOOL 9225 92x92x25mm DC axial fan for industrial PCs and power supplies. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 12V, 24V, 48V |
|---|

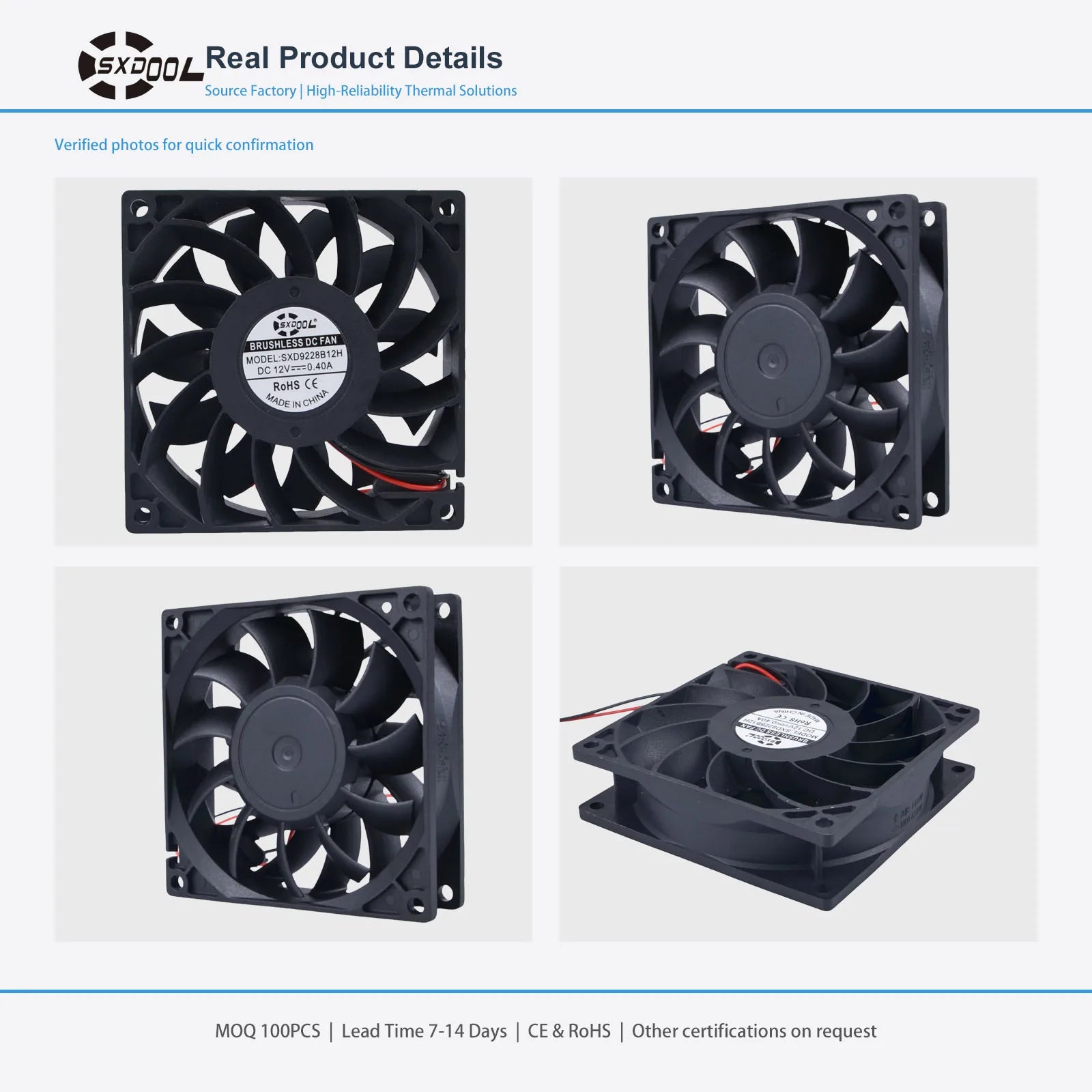

SXDOOL 9225 high-pressure DC fan in a 25mm-deep frame

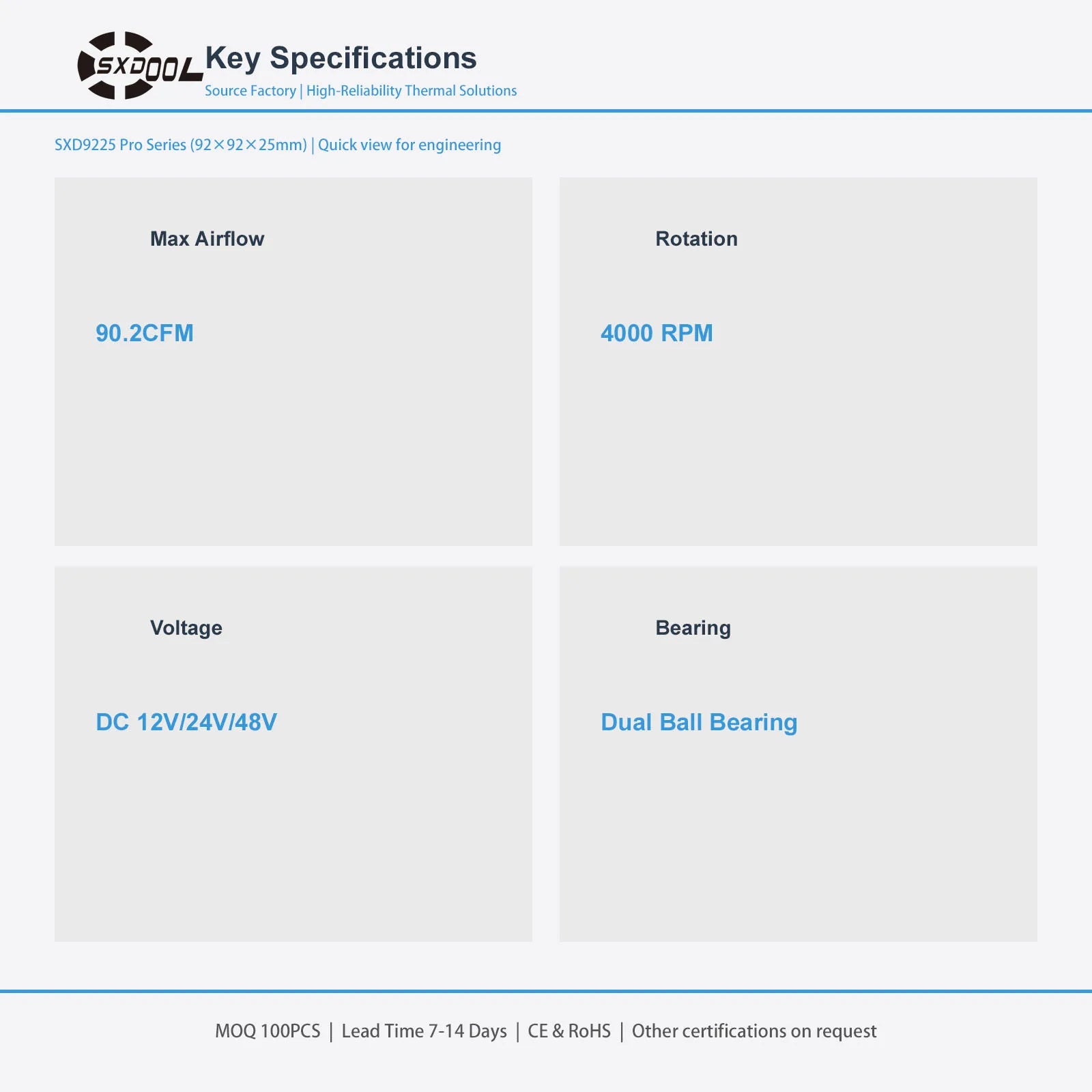

Engineering summary: This 92x92x25mm catalog branch reaches 68.0-90.2CFM and 5.8-10.1mmH2O for thin equipment that needs more pressure capability than the standard 9225 branch. The pressure-grade data on this page is not interchangeable with the separate 5V-48V standard-output table.
| Product / model reference | SXD9225H / SXD9225M / SXD9225L high-pressure catalog branch |
|---|---|
| Fan family | Brushless DC axial fan |

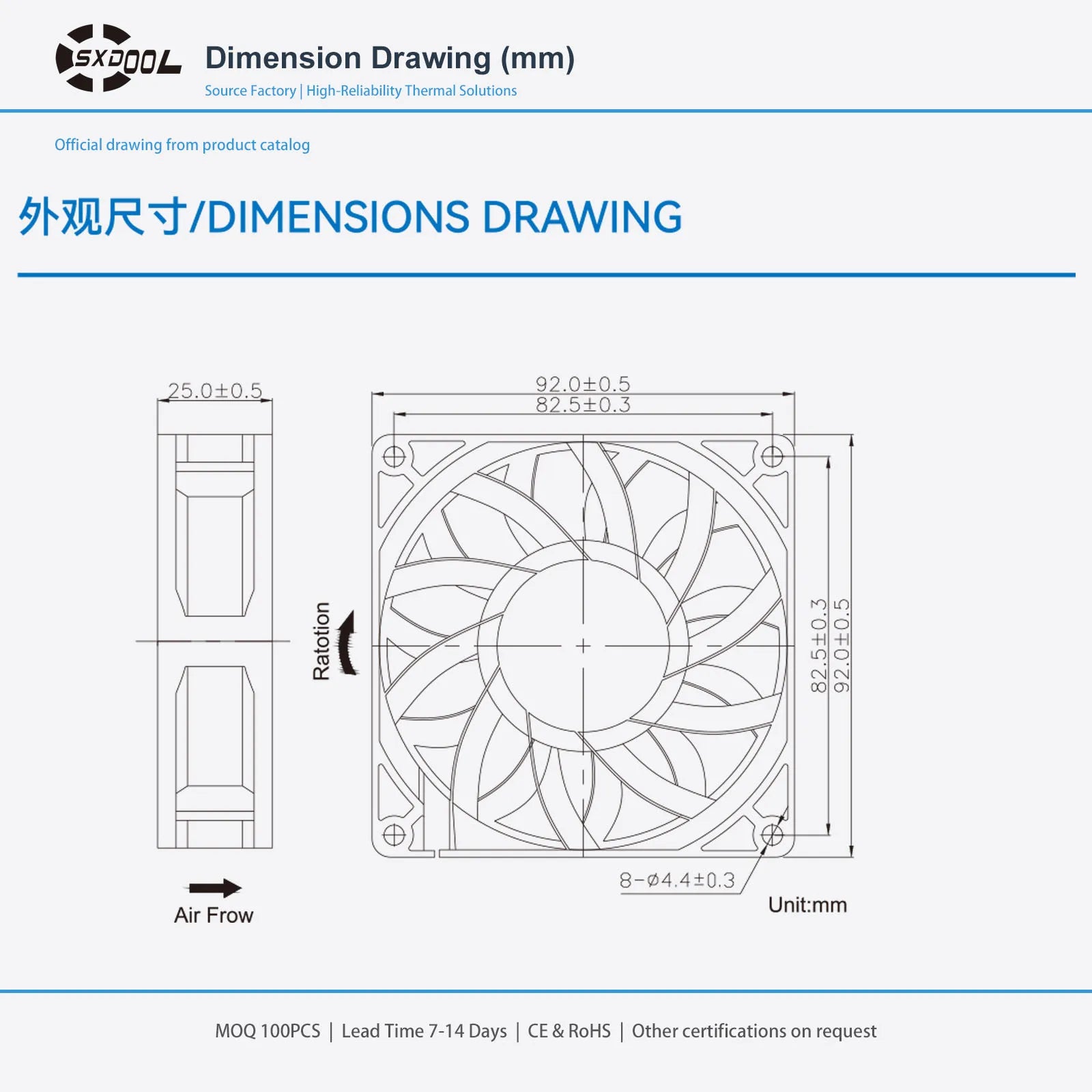

| Dimensions | 92x92x25mm |
| Rated-voltage choices | 12V / 24V / 48V DC |
| Bearing selection | Sleeve or ball-bearing family options; the complete voltage, speed, bearing, cable, connector, and signal suffix must follow the approved production drawing |
| Signal options | Auto-restart, PWM speed input, FG speed feedback, and RD alarm are configuration-dependent options; none is included unless shown on the approved interface specification |
| Material / flammability boundary | Catalog family reference: plastic frame and impeller, UL94V-0. Final resin, colour, and compliance documentation must match the approved production specification |
| Catalog operating environment | -10 to 70C operation, 35%-85%RH; -40 to 80C storage, 35%-85%RH. Validate application-specific derating and condensation risk |
| Application fit | Thin control units, server nodes, compact power electronics, and restricted 92mm openings that cannot accommodate a 38mm-deep 9238 fan. |
| Page differentiation | Use this page for the pressure-oriented 12V-48V H/M/L branch. The standard 9225 page includes a 5V option and lower-output 39.2-74.0CFM grades. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
| Source and qualification boundary | DC family values are catalog-typical under nominal voltage. Catalog noise is referenced one meter from the air intake. Current approved model documents and samples govern the final specification. |
Model and configuration table

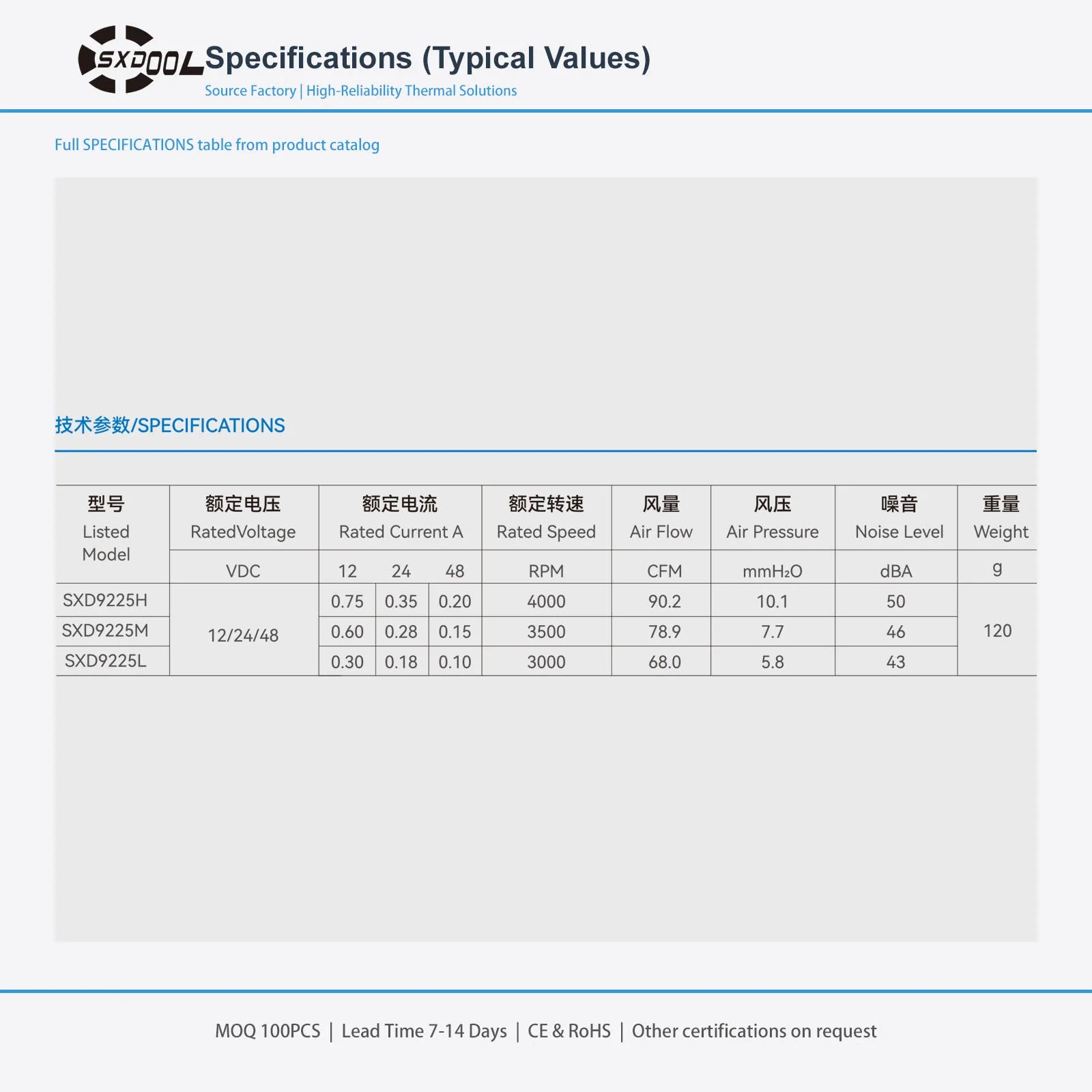

| Model grade | Rated voltage | Rated current | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| SXD9225H | 12V | 0.75A | 4000RPM | 90.2CFM | 10.1mmH2O | 50dBA |
| SXD9225H | 24V | 0.35A | 4000RPM | 90.2CFM | 10.1mmH2O | 50dBA |
| SXD9225H | 48V | 0.20A | 4000RPM | 90.2CFM | 10.1mmH2O | 50dBA |
| SXD9225M | 12V | 0.60A | 3500RPM | 78.9CFM | 7.7mmH2O | 46dBA |
| SXD9225M | 24V | 0.28A | 3500RPM | 78.9CFM | 7.7mmH2O | 46dBA |
| SXD9225M | 48V | 0.15A | 3500RPM | 78.9CFM | 7.7mmH2O | 46dBA |
| SXD9225L | 12V | 0.30A | 3000RPM | 68.0CFM | 5.8mmH2O | 43dBA |
| SXD9225L | 24V | 0.18A | 3000RPM | 68.0CFM | 5.8mmH2O | 43dBA |
| SXD9225L | 48V | 0.10A | 3000RPM | 68.0CFM | 5.8mmH2O | 43dBA |
Engineering release rule: Catalog values are typical reference data under nominal test conditions. The current approved drawing, controlled datasheet, sample label, and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
How is this pressure-oriented 9225 branch different from the standard 9225 page?
This branch publishes 68.0-90.2CFM and 5.8-10.1mmH2O across its L/M/H grades. The standard branch publishes 39.2-74.0CFM and 1.9-6.2mmH2O and also includes a 5V option. Treat the two tables as distinct model branches.
When should a buyer move from 9225 to a thicker 9238 platform?
Move to 9238 when the measured pressure loss, dirty-filter condition, or thermal target cannot be met by the 25mm platform without excessive speed or noise. Check the extra 13mm depth, hole pattern, cable exit, and downstream clearance before changing frames.
How should multiple 9225 fans be qualified when mounted side by side?
Test the complete array because adjacent inlets, shared plenums, uneven impedance, panel resonance, and recirculation can change each fan load. Record fan current, temperatures, airflow balance, vibration, and acoustic result with all intended fans operating.
Does the 10.1mmH2O value mean the H grade delivers 90.2CFM at that pressure?
No. Airflow and maximum static pressure are separate catalog reference points, not one simultaneous duty point. Use the approved P-Q curve or sample measurements to find the operating airflow where the equipment system curve intersects the fan curve.
Continue with the fan selector, review compare the standard 9225 branch, compare the deeper 9238 platform, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
