SXDOOL 28080 280x280x80mm EC Axial Fan AC Input
SXDOOL 28080 280x280x80mm EC axial fan for charging systems and plant equipment. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
SXDE28080BTM evidence reconciliation for OEM qualification

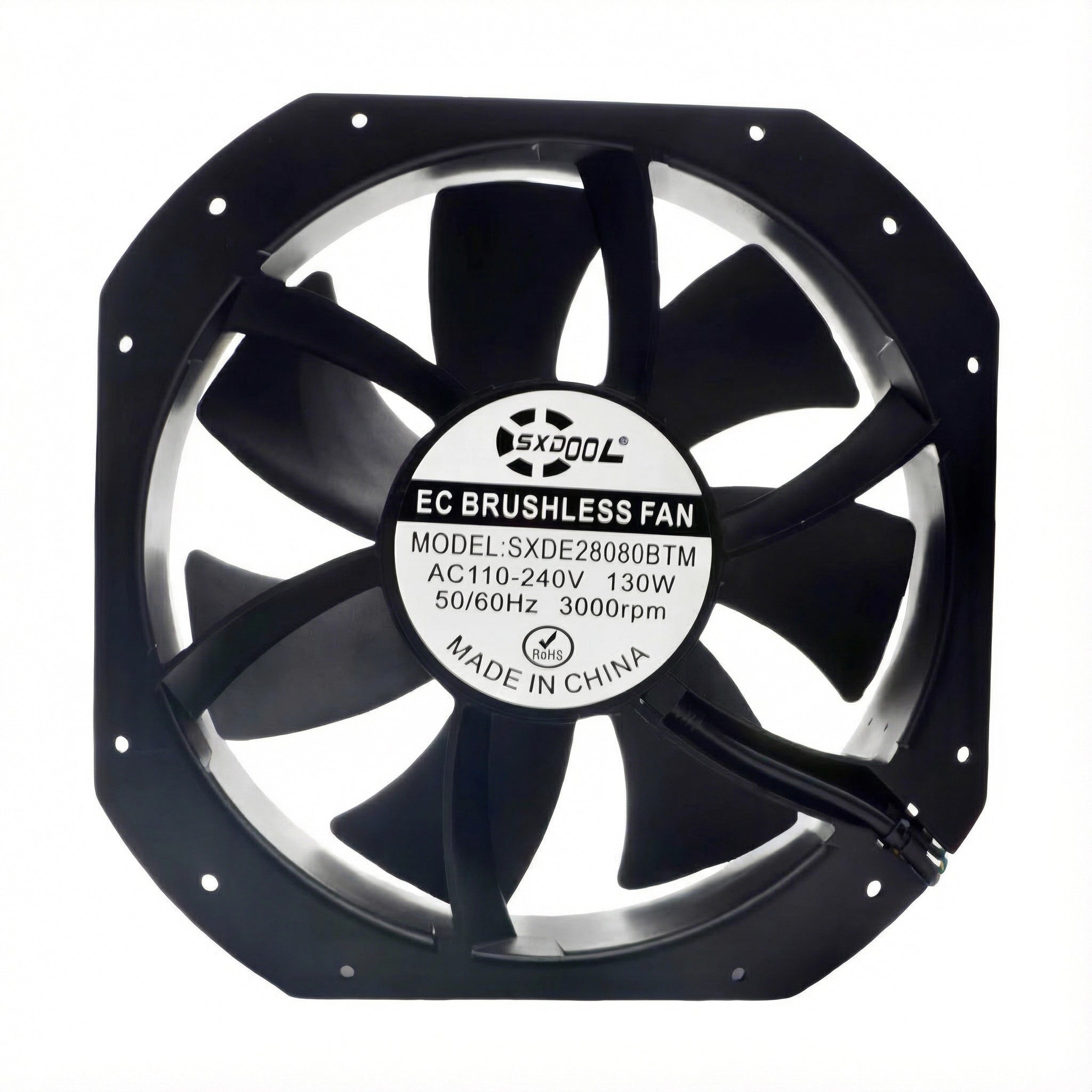

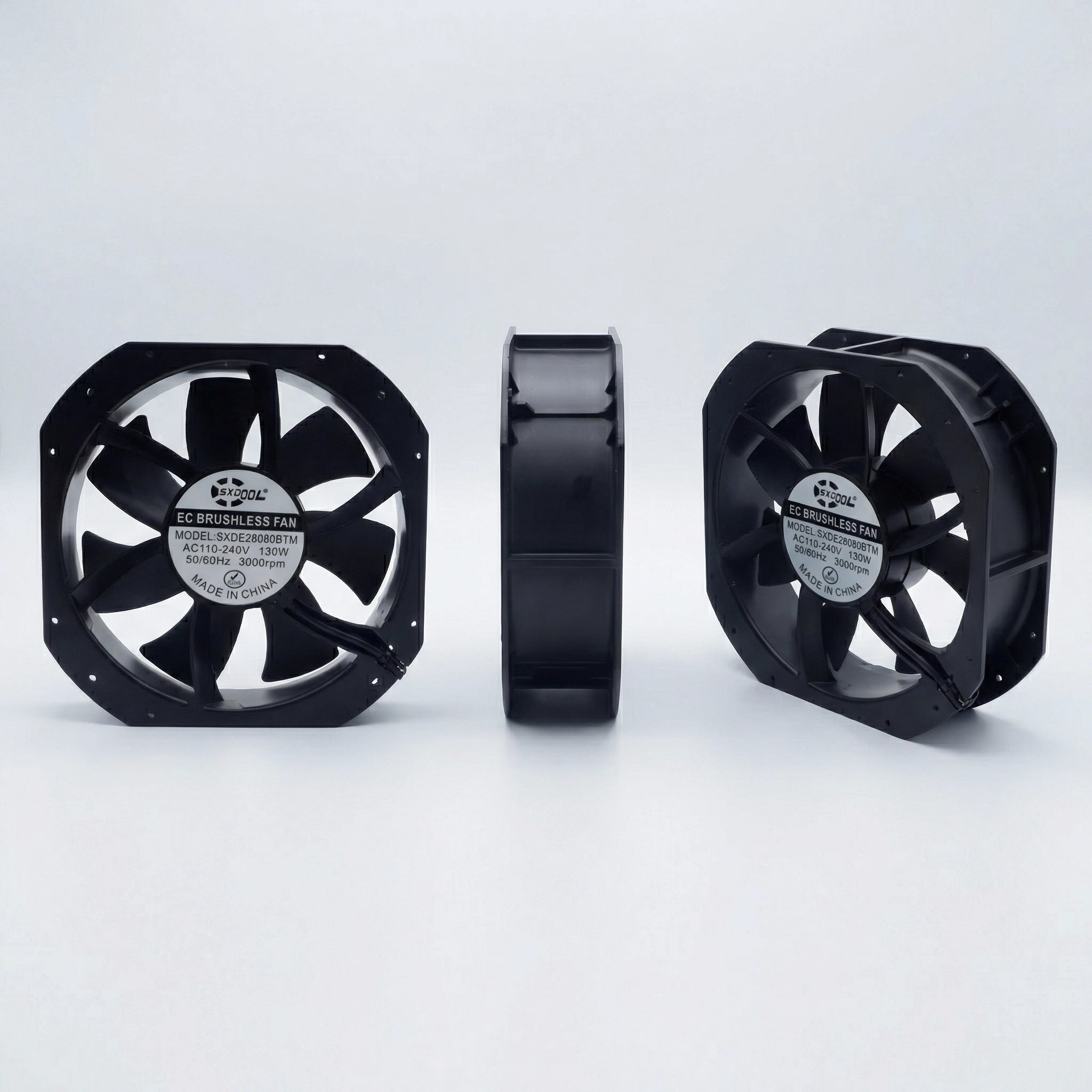

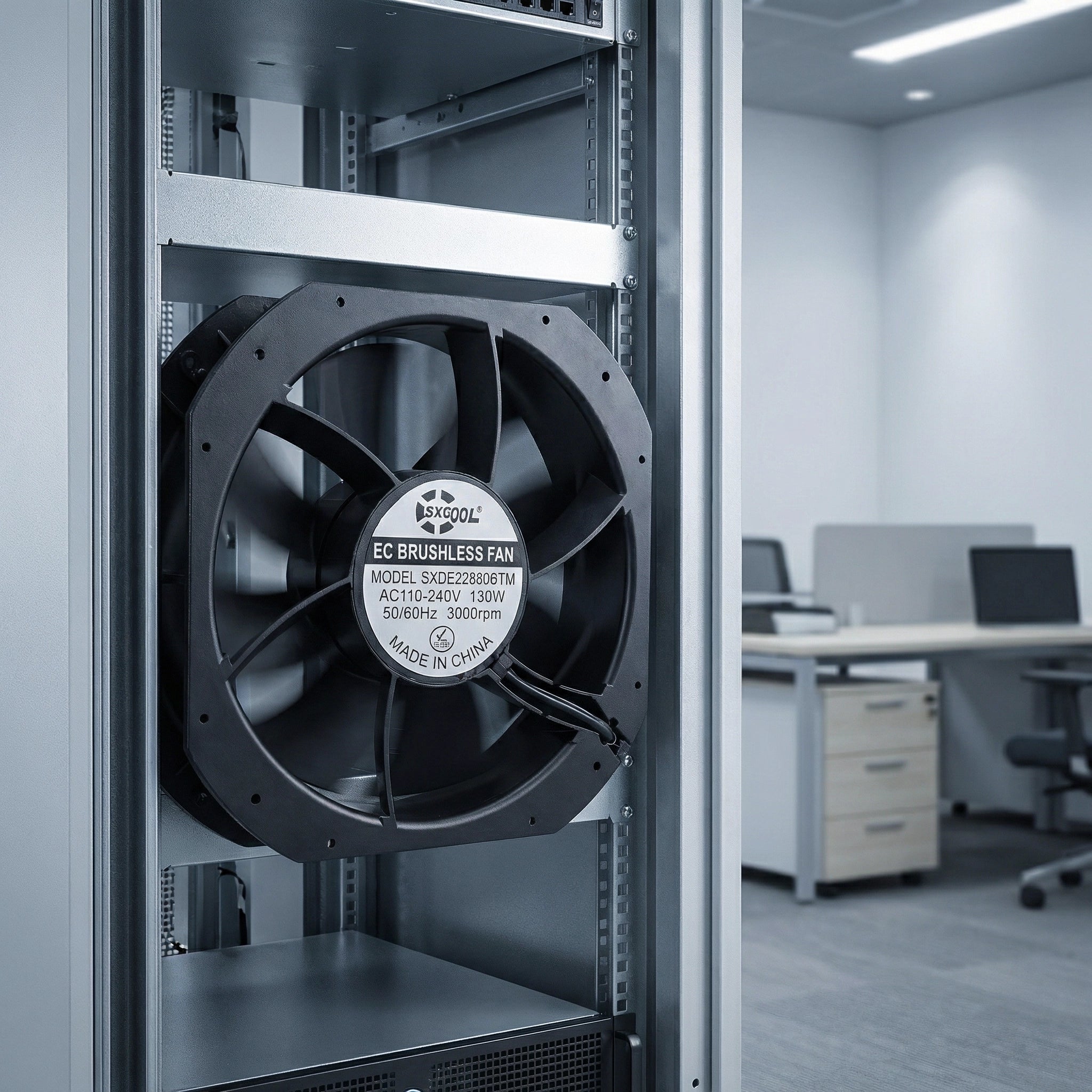

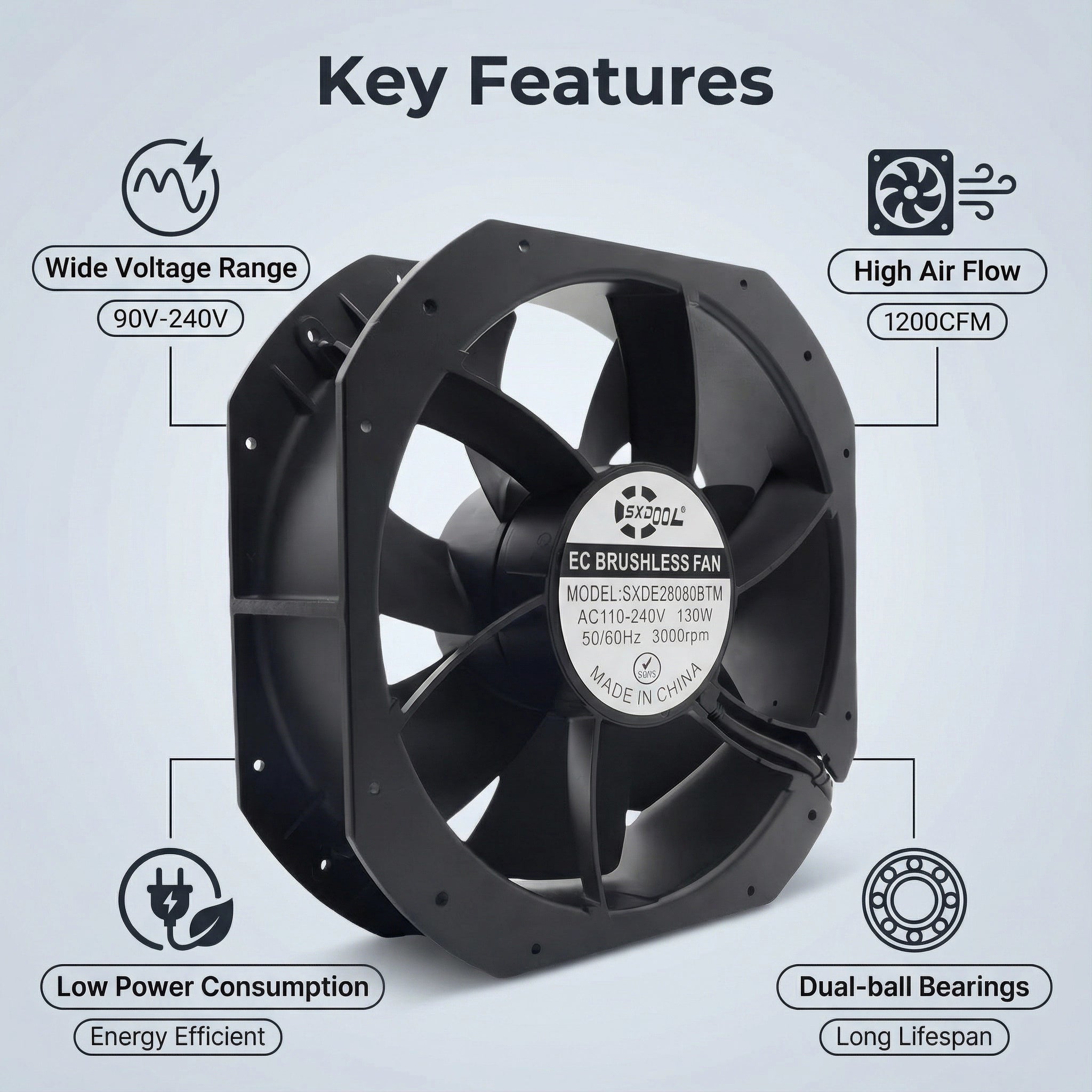

Engineering summary: The photographed label identifies SXDE28080BTM at AC 110-240V, 130W, and 3000 RPM. The current 28080 catalog performance table instead lists SXDE28080HB, SXDE28080MB, and SXDE28080LB. This page keeps those records separate so procurement and thermal engineers do not create a false model-to-performance mapping.

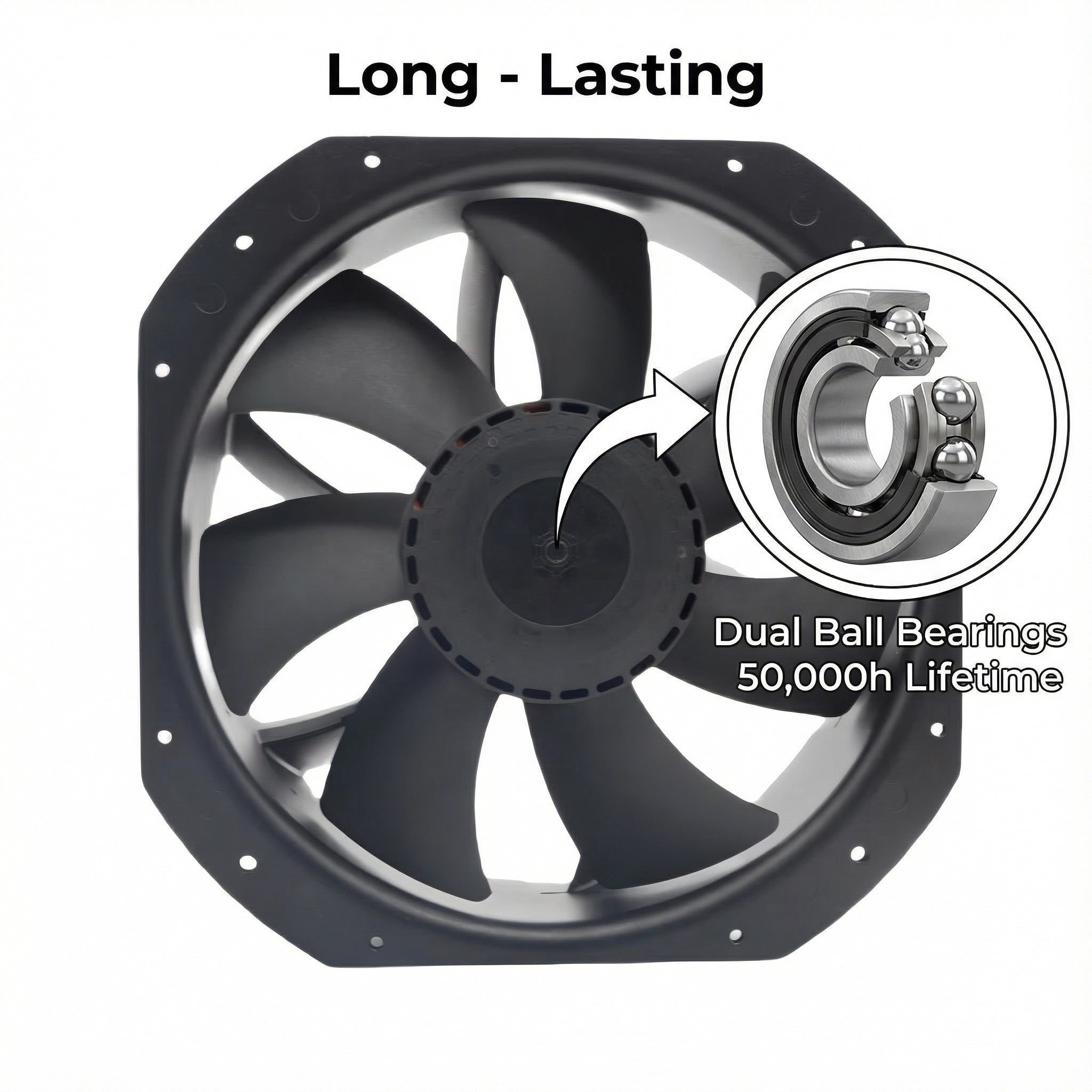

| Exact photographed model | SXDE28080BTM |
|---|---|
| Fan size | 280 x 280 x 80 mm EC axial fan platform |
| Product-label input | AC 110-240V, 50/60Hz |
| Product-label power | 130W |
| Product-label speed | 3000 RPM |
| Exact BTM rated current | Not stated on the photographed label and not mapped by the current catalog table |
| Exact BTM airflow | Not confirmed by a controlled SXDE28080BTM performance table; the 1200 CFM marketing artwork is not used as release data |
| Exact BTM static pressure and noise | Not confirmed by a controlled SXDE28080BTM performance table |
| Catalog-family material | Plastic impeller and aluminum-alloy frame |
| Catalog-family insulation and duty | Class B insulation and S1 continuous duty |
| Catalog-family environment | -10°C to 70°C and 35% to 85% RH operation; -40°C to 80°C and 35% to 85% RH storage |
| Catalog-family lead wire | UL-type lead wire; exact conductor assignment, grounding, connector, terminal block, and cable length require the approved wiring specification |
| Bearing release boundary | The 28080 catalog rows show a ball-bearing configuration, but the exact SXDE28080BTM label does not define bearing construction or service life |
| Optional-function boundary | IP68, PWM, FG, RD, thermal control, auto restart, and slow startup are catalog-family options, not default SXDE28080BTM inclusions |
| OEM release evidence | Approved SXDE28080BTM drawing, controlled datasheet, wiring diagram, label revision, tolerance, protection options, and representative equipment validation |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. Source Factory Direct project review, ISO 9001:2015 quality-management documentation, Dynamic Balancing, OEM/ODM Customization, and 100% End-of-Line Testing can be reviewed against the approved production control plan |
SXDE28080BTM label evidence and 28080 catalog grades
| Evidence source | Model | Input | Power | Speed | Airflow | Static pressure | Noise | Release use |
|---|---|---|---|---|---|---|---|---|
| Photographed product label | SXDE28080BTM | 110-240VAC | 130W | 3000 RPM | Not controlled | Not controlled | Not controlled | Release-label evidence only |
| Catalog high-speed row | SXDE28080HB | 115/230VAC; 98-264VAC working range | 145W | 3200 RPM | 1478.3 CFM | 30.6 mmH2O | 71.5 dBA | Catalog reference; not an automatic BTM mapping |
| Catalog medium-speed row | SXDE28080MB | 115/230VAC; 98-264VAC working range | 75W | 2500 RPM | 1186.6 CFM | 30.6 mmH2O | 65.6 dBA | Catalog family alternative |
| Catalog low-speed row | SXDE28080LB | 115/230VAC; 98-264VAC working range | 45W | 2000 RPM | 951.0 CFM | 21.0 mmH2O | 60.2 dBA | Catalog family alternative |
Evidence boundary: The HB, MB, and LB catalog airflow, static-pressure, and noise rows must not be assigned to SXDE28080BTM by assumption. Catalog readings are typical values under nominal-voltage conditions, and catalog noise is measured one meter from the intake. Confirm the BTM drawing, performance curve, bearing, wiring, and option codes before quotation or production release.
SXDE28080BTM engineering FAQ

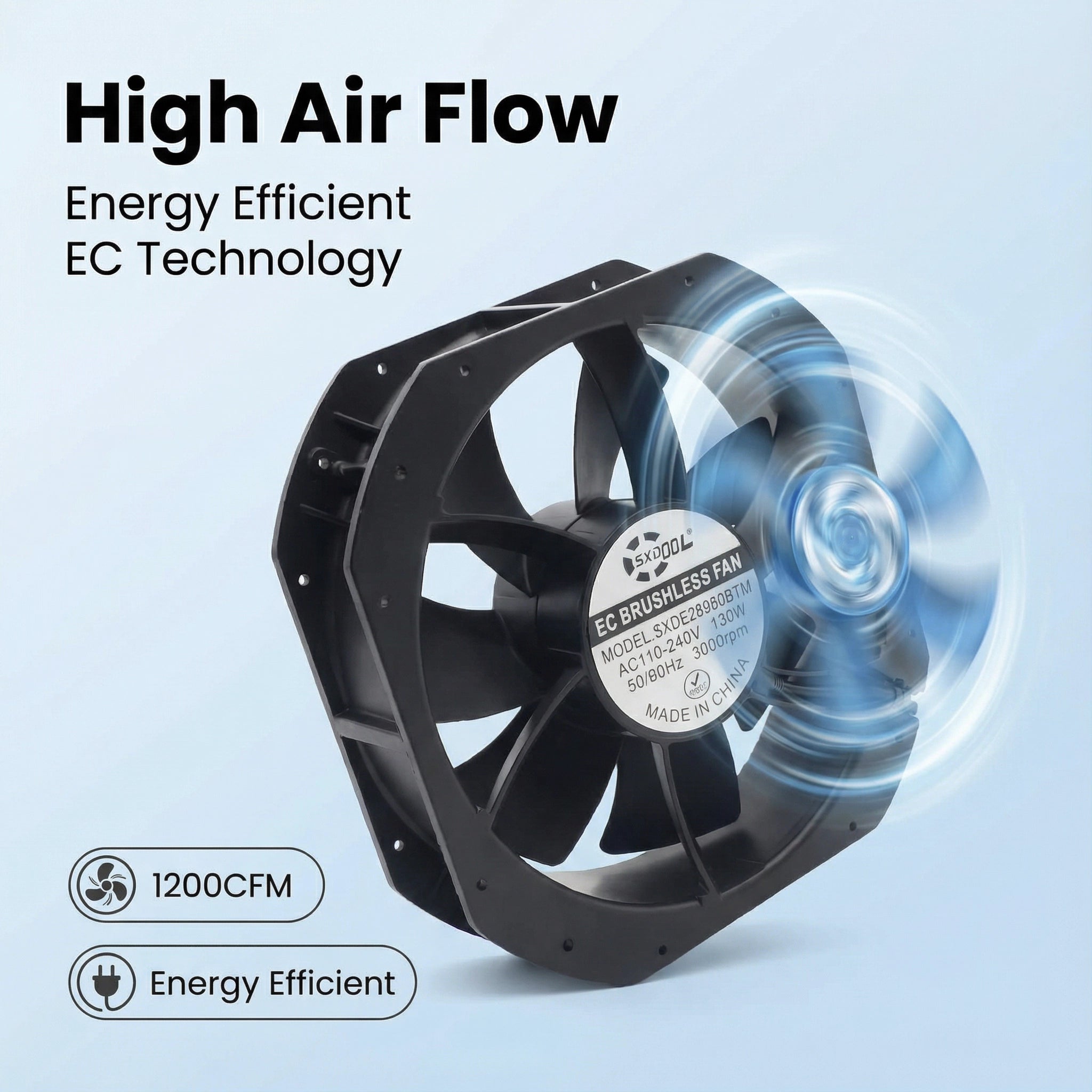

Can 1200 CFM be quoted as the guaranteed airflow of SXDE28080BTM?
No. The 1200 CFM value appears in existing marketing artwork, while the current controlled catalog table lists HB, MB, and LB model rows rather than SXDE28080BTM. Quote an exact BTM airflow only after the approved BTM datasheet or a traceable airflow test report identifies the same model, voltage, speed, and test condition.
Can the catalog value of 30.6 mmH2O be assigned to SXDE28080BTM?
Not by assumption. The 30.6 mmH2O values belong to the catalog SXDE28080HB and SXDE28080MB rows. The photographed SXDE28080BTM label shows 130W and 3000 RPM, which does not match either row exactly. Use a controlled BTM performance curve for cabinet resistance calculations.
How should engineers reconcile the 130W, 3000 RPM BTM label with the HB, MB, and LB catalog rows?
Treat them as separate evidence layers. The BTM label confirms only its printed electrical and speed data. The HB, MB, and LB rows provide family comparison points, not a substitute model identity. Procurement release should bind the quoted fan to one drawing, one label revision, one wiring definition, and one performance table.
Are IP68, PWM, FG, RD, thermal control, or auto restart included in every SXDE28080BTM fan?
No. The catalog lists these as available 28080 family features. The purchase specification must state the required protection treatment, control input, tachometer or alarm output, restart behavior, wire colors, connector, and acceptance test before sample approval.
Continue with the fan selector, review the EC fan family, review the control-cabinet application guide, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
