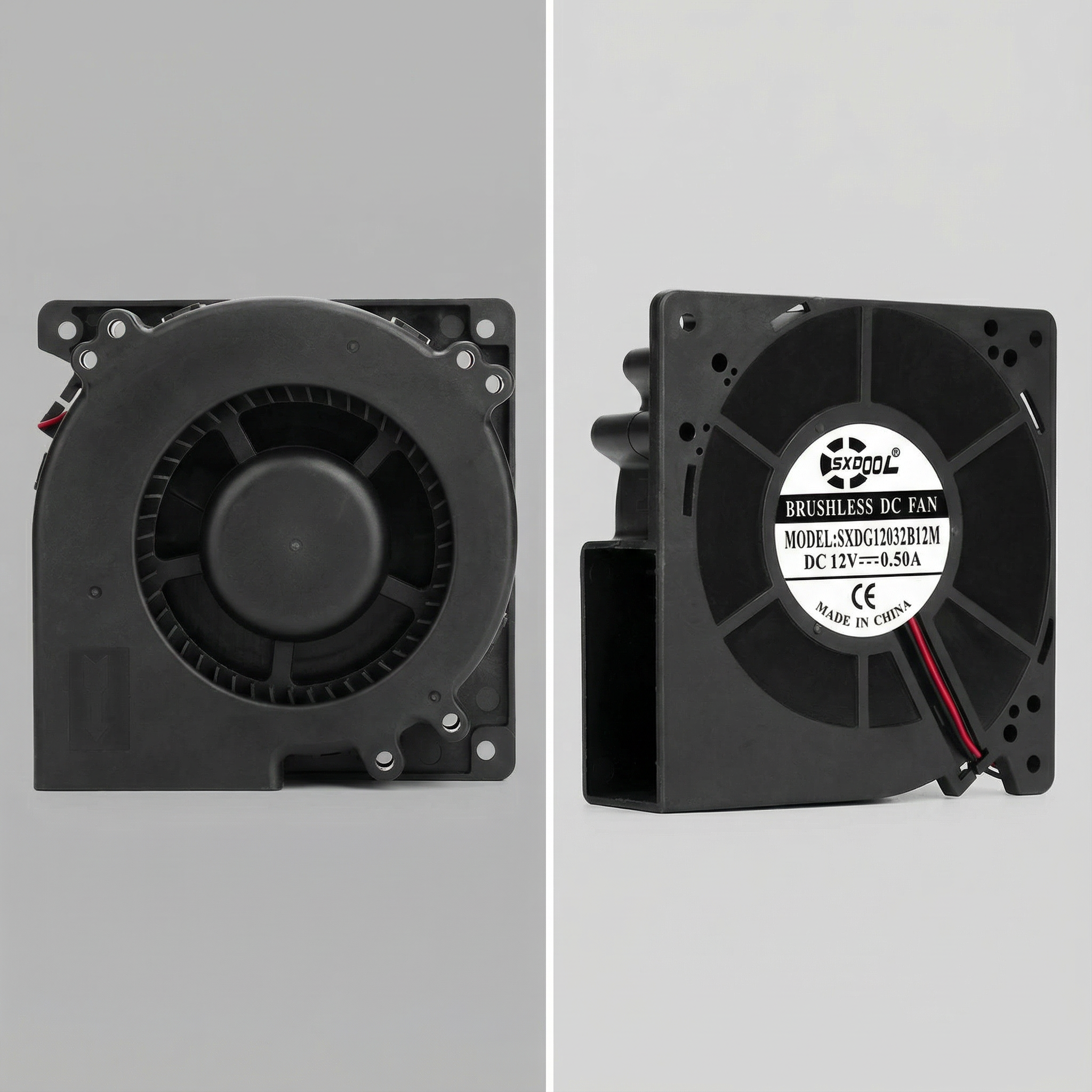

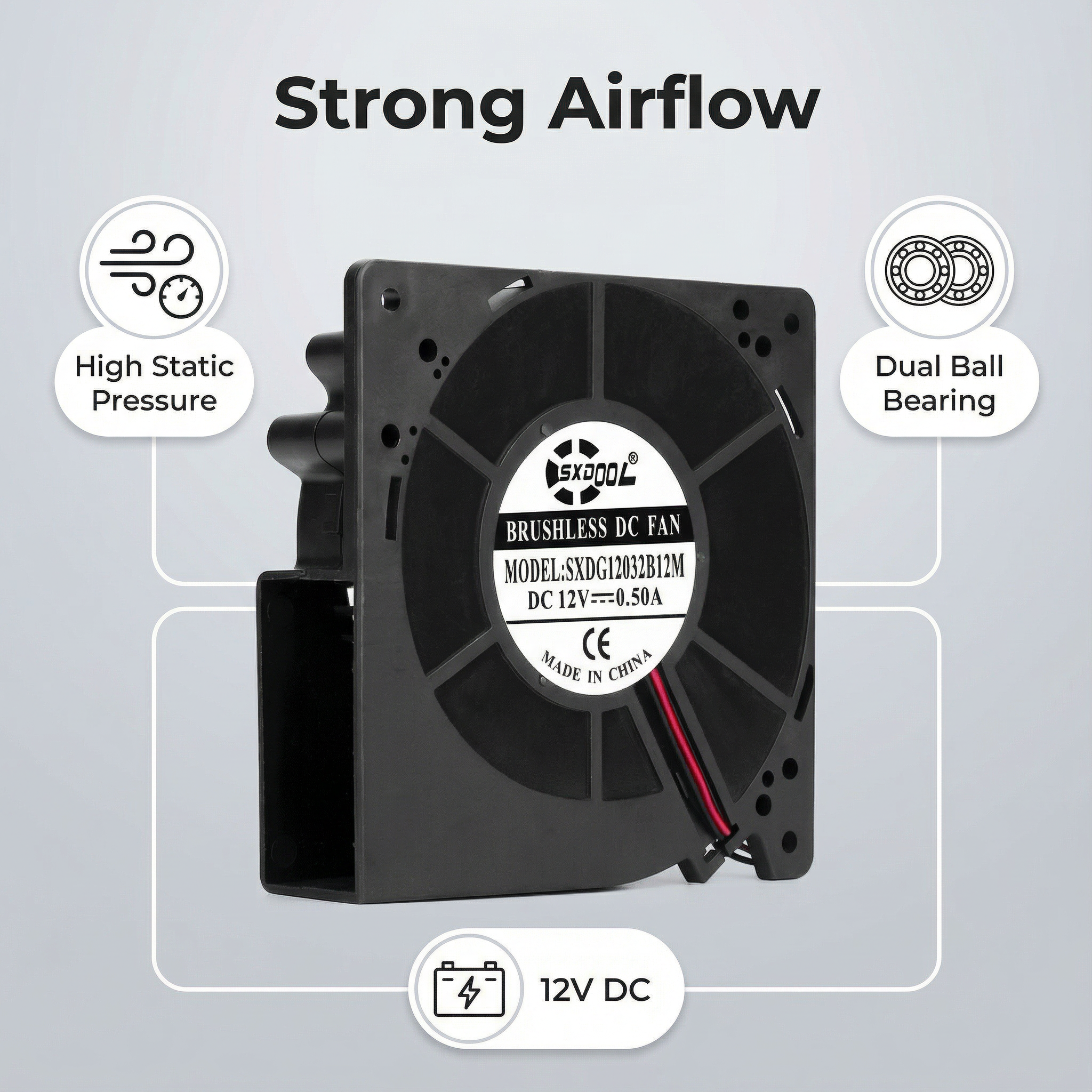

SXDOOL 12032 120x120x32mm Centrifugal Blower Fan 12V
SXDOOL 12032 120x120x32mm centrifugal blower fan for ducted airflow paths and heat sinks. Confirm voltage, outlet direction, airflow/static pressure, noise, bearing, cable, connector and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Frame size | 120x120x32mm |
|---|---|
| Voltage | 12V |
| Material | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current m |
| Speed | 2500–3500 RPM |
| Airflow | 29.5–41.5 CFM |
| Static pressure | 21.1–47 mmH2O |
| Noise | 45–57 dBA |
Select the blower around its outlet and duct duty point
The SXDOOL 12032 is a 120 x 120 x 32 mm, 12V centrifugal blower platform. It is a candidate for equipment that routes air through a defined outlet and duct or across a localized heat source. Selection starts with the outlet connection and required airflow at pressure, not the nominal 120 mm size alone.
| Product reference | 120x120x32mm 12V |
|---|---|
| Fan family | blower fan |
| Frame / dimensions | 120x120x32mm |
| Voltage / input | 12V |

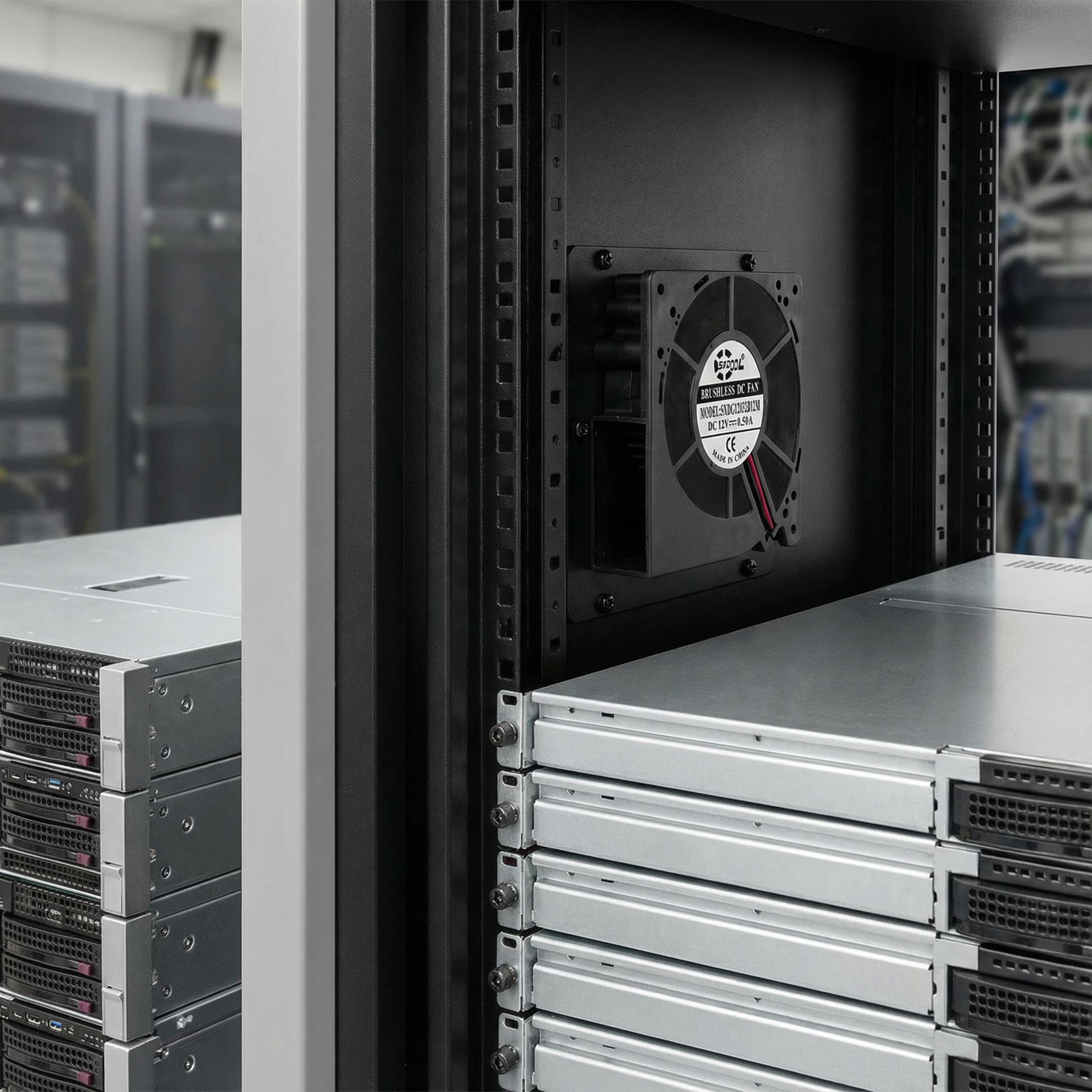

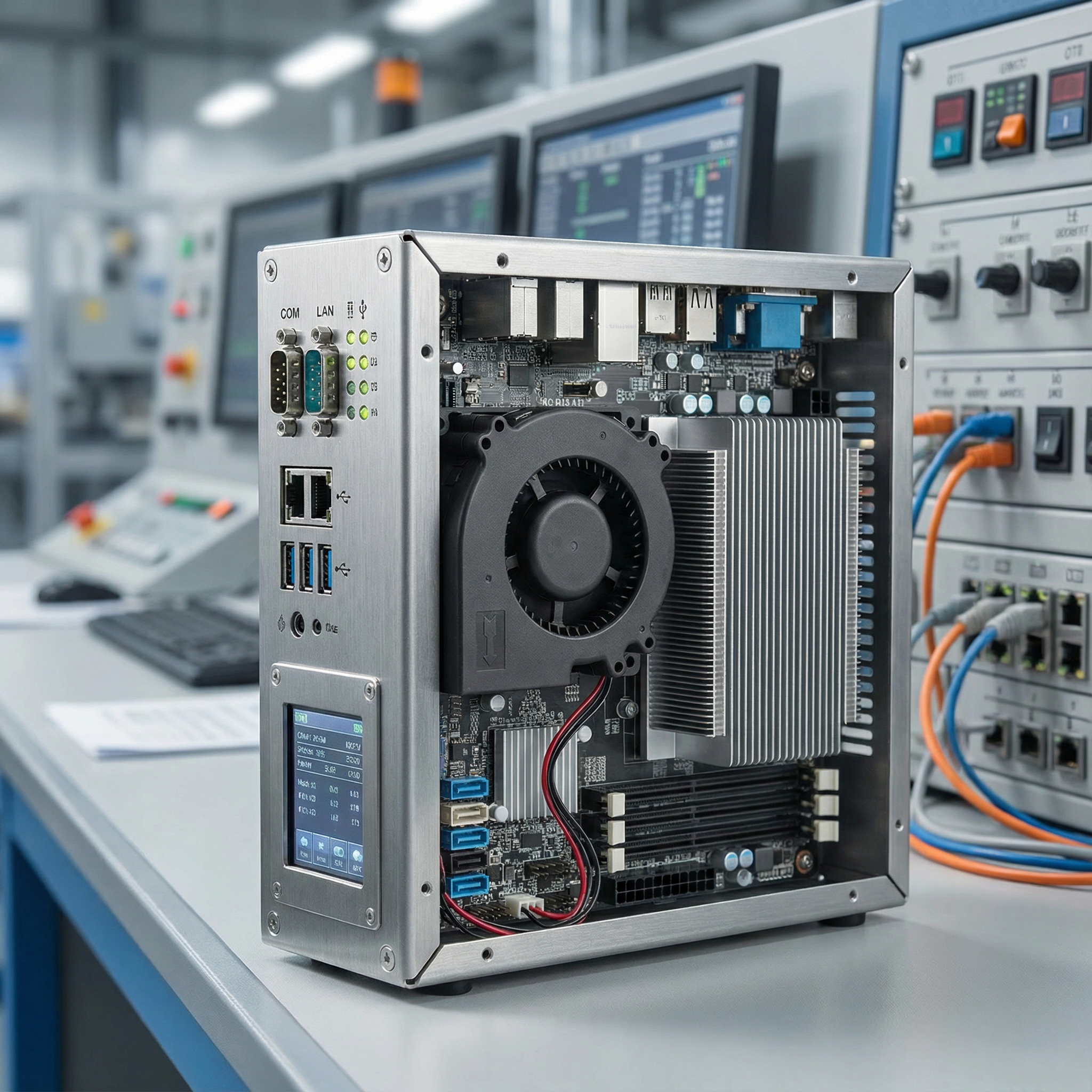

Ducted electronics cooling and localized airflow
Evaluate this blower for compact electronics or power-module assemblies with a defined duct transition. Provide the outlet connection, bends, inlet clearance and heat-sink restriction for review. The inlet must remain clear when the blower is mounted inside the housing.
The current page establishes the 12V platform and envelope but does not provide a configuration-specific pressure-flow curve or one guaranteed duty point. Request that evidence before selecting a duct size or assigning a cooling capacity. No hazardous-area, medical-device or end-equipment approval is implied.
12032 blower integration FAQ
Can this 12032 blower replace a 120 mm axial fan?
Not from nominal size alone. A centrifugal blower requires an outlet and duct arrangement different from an axial through-flow installation. Compare the mounting drawing, inlet clearance, outlet geometry and required operating point before considering a replacement.

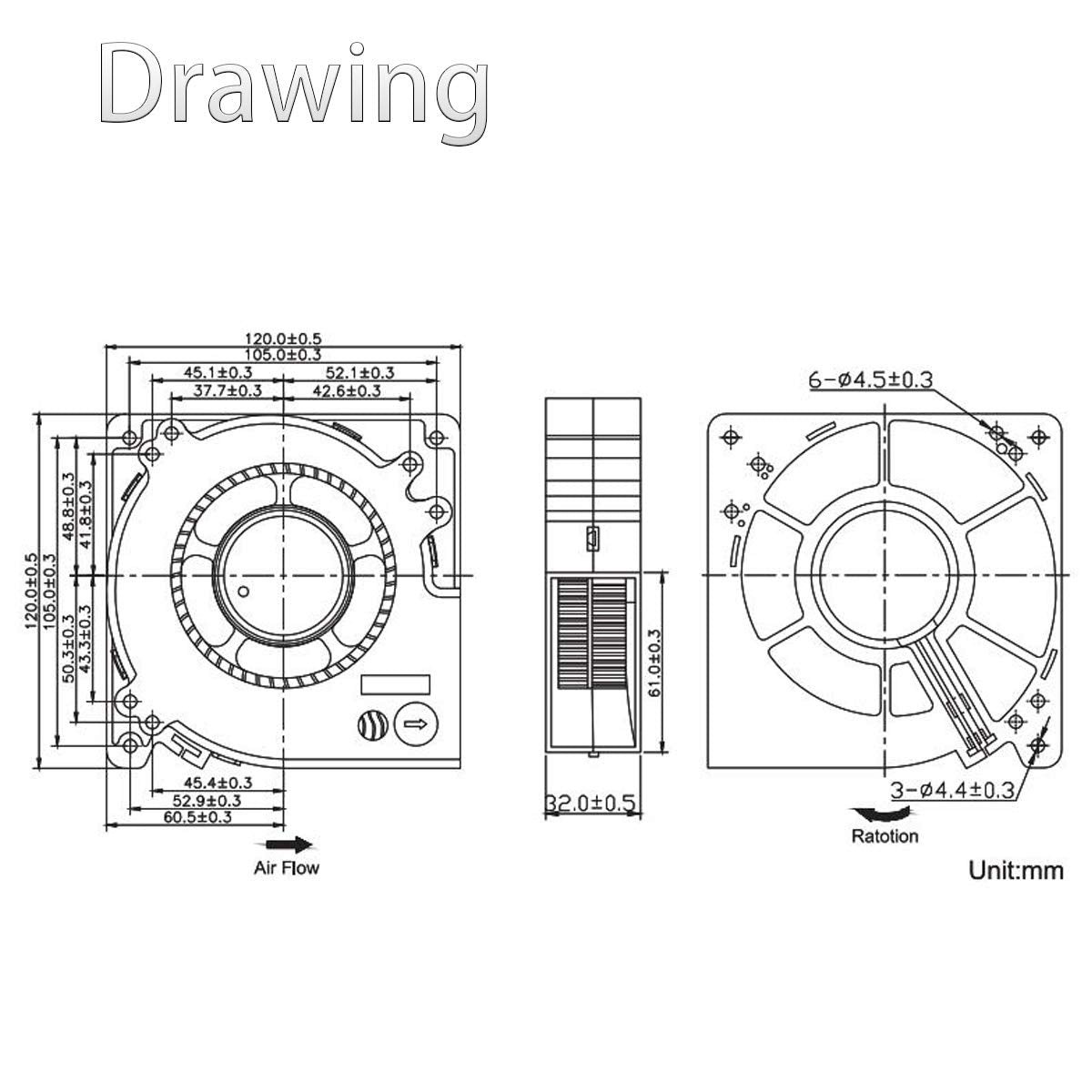

Which dimensions are needed to design the outlet adapter?
Request the controlled outlet drawing, mounting-hole locations, cable exit and permitted installation orientation. The overall 120 x 120 x 32 mm envelope is not a substitute for the outlet dimensions; do not machine an adapter from a product photograph.
How much airflow will remain after adding duct bends or a heat sink?
That depends on the resistance of the complete airflow path and the curve for the selected blower configuration. Provide the required airflow at pressure, or the duct geometry needed to estimate resistance. Free-air airflow alone cannot answer this question.
Is a speed-control or feedback interface included on every 12V version?
The family identity and 12V supply do not establish PWM, FG or an alarm output. Confirm the complete model, running and startup current, connector pinout and any control interface on a configuration-specific drawing.
For a 12032 blower RFQ, send the duct layout, required airflow at pressure, outlet-adapter drawing, inlet clearance, 12V supply limits, acoustic target and quantity to david@sxdool.com.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
12032 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved blower drawing, outlet geometry, impeller and housing BOM, pressure-flow curve, rotation direction, operating-point test, vibration or balance result, wiring definition and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 12032 from david@sxdool.com before qualification. |
