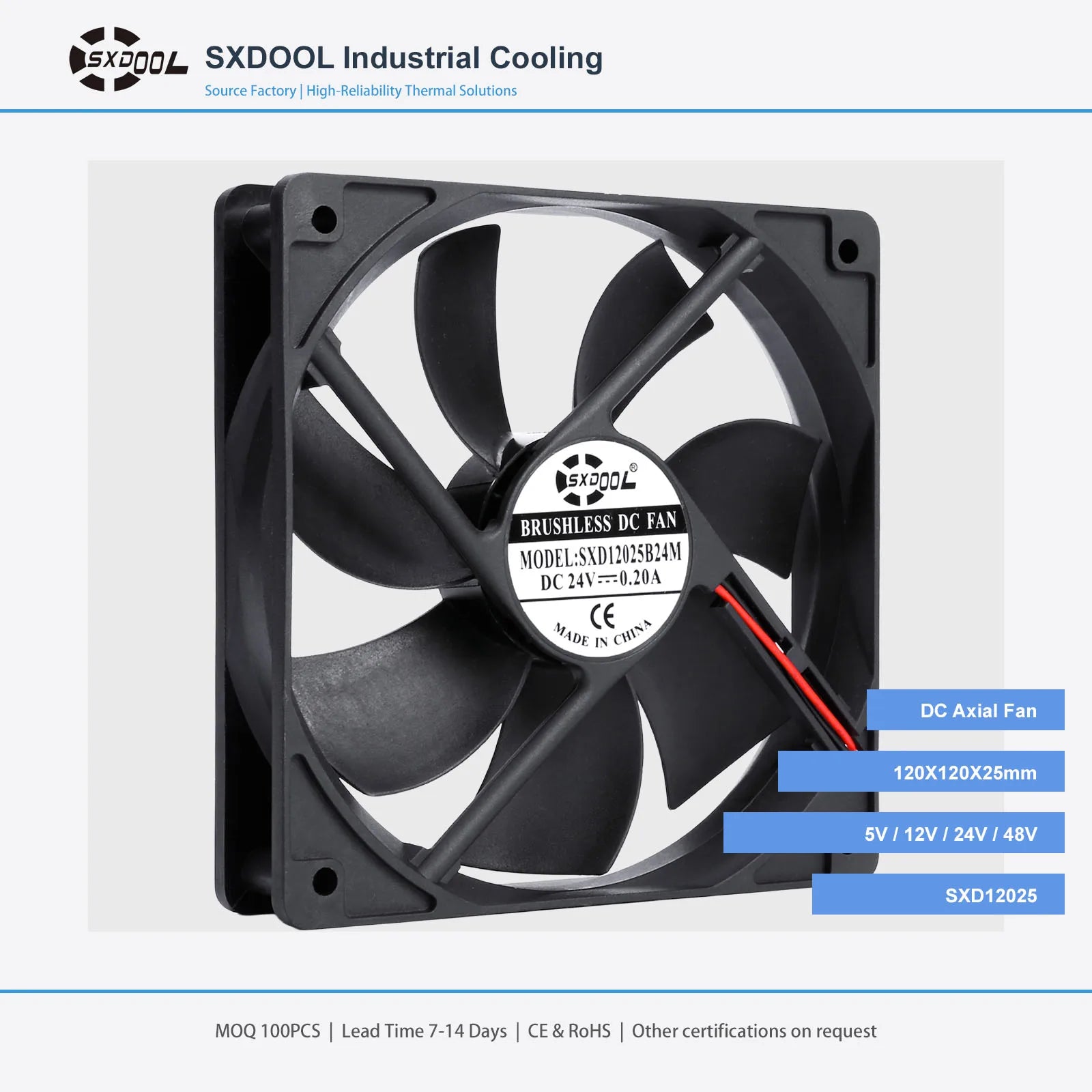

SXDOOL 12025 120x120x25mm DC Axial Fan 5V-48V
SXDOOL 12025 120x120x25mm DC axial fan for equipment panels and server accessories. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 5V, 12V, 24V, 48V |
|---|
12025 standard DC family 5V-48V engineering selection
Engineering summary: A 120x120x25mm standard DC axial platform. The current product page includes 5V, while the supplied catalog performance matrix documents 12V, 24V and 48V grades; a 5V request therefore requires its own controlled datasheet before release.
| Product reference | 12025 standard DC family |
|---|---|
| Fan family | Standard DC axial fan family |

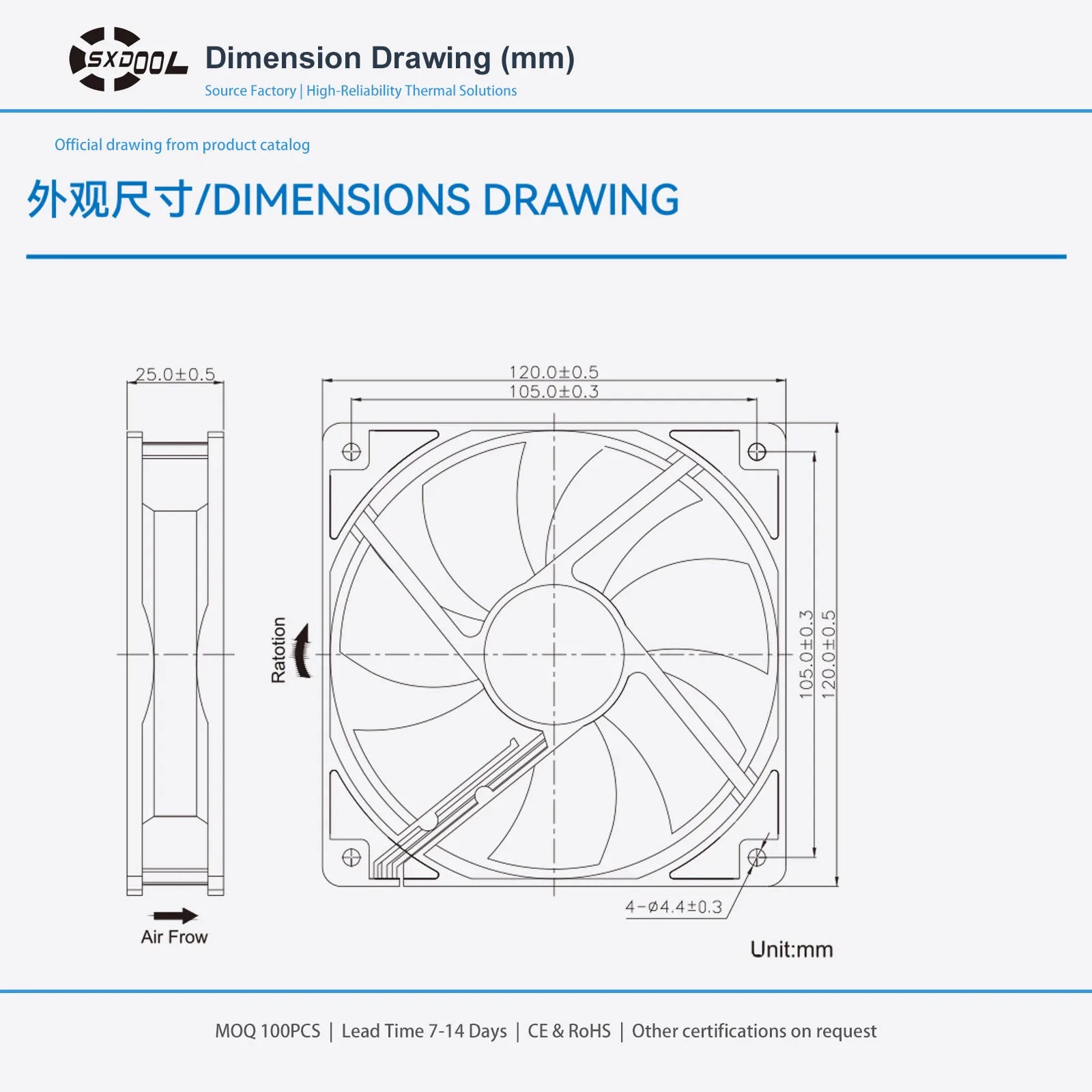

| Dimensions | 120x120x25mm |
| Voltage / input | Page range: 5V / 12V / 24V / 48V DC; catalog matrix below: 12V / 24V / 48V |
| Current / power | Varies by selected voltage and performance grade; use the matrix and approved complete model |
| Speed / airflow / static pressure / noise | Varies by performance grade; catalog values are shown in the comparison table below |
| Bearing type | Sleeve-bearing and ball-bearing configurations are cataloged; specify the ordered bearing and do not infer the bearing maker or L10 life |
| Material / flammability | Frame and impeller: Plastic (UL94V-0) |

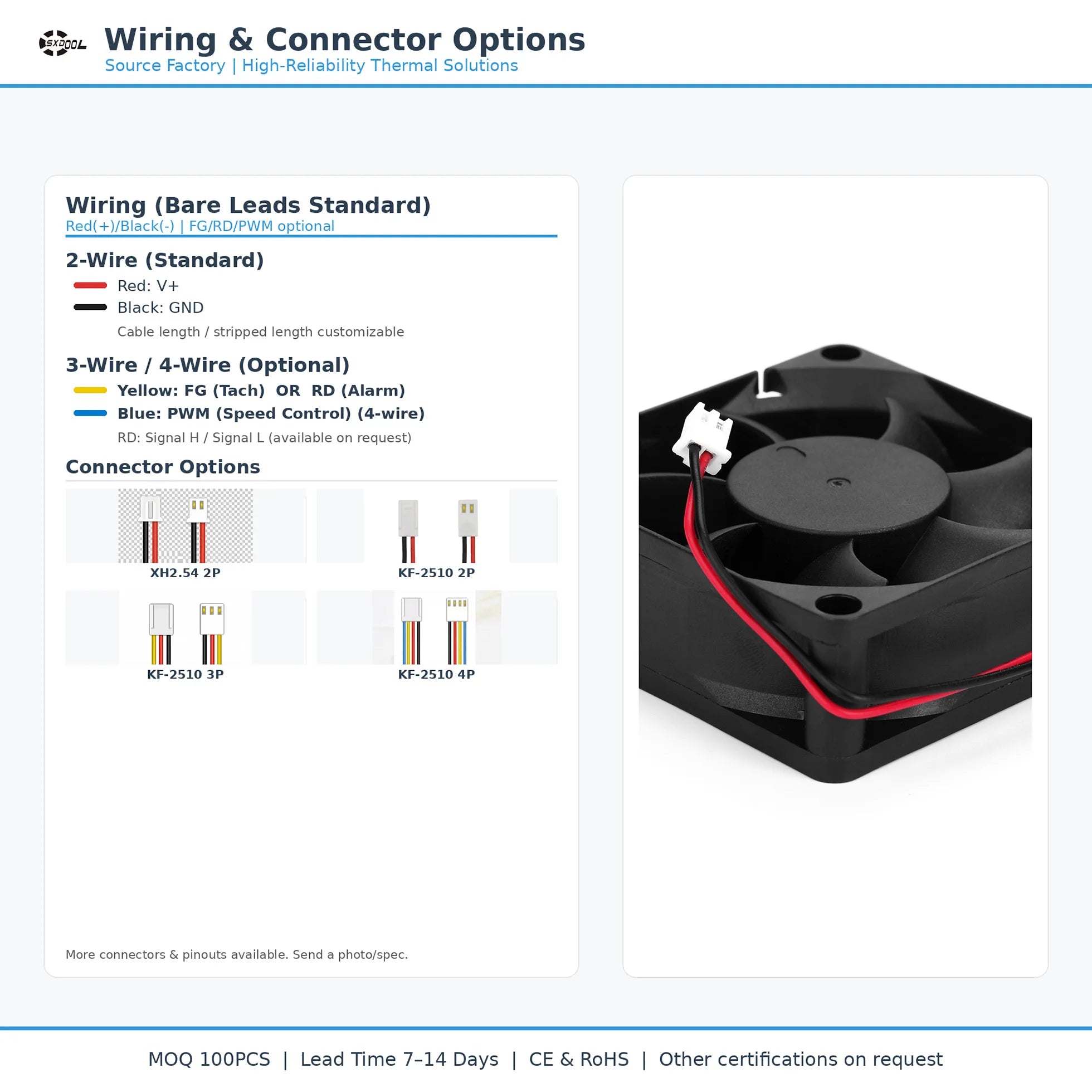

| Signal / wiring | Auto restart, PWM, FG and RD options are shown as platform capabilities; order only the function defined by the complete approved model and interface drawing |
| Operation / storage environment | -10C to 70C, 35%-85% RH operation; -40C to 80C, 35%-85% RH storage per catalog general specification |
| Best-fit buyer intent | General equipment ventilation where the 25mm depth, moderate airflow and lower acoustic target are more important than maximum pressure. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Catalog base grade | Available voltage | Rated current by voltage | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| SXD12025M | 12/24/48V | 0.80/0.40/0.25A | 3000RPM | 112.7CFM | 10.0mmH2O | 50dBA |
| SXD12025L | 12/24/48V | 0.50/0.20/0.15A | 2500RPM | 94.0CFM | 7.0mmH2O | 48dBA |
| 5V special configuration | 5V | Confirm on controlled datasheet | Confirm on controlled datasheet | Confirm on controlled datasheet | Confirm on controlled datasheet | Confirm on controlled datasheet |
Engineering release rule: Catalog and current-page values are reference data under their stated conditions. The approved drawing, complete model suffix, controlled datasheet, sample label and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Why is the 5V option separated from the 12V-48V catalog matrix?
The current page lists 5V, but the supplied 12025 catalog table documents rated-current and performance data for 12V, 24V and 48V. A 5V project needs a controlled model sheet and sample before approval.
When is the M grade preferable to the L grade in a 12025 standard application?
M provides more airflow and pressure margin, while L reduces current and noise. Compare 112.7CFM and 10.0mmH2O for M with 94.0CFM and 7.0mmH2O for L against the real duty point.
What evidence prevents a voltage-only substitution across this family?
The purchase file should bind voltage, grade, rated current, connector, polarity, cable, signal, bearing, airflow direction and approved label to one complete model.
Which enclosure test confirms that a standard 12025 grade is sufficient?
Operate the final inlet, guard, filter, heat source and outlet geometry while recording critical temperatures, current, airflow or pressure, noise and hot-restart behavior at worst-case ambient.
