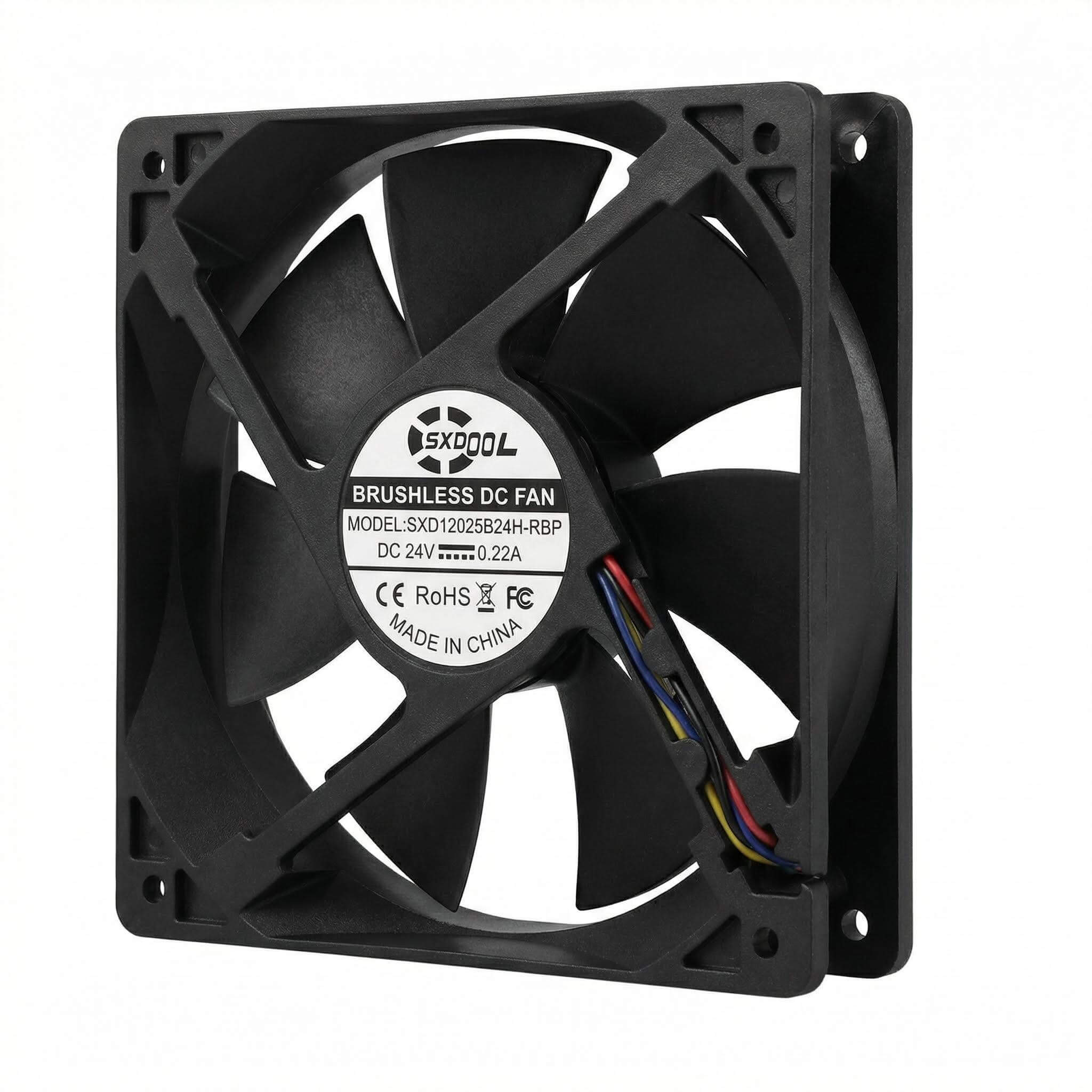

SXDOOL SXD12025B24H-RBP 120x120x25mm 24V DC Fan
SXDOOL SXD12025B24H-RBP 120x120x25mm 24V DC Fan. SXD12025B24H-RBP 120x120x25mm 24V DC fan for compact high-airflow applications. Confirm RPM, pressure, noise and wiring. Source-factory OEM/ODM customization and batch RFQ review are available.
SXD12025B24H-RBP 24V 94CFM release boundary
Engineering summary: A 120x120x25mm 24V special-configuration fan with 94CFM published on the current product page. Because -RBP is not a catalog base-grade identifier, its pressure, speed, noise and interface must remain tied to the controlled drawing.
| Model / product reference | SXD12025B24H-RBP |
|---|---|
| Fan family | Brushless DC axial fan |
| Dimensions | 120x120x25mm |
| Rated voltage | 24V DC |
| Published airflow | 94CFM published on the current product page; delivered airflow depends on system resistance |
| Rated current / power | Model-specific controlled datasheet required; no numeric value is inferred from a catalog base grade |
| Speed | Model-specific controlled datasheet required |
| Static pressure | Model-specific controlled datasheet and equipment duty-point validation required |
| Noise | Model-specific controlled datasheet and assembled-equipment test required |
| Bearing type | Confirm ordered bearing on the complete model drawing; no bearing maker or L10 life is inferred |

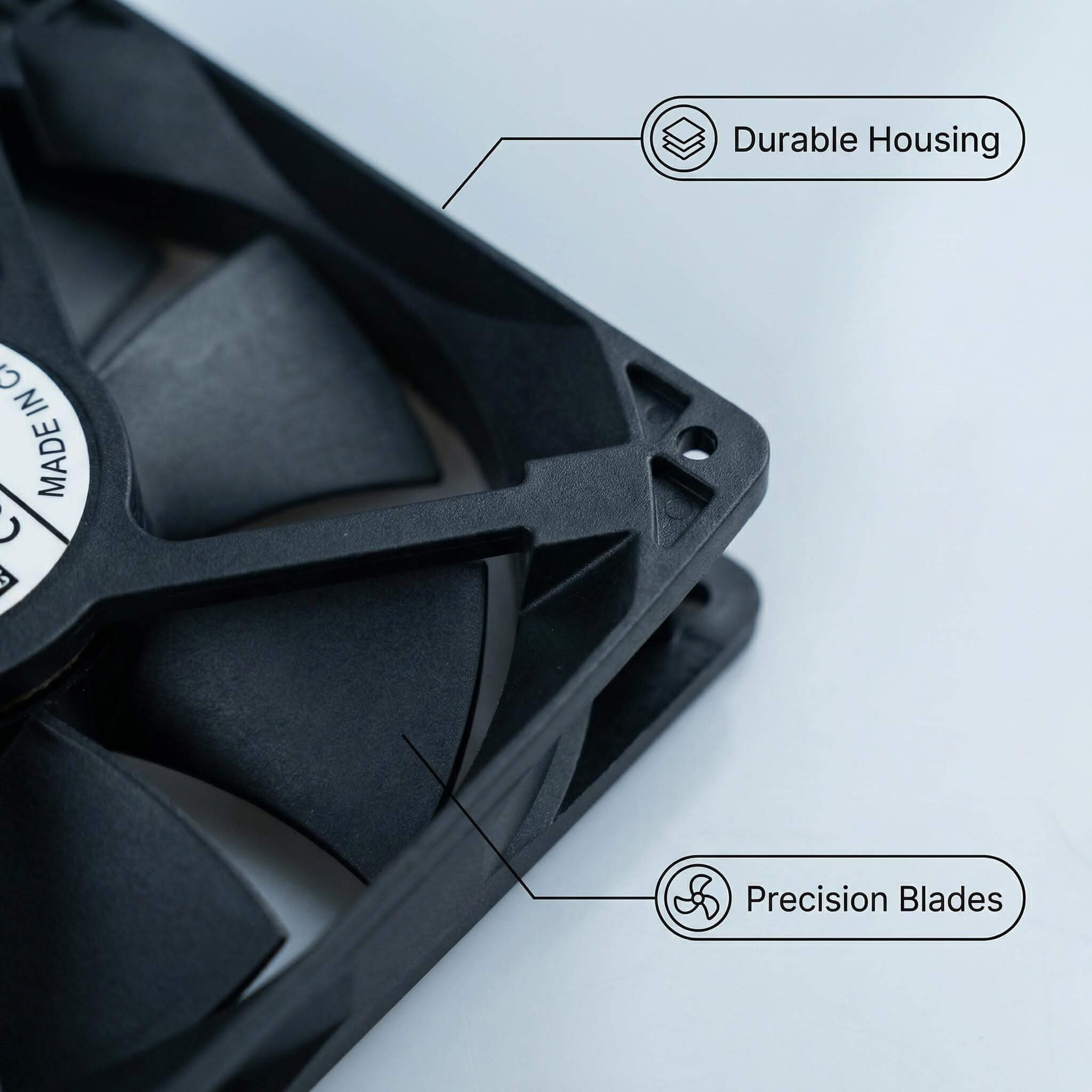

| Material / flammability | Frame and impeller: Plastic (UL94V-0) |
| Signal / wiring | The -RBP suffix must be decoded only by the approved drawing; no PWM, FG or RD behavior is inferred here. |
| Operation / storage environment | -10C to 70C, 35%-85% RH operation; -40C to 80C, 35%-85% RH storage per 12025 catalog general specification |
| Best-fit buyer intent | Compact 24V OEM cooling projects targeting the published 94CFM configuration and requiring a controlled special suffix. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Evidence layer | Confirmed value | Release boundary |
|---|---|---|
| Current-page performance fact | 94CFM | Confirm test condition and tolerance on controlled datasheet |
| Special suffix | -RBP | Bind cable, connector, signal, bearing and label to approved drawing |
| Unpublished numeric fields | Speed, pressure, noise, current | Do not substitute catalog base-grade values without written mapping |
Engineering release rule: Catalog and current-page values are reference data under their stated conditions. The approved drawing, complete model suffix, controlled datasheet, sample label and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Why is SXD12025B24H-RBP not assigned the generic 12025 H catalog performance row?
The current page publishes 94CFM and includes a special -RBP suffix. To avoid a conflict, speed, pressure, noise and current remain controlled-document fields until the suffix is formally mapped.
Which document should define the -RBP connector and signal behavior?
The approved product drawing or interface specification must define pinout, cable, connector, electrical levels and any alarm or feedback behavior. Wire colour is not sufficient evidence.
How should the published 94CFM value be validated in a compact cabinet?
Test the approved sample with the real inlet, guard, filter, component density and outlet while recording delivered airflow or pressure, component temperature, current and noise.
What must procurement place on a repeat order for this special configuration?
Use the full SXD12025B24H-RBP model, drawing revision, sample approval reference, voltage, bearing, cable, connector, label and any inspection requirements.
Continue with the fan selector, 120mm fan series and server/cabinet airflow guidance, or submit a model-specific RFQ.
