SXDOOL 17251 172x150x51mm EC Axial Fan AC Input
SXDOOL 17251 172x150x51mm EC axial fan for rectifier cabinets and charging modules. Confirm AC input range, speed-control need, airflow, noise, bearing, connector, certification and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
SDXE17251HB evidence reconciliation for OEM qualification
Engineering summary: The photographed fan label and the current 172 x 150 x 51 mm catalog table use different model codes and different power values. This page keeps those sources separate so engineers can identify confirmed label facts, family-level material evidence, and the remaining controlled-document requirements.

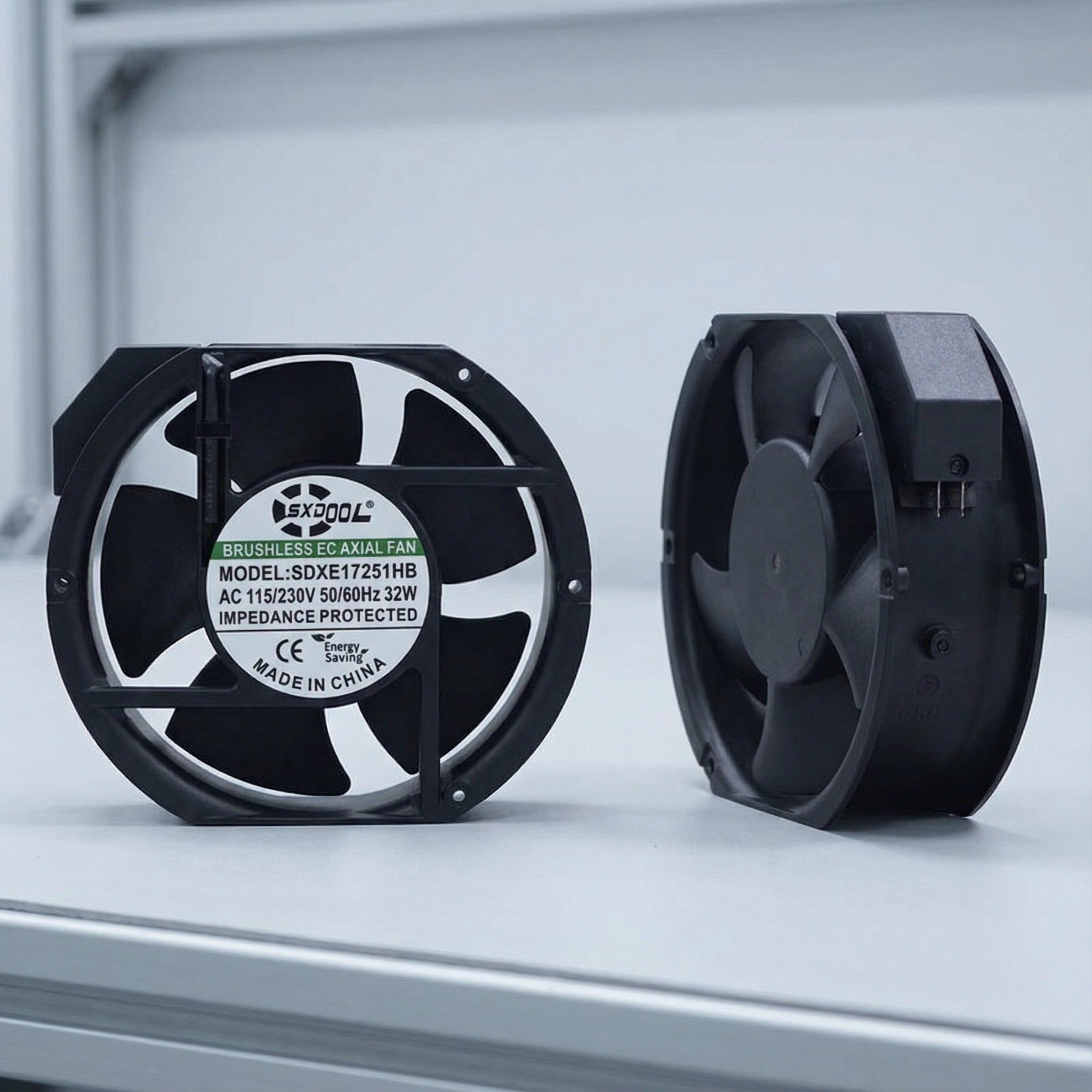

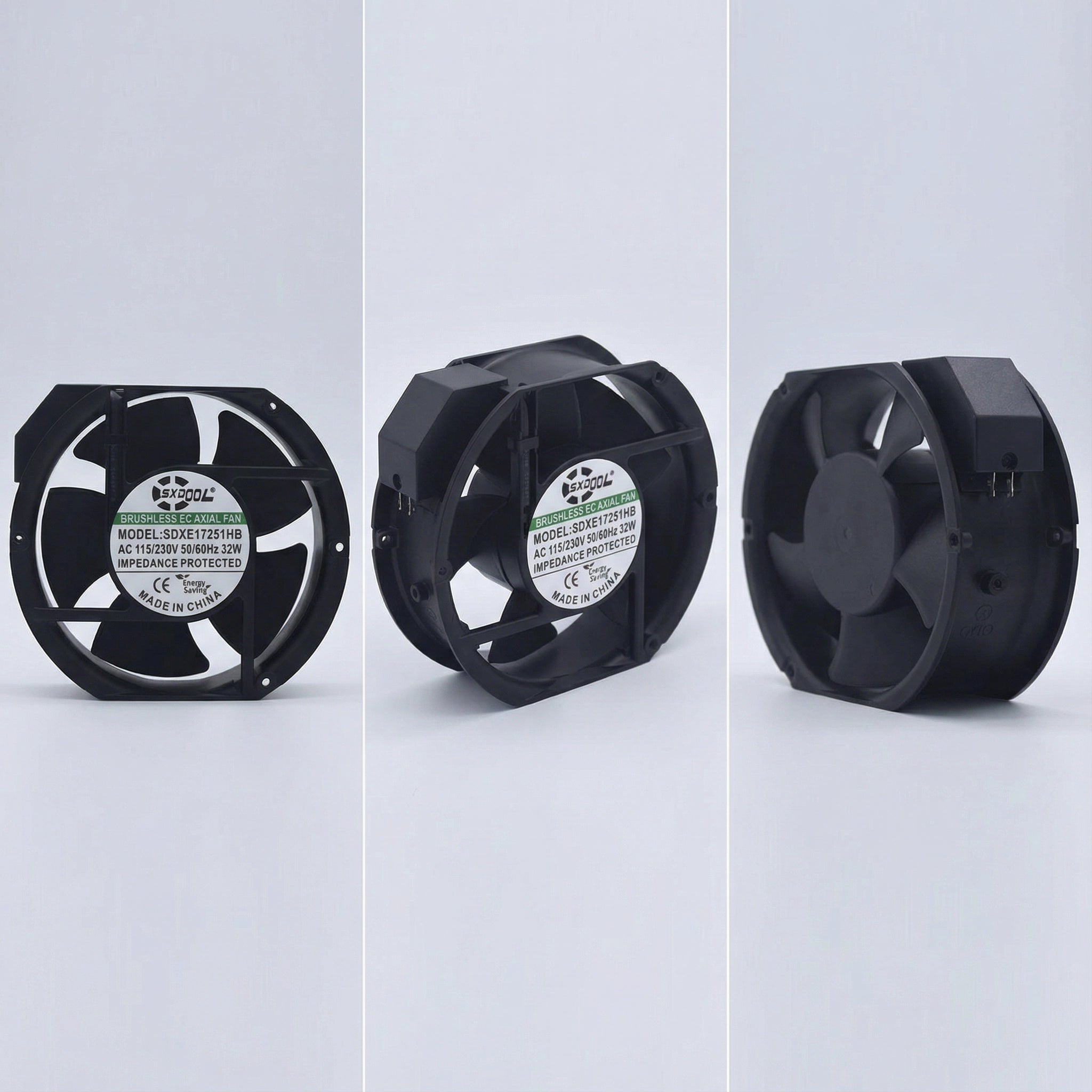

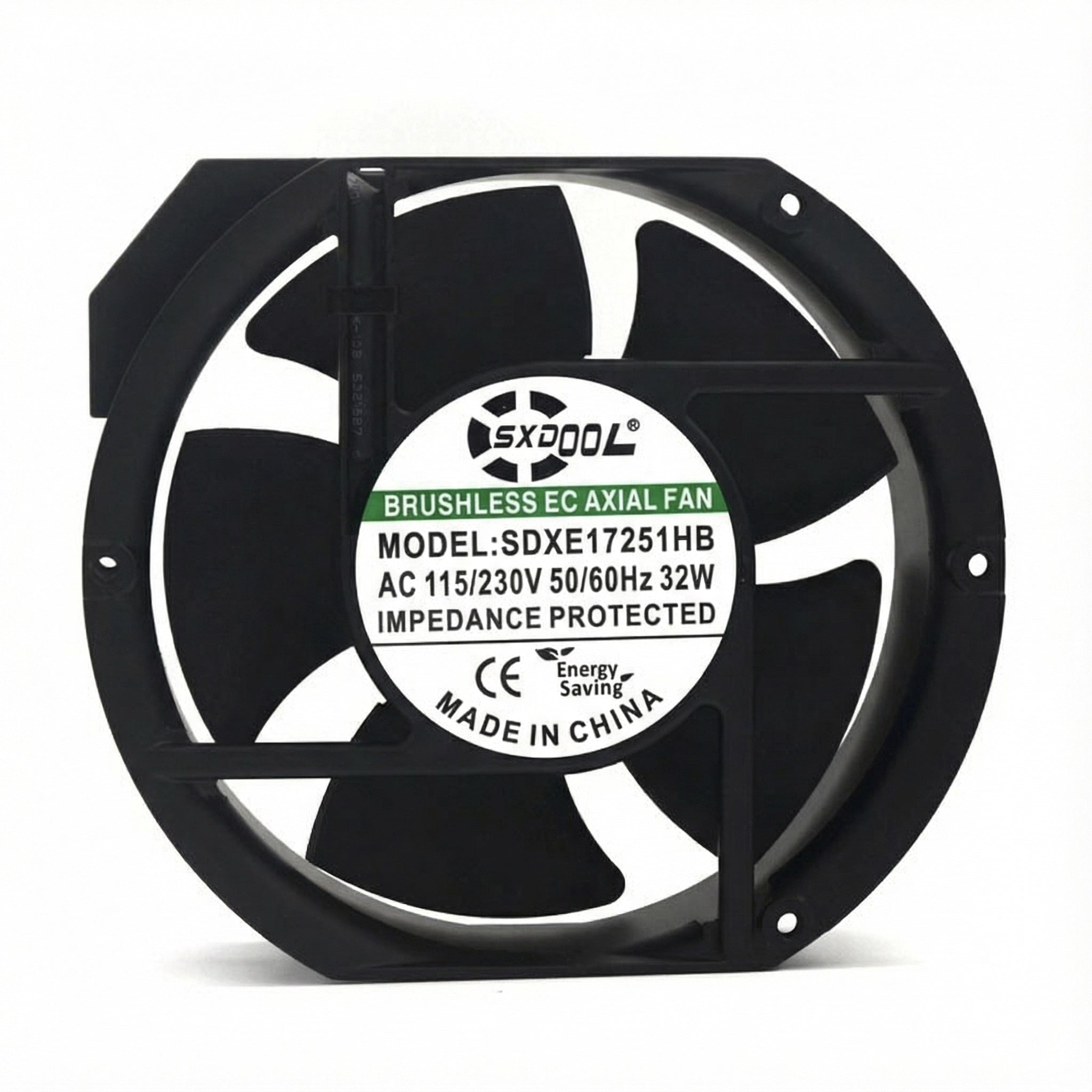

| Public product model | SDXE17251HB, read directly from the photographed product label |
|---|---|
| Frame / dimensions | 172 x 150 x 51 mm EC axial fan platform |
| Label input | AC 115/230V, 50/60Hz |
| Label power | 32W |
| Label protection wording | Impedance Protected |
| Label marks | CE mark, Energy Saving wording, Made in China |
| Catalog family material | 172 x 150 x 51 mm EC family reference: plastic frame and impeller, UL94V-0 |

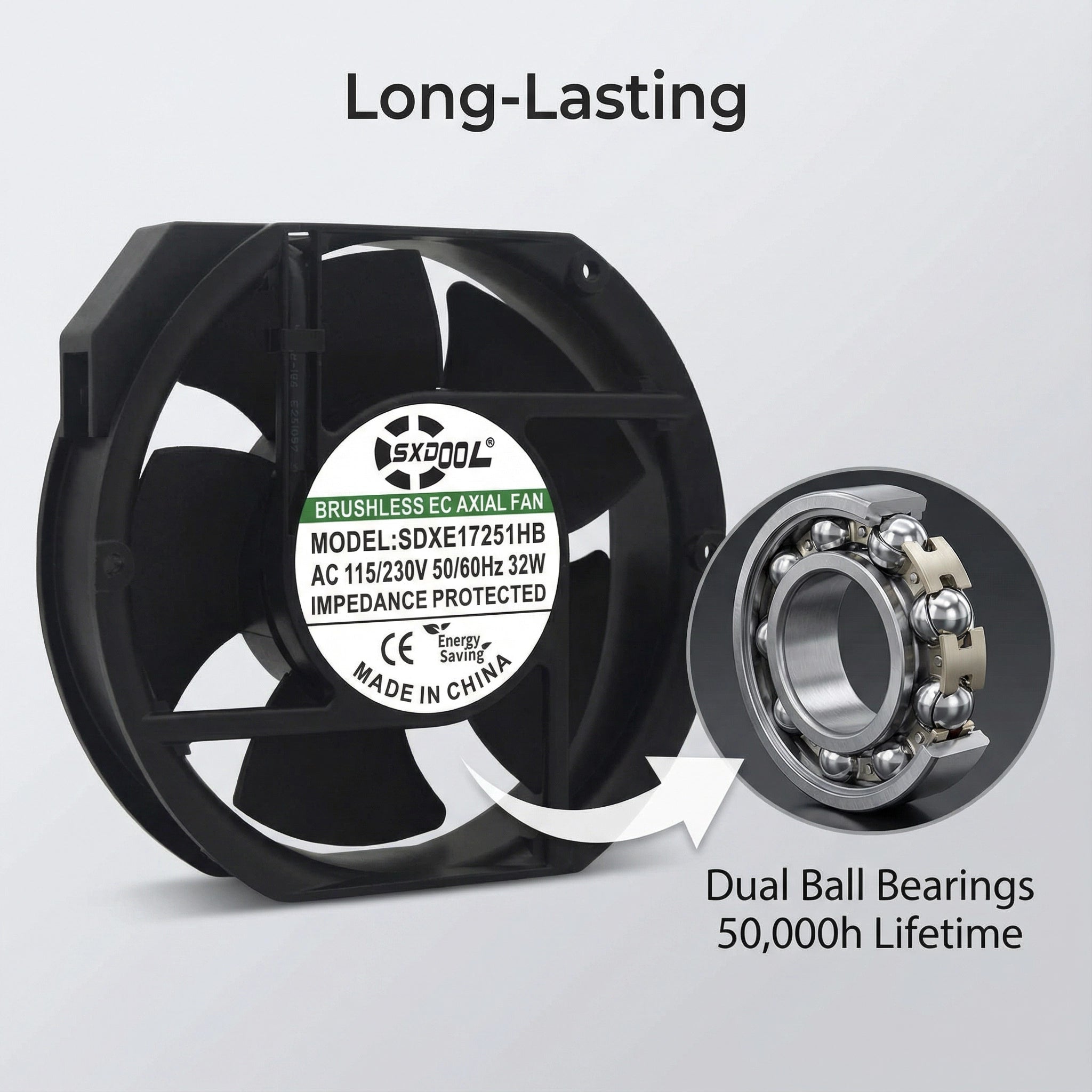

| Catalog family bearing options | Sleeve bearing or ball bearing; the exact SDXE17251HB production bearing requires the approved specification |
| Catalog family operating reference | -10°C to 70°C and 35% to 85% RH; exact SKU and equipment limits require confirmation |
| Airflow / static-pressure status | The available public SDXE17251HB label does not state airflow or static pressure. Do not assign a catalog-family duty point until the exact model mapping is approved |
| OEM release evidence | Approved SDXE17251HB drawing, controlled datasheet, wiring diagram, sample label, bearing definition, tolerance, test condition, and representative equipment validation |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, Dynamic Balancing, OEM/ODM cable and connector requirements, and 100% End-of-Line Testing can be reviewed against the approved production control plan |
Public label versus catalog-family reference
| Evidence source | Model code | Nominal input | Frequency / range | Power | Airflow | Static pressure | Use in release |
|---|---|---|---|---|---|---|---|
| Public product label | SDXE17251HB | 115/230V | 50/60Hz | 32W | Not stated on label | Not stated on label | Photographed product label |
| Current 172 x 150 x 51 catalog family row | SXDE17250HB | 115/230V | 50/60Hz; 100-264V operating range | 25.0W | 260.0 CFM | 18.5 mmH2O | Catalog family reference only |
Model-mapping boundary: SDXE17251HB and SXDE17250HB must not be merged by assumption. Catalog-family airflow, pressure, current, power, or noise values become SDXE17251HB release data only after the exact model relationship and test condition are confirmed in an approved controlled specification.
SDXE17251HB engineering FAQ
Why does the SDXE17251HB product label show 32W while the SXDE17250HB catalog row shows 25.0W?
They are different published model codes from different evidence sources and must not be merged by assumption. The product label supports 32W for the photographed SDXE17251HB. The 25.0W value belongs to the SXDE17250HB catalog-family row. Resolve the mapping with an approved controlled datasheet before quotation or production release.
Can 260.0 CFM and 18.5 mmH2O be quoted as SDXE17251HB performance?
Not from the current evidence alone. Those values are attached to SXDE17250HB in the catalog table, while the product label identifies SDXE17251HB. Use the exact SDXE17251HB approved airflow and pressure test data before placing performance values on the BOM, drawing, quotation, or compliance file.
What should an OEM buyer put on the purchase specification for this fan?
Specify SDXE17251HB, 172 x 150 x 51 mm, AC 115/230V, 50/60Hz, 32W, required bearing, wiring or terminals, airflow direction, mounting interface, environmental limits, label, quantity, and the approved drawing and datasheet revisions. Do not use only the family size as the procurement identifier.
How should a dual-voltage SDXE17251HB sample be qualified in the target cabinet?
Confirm the approved connection method, supply tolerance, grounding, protection, inrush or startup behavior, rotation, current, temperature rise, acoustic result, and delivered airflow at the real system resistance. Repeat the check at the project supply condition and representative ambient before batch approval.
Continue with the fan selector, review the 205mm IP54 kit that uses a 172mm EC platform, review the inverter-cooling application guide, or submit a model-specific RFQ.
