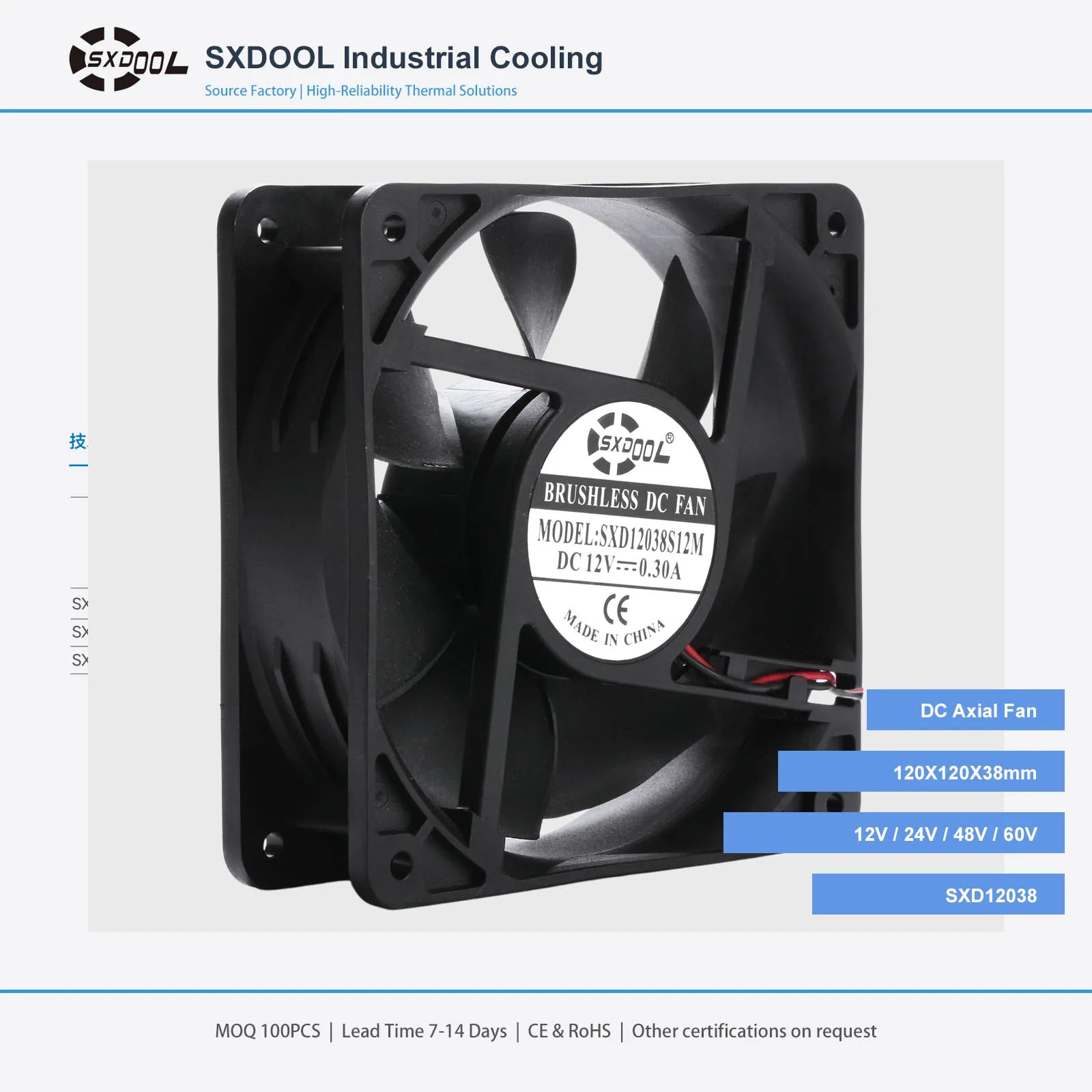

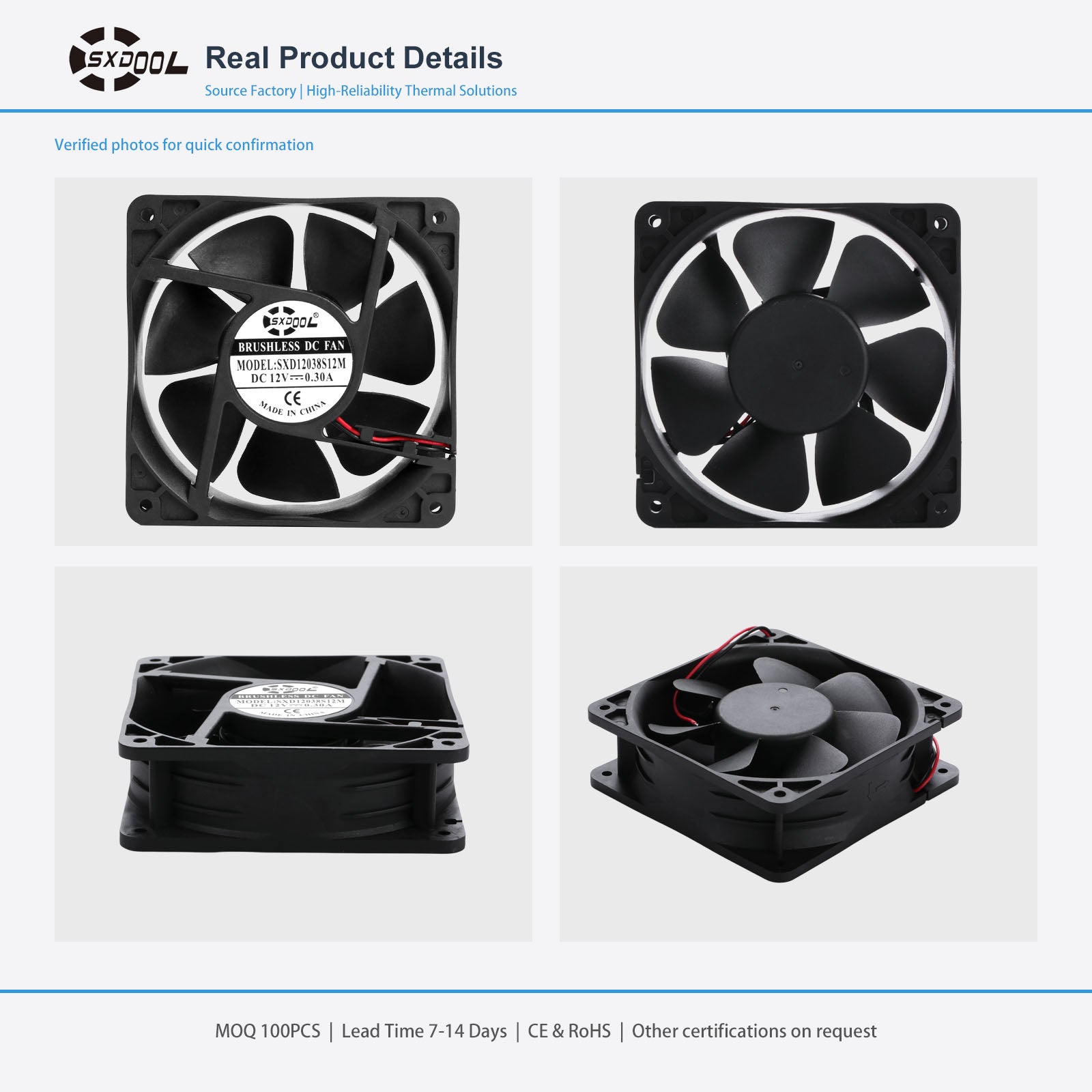

SXDOOL 12038 120x120x38mm DC Axial Fan 12V-60V
SXDOOL 12038 120x120x38mm DC axial fan for control cabinets and power supplies. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 12V, 24V, 48V, 60V |
|---|
12038 DC axial family 12V-60V engineering selection
Engineering summary: A 120x120x38mm high-pressure DC axial platform. The catalog provides D, H, M and L grades with different voltage availability and current demand, so the complete grade and voltage must be specified in the RFQ.
| Product reference | 12038 DC family |
|---|---|
| Fan family | High-static-pressure DC axial fan family |

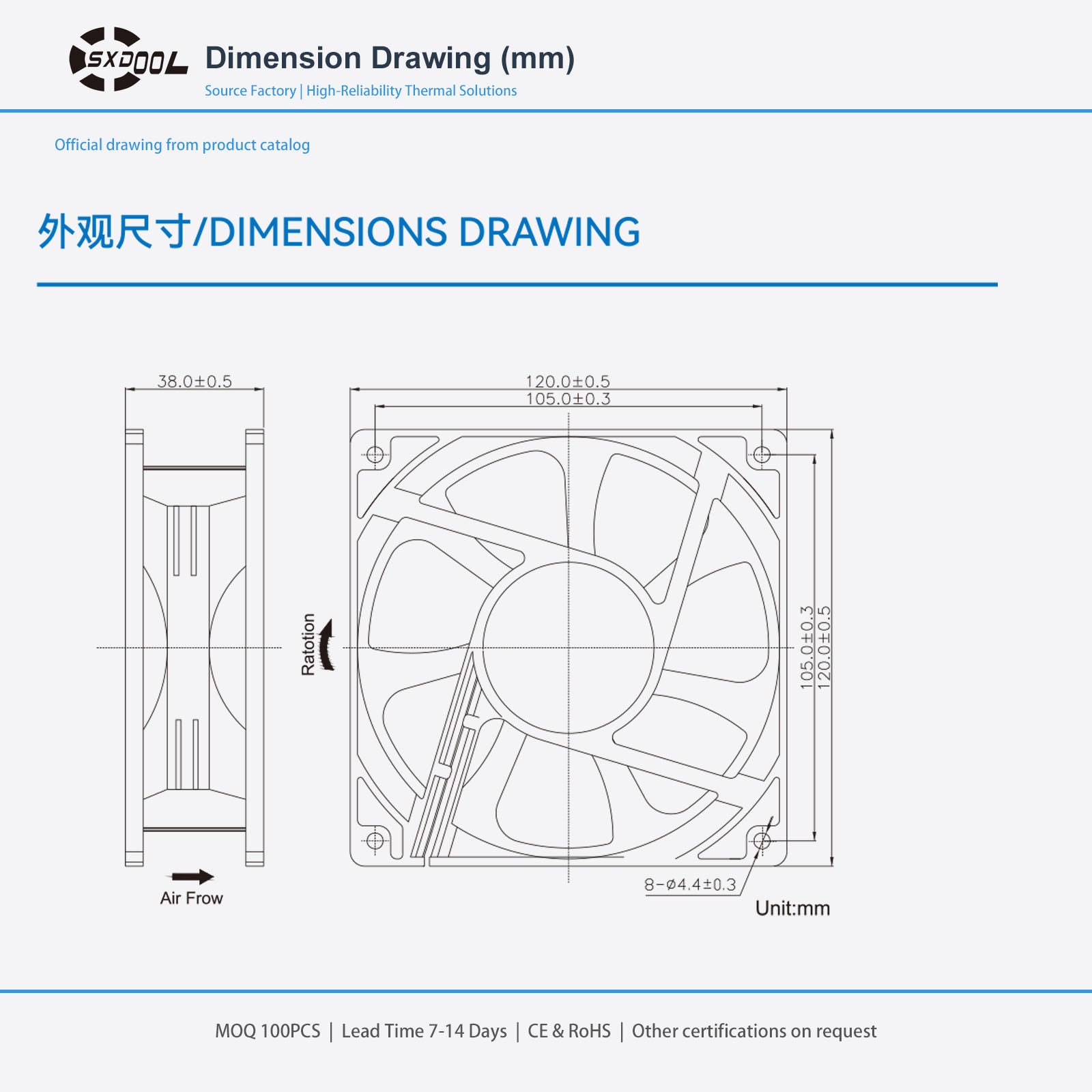

| Dimensions | 120x120x38mm |

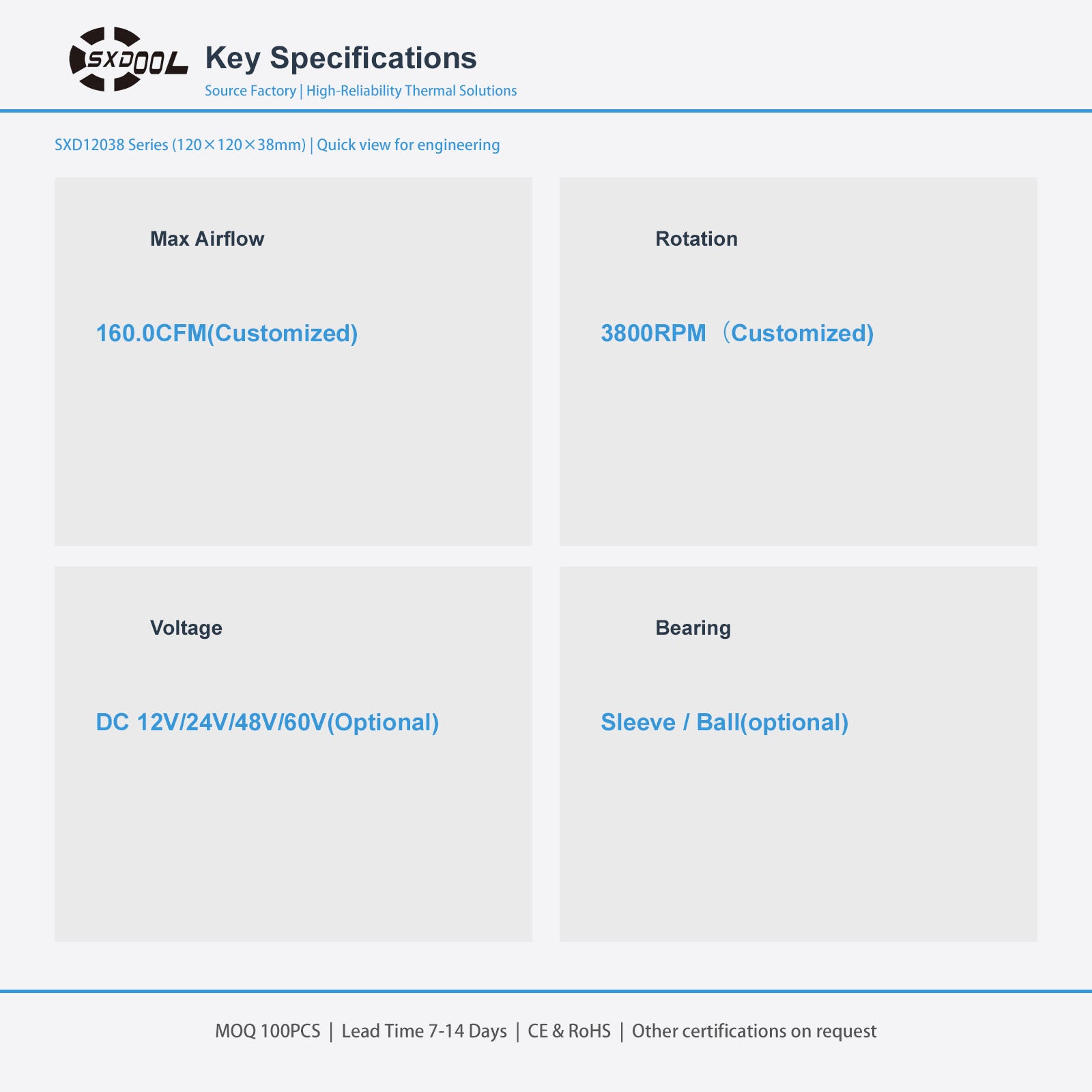

| Voltage / input | 12V / 24V / 48V / 60V DC; D grade is cataloged for 48V / 60V |
| Current / power | Varies by selected voltage and performance grade; use the matrix and approved complete model |
| Speed / airflow / static pressure / noise | Varies by performance grade; catalog values are shown in the comparison table below |
| Bearing type | Sleeve-bearing and ball-bearing configurations are cataloged; specify the ordered bearing and do not infer the bearing maker or L10 life |
| Material / flammability | Frame and impeller: Plastic (UL94V-0) |

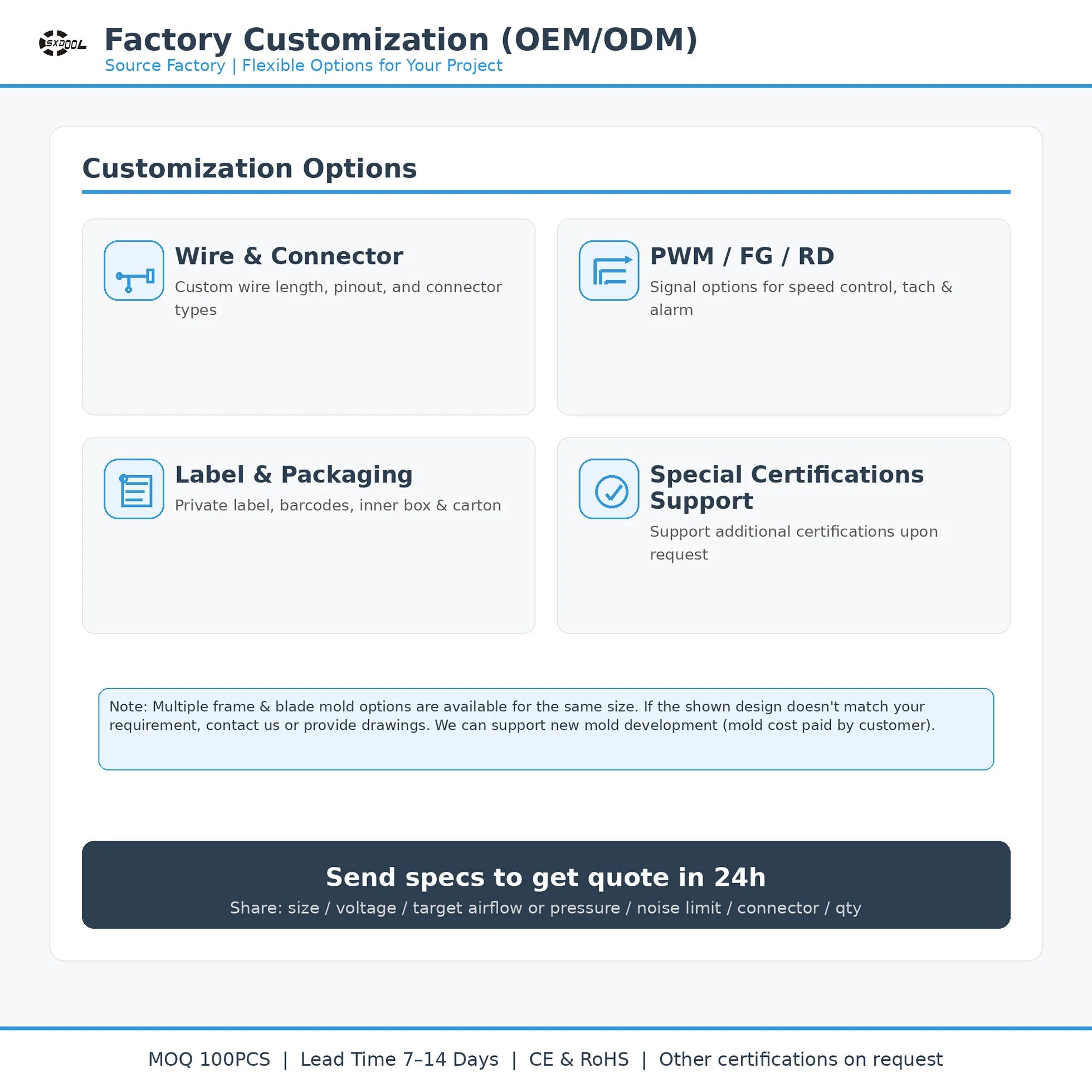

| Signal / wiring | Auto restart, PWM, FG and RD options are shown as platform capabilities; order only the function defined by the complete approved model and interface drawing |
| Operation / storage environment | -10C to 70C, 35%-85% RH operation; -40C to 80C, 35%-85% RH storage per catalog general specification |
| Best-fit buyer intent | Dense power electronics, industrial cabinets and equipment paths where a thicker 38mm frame is available and system resistance exceeds typical 25mm-frame duty. |

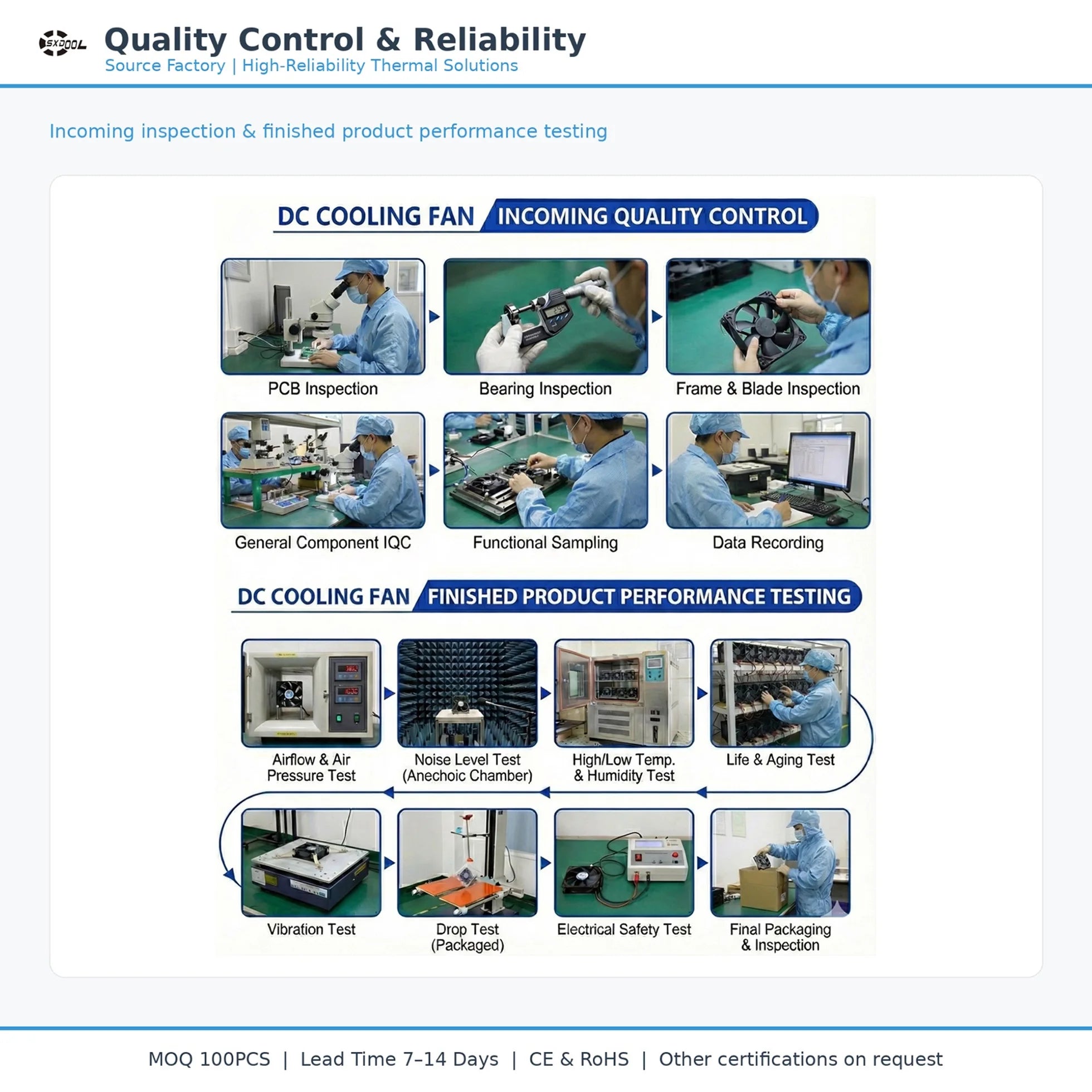

| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |

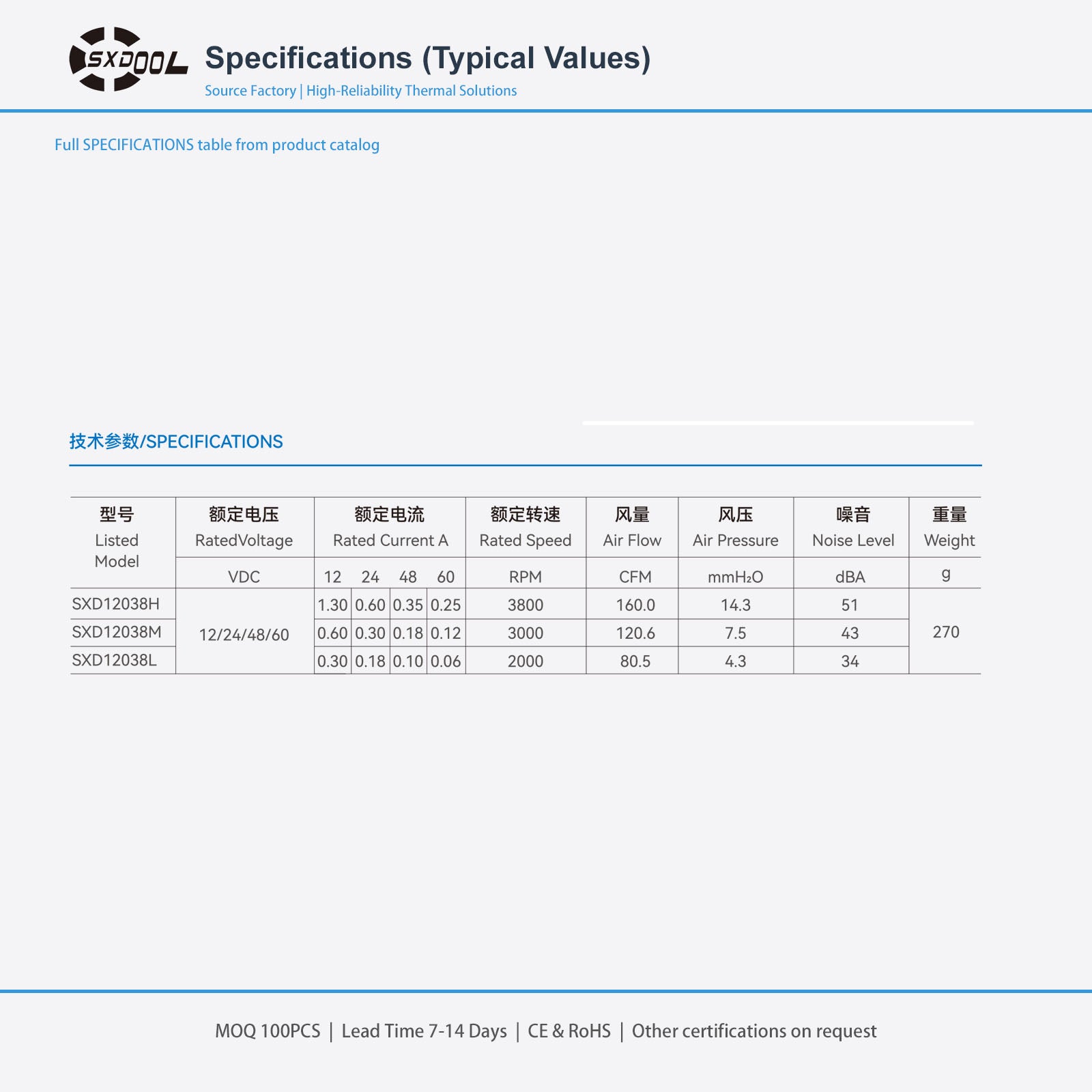

Configuration and qualification table
| Catalog base grade | Available voltage | Rated current by voltage | Speed | Airflow | Static pressure | Noise |
|---|---|---|---|---|---|---|
| SXD12038D | 48/60V | 1.20/1.00A | 5500RPM | 260.5CFM | 42.0mmH2O | 68dBA |
| SXD12038H | 12/24/48/60V | 3.30/1.80/0.90/0.85A | 5000RPM | 240.1CFM | 34.6mmH2O | 65dBA |
| SXD12038M | 12/24/48/60V | 2.00/0.85/0.60/0.50A | 4000RPM | 188.5CFM | 21.5mmH2O | 58dBA |
| SXD12038L | 12/24/48/60V | 1.20/0.50/0.38/0.25A | 3000RPM | 140.1CFM | 12.0mmH2O | 52dBA |
Engineering release rule: Catalog and current-page values are reference data under their stated conditions. The approved drawing, complete model suffix, controlled datasheet, sample label and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
Which 12038 catalog grade should be used for a 12V project?
The current catalog lists H, M and L at 12V; the D grade is shown for 48V and 60V. Compare 240.1, 188.5 and 140.1CFM reference points with the real resistance curve and supply capacity.
What changes when a buyer moves from 12025 to a 12038 frame?
The 38mm depth can provide more pressure capability but also changes installation depth, fastener length, inlet clearance, power demand and acoustic behavior. Confirm the full mechanical stack and thermal duty point.
How should the 60V option be qualified before production release?
Confirm the exact grade, operating-voltage tolerance, current, connector insulation and rating, polarity, transient conditions, cable specification and restart behavior on the approved 60V sample.
Why should procurement avoid requesting only a 12038 24V fan?
That phrase leaves H, M and L performance grades, bearing, cable, connector and signal undefined. A purchase specification must identify the complete model suffix and approved drawing.
Continue with the fan selector, 120mm DC series and high-static-pressure selection guidance, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
