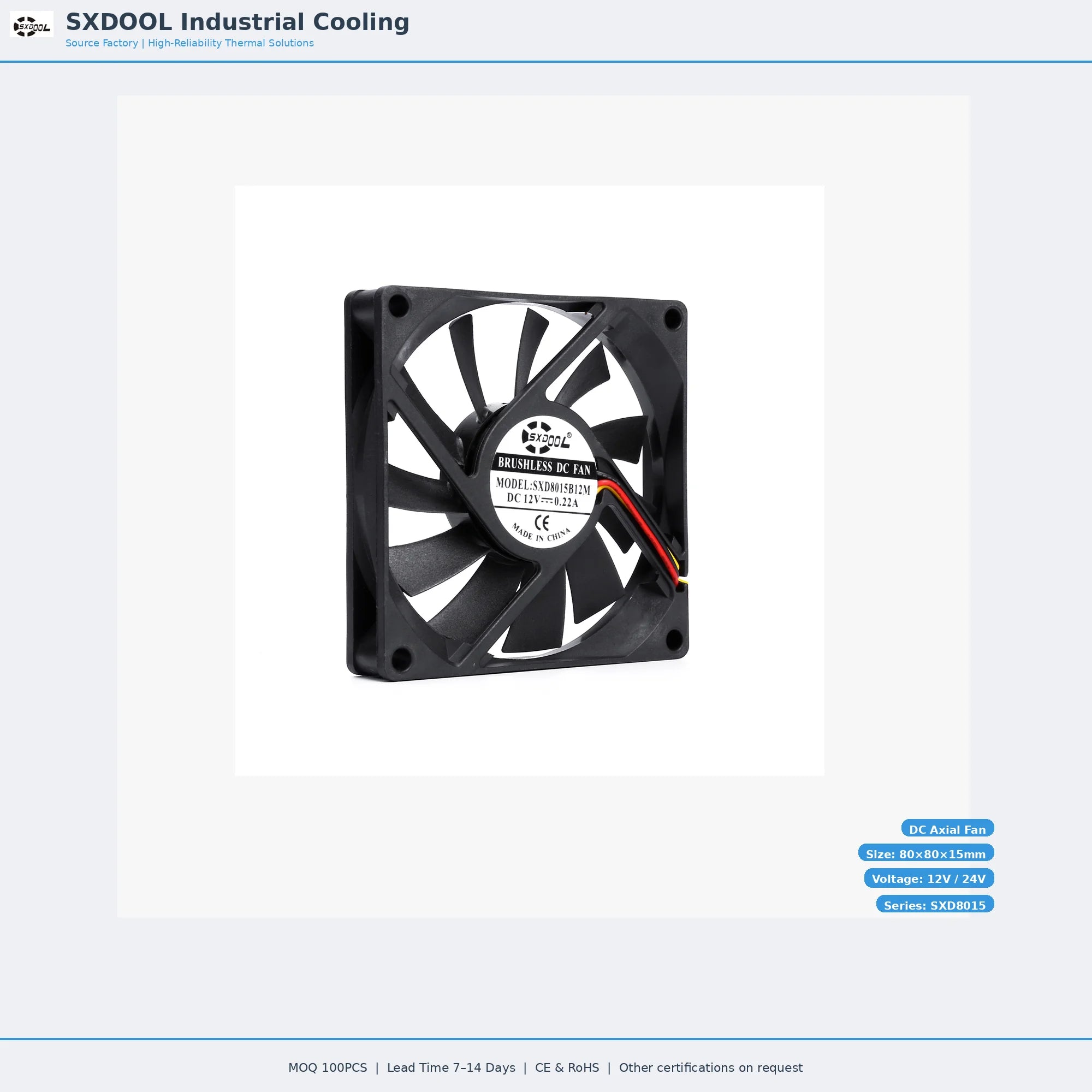

SXDOOL 8015 80x80x15mm DC Axial Fan 12V-48V
SXDOOL 8015 80x80x15mm DC axial fan for thin chassis and telecom accessories. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 12V, 24V, 48V |
|---|
80x80x15mm 12V / 24V / 48V engineering selection facts
This page is the product-level source for engineers comparing DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | 80x80x15mm 12V / 24V / 48V |
|---|---|
| Fan family | DC axial fan |

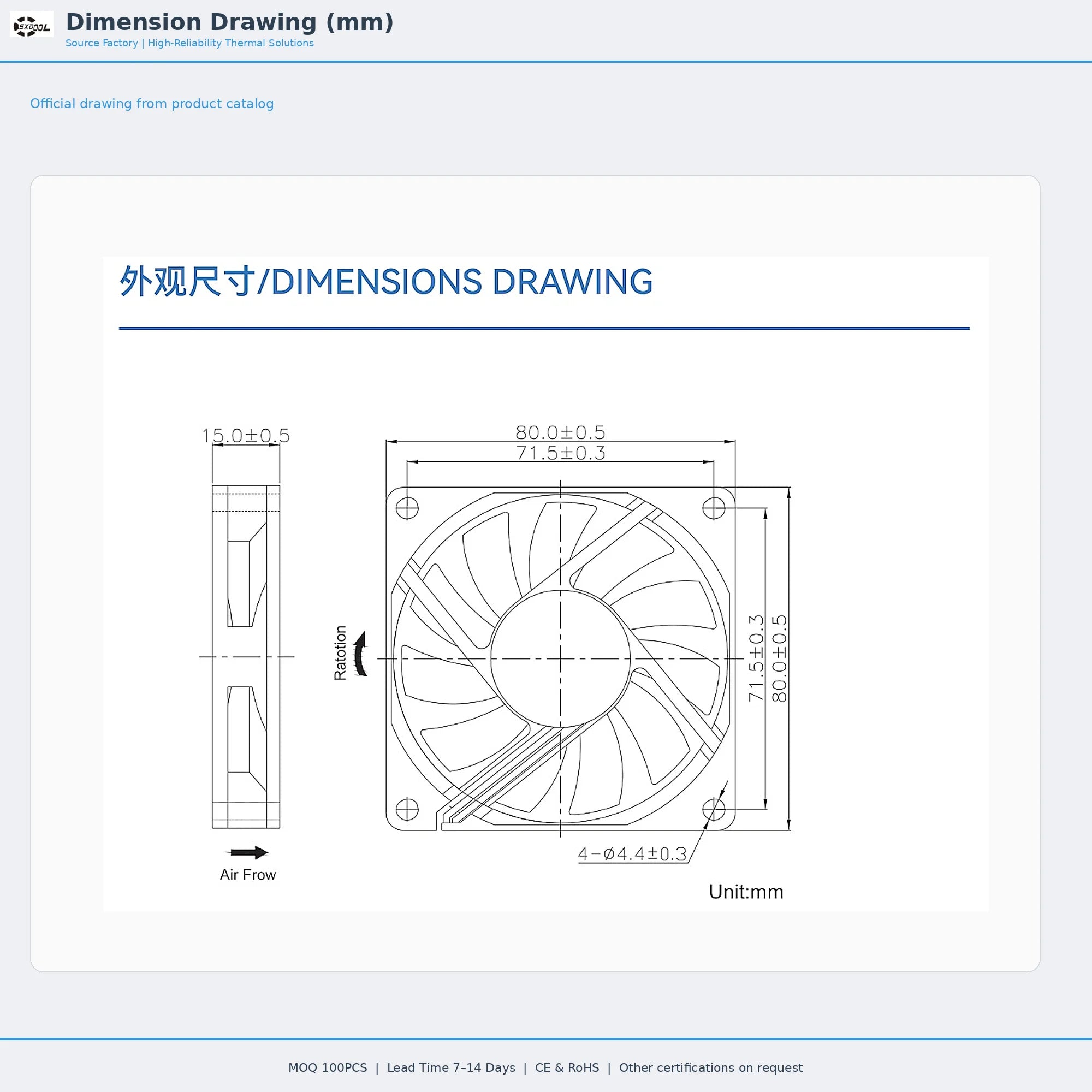

| Frame / dimensions | 80x80x15mm |
| Voltage / input | 12V / 24V / 48V |
SKU-specific engineering FAQ
80x80x15mm 12V / 24V / 48V duty-point validation: What thermal test confirms sufficient airflow margin?
This page identifies the fan family, frame and voltage platform but does not publish one universal operating point. Compare the resulting airflow at equipment resistance with the thermal target rather than selecting by frame size or free-air airflow alone.
80x80x15mm 12V / 24V / 48V electrical qualification: Which interface must match the host controller?

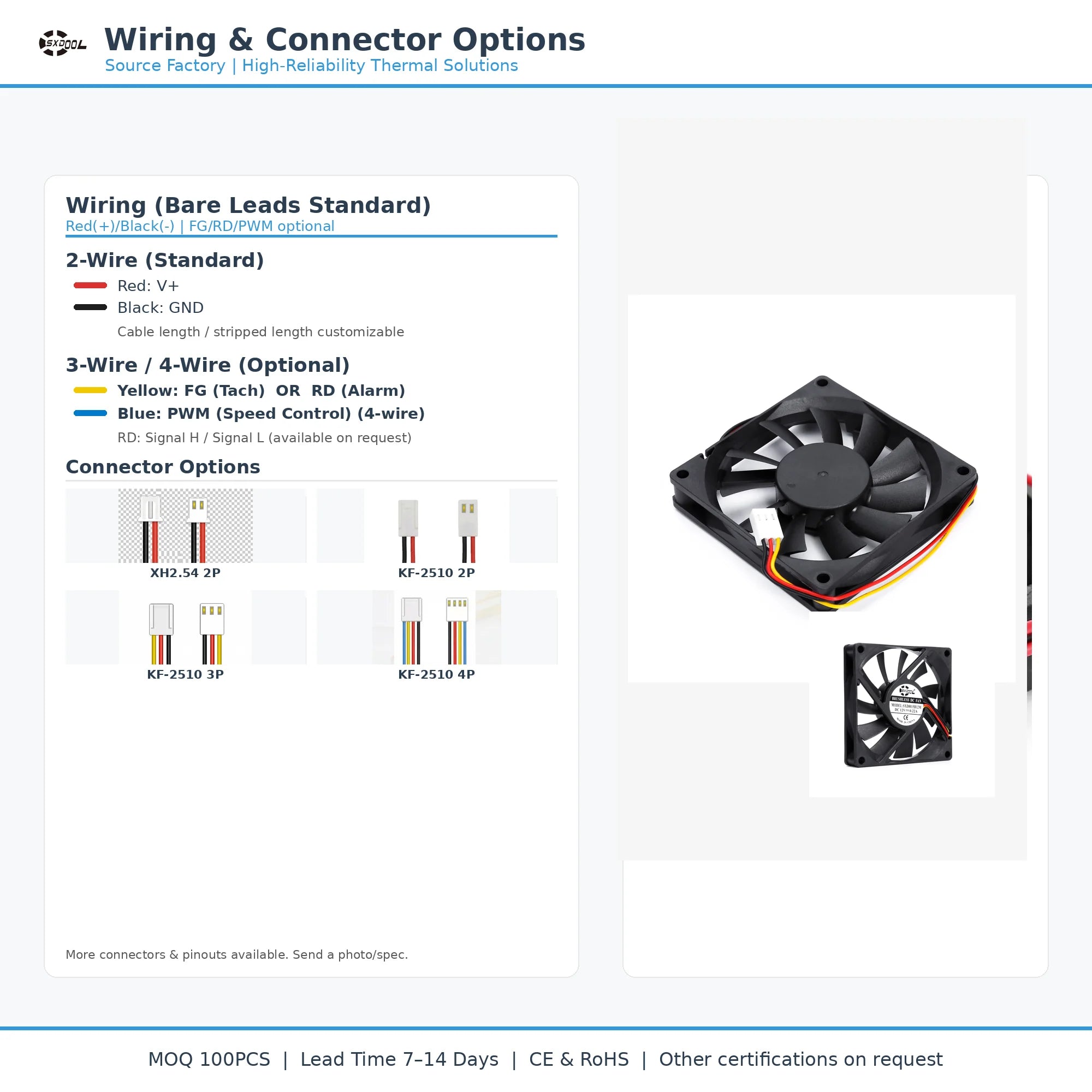

The page maps this SKU to 12V / 24V / 48V. Confirm polarity, running and startup current, wire gauge, connector pinout and any tachometer or alarm requirement before sample approval.
80x80x15mm 12V / 24V / 48V application fit: What target-system evidence supports shortlisting this SKU?
The 80x80x15mm DC axial fan platform is a candidate for telecom equipment, power electronics and server subsystems. Confirm heat load, pressure drop, noise limit, duty cycle, cable, connector, quantity and the actual operating environment in a representative sample assembly.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
8015 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved DC fan drawing, frame and impeller BOM, exact voltage-grade current, pressure-flow curve, acoustic condition, bearing code, signal and wiring definition, connector and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 8015 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
What enclosure conditions should be reproduced for an 80x80x15mm sample test?
Reproduce the production grille, filter if used, board spacing, inlet opening, exhaust path, cable routing, ambient temperature and duty cycle. Record the selected voltage and connector definition with the thermal result so the approved 15mm configuration can be repeated without substituting another 80mm variant.
