Thermal Stability = Process Yield: High-EMI-Hardened Fans for Semiconductor RF Generators

In a semiconductor RF generator, the cooling fan sits at the intersection of two requirements that pull against each other: it must move enough air to hold the power stage at a stable temperature, and it must do so through a shielded enclosure without becoming either an antenna or a victim. When that balance is wrong, the symptom does not appear as a fan failure — it appears as process drift.

Use this page for RFQ preparation

The useful RFQ for an RF-generator fan describes the enclosure, not just the fan. Required: RF frequency and expected field strength near the fan, the shield construction and aperture constraints, the heat load to be removed, ambient temperature, and the acceptable delivered-power drift over a shift. Without the last item, thermal specification becomes guesswork.

Why the RF generator cabinet is a hard thermal case

RF power amplifiers convert DC to RF at an efficiency well below unity, so a substantial fraction of the input power leaves as heat, concentrated in a small number of devices. Depending on the power class, that heat is handled by liquid cooling, by forced air through a heatsink tunnel, or by a combination of both. Air-cooled designs usually have high power density, high static pressure demand, and limited space — all conditions that push a fan toward higher speed and therefore toward both acoustic noise and electrical noise.

The thermal design goal is not merely to stay below a maximum junction temperature. It is to hold the device temperature stable, because gain and matching drift with temperature. A fan whose speed follows a poorly damped control curve, or whose airflow degrades as its filter loads, produces slow thermal oscillations that the RF loop then chases.

A fan is an aperture — and an aperture is a leak

Every opening in a shielded enclosure is a potential path for RF energy. A fan cutout is one of the largest openings in most cabinets, so the mechanical answer is usually a waveguide or honeycomb screen sized against the wavelength of interest, with a gasket maintaining contact across the joint. Two consequences follow for the fan itself:

• The screen costs pressure. A honeycomb panel adds resistance, so the fan must be selected against the impedance of the screened path, not the bare cutout.
• The fan must not compromise the bond. Paint, anodising and compliant mounting hardware can all break the ground path across the aperture. The fan frame is part of the shielding boundary whether or not it was designed as such.

Why brushed motors are the wrong choice in an RF cabinet

Brushed DC motors commutate mechanically, and every commutation event is a small broadband emission. Inside a cabinet that is simultaneously trying to contain an RF source and protect sensitive control electronics, that emission is undesirable in both directions. Brushless DC motors remove the mechanism entirely, which is one reason they dominate in this application; the remaining considerations are the drive electronics and the cabling.

The reverse direction matters as much. A fan’s own control electronics can be disturbed by the ambient field, producing erratic speed, tach errors, or a drive that resets. Practical mitigations are ordinary and effective: keep fan leads short and twisted, route them away from the RF path, use ferrite suppression at the entry point, and confirm that the drive is referenced to the same ground as the enclosure.

What “thermal stability” should mean in the specification

Stability is a system property, but the fan contributes three things to it:

• Airflow margin that survives filter loading. A fan selected at its end-of-life restriction has no headroom. Selection should be made at the dirty-filter condition, with the clean condition treated as the quiet, low-speed case.
• A control law that does not oscillate. Slow ramps and hysteresis prevent the fan from hunting around a temperature threshold, which would otherwise modulate the device temperature continuously.
• A verifiable feedback signal. An FG tach output lets the controller distinguish “fan running slowly because it is cool” from “fan failing”. Without it, a failed fan looks like a satisfied control loop.

What to specify in an RF-environment fan

• Brushless DC motor, with the drive’s immunity confirmed for the field conditions present
• Metallic frame suitable for bonding to the enclosure, with a defined bonding point
• Bearing type matched to mounting orientation; ball bearings tolerate any orientation, sleeve bearings do not
• PWM or voltage speed control, plus FG tach and, where required, a locked-rotor alarm
• Lead length, twisted pair, connector type and screening consistent with the enclosure entry
• Operating temperature range that covers the internal ambient, not the room ambient
• Static pressure capability at the screened-path impedance

What SXDOOL supplies

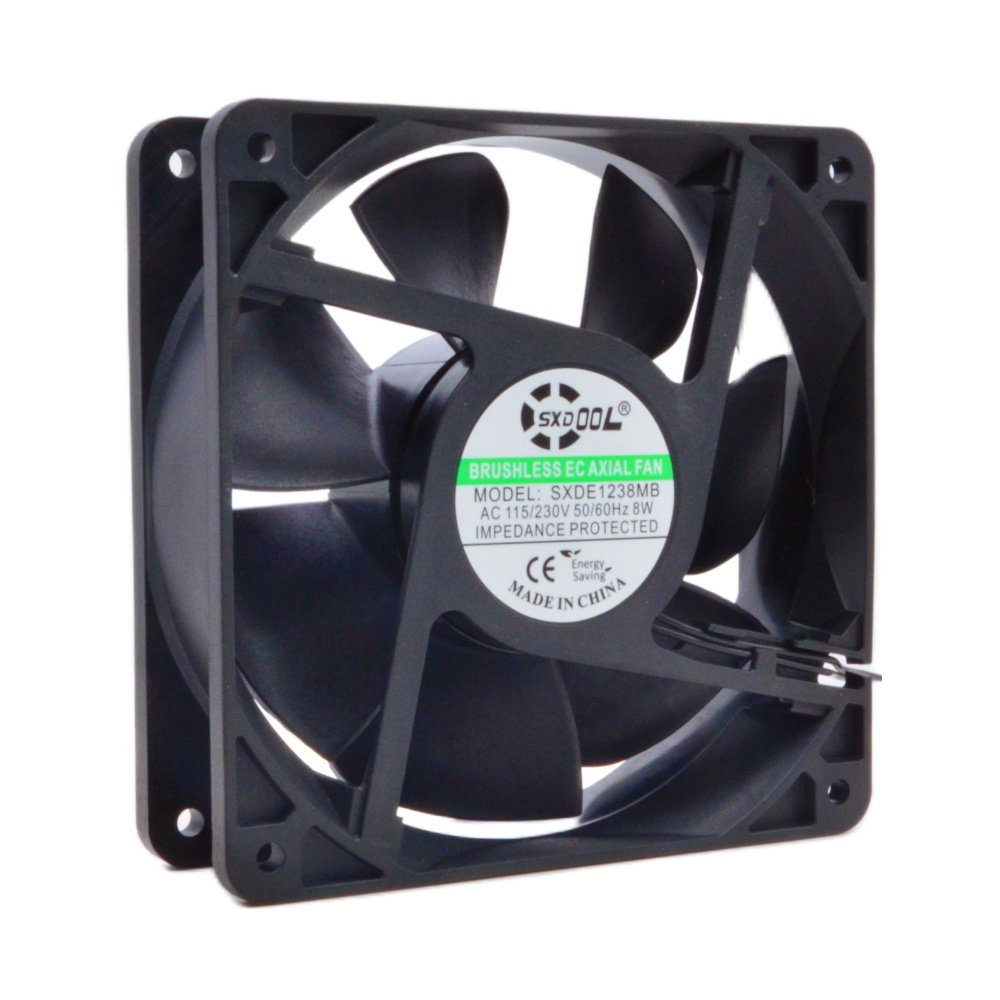

Our catalogue covers DC axial fans from 20 mm to 280 mm frames at 5 V, 12 V, 24 V and 48 V, AC axial fans at 110–240 V, and EC fans with a 110–220 V wide-range input, in ball or sleeve bearing versions, with PWM and FG options and configurable leads and connectors. Minimum order quantity is 50 pcs, which is deliberately low so that qualification samples and low-volume spare demand can be served without a production commitment.

One boundary to be clear about: RF hardening is defined per project, not per catalogue part. A standard fan is not an EMI-qualified component, and whether a given variant is acceptable inside your cabinet depends on your shielding design, your field strength and your cabling. We will state exactly what evidence exists for the specific variant quoted rather than imply a qualification that has not been performed.

RFQ Checklist

• RF frequency, power class and expected field strength in the fan’s location
• Shield construction, aperture screen type, and the resulting pressure loss
• Heat load, internal ambient temperature, altitude and duty cycle
• Required airflow at the screened-path impedance, at dirty-filter condition
• Acceptable temperature stability band and the resulting power-drift limit
• Control interface, tach feedback and alarm behaviour required by the system
• Mounting orientation, available depth and service access
• Bonding and grounding requirements at the fan frame
• Connector, lead length and screening expectations
• Qualification tests required, and whether they are witnessed or self-declared

Related engineering resource

Because a screened intake changes the operating point, size the fan against the real restriction: see calculating system impedance. For multi-fan plenums where recirculation can defeat an otherwise adequate design, see fan array recirculation and hot-spot bypass. Catalogue ranges are under DC cooling fans, and custom arrangements are described under OEM cooling fan manufacturing.

Project-specific FAQ

Can a standard fan be used inside an RF cabinet?

Often yes, provided the aperture is screened, the frame is bonded, and the fan’s own electronics tolerate the ambient field. The determination is made against your enclosure, not against the fan alone, which is why the RF conditions belong in the RFQ.

Does a higher-speed fan always mean better cooling here?

No. Beyond a point, added speed buys pressure that the screened path consumes, while adding acoustic and electrical noise. The useful question is the operating point at the real impedance, not the free-air airflow figure.

How should fan failure be detected?

By an FG tach signal with a threshold, or by a locked-rotor alarm output, wired into the generator’s interlock so that loss of airflow reduces or inhibits RF output rather than silently overheating the power stage.

Is temperature-controlled fan speed appropriate in this application?

It is, if the control law is slow and hysteretic and the ceiling is set from the device specification. Fast control loops are counterproductive because they convert fan behaviour into thermal modulation of the RF stage.
