SXDOOL SXD12025B12M-FP 120x120x25mm 12V DC Fan
SXDOOL SXD12025B12M-FP 120x120x25mm 12V DC Fan. SXD12025B12M-FP 120x120x25mm 12V DC fan for compact OEM equipment. Confirm airflow, pressure, cable, connector and signal. Source-factory OEM/ODM customization and batch RFQ review are available.
SXD12025B12M-FP 12V engineering qualification
Engineering summary: A 120x120x25mm 12V DC axial fan with an M performance-grade reference and an -FP configuration suffix. Catalog base-grade data support engineering comparison, while the -FP drawing controls the exact interface and purchasable configuration.
| Model / product reference | SXD12025B12M-FP |
|---|---|
| Fan family | Brushless DC axial fan |
| Dimensions | 120x120x25mm |
| Rated voltage | 12V DC |
| Rated current | 0.80A catalog reference for SXD12025M at 12V |
| Speed | 3000RPM catalog SXD12025M base-grade reference |
| Airflow | 112.7CFM nominal free-air catalog reference |
| Static pressure | 10.0mmH2O catalog reference |
| Noise | 50dBA catalog reference under the stated measurement condition |
| Bearing type | Sleeve-bearing and ball-bearing configurations are cataloged; the ordered bearing must match the complete model and approved drawing |

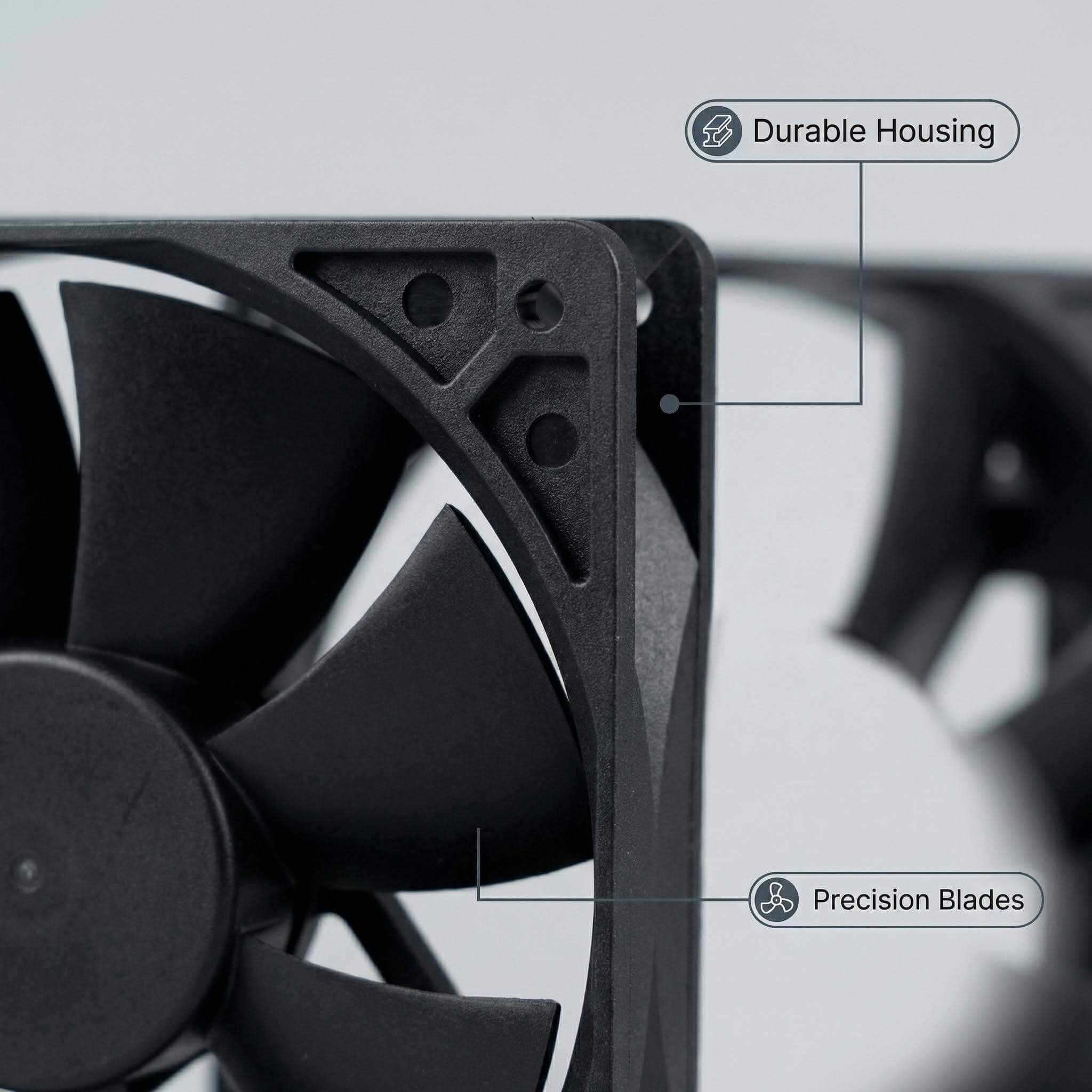

| Material / flammability | Frame and impeller: Plastic (UL94V-0) |
| Signal / wiring | The -FP suffix is configuration-specific; do not infer FG, PWM or RD behavior without the approved interface drawing. |
| Operation / storage environment | -10C to 70C, 35%-85% RH operation; -40C to 80C, 35%-85% RH storage per catalog general specification |

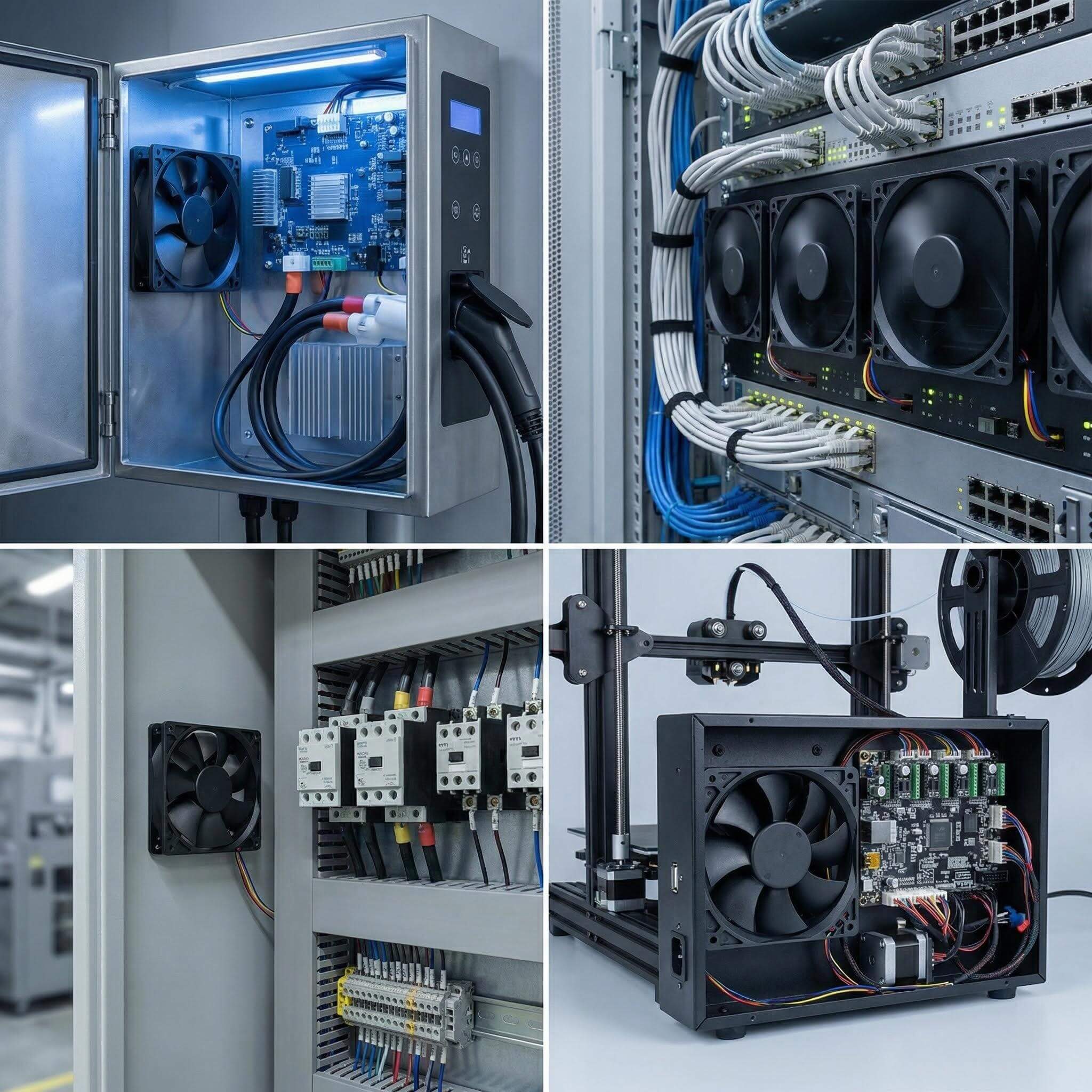

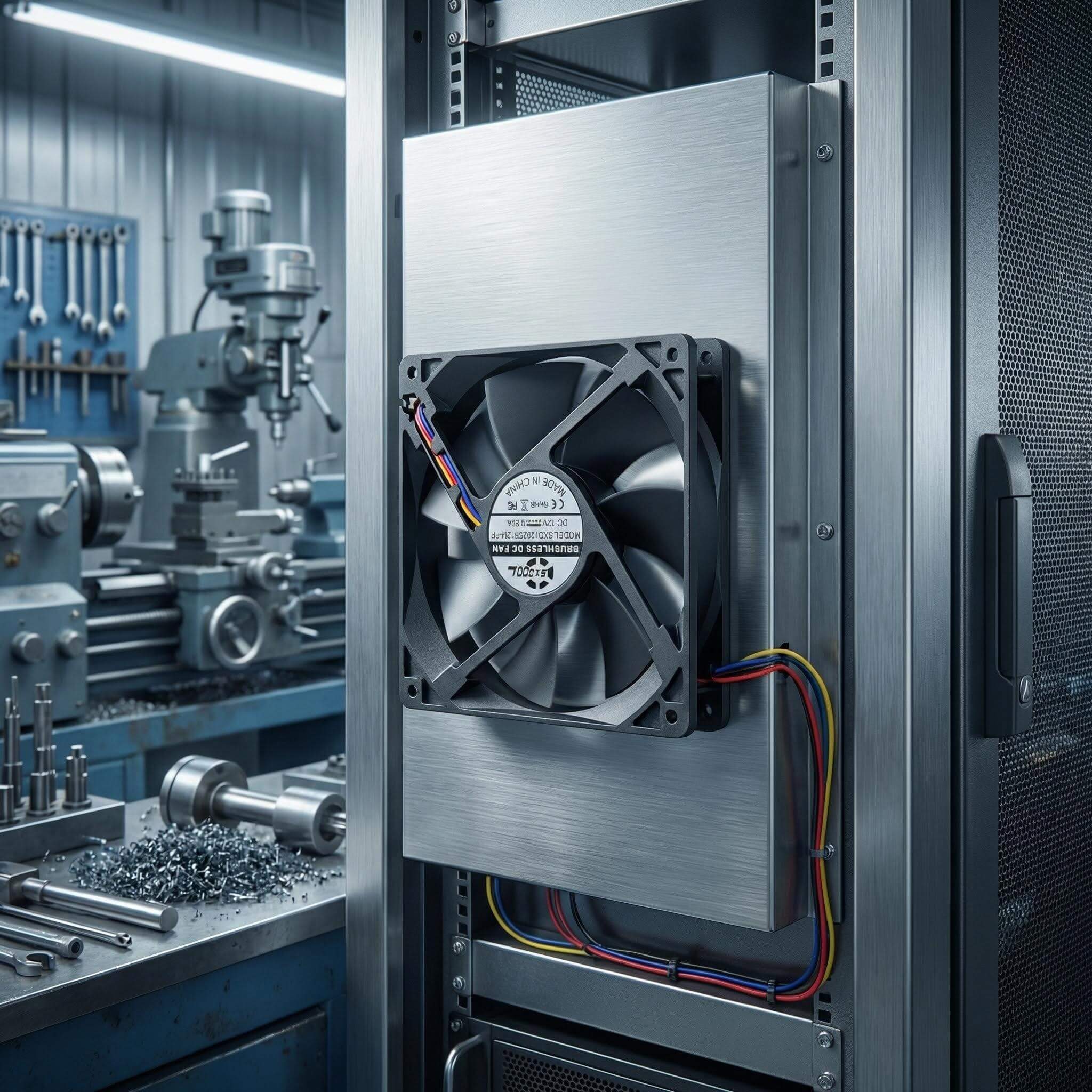

| Best-fit buyer intent | Compact OEM equipment requiring the 12025 M-grade duty range and a controlled -FP wiring or interface configuration. |
| Manufacturer and quality review | SENSDA ELECTRONICS LIMITED / SXDOOL. ISO 9001:2015 quality-management documentation, OEM/ODM cable and connector requirements, Dynamic Balancing, and 100% End-of-Line Testing can be reviewed against the approved production control plan. |
Configuration and qualification table
| Verification layer | Current reference | Production-release requirement |
|---|---|---|
| Catalog performance basis | SXD12025M base grade | 3000RPM, 112.7CFM, 10.0mmH2O, 50dBA under catalog test conditions |
| Special suffix | -FP | Approved drawing, pinout, cable, connector and label must match the ordered suffix |
| Equipment validation | 12V system sample | Verify startup current, pressure-path airflow, temperature, noise and restart behavior |
Engineering release rule: Catalog and current-page values are reference data under their stated conditions. The approved drawing, complete model suffix, controlled datasheet, sample label and validated equipment test govern the final purchasable configuration.
Model-specific engineering FAQ
What must -FP mean in the SXD12025B12M-FP purchase specification?
The suffix must be tied to the approved drawing and sample. Confirm lead count, pinout, cable length, connector, signal behavior, airflow direction and label rather than expanding the letters by assumption.
Can the SXD12025M catalog values be treated as guaranteed -FP equipment airflow?
No. They are catalog base-grade reference values under stated test conditions. The -FP production specification and the equipment resistance curve determine the released result.
Which 12V power checks are needed before this fan is connected to an OEM controller?
Confirm supply tolerance, polarity, startup demand, harness voltage drop, connector rating, protection expectations and any feedback input on the approved sample.
How should an -FP sample be compared with a standard SXD12025B12M?
Use the same restriction path and record current, speed, delivered airflow or pressure, component temperatures, noise, restart behavior and interface response; document any difference caused by the special configuration.
Continue with the fan selector, 120mm fan series and server/cabinet airflow guidance, or submit a model-specific RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
