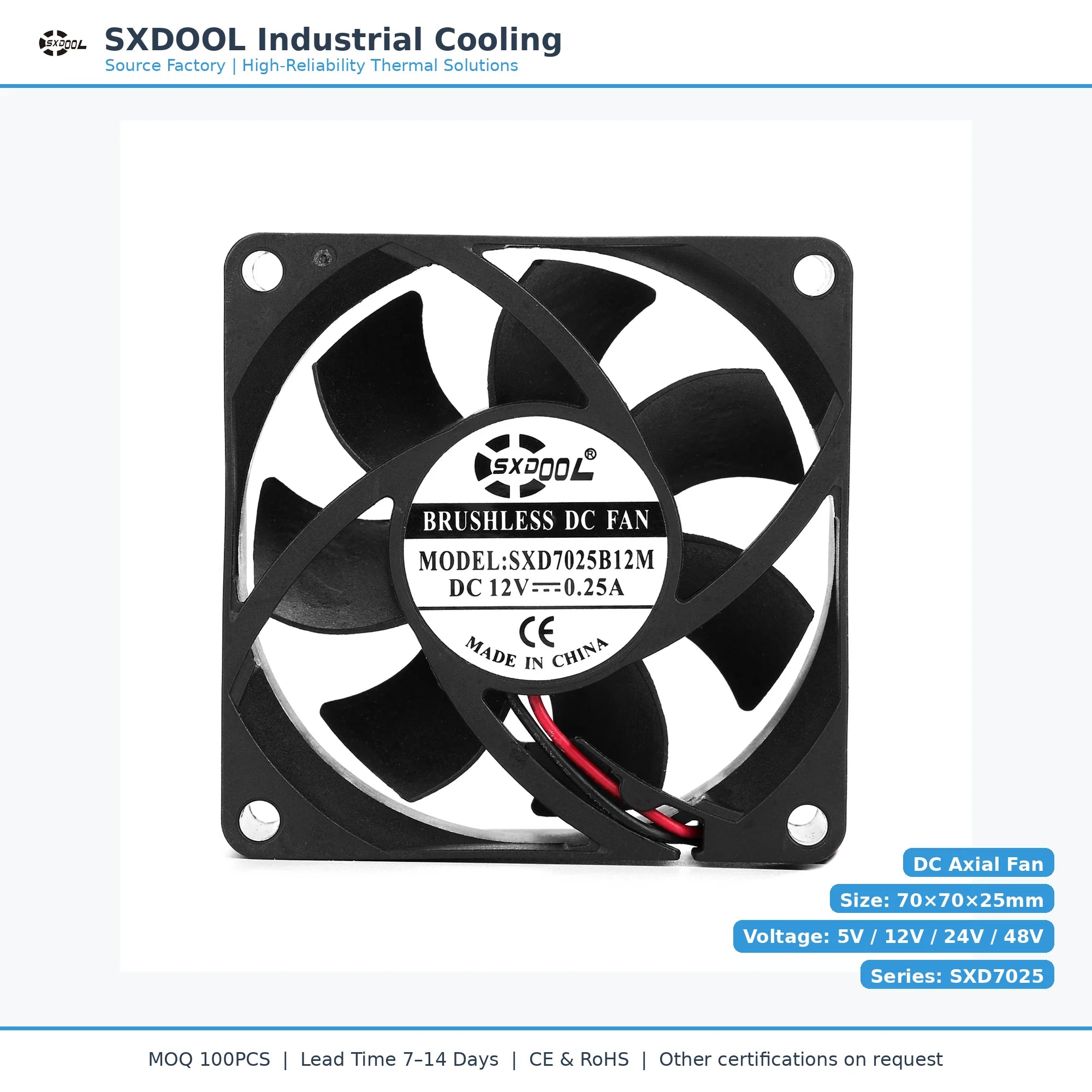

SXDOOL 7025 70x70x25mm DC Axial Fan 5V-24V
SXDOOL 7025 70x70x25mm DC axial fan for industrial electronics and equipment enclosures. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 5V, 12V, 24V |
|---|---|
| Frame size | 70x70x25mm |
| Material | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current m |
| Speed | 3000–5000 RPM |
| Airflow | 24.2–42.5 CFM |
| Static pressure | 3.3–8.2 mmH2O |
| Noise | 24–36 dBA |
70x70x25mm 5V / 12V / 24V engineering selection facts
This page is the product-level source for engineers comparing DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | 70x70x25mm 5V / 12V / 24V |
|---|---|
| Fan family | DC axial fan |
| Frame / dimensions | 70x70x25mm |
| Voltage / input | 5V / 12V / 24V |
SKU-specific engineering FAQ
70x70x25mm 5V / 12V / 24V installation review: How should the 70x70x25mm envelope be validated in the actual equipment?

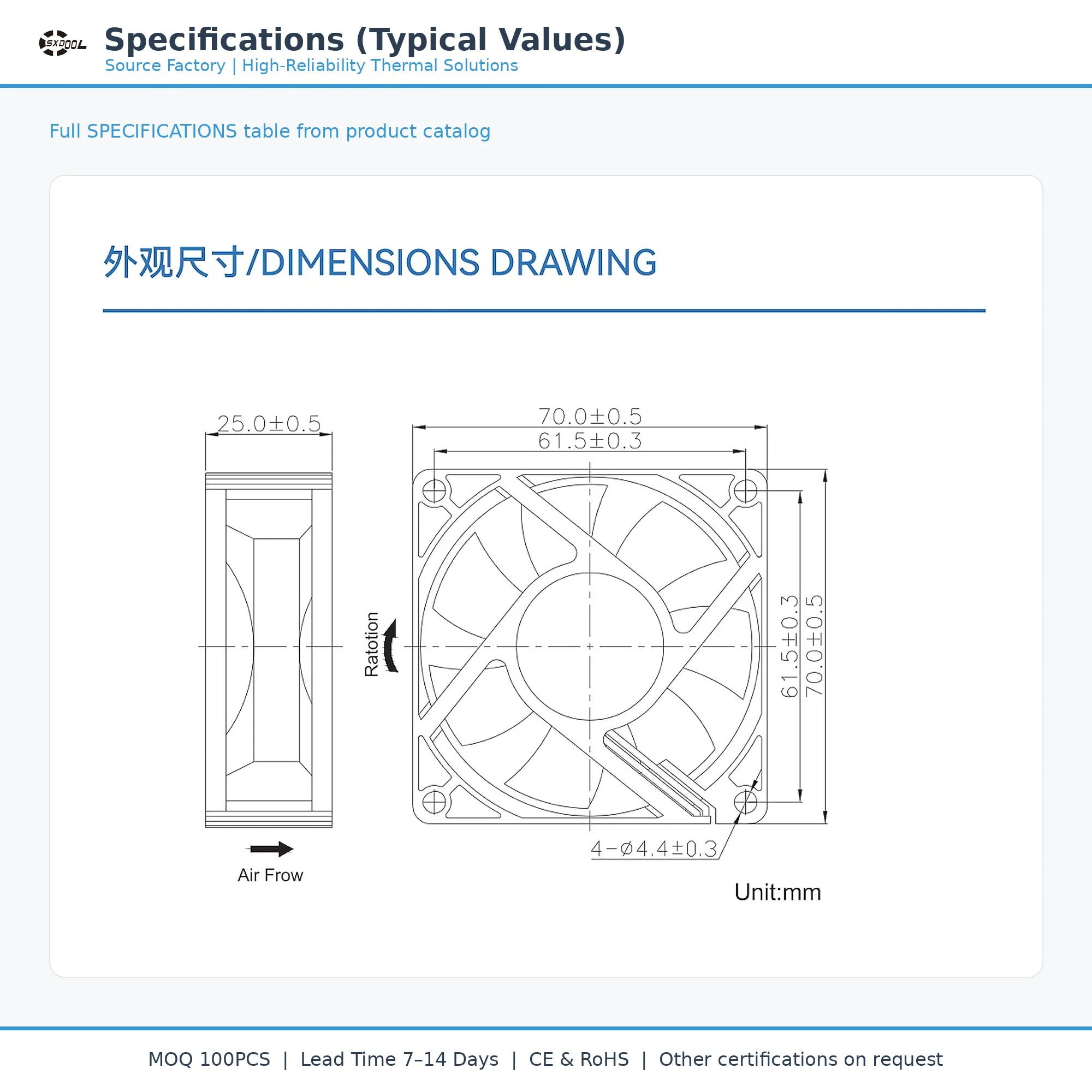

The published frame is 70x70x25mm. Verify depth, mounting-hole pattern, inlet clearance, guard or filter stack-up and cable-exit direction against the equipment drawing.
70x70x25mm 5V / 12V / 24V electrical qualification: What controller-interface information should the buyer provide?

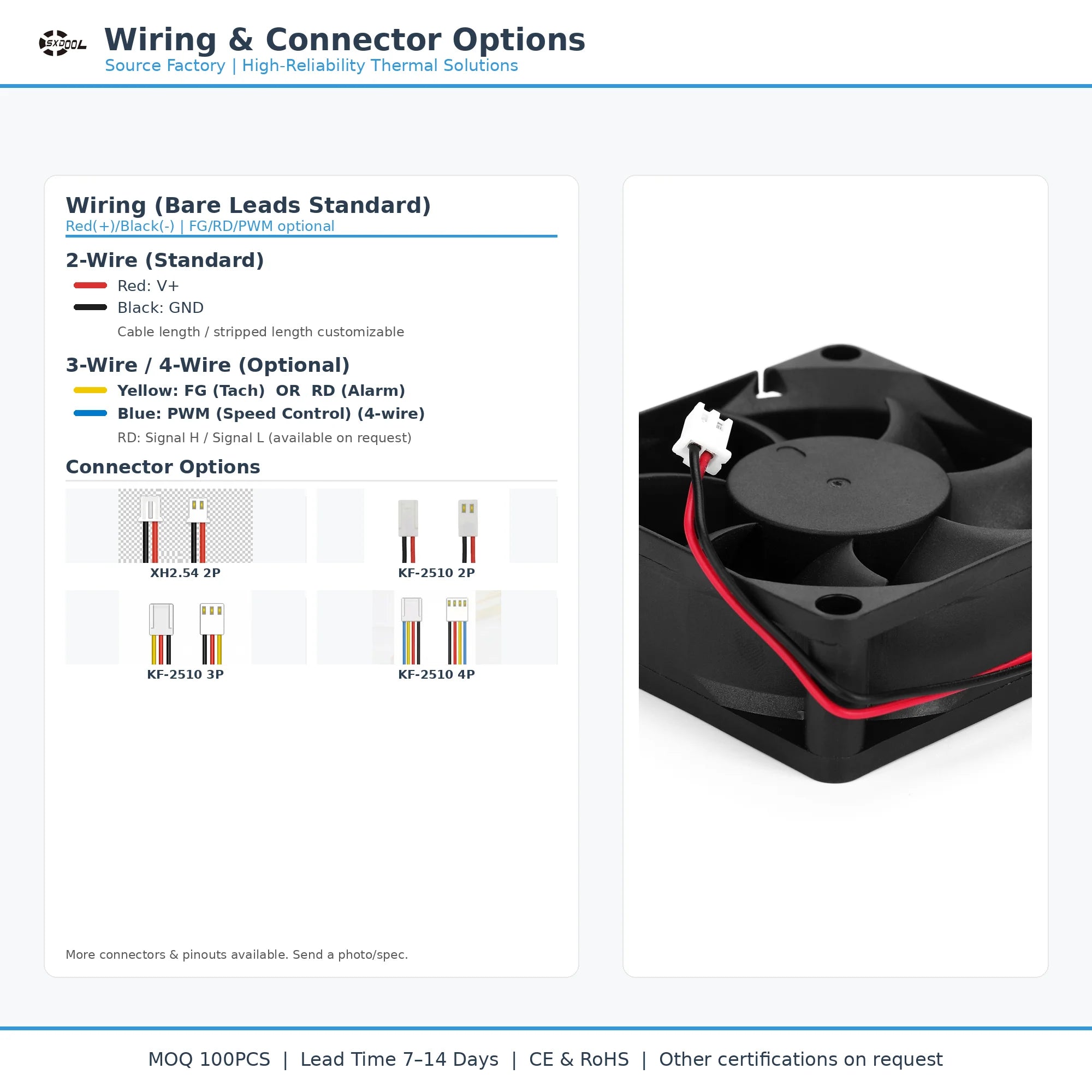

The page maps this SKU to 5V / 12V / 24V. Confirm polarity, running and startup current, wire gauge, connector pinout and any tachometer or alarm requirement before sample approval.
70x70x25mm 5V / 12V / 24V application fit: What application data is needed for validation?
The 70x70x25mm DC axial fan platform is a candidate for telecom equipment, power electronics and server subsystems. Confirm heat load, pressure drop, noise limit, duty cycle, cable, connector, quantity and the actual operating environment in a representative sample assembly.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
7025 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved DC fan drawing, frame and impeller BOM, exact voltage-grade current, pressure-flow curve, acoustic condition, bearing code, signal and wiring definition, connector and final inspection plan. |

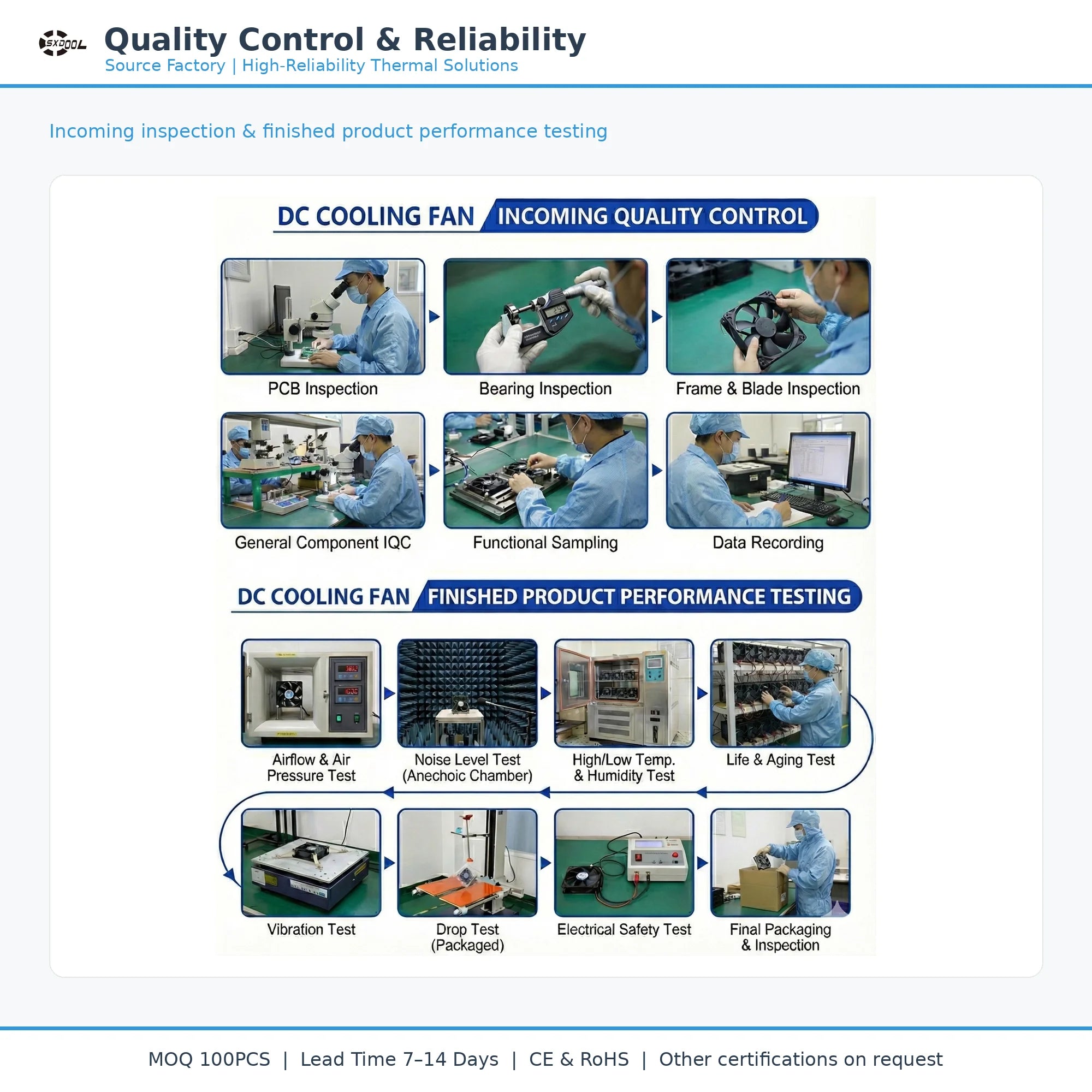

| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 7025 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.
