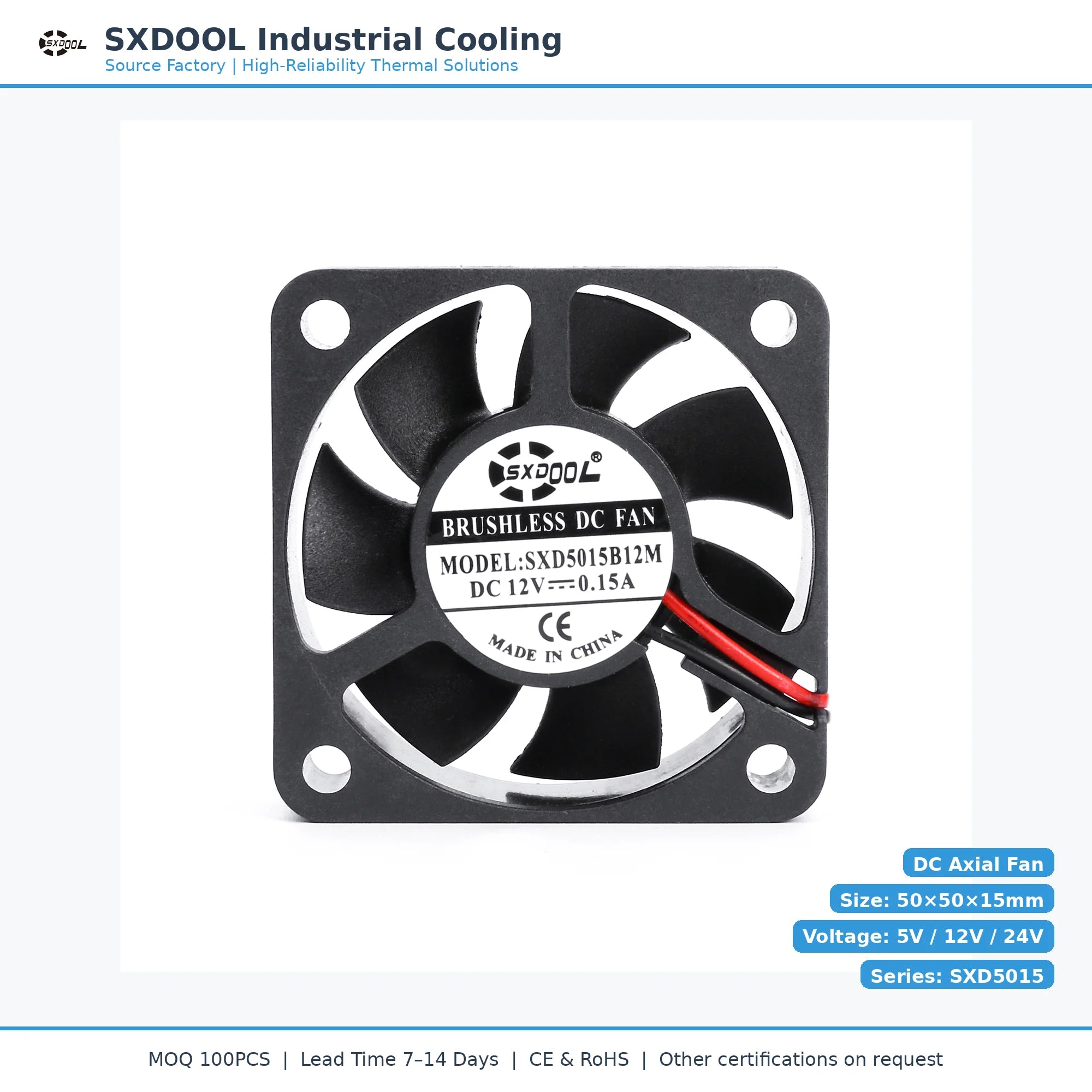

SXDOOL 5015 50x50x15mm DC Axial Fan 5V-24V
SXDOOL 5015 50x50x15mm DC axial fan for industrial electronics and equipment enclosures. Confirm DC voltage, speed, airflow/static pressure, noise, bearing, cable, connector, signal and quantity with SXDOOL for OEM samples, cable, connector, bearing, label and batch RFQ review.
| Voltage | 5V, 12V, 24V |
|---|

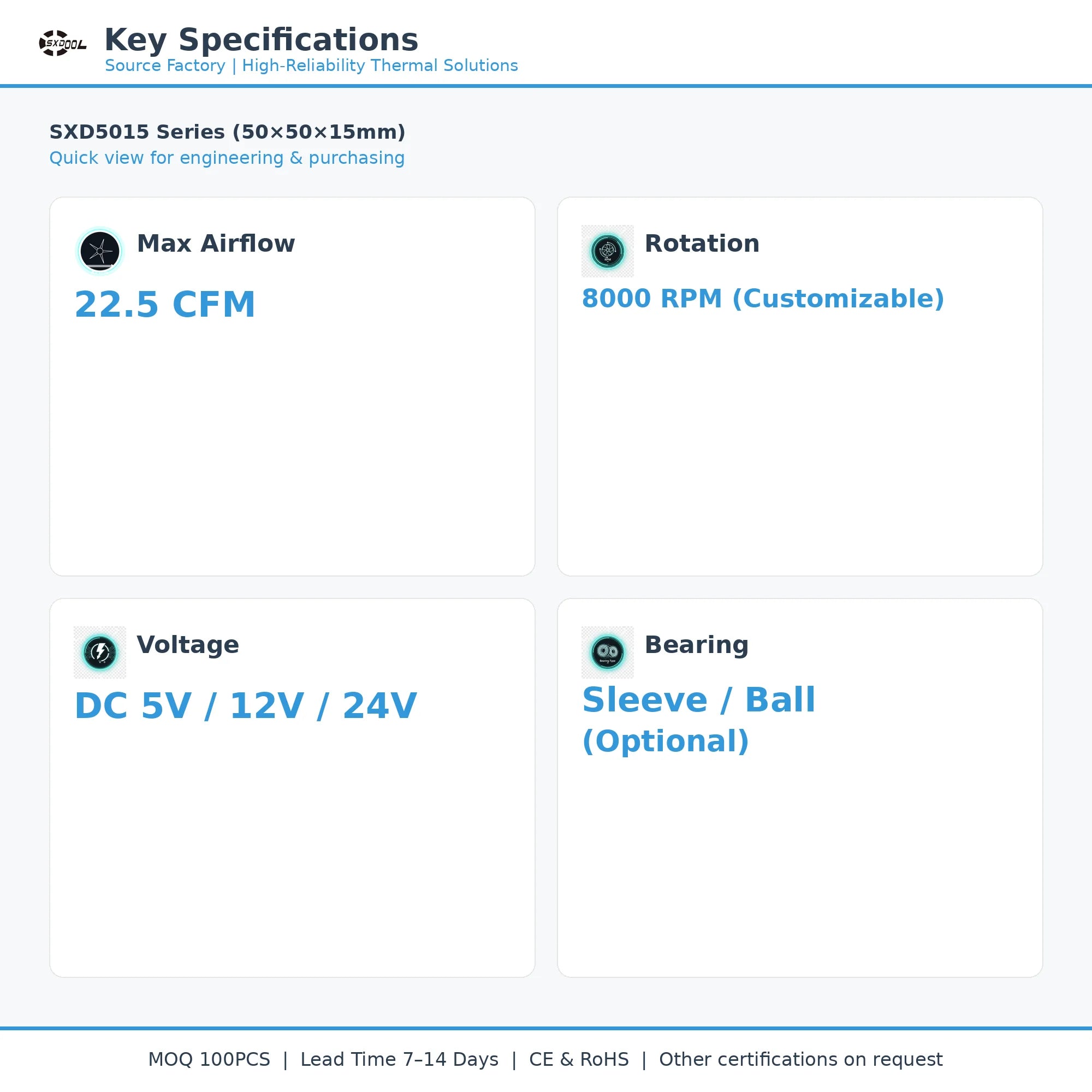

50x50x15mm 5V / 12V / 24V engineering selection facts
This page is the product-level source for engineers comparing DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | 50x50x15mm 5V / 12V / 24V |
|---|---|
| Fan family | DC axial fan |
| Frame / dimensions | 50x50x15mm |
| Voltage / input | 5V / 12V / 24V |
SKU-specific engineering FAQ
50x50x15mm 5V / 12V / 24V duty-point validation: Which thermal margin must remain at the target duty point?
This page identifies the fan family, frame and voltage platform but does not publish one universal operating point. Compare the resulting airflow at equipment resistance with the thermal target rather than selecting by frame size or free-air airflow alone.
50x50x15mm 5V / 12V / 24V electrical qualification: Which electrical mismatch risks must be eliminated before evaluation?

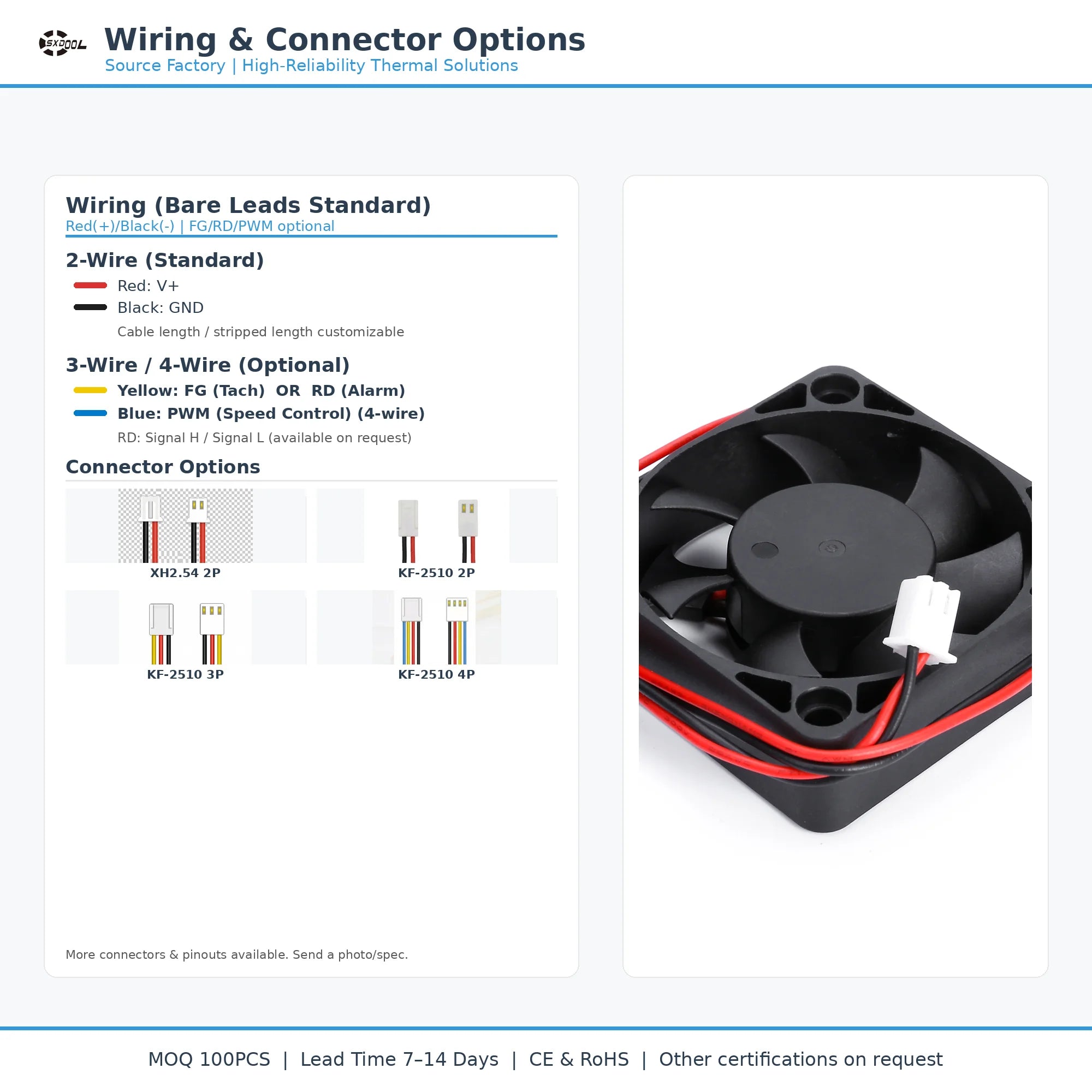

The page maps this SKU to 5V / 12V / 24V. Confirm polarity, running and startup current, wire gauge, connector pinout and any tachometer or alarm requirement before sample approval.
50x50x15mm 5V / 12V / 24V application fit: How should an OEM qualify the sample in the target assembly?
The 50x50x15mm DC axial fan platform is a candidate for power supplies, controllers and compact electronics. Confirm heat load, pressure drop, noise limit, duty cycle, cable, connector, quantity and the actual operating environment in a representative sample assembly.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.

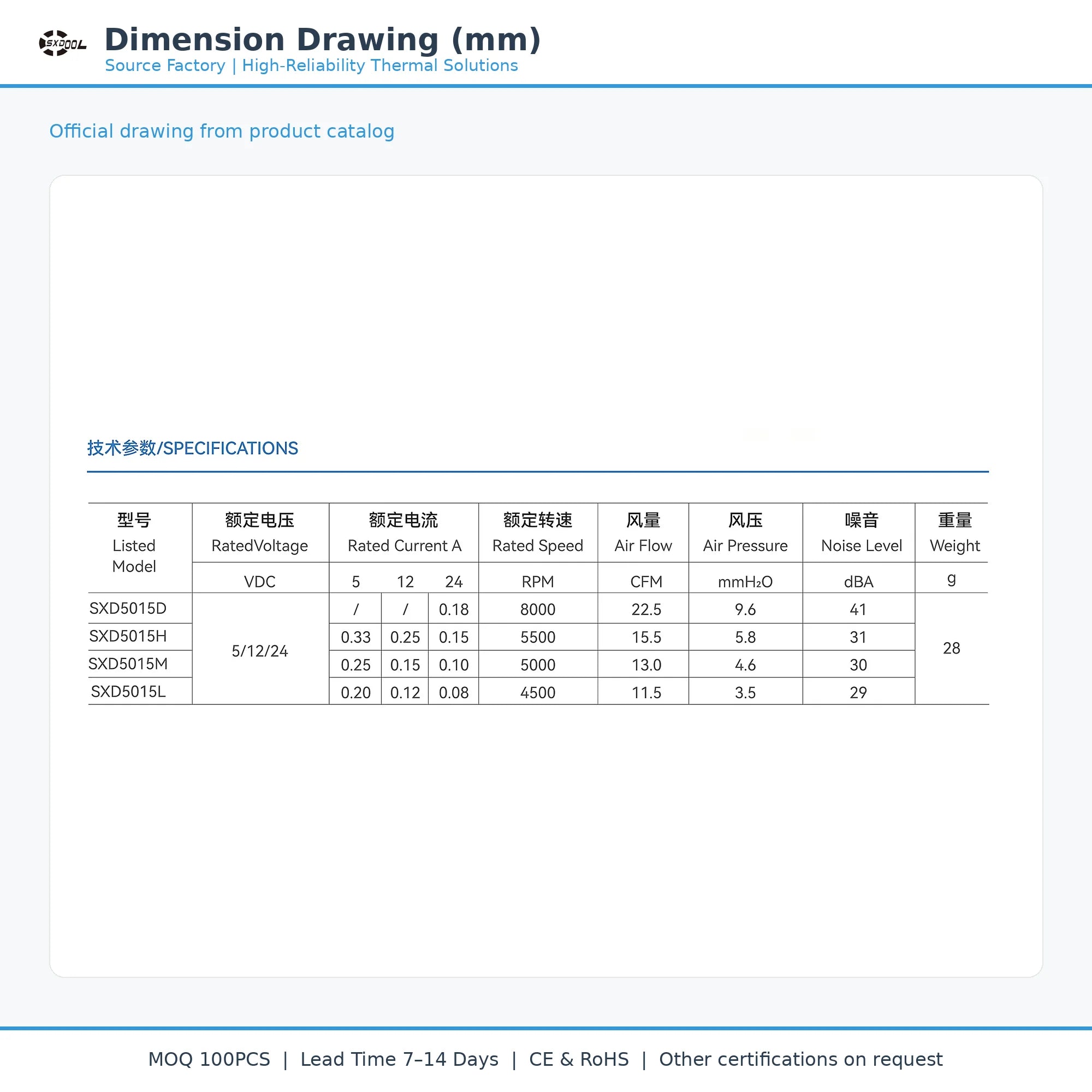

5015 specification status and release evidence
This disclosure separates published performance data from release-controlled evidence so procurement and engineering teams can avoid substituting unverified family claims for the exact configuration.
| Material / flammability status | The exact frame and impeller polymer trade name, resin grade and UL 94 flammability class are not confirmed by current model-specific public evidence. These values must be stated on the approved drawing and BOM before sample or production release; no generic UL94V-0 claim is applied here. |
|---|---|
| Model-specific release evidence | Approved DC fan drawing, frame and impeller BOM, exact voltage-grade current, pressure-flow curve, acoustic condition, bearing code, signal and wiring definition, connector and final inspection plan. |
| Quality and traceability evidence | SXDOOL / SENSDA ELECTRONICS LIMITED applies ISO 9001:2015 quality-management controls. Dynamic Balancing and 100% End-of-Line Testing records can be reviewed against the approved production control plan for the released configuration. |
| Evidence request | Request the controlled drawing, BOM or material declaration, applicable performance curve, wiring definition and inspection record for 5015 from david@sxdool.com before qualification. |
Review quality assurance, factory capabilities, or submit a model-specific RFQ. External inquiry: david@sxdool.com.

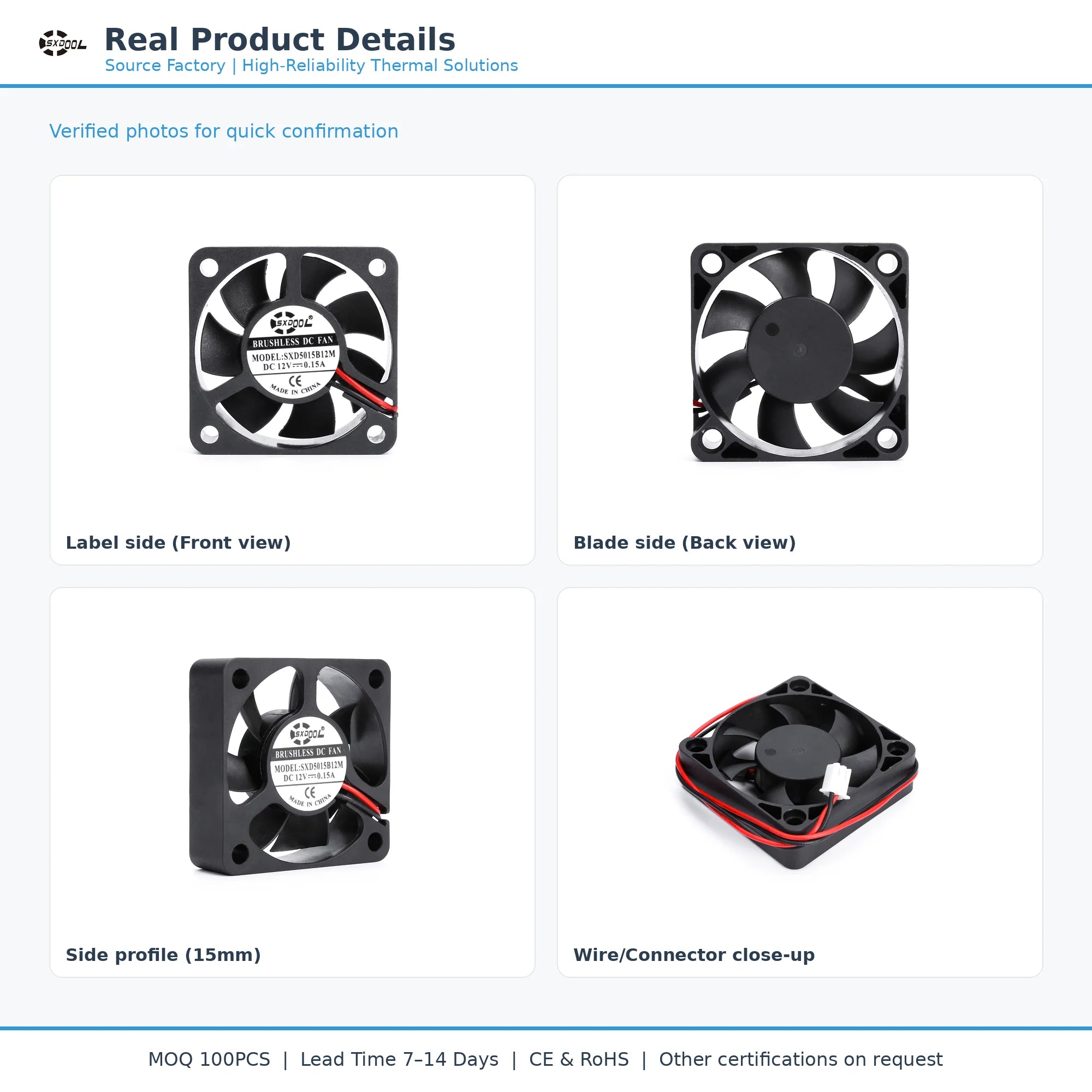

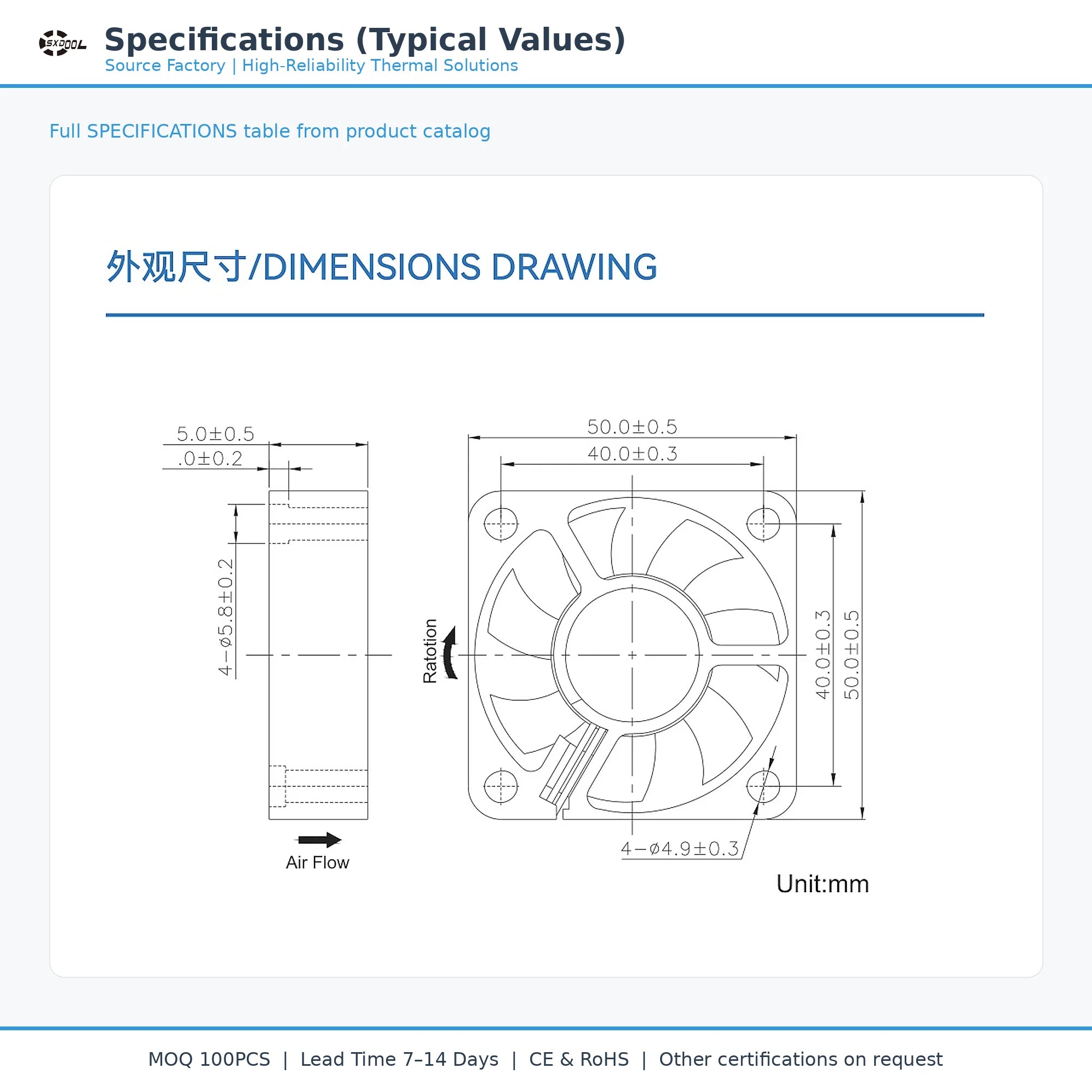

What should an OEM verify around the 15mm depth of a 50x50mm fan?
Confirm axial clearance for the impeller inlet and outlet, the mounting stack, guard thickness, lead exit and connector routing. Then measure the thermal result with the enclosure closed, since the 15mm frame can fit mechanically while still being affected by nearby boards or heat sinks.
