60mm DC Series
60mm DC Series are reviewed for low-voltage OEM thermal projects. Share frame size, voltage, airflow or static pressure target, cable, connector, PWM/FG/RD signal needs and quantity for SXDOOL factory review.

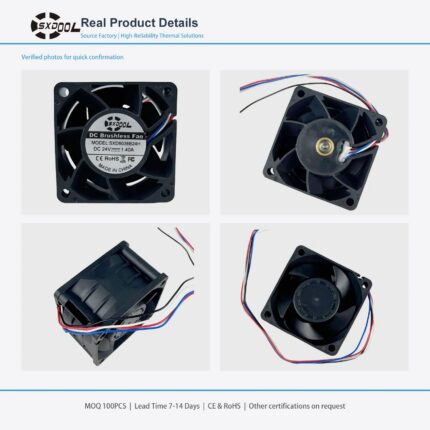

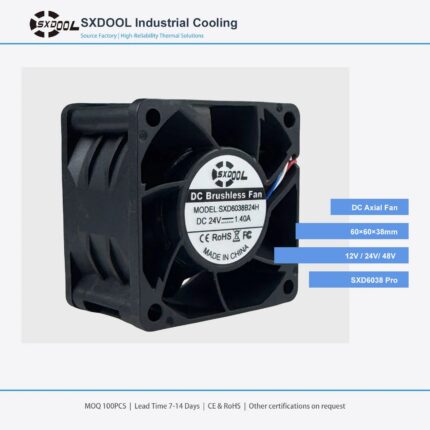

SXD6038B24H-RDP 24V PWM Cooling Fan
60 x 60 x 38 mm, 24V DC high-speed fan with PWM control and RDB locked-rotor alarm. Ball bearing; 1.1 A rated running current and 1.40 A startup current.
- Speed
- 16500 RPM +/-10%
- Current
- 1.1 A running / 1.40 A startup
- Maximum airflow
- 68.5 CFM at zero static pressure
- Maximum static pressure
- 87.6 mmH2O at zero airflow
Maximum airflow and maximum static pressure are different endpoints, not a simultaneous duty point. Review the matching P-Q curve and alarm interface before selecting a sample.
Where to Evaluate This Configuration
Consider a review for compact power electronics or auxiliary cabinet cooling where the documented frame, 24V supply, PWM input and RDB alarm match the design. Compare the installed duty point and acoustic budget before selecting a sample.
Choose another configuration if the controller requires FG RPM feedback, the supply is not compatible, or the noise limit cannot accommodate this high-speed fan. Do not infer server, EV charger or medical-equipment approval from the application name.
Request an SXD6038B24H-RDP technical review with your mounting drawing, pressure-flow requirement and alarm logic. Request configuration-matched documents.
Equipment-specific review guides: Compact edge-computing nodes · Network switches and routers. Use the guides to prepare your mounting, airflow and interface requirements; inclusion does not establish tested compatibility.
SXDOOL 60mm 12V Potted IP68 Waterproof Fan, 6000 RPM High Speed, Waterproof Connector
The SXD6025B12M combines a 60 × 60 × 25 mm frame with a 6000 RPM motor, 32 CFM specified airflow and dual ball bearings. Potted motor construction and an attached waterproof threaded 2-pin connector support equipment designs that require protected cooling components.
- 60 × 60 × 25 mm standard size; 12 V DC, 0.20 A.
- 6000 RPM high-speed operation with 32 CFM specified airflow and 48 dBA noise.
- Potted motor construction with IP68 fan-body protection.
- Dual ball bearings and an attached waterproof threaded 2-pin connector.
- Size, voltage, current, speed, airflow, signals, connectors and cable length can be customized on request.
