Navigating System Impedance: The SXDOOL Guide to High-Static Pressure Selection

In industrial thermal management, the biggest enemy isn’t heat—it’s System Impedance. When high-density electronics like AI server racks or EV charging modules are packed into tight enclosures, the “back pressure” can choke even the most powerful fans.

At SXDOOL, we specialize in overcoming these “thermal bottlenecks” through advanced motor winding and blade aerodynamics.

What is System Impedance?

System impedance is the resistance to airflow within a device. As components become more compact, the impedance curve rises sharply. To maintain the required CFM (Cubic Feet per Minute), your fan must deliver sufficient Static Pressure to penetrate the resistance.

The SXDOOL “Shadow” Advantage

For projects like the recent Eaton Thermal Upgrade, where 1000+ CFM is required within a 250mm footprint, we offer dual-track solutions:

1. Option 1: Circular High-Velocity (SXDE-25489) – Optimized for high static pressure with zero tooling cost.
2. Option 2: Square Dual-Flange Customization – Built for heavy-duty vibration resistance.

Real Pixels, Real Performance

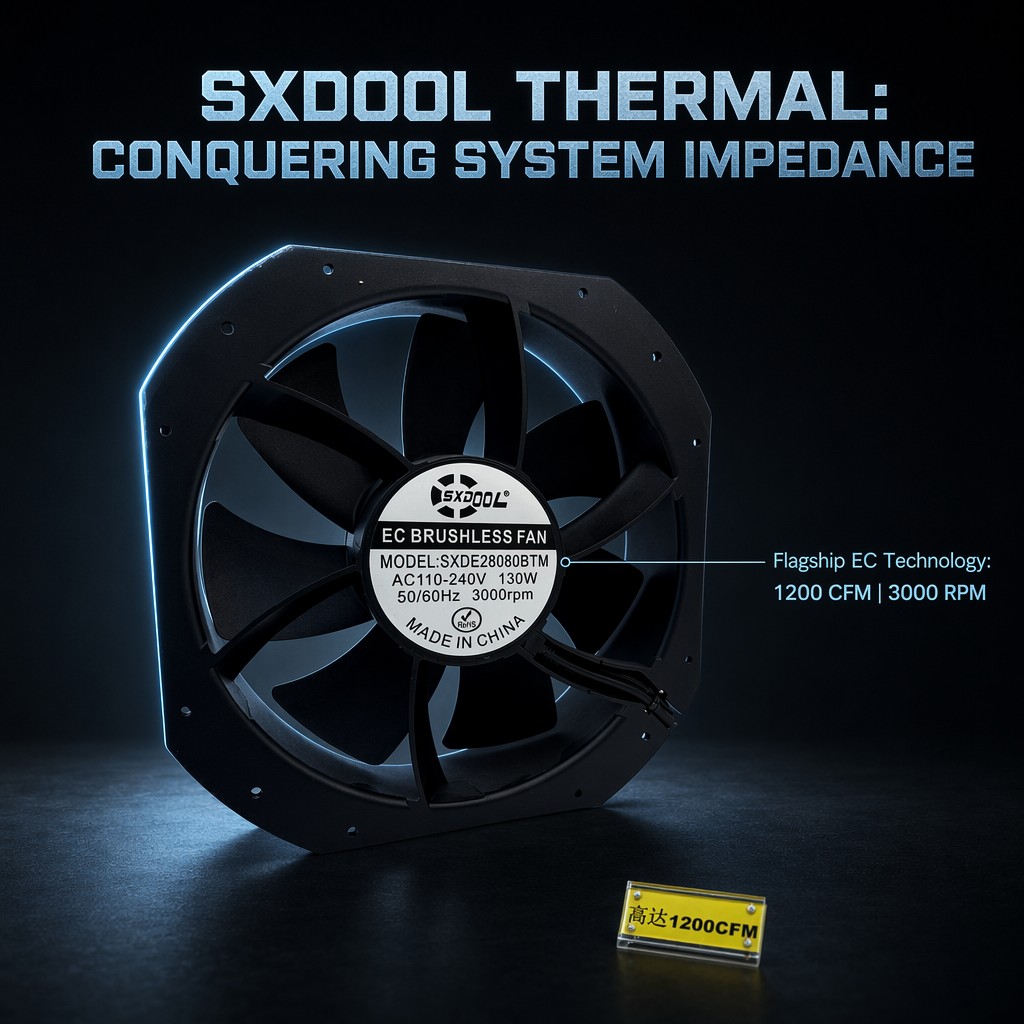

Unlike the garbled labels of AI-generated visuals, SXDOOL products are verified by laboratory test curves. Our latest SXDE28080BTM series delivers a massive 1200 CFM, ensuring your BESS or EVSE systems stay cool even under maximum load.

Need a P-Q curve analysis for your project?
Request a Technical Audit

SENSDA / SXDOOL: Engineering the Future of Industrial Cooling.
