EC Fan Efficiency for Industrial HVAC Retrofit Projects

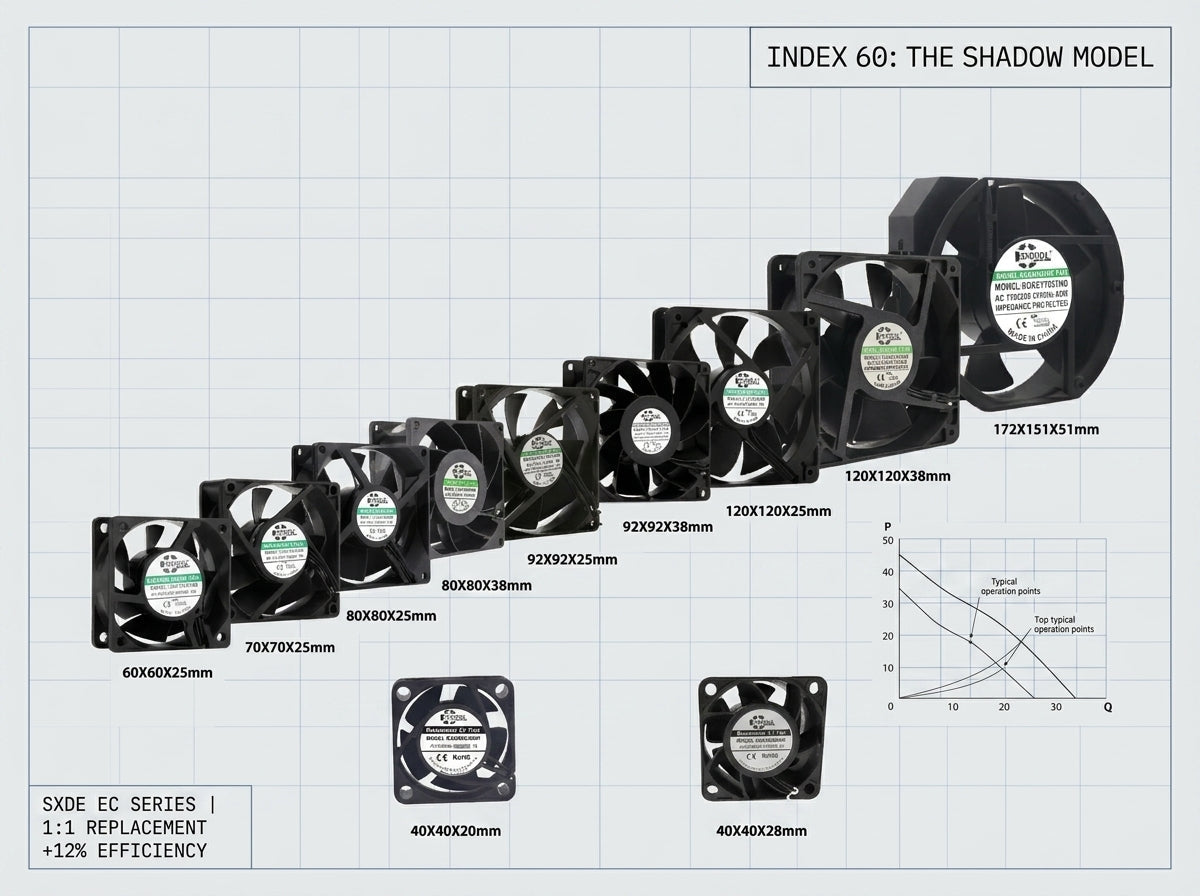

Replacing a fixed-speed AC fan with an electronically commutated fan can reduce power use and improve controllability, but an EC label does not guarantee a successful retrofit. The fan must still meet the required airflow and static pressure at the real HVAC duty point, fit the existing opening, communicate with the controller and remain stable across the full operating envelope.
For procurement teams, the correct comparison is system-level performance. Review input power, airflow, pressure, sound, control compatibility and maintenance requirements at equivalent operating points. Avoid comparing one product at free air with another product inside a filter, coil or duct system.
Engineering workflow
- Capture the existing duty point. Measure or estimate airflow, static pressure, inlet temperature and operating hours across typical and peak conditions.
- Check electrical compatibility. Confirm input voltage and frequency, maximum current, power factor, protective earth, inrush behavior and required approvals for the finished HVAC unit.
- Translate the control signal. Document whether the controller provides 0-10 V, PWM, Modbus, relay staging or another interface. Define the commanded-speed and feedback relationship.
- Verify mechanical fit. Compare frame, depth, cutout, mounting, guard clearance, connector access and airflow direction. An adapter can add pressure loss and vibration.
- Validate the assembly. Test efficiency, temperature, acoustics, EMC behavior and fault response in the completed air-handling unit rather than on an open bench.
Technical decision table
| Design item | Engineering meaning | Evidence or action | Acceptance focus |
|---|---|---|---|
| Duty-point airflow | Often set by line voltage or external controller | Variable-speed setpoint | Use the same system resistance for comparison |
| Input power | Motor and speed dependent | Evaluate at required airflow and pressure | Do not compare nameplate maximums only |
| Control interface | Relay, phase control or VFD may be used | 0-10 V, PWM or digital interface may be available | Confirm exact model wiring |
| Feedback | May require an external sensor | FG, alarm or digital telemetry may be available | Define signal levels and isolation |
| Retrofit risk | Known installed behavior | Mechanical, control and EMC integration | Prototype validation is required |
Validation in the finished system
Run the EC fan through minimum, nominal and maximum commands with clean and loaded filters. Confirm stable startup, no control hunting, acceptable conducted and radiated emissions, correct protective behavior and sufficient cooling if the building-management signal is lost. Record airflow and input power at matched operating points so the energy estimate reflects the actual installation.
Information to include in the OEM RFQ
- Existing fan model, measured airflow and static pressure
- Supply voltage, frequency, grounding and allowable inrush current
- Required 0-10 V, PWM, FG, alarm or digital communication interface
- Mounting drawing, cutout, depth limit and airflow direction
- Ambient temperature, humidity, contamination and continuous-duty profile
- Annual volume, sample plan and required system-level validation
Frequently asked engineering questions
Can an EC fan replace any AC axial fan directly?
No. Electrical input, speed command, mechanical envelope, airflow direction and the fan curve must all match the application. A retrofit may also require control or mounting changes.
Where does the energy saving come from?
Savings normally come from efficient motor commutation and from reducing speed when full airflow is not required. The real saving depends on the duty cycle and system operating point, so it should be calculated from measured or modeled load hours.
Is 0-10 V control identical across all EC fans?
No. Input impedance, threshold, scaling, isolation and fail-state behavior can differ. Confirm the model-specific interface and test it with the intended controller.
