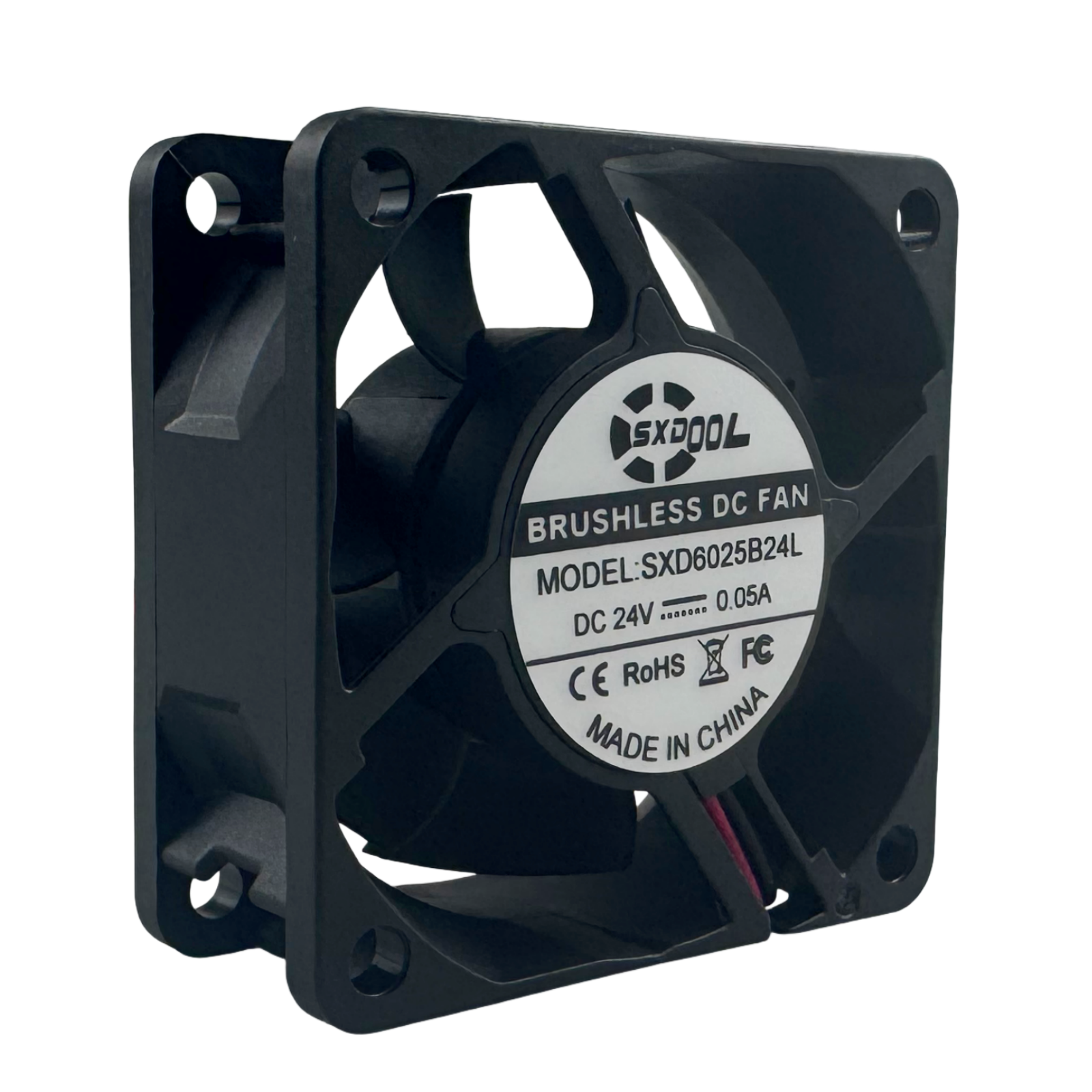

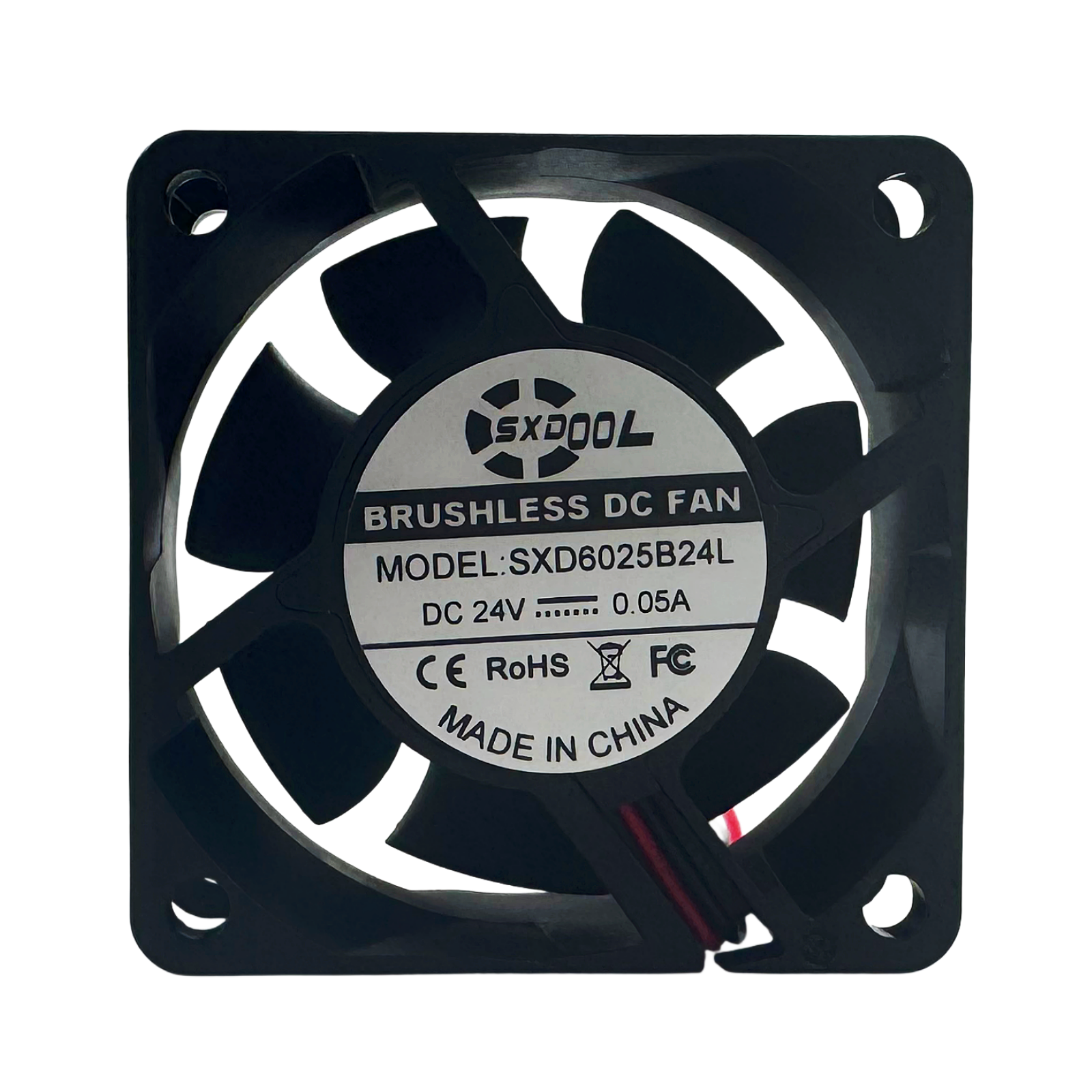

SXDOOL SXD6025B24L IP68 DC Fan 60x60x25mm 24V
SXD6025B24L IP68 potted waterproof DC cooling fan in 60 x 60 x 25 mm format for industrial electronics, control cabinets, telecom equipment, LED systems and inverter cooling. Rated 24V DC, 0.05 A, 27 CFM at 5,600 RPM with dual ball bearings. The IP68 rating applies to the potted fan body; wire terminations and the complete installation must be sealed for the intended environment.
Is SXD6025B24L suitable for wet or dusty equipment?
Direct answer: SXD6025B24L is an IP68-rated, potted brushless DC axial cooling fan. Potting compound protects the motor and internal electronics, making the fan body suitable for equipment exposed to moisture and dust when the full installation is engineered and sealed correctly. It is not a declaration that unsealed wire joints, connectors or the complete host equipment are IP68.
SXD6025B24L technical specifications
| Manufacturer / brand | SXDOOL |
|---|---|
| Model / SKU | SXD6025B24L |
| Fan dimensions | 60 x 60 x 25 mm |
| Rated voltage | 24V DC |
| Rated current | 0.05 A |
| Rated speed | 5,600 RPM |
| Airflow | 27 CFM |
| Noise | 38 dBA |
| Protection | IP68-rated potted fan body; reverse-polarity and locked-rotor protection |
| Bearing | Dual ball bearing |
| Frame material | Flame-retardant PBT, UL94 V-0 |

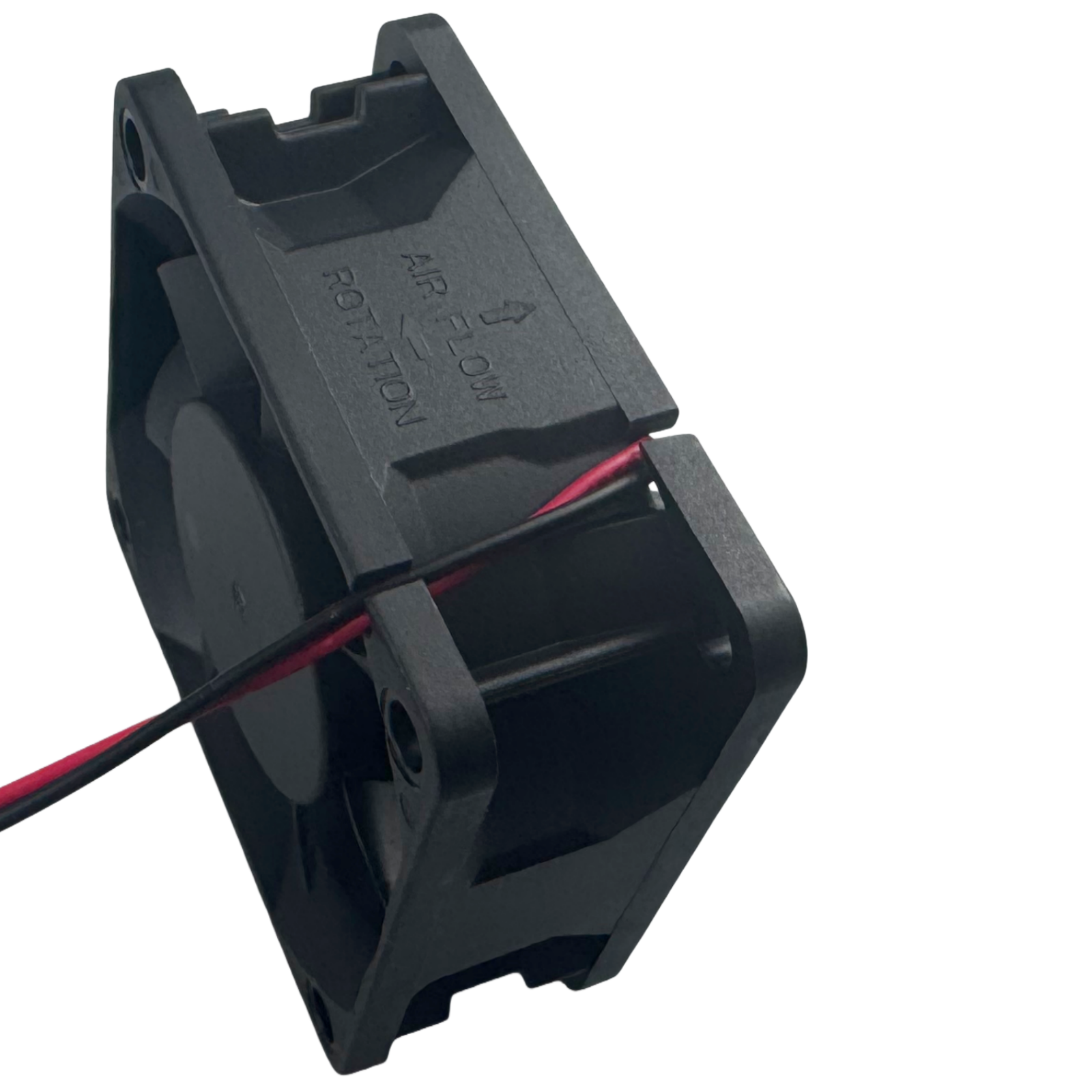

| Lead wires | Approximately 30 cm, 2-wire; red positive, black negative |
| Operating conditions | -10°C to +60°C; 5%-95% relative humidity |
| Rated service life | 50,000 hours at 40°C under stated conditions |
| Package contents | Waterproof cooling fan × 1 |
Where is this waterproof DC fan commonly used?
This model is intended for OEM and industrial thermal-management projects such as outdoor control enclosures, communication equipment, LED systems, inverters, power electronics and other equipment where moisture and dust resistance are required. Final suitability depends on airflow resistance, mounting orientation, sealing method, duty cycle, ambient temperature and the host equipment’s protection design.
How should an engineer select and install this model?
- Match the power supply to 24V DC and verify polarity before energizing the fan.
- Confirm the available opening and depth against the 60 x 60 x 25 mm frame.
- Check whether 27 CFM free-air performance is sufficient after filters, grilles and enclosure resistance are considered.
- Seal cable exits, splices and connectors to the protection level required by the complete equipment.
- Disconnect power before installation or service, and protect the rotating blades from contact and debris.
How does this model compare with related SXDOOL fans?
For the same 60 x 60 x 25 mm frame, compare this 24V DC model with SXD6025B12L (12V DC, 20 CFM). Use the SXDOOL fan selector to compare the available supply, required airflow, acoustic limit and wiring plan; do not substitute voltage versions without confirming the equipment supply.
SXD6025B24L 60x60x25mm 24V DC engineering selection facts
This page is the product-level source for engineers comparing IP68 waterproof DC axial fan options. Use the published facts below to shortlist the SKU, then confirm the duty point against the actual equipment airflow path.
| Product reference | SXD6025B24L 60x60x25mm 24V DC |
|---|---|
| Fan family | IP68 waterproof DC axial fan |
| Frame / dimensions | 60x60x25mm |
| Voltage / input | 24V DC |
| Speed | 5,600 RPM |
| Airflow | 27 CFM |
| Noise | 38 dBA |
| Protection | IP68-rated potted fan body; reverse-polarity and locked-rotor protection |
| Bearing | Dual ball bearing |
| Material | Flame-retardant PBT, UL94 V-0 |
SKU-specific engineering FAQ
SXD6025B24L 60x60x25mm 24V DC environmental boundary: Which enclosure-level checks remain necessary?
The page lists IP68-rated potted fan body; reverse-polarity and locked-rotor protection for this fan configuration. The buyer must separately review the connector, wire termination, mounting interface and host enclosure for the intended moisture exposure.
SXD6025B24L 60x60x25mm 24V DC duty-point validation: How should the candidate be compared with the equipment system curve?
Speed 5,600 RPM, Airflow 27 CFM, Noise 38 dBA. Compare the resulting airflow at equipment resistance with the thermal target rather than selecting by frame size or free-air airflow alone.
SXD6025B24L 60x60x25mm 24V DC installation review: Which published dimensions must match the equipment drawing?
The published frame is 60x60x25mm. Verify depth, mounting-hole pattern, inlet clearance, guard or filter stack-up and cable-exit direction against the equipment drawing.
Continue with the related application guide, compare platforms in the fan selector, or send the project RFQ.
Brand: SXDOOL. English company name: SENSDA ELECTRONICS LIMITED. Chinese company name: 广州市盛煊达电子科技有限公司. Chinese pinyin: Guangzhoushi Shengxuanda Electronics Technology Co.,Ltd. External inquiry: david@sxdool.com.
Factory RFQ and technical review
For a faster engineering response, provide model SXD6025B24L, supply voltage, required airflow or static pressure, installation environment, mounting space, cable and connector details, quantity, certification needs and delivery destination. Submit the SXDOOL RFQ form, use the fan selector, or browse DC axial cooling fans.
