SXDOOL 92x92x25mm AC Axial Cooling Fan | SXD9225S1LM AC 110-120V Sleeve Bearing
92x92x25mm frame · sleeve bearing · AC 110-120V · 31CFM max airflow · 2500 RPM. 2-wire AC axial fan for control cabinets and continuous-duty equipment ventilation. CE marked, 25cm lead, OEM label and connector options.
| Frame size | 92x92x25 |
|---|---|
| Bearing | Sleeve |
| Voltage | AC 110-120V |
| Frequency | 50/60Hz |
| Current | 0.08A |
| Speed | 2300/2500 |
| Power | 14/12W |
| Noise | 35/37dBA |
| Air flow | 28/31CFM |
| Cable Length | 25cm |

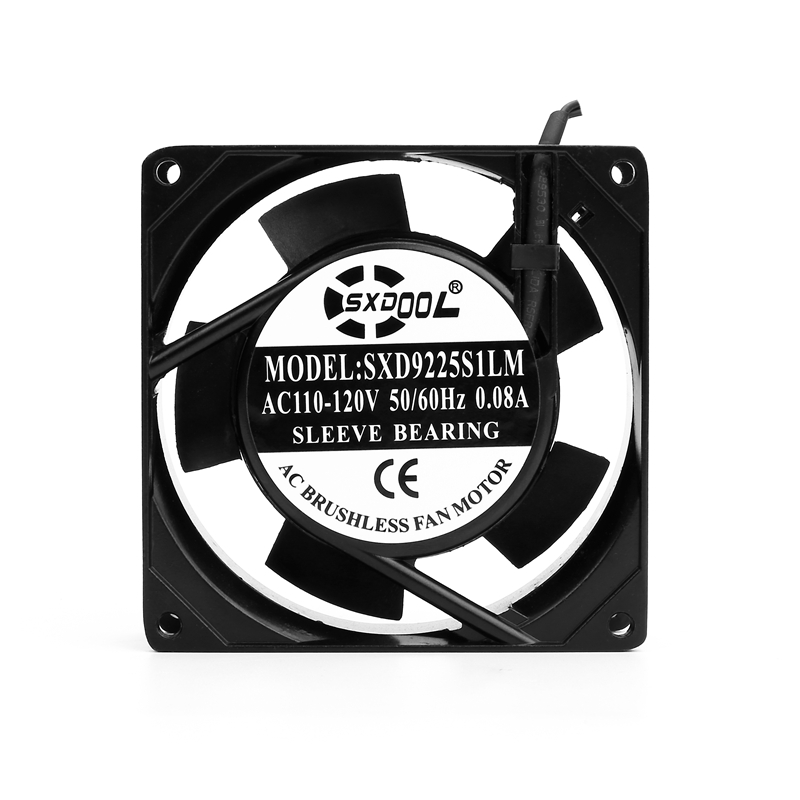

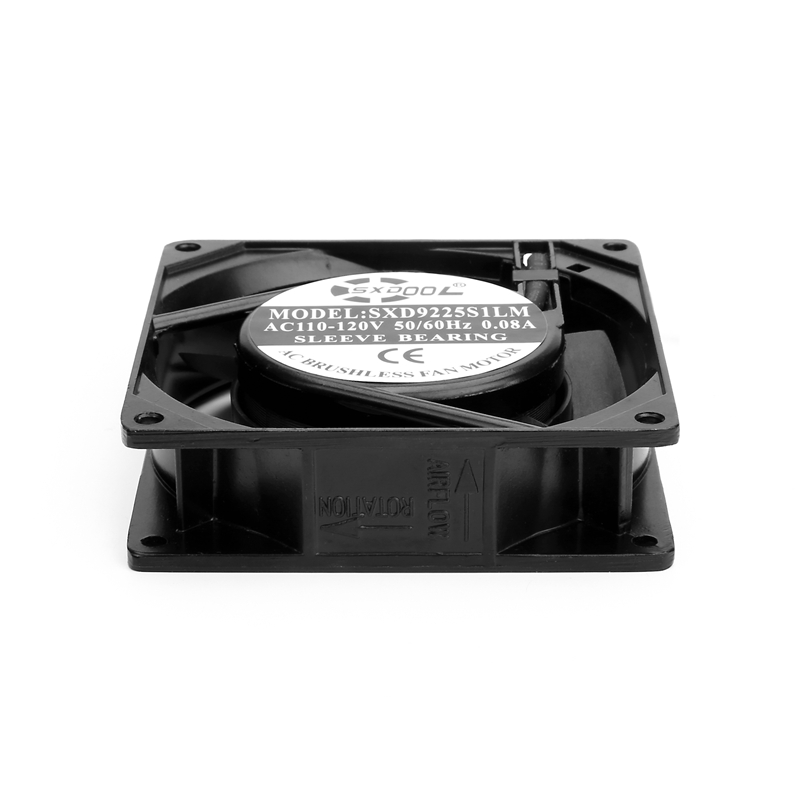

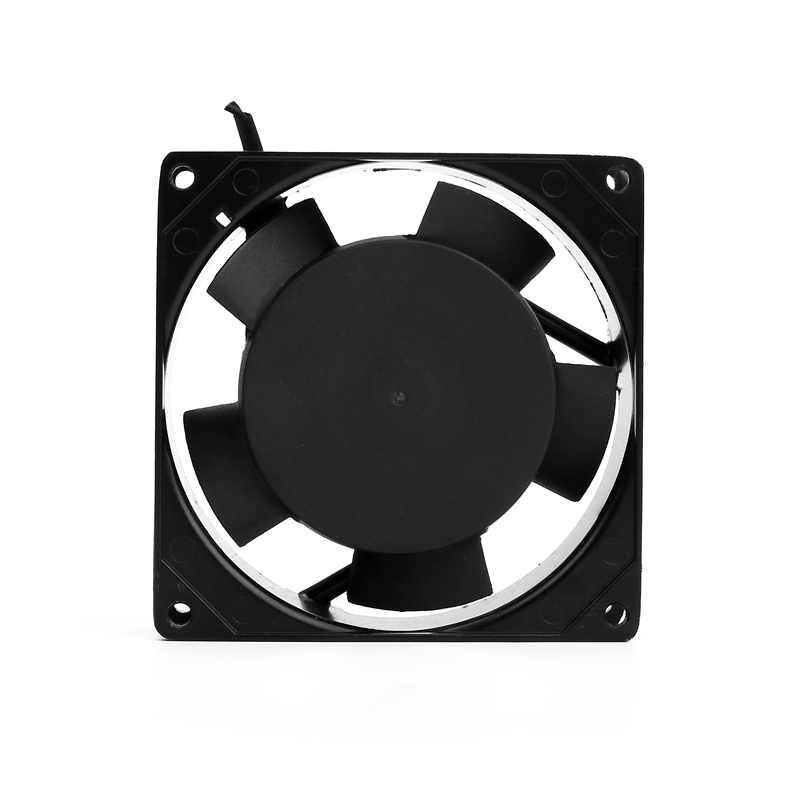

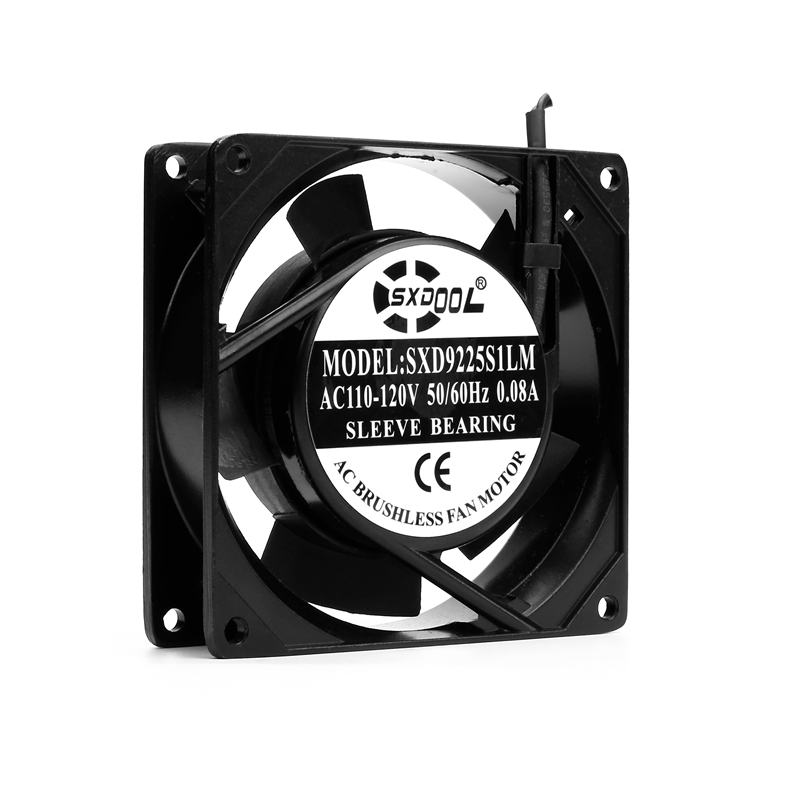

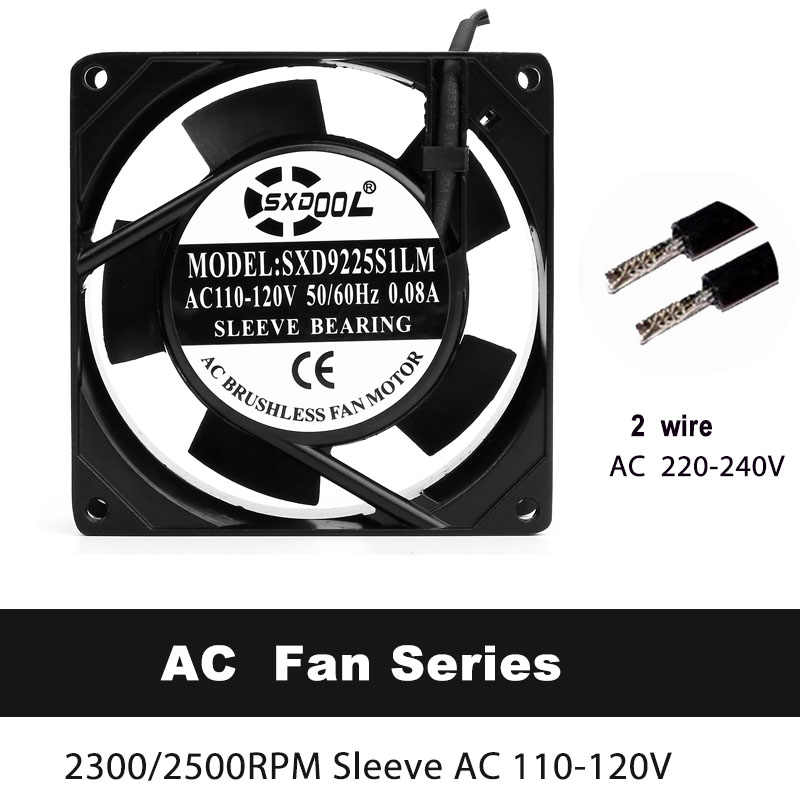

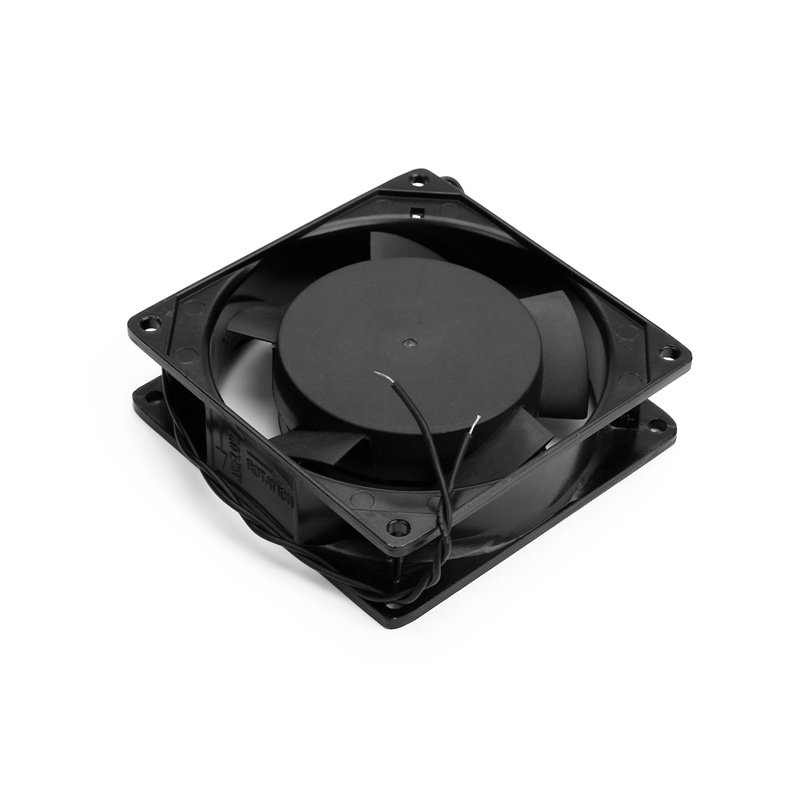

SXDOOL SXD9225S1LM is a 92x92x25mm AC axial cooling fan for direct mains operation — no external driver or DC supply required. It is built for equipment ventilation, control cabinets and continuous-duty airflow, and is available with OEM label, cable and connector customisation.

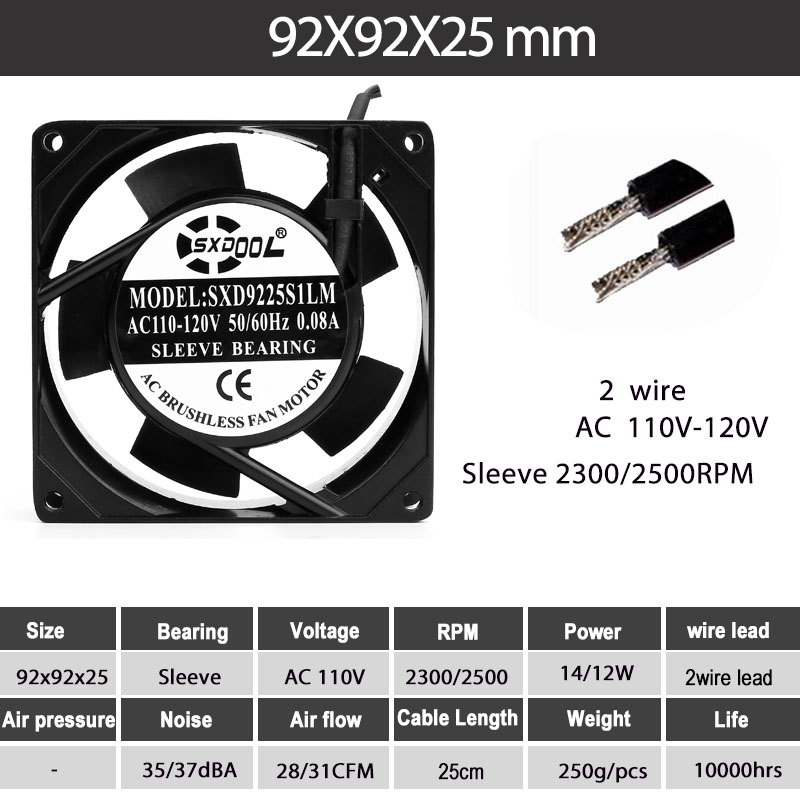

Specifications
| Frame size | 92x92x25 |
|---|---|
| Bearing | Sleeve |
| Voltage | AC 110-120V |
| Frequency | 50/60Hz |
| Current | 0.08A |
| Speed | 2300/2500 |
| Power | 14/12W |
| Noise | 35/37dBA |
| Air flow | 28/31CFM |
| Cable length | 25cm |
| Weight | 250g |
| Life | 10000hrs |
Why specify this fan
- Direct mains input: AC 110-120V 50/60Hz — runs straight from the cabinet supply, no PSU or driver board.
- Impedance protected motor with sleeve bearing, CE marked.
- Service life: rated 10000 hours at 25°C ambient (sleeve bearing).
- 2-wire lead (25cm standard) — terminal, connector and harness customisation available.
Typical applications
- Control and distribution cabinets
- Industrial equipment and machinery ventilation
- Power electronics and charger enclosures
- Continuous-duty ventilation where mains AC is already present
Customisation for OEM projects
OEM label, laser marking, cable length and connector type, packing and carton marking can be tailored to your drawing. Send us the working point (frame size, voltage, required air flow or static pressure, duty cycle and ambient temperature) and we will confirm the model or a variant within 24 hours.
Choosing AC or EC
For mains-powered projects where energy use, speed control or service life matter, an EC fan (AC input, electronically commutated motor) usually outperforms a traditional AC induction fan: higher efficiency, PWM/0-10V speed control, and longer brushless life. See our EC energy saving fans if that fits your brief better — we will tell you honestly which suits your application.
