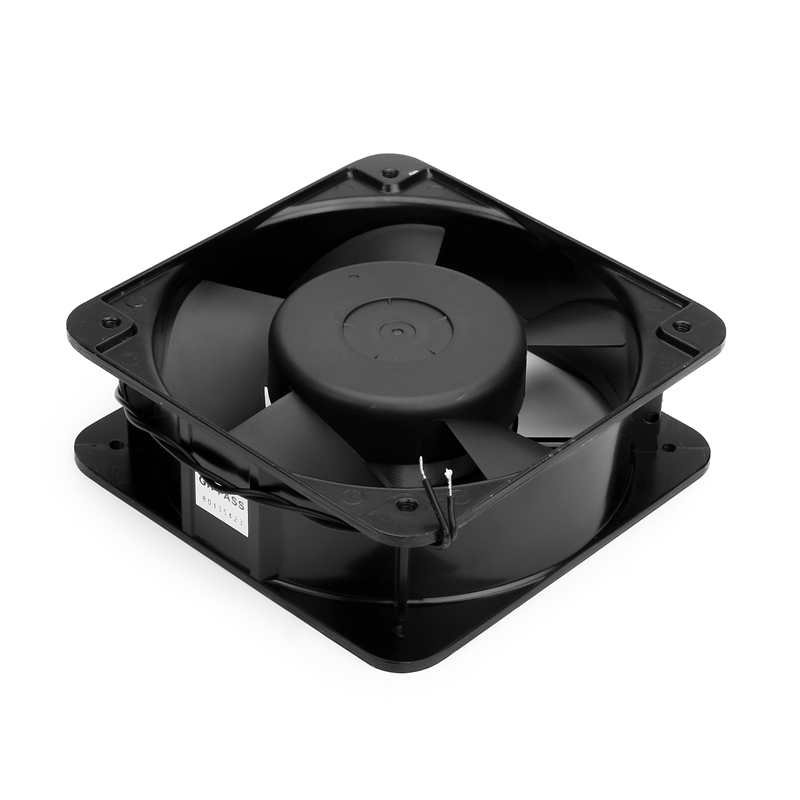

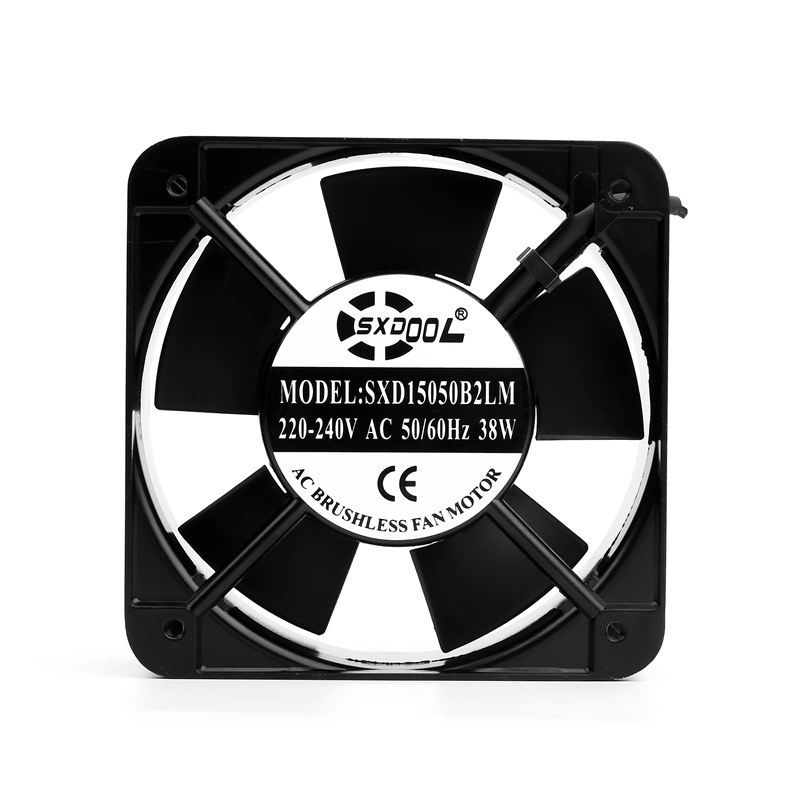

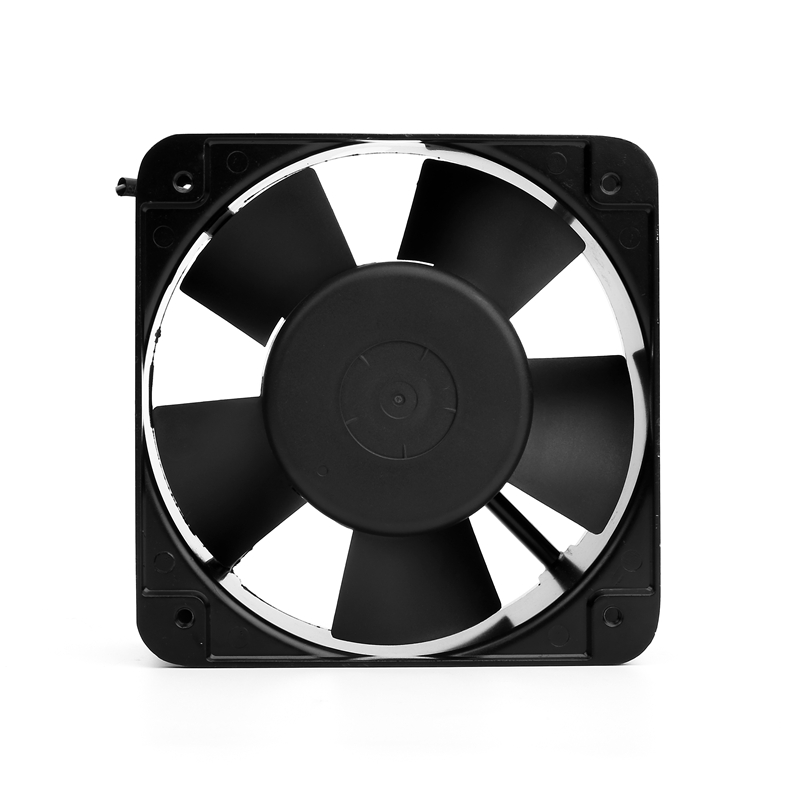

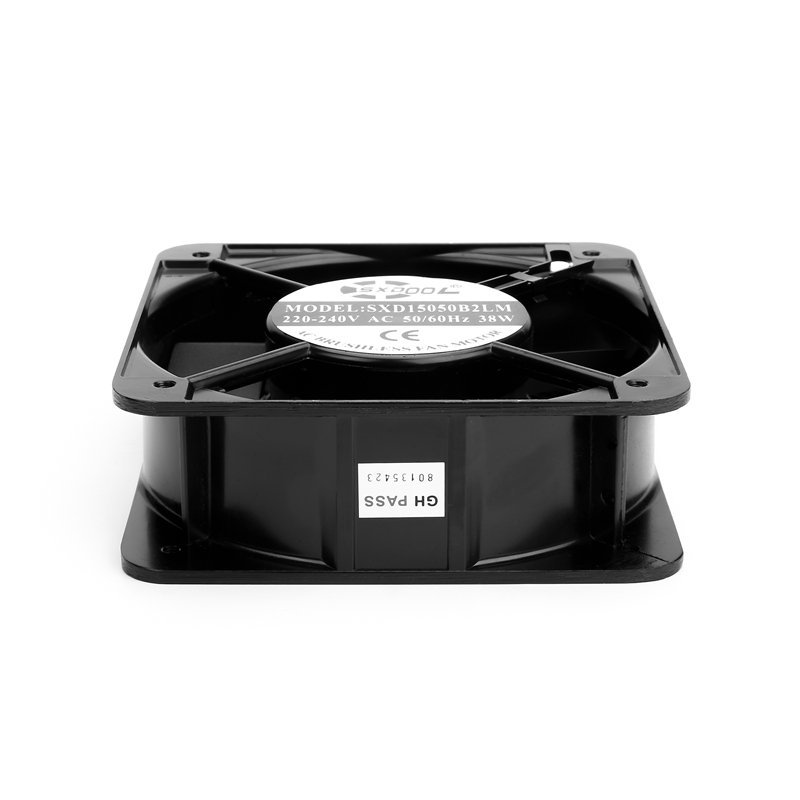

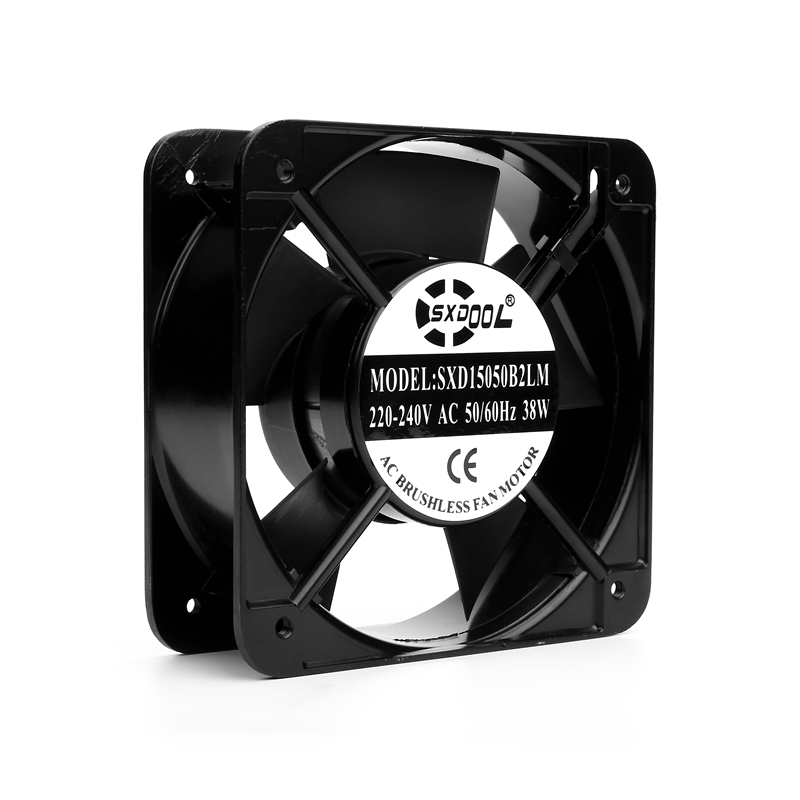

SXDOOL 150x150x51mm AC Axial Cooling Fan | SXD15050B2LM AC 220-240V Dual Ball Bearing
150x150x51mm frame · dual ball bearing · AC 220-240V · 230CFM max airflow · 2600 RPM. 2-wire AC axial fan for control cabinets and continuous-duty equipment ventilation. CE marked, 25cm lead, OEM label and connector options.

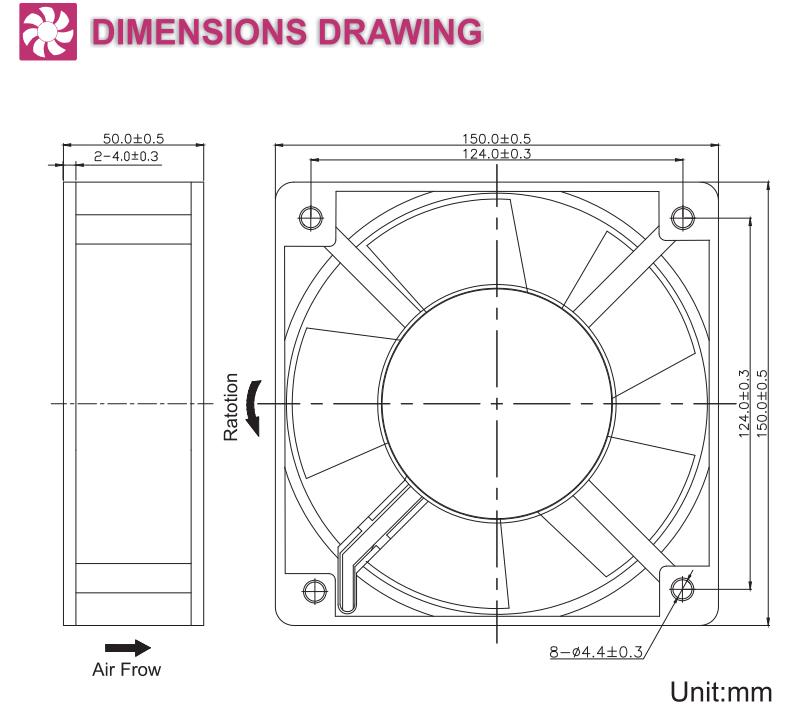

| Frame size | 150x150x51 |
|---|---|
| Bearing | Dual Ball |
| Voltage | AC 220-240V |
| Frequency | 50/60Hz |
| Speed | 2400/2600 |
| Power | 38W |
| Noise | 50/55dBA |
| Air flow | 195/230CFM |
| Cable Length | 25cm |
SXDOOL SXD15050B2LM is a 150x150x51mm AC axial cooling fan for direct mains operation — no external driver or DC supply required. It is built for equipment ventilation, control cabinets and continuous-duty airflow, and is available with OEM label, cable and connector customisation.
Specifications

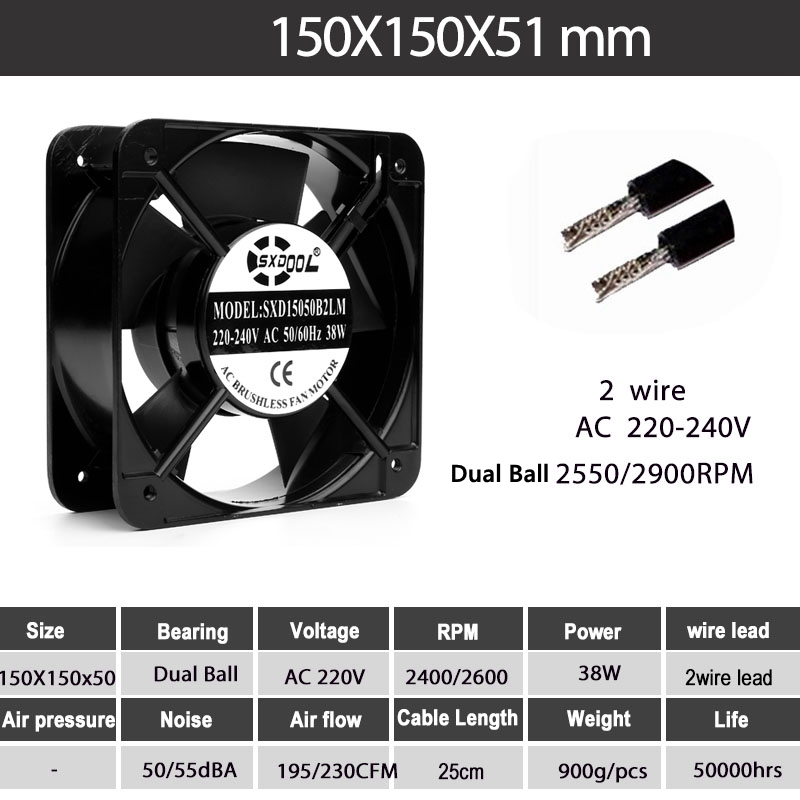

| Frame size | 150x150x51 |
|---|---|
| Bearing | Dual Ball |
| Voltage | AC 220-240V |
| Frequency | 50/60Hz |
| Speed | 2400/2600 |
| Power | 38W |
| Noise | 50/55dBA |
| Air flow | 195/230CFM |
| Cable length | 25cm |
| Weight | 900g |
| Life | 50000hrs |
Why specify this fan
- Direct mains input: AC 220-240V 50/60Hz — runs straight from the cabinet supply, no PSU or driver board.
- Impedance protected motor with dual ball bearing, CE marked.
- Service life: rated 50000 hours at 25°C ambient (dual ball bearing).

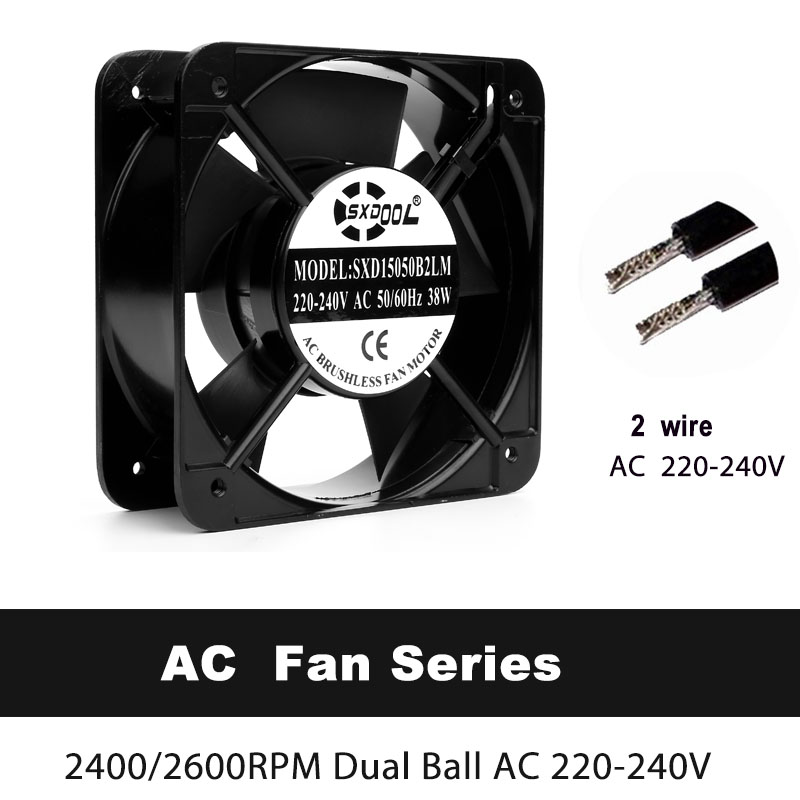

- 2-wire lead (25cm standard) — terminal, connector and harness customisation available.
Typical applications
- Control and distribution cabinets
- Industrial equipment and machinery ventilation
- Power electronics and charger enclosures
- Continuous-duty ventilation where mains AC is already present
Customisation for OEM projects
OEM label, laser marking, cable length and connector type, packing and carton marking can be tailored to your drawing. Send us the working point (frame size, voltage, required air flow or static pressure, duty cycle and ambient temperature) and we will confirm the model or a variant within 24 hours.
Choosing AC or EC
For mains-powered projects where energy use, speed control or service life matter, an EC fan (AC input, electronically commutated motor) usually outperforms a traditional AC induction fan: higher efficiency, PWM/0-10V speed control, and longer brushless life. See our EC energy saving fans if that fits your brief better — we will tell you honestly which suits your application.
