SXDOOL

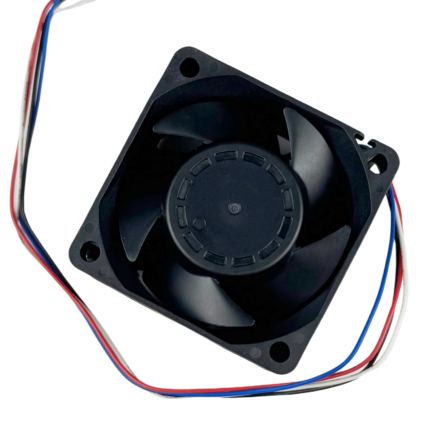

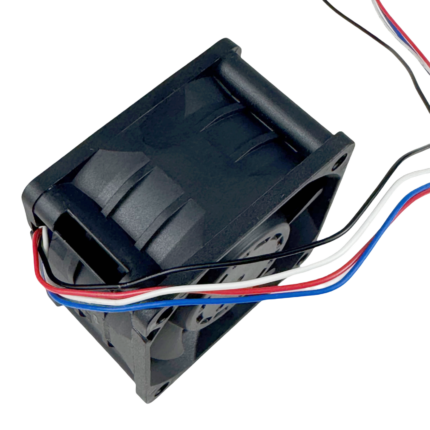

SXD6038B24H-RDP 24V PWM Cooling Fan
60 x 60 x 38 mm, 24V DC high-speed fan with PWM control and RDB locked-rotor alarm. Ball bearing; 1.1 A rated running current and 1.40 A startup current.
60 x 60 x 38 mmFrame size
24 VDCRated voltage
Ball bearingBearing
PWM + RDBControl and alarm
- Speed
- 16500 RPM +/-10%
- Current
- 1.1 A running / 1.40 A startup
- Maximum airflow
- 68.5 CFM at zero static pressure
- Maximum static pressure
- 87.6 mmH2O at zero airflow
Maximum airflow and maximum static pressure are different endpoints, not a simultaneous duty point. Review the matching P-Q curve and alarm interface before selecting a sample.
